Model

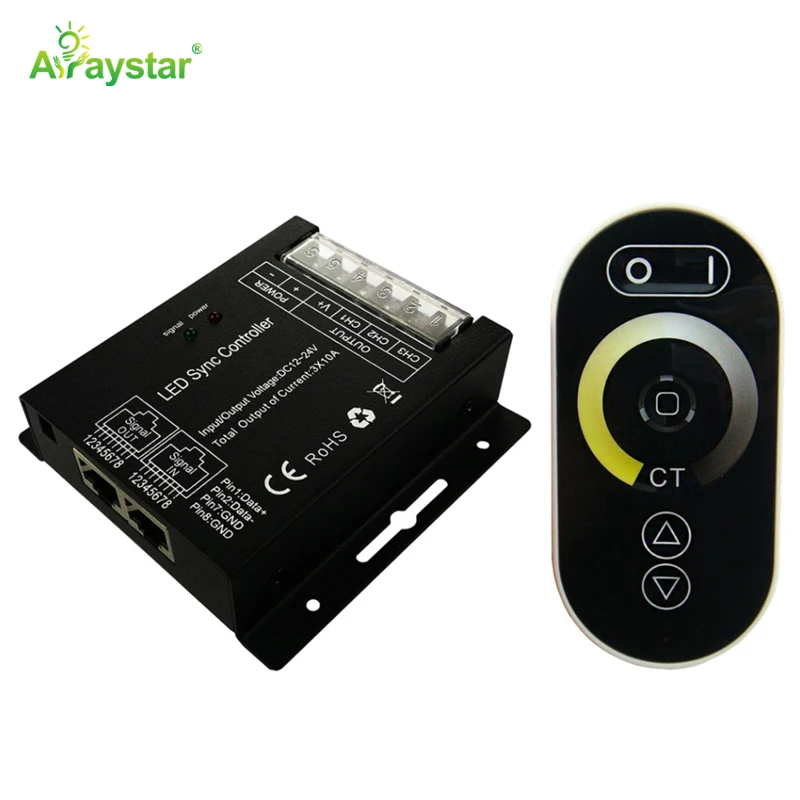

ART-LC800-CCT

Supply Voltage

DC 12–24V

Static Power Consumption

<1W

Connection Mode

Common anode

Output Channels

2 channels (CH1:CW / CH2:WW)

Output Current

≤10A per channel

Max Output Power

12V:240W; 24V:480W

PWM Frequency

400Hz

Gray Scale

256 levels

Speed Levels

100 grades

Working Modes

7 modes (3 static + 4 dynamic)

RF Frequency

433.92MHz

Remote Control Distance

Up to 20m

Memory Function

Supported (power-off memory)

Synchronization

RJ45 network sync (≤100m)

Working Temperature

-20°C ~ +60°C

Controller Size

L91×W88×H24 mm

Package Size

L108×W108×H50 mm

Net Weight

290g

Gross Weight

320g

Remote Battery

DC 4.5V (AAA×3)

Remote Size

L113×W55×H22 mm

Remote Weight

90g

Certification

CE, RoHS

Protection

Non-waterproof; avoid short circuit & reverse polarity
