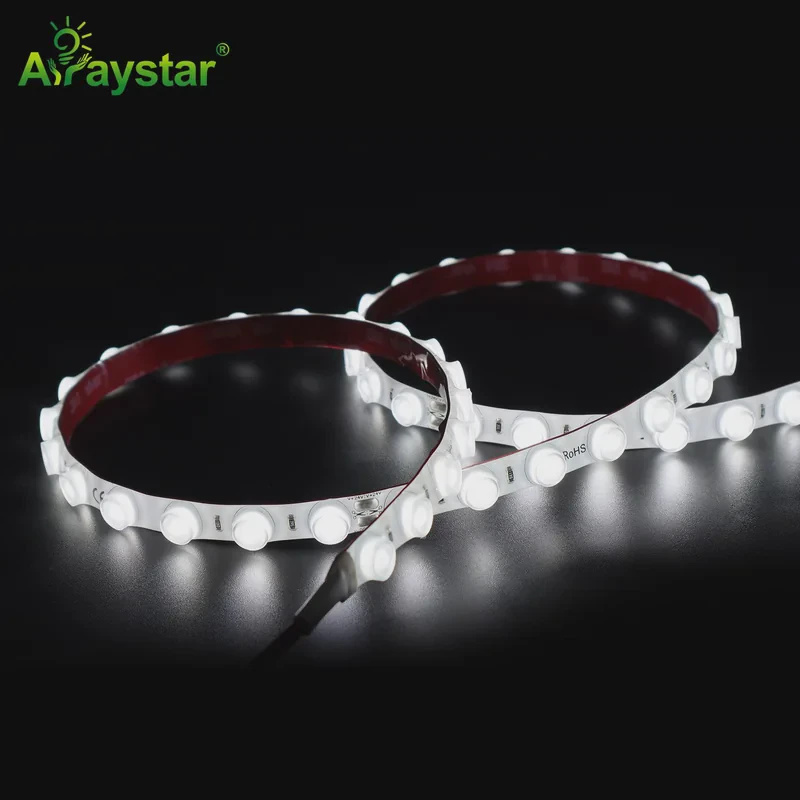

ShenZhen Arraystarled LTD is the leading and professional LED Strip factory located in ShenZhen. established in 2010, we specialized in LED strip light development and manufacture. With a factory 5,000 square meters and 5 automatic production lines, we focus on LED strip more than 15 years. Our main products are SMD LED strip light, COB LED strip light, LED neon light and LED wall washer strip light.etc.
More than 15 years of experience in LED strip lights and industrial LED lighting, focus on new products innovation.
We have R&D team, marketing team and sales team so that we quick response to customers needs.
We are a ISO 9001:2015 certified company. All our products are CE-, RoHS-, and ERP-certified, with some also UL-listed. We have a long-term plan for the company's future.
We have a fixed product range, focusing on our own product production and innovation. We welcome discussions about potential product development opportunities.
We respect every customer order and guarantee on-time delivery. For any product quality issues, we provide after-sales service, we help customer to win project and solve technical problems.
We have IQC, QC, FQC throughout the production process. All products on the production line are carefully manufactured following strict SOP.

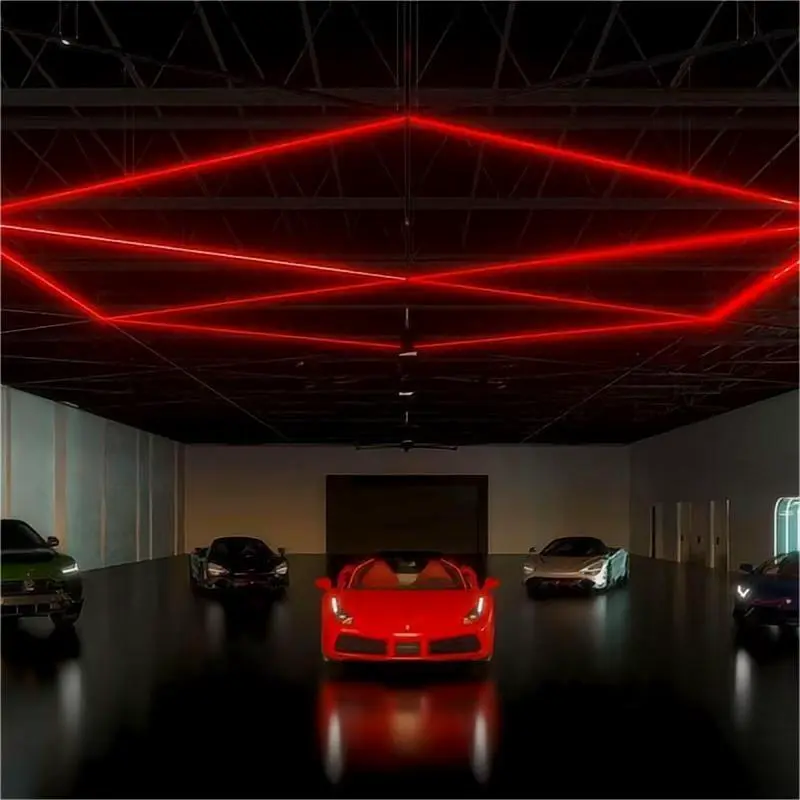

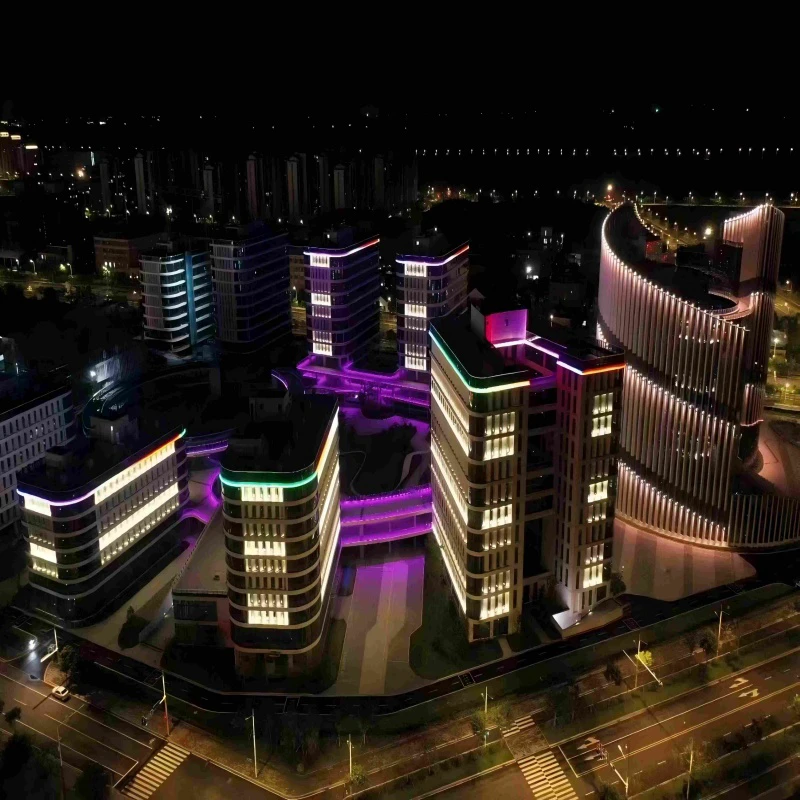

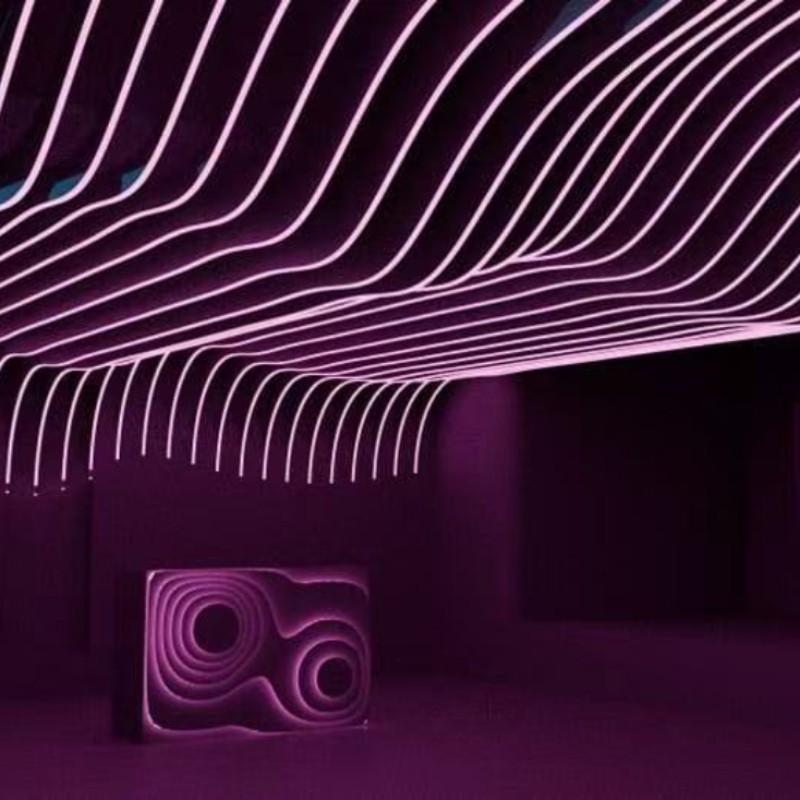

Arraystarled provides lighting solutions for outdoor building, museum, yacht, sauna room, villa, hotel, furniture etc.
Straight answers for importers and distributors — from LED strip specs to MOQ, OEM and shipping.

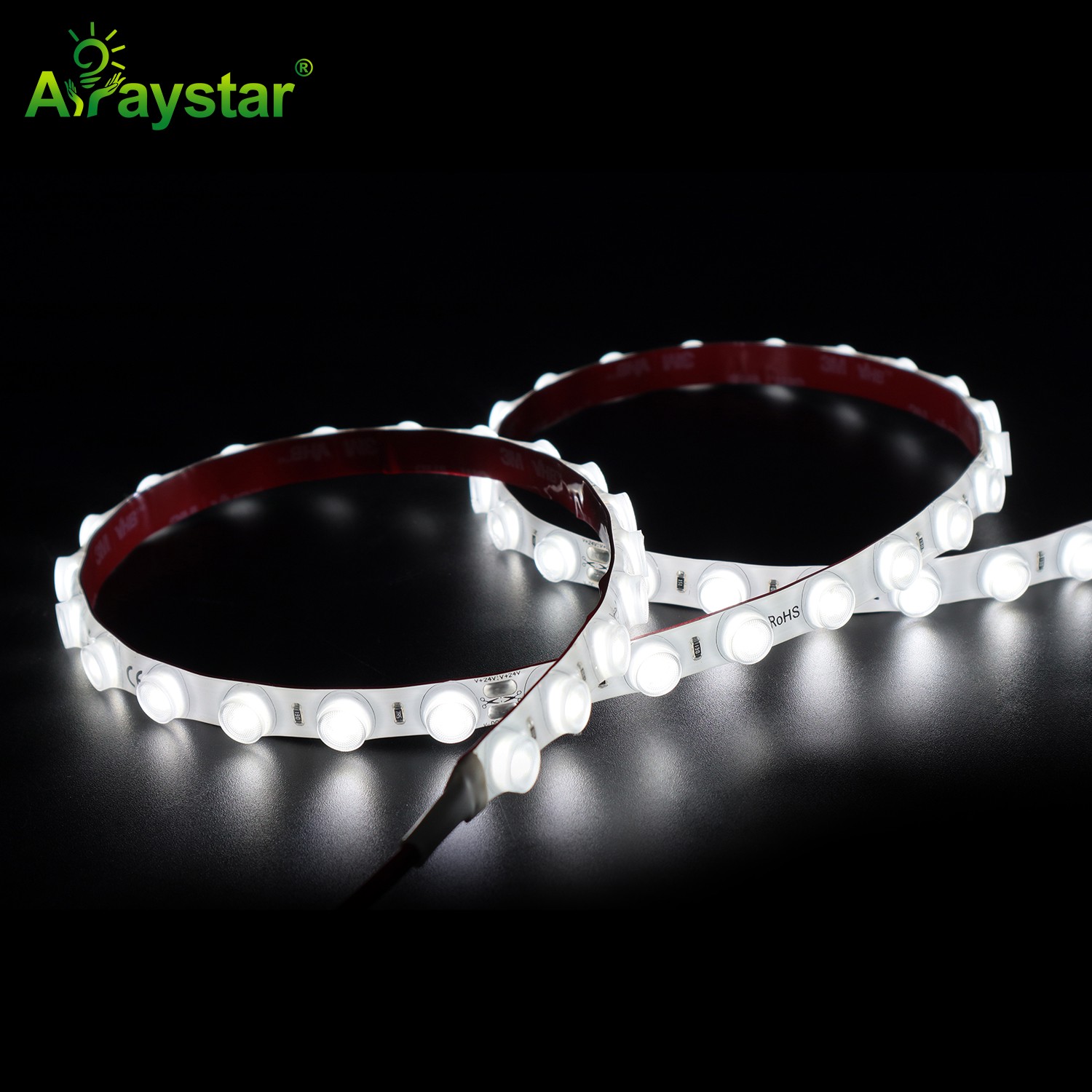

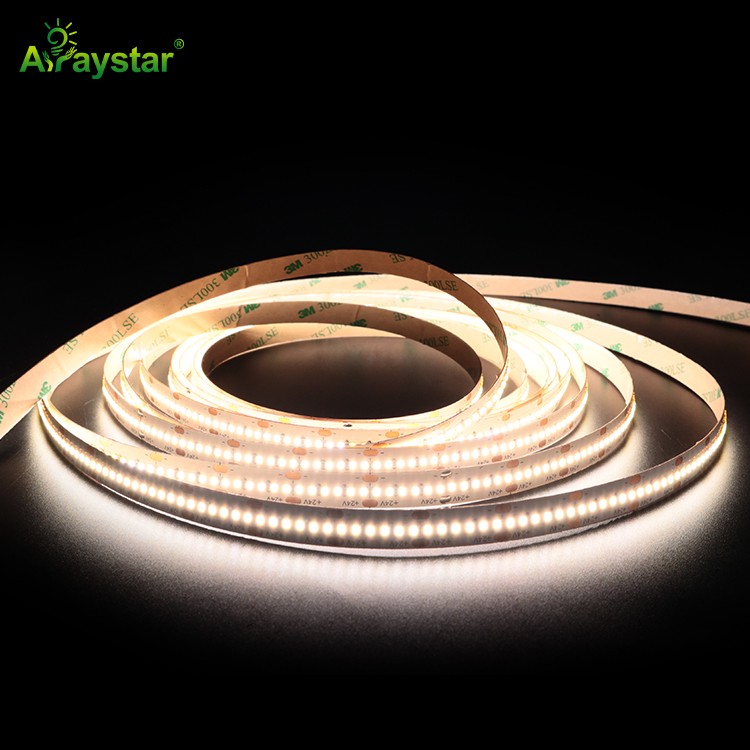

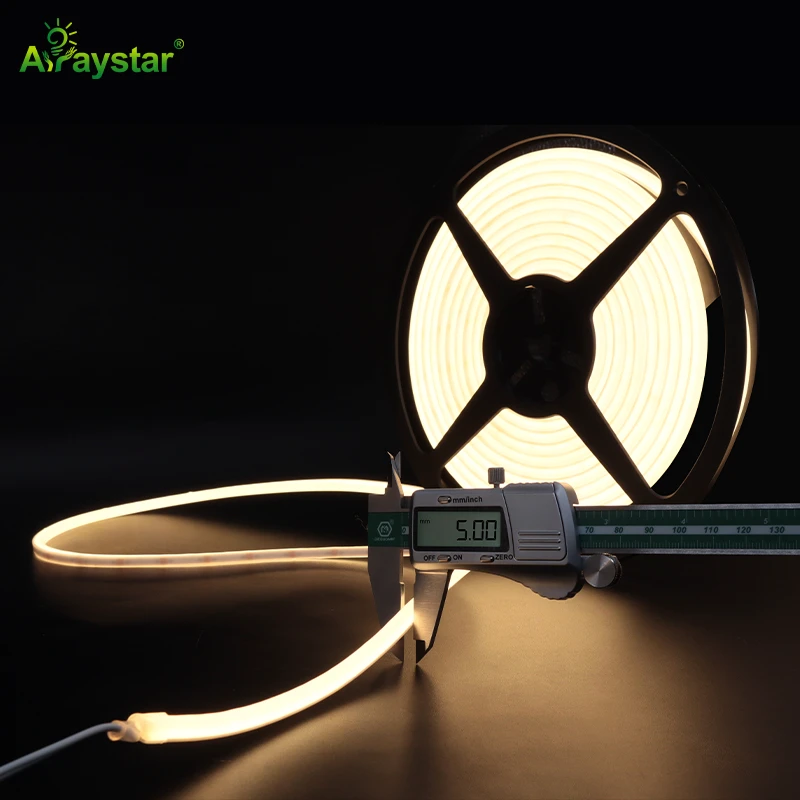

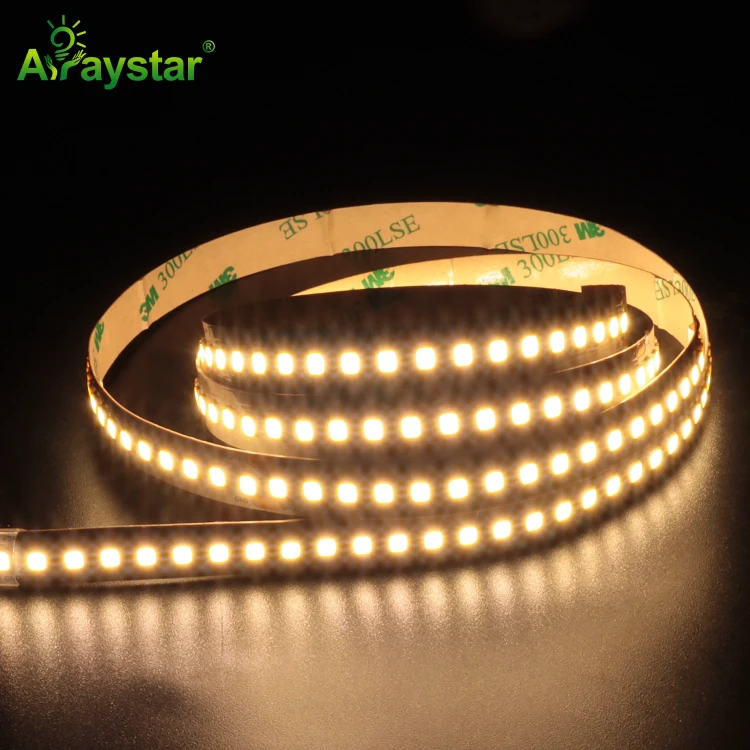

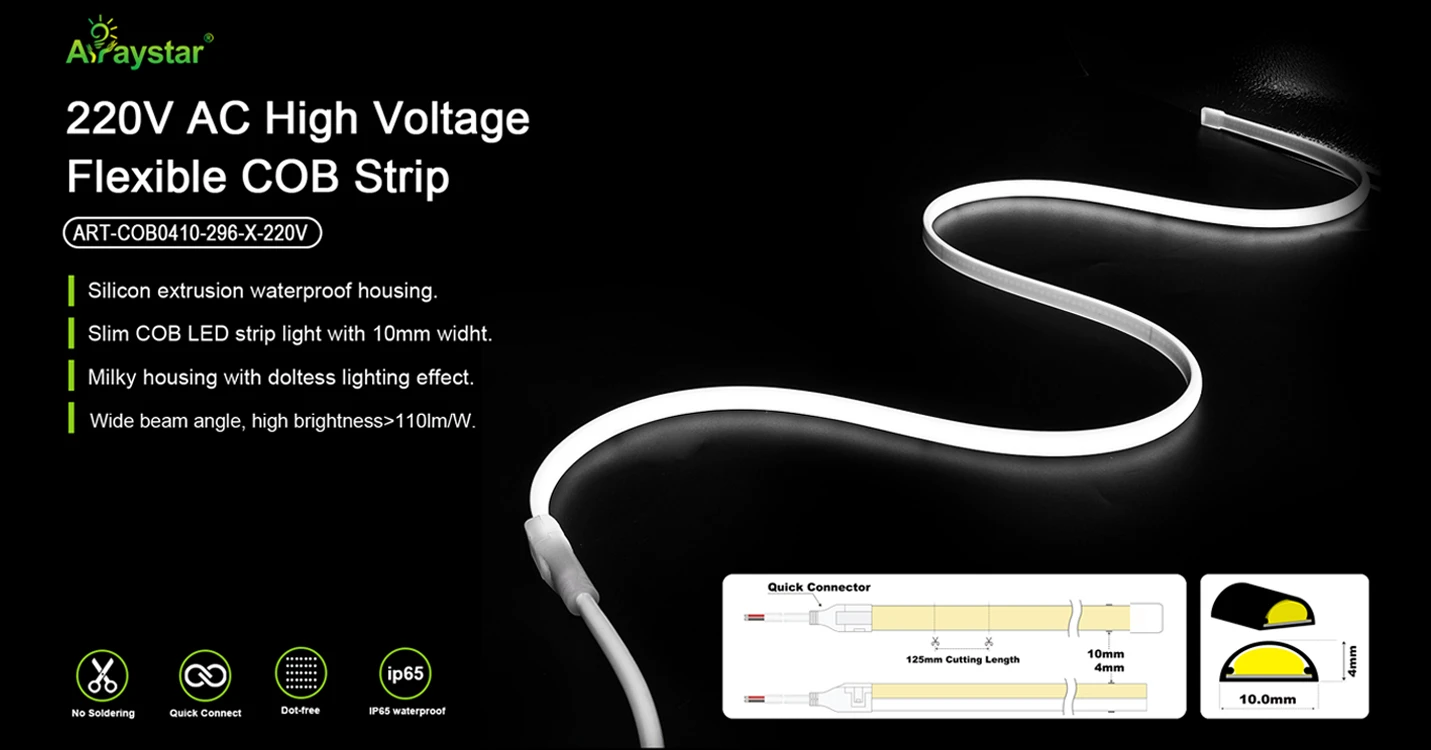

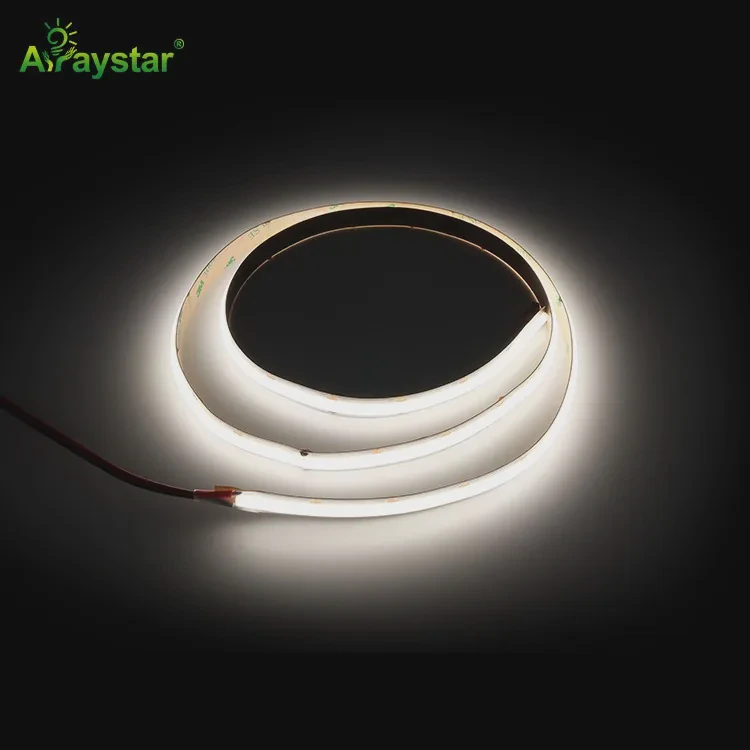

COB (Chip-on-Board) strips mount hundreds of tiny chips densely to create a continuous, dot-free light line with high uniformity — ideal for linear lighting and neon-look effects. SMD strips use discrete chips (2835, 2216, 5050) and offer more color options (RGB, addressable), lower cost, and easier repair. Choose COB for seamless light, SMD for effects or budget projects.
It depends on chip size, density and voltage. Common figures: SMD 2835 at 60 LEDs/m draws about 4.8-9.6W/m; COB at 480 chips/m draws about 12-15W/m; high-density strips can reach 20W+/m. Rule of thumb: check the spec sheet, then size your power supply at 1.2-1.3× the total wattage.
Yes. Most strips have marked cut lines every 5-10cm. Cut only at the marked copper pads with scissors; the rest of the reel stays usable. For custom lengths, solder or use connectors at the cut line.
24V strips run at twice the voltage, so they can cover longer distances (up to ~10m) with less voltage drop and lower current, allowing thinner wiring. 12V is common in automotive and battery applications. For runs over 5m, 24V (or 48V) is recommended.

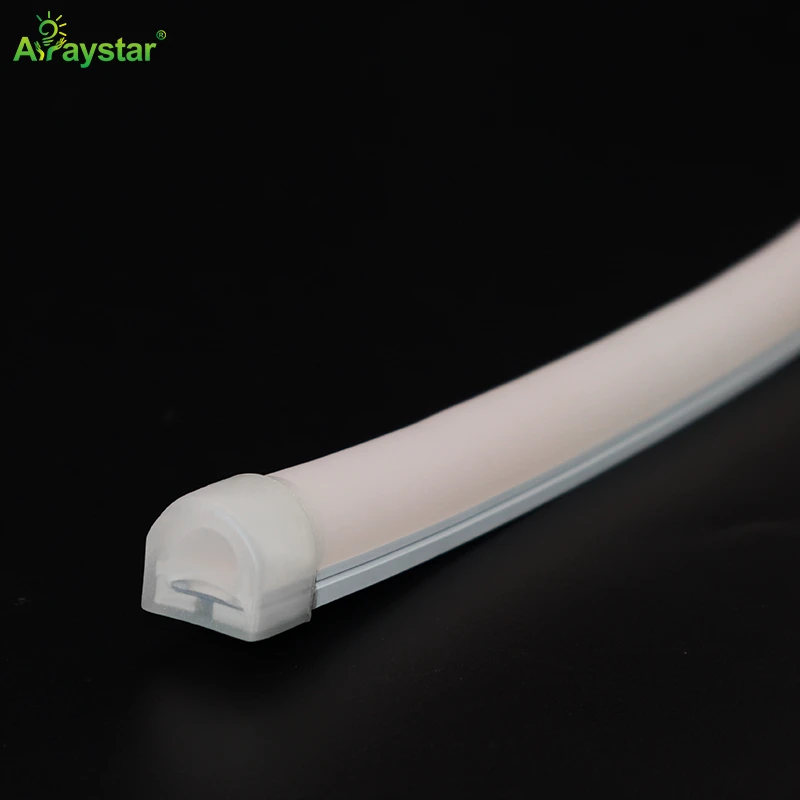

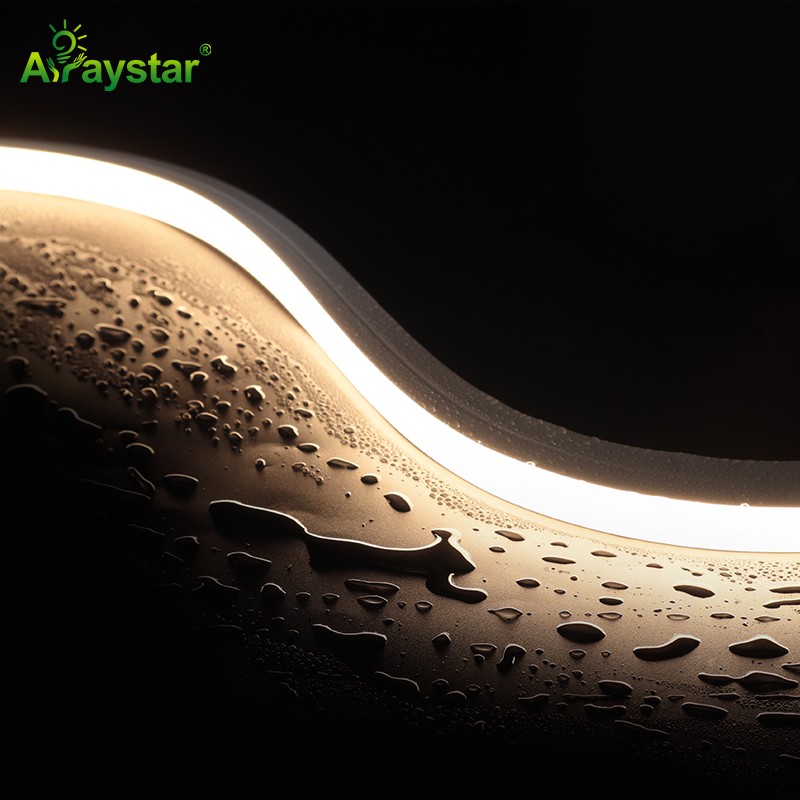

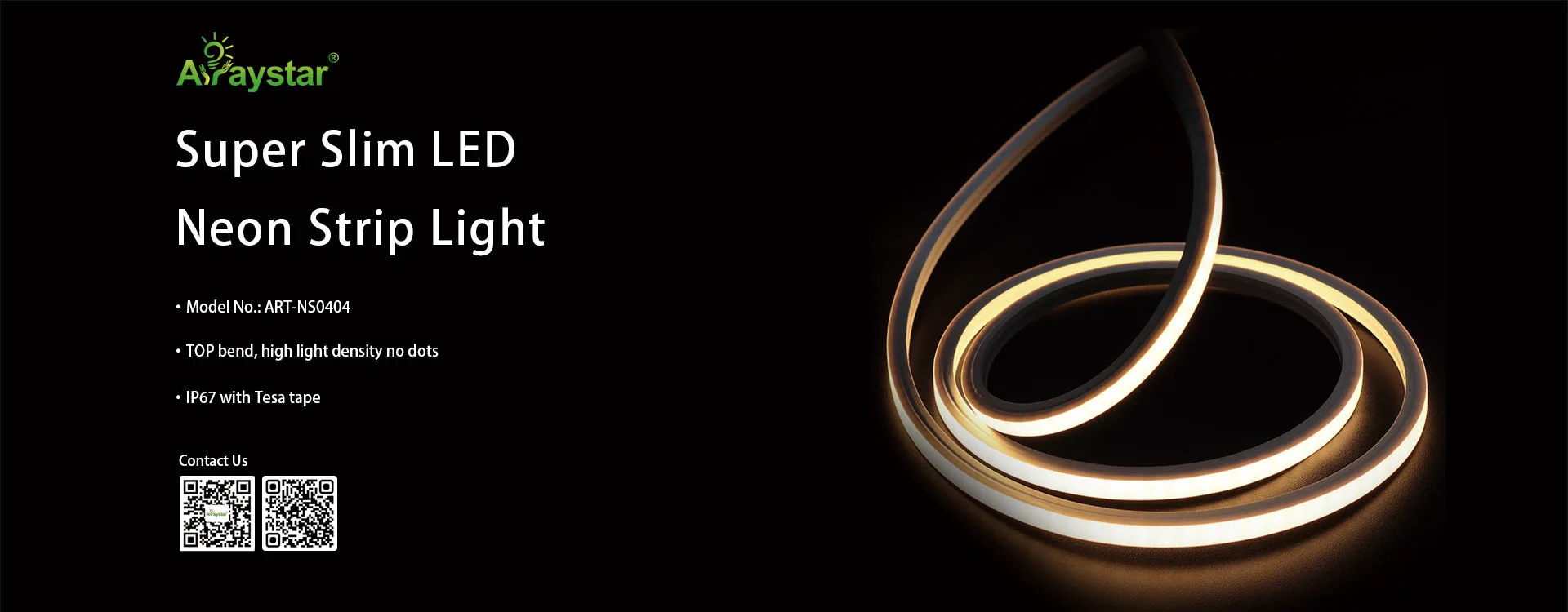

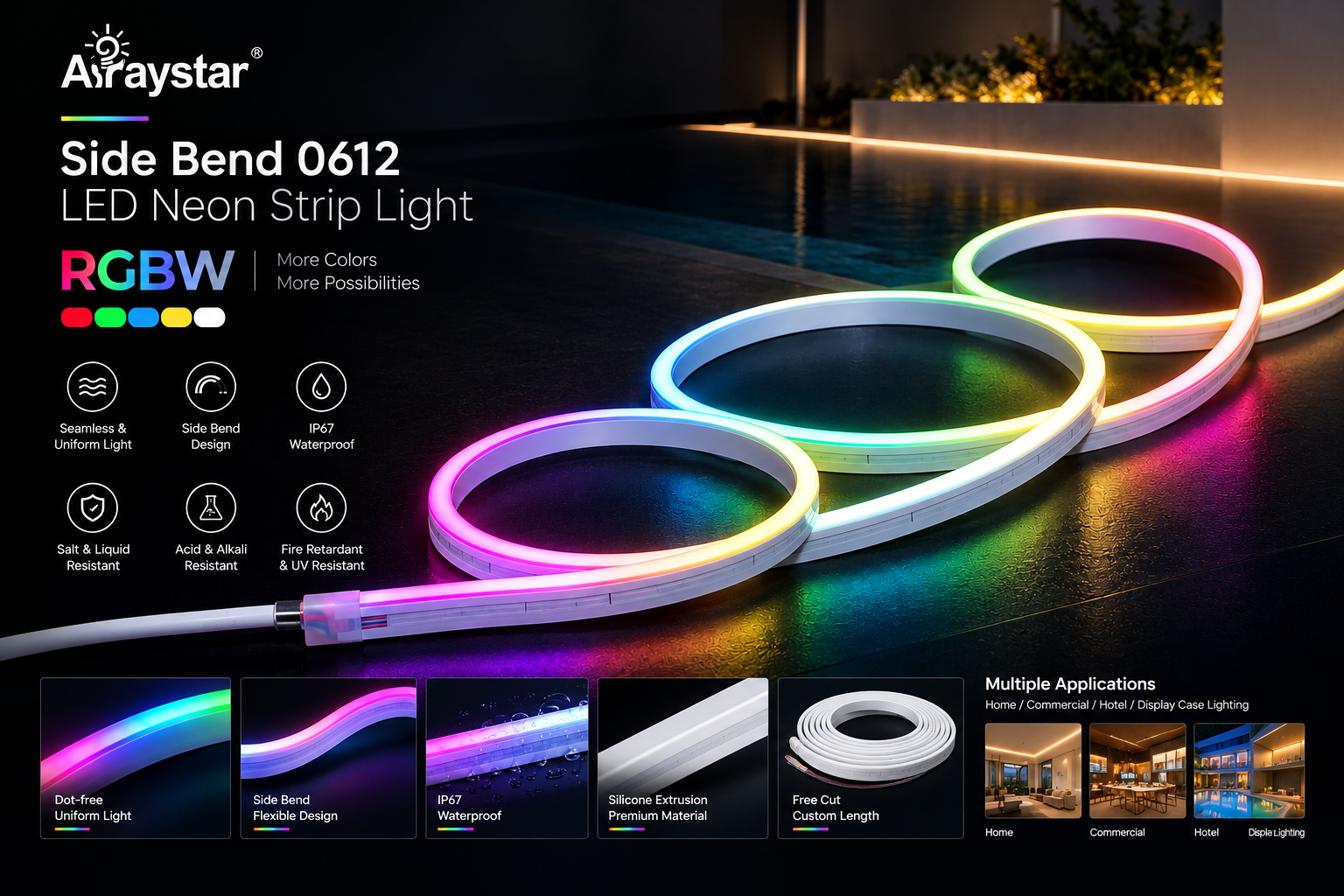

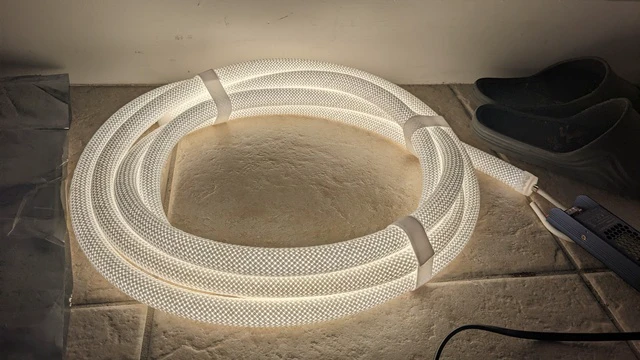

Most LED neon flex is IP65 (splash-proof, silicone-filled) or IP67 (temporarily submersible up to 1m for 30 min). Always check the spec: IP20 is indoor only. For outdoor signs choose IP67 with sealed end caps and waterproof connectors.
IP20: no water protection, indoor only. IP65: protected against low-pressure water jets and rain, suitable for outdoor use. IP67: protected against temporary immersion (1m, 30 min), suitable for wet areas and outdoor signs.

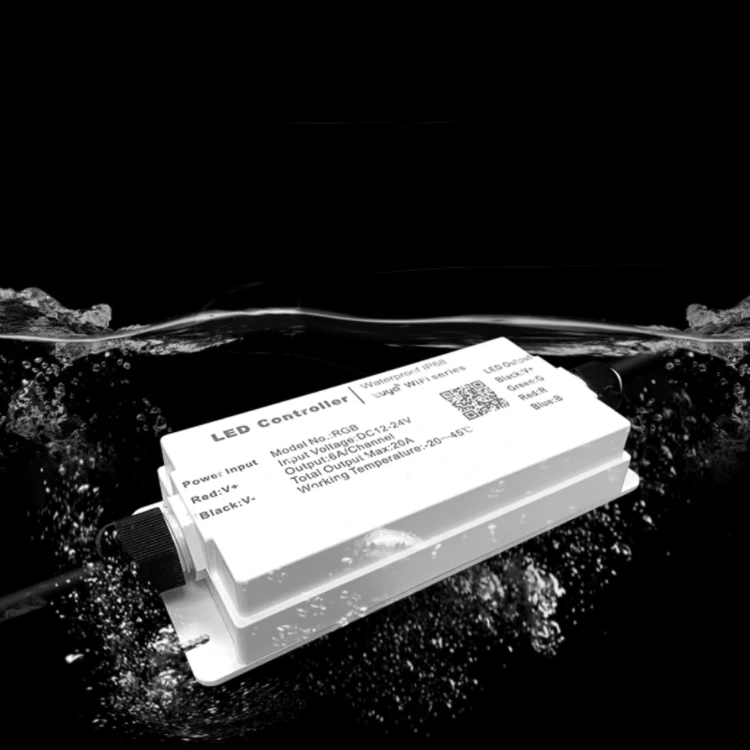

Match the voltage (12V/24V) and wattage (strip watts × 1.2-1.3). Connect positive to positive and negative to negative, insert a controller between the PSU and strip if you need dimming or effects, and verify with a multimeter before powering on.
That is voltage drop: current travelling along the copper trace loses voltage over distance. Solutions: use 24V or 48V strips, thicker wires, inject power every 5-10m, or run parallel connections from the power supply.

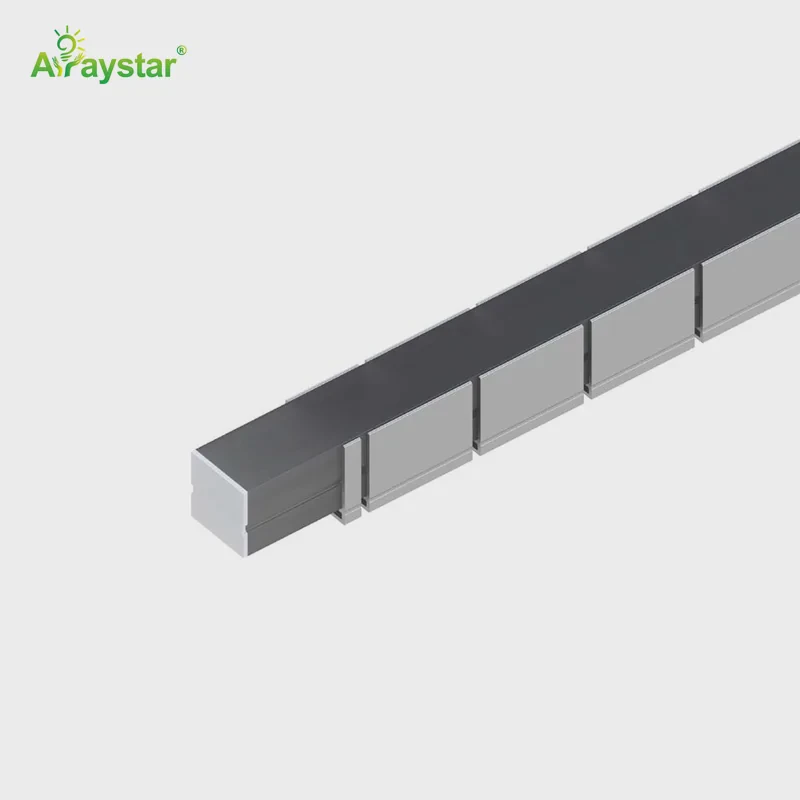

Typical L70 lifetime is 30,000-50,000 hours depending on chip quality, drive current and thermal management. Mounting strips on aluminum channels to dissipate heat significantly extends lifetime.
Yes — choose IP65/IP67 rated strips, waterproof connectors and a weatherproof (IP67) power supply. Avoid IP20 strips outdoors even under cover.
