- 200–240V ACDriverless, direct mains
- 50 mContinuous per reel
- IP67 / IP68Full silicone extrusion
- 3-in-1 SafetyFuse · Temp IC · Anti-surge
- 5-YearReplacement warranty
Built for underground lighting
Continuous, driverless lighting for long mine drifts & tunnels

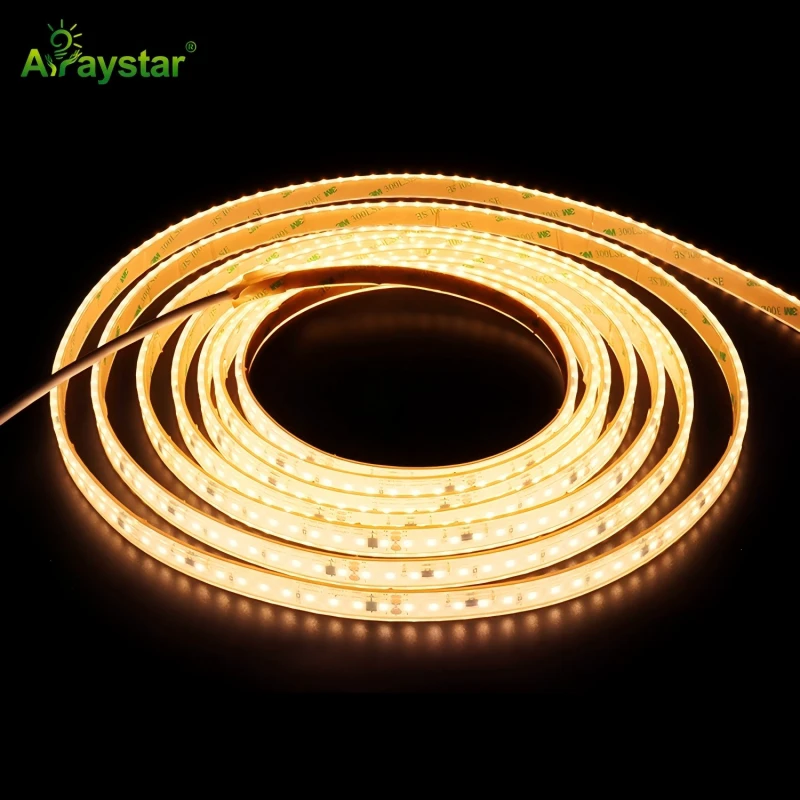

Arraystar high-voltage mining LED strip lights run directly on 200–240V AC without drivers, so a single reel delivers continuous, even lighting for up to 50 metres along a drift, ramp or tunnel. With far fewer power points and connectors than low-voltage strip, installation is faster and there are fewer parts that can fail underground.
Each reel is built for the conditions that break lighting in mines — dripping water, humidity, dust, vibration and unstable mains voltage. A built-in fuse, a constant-temperature protection IC and a patented anti-surge circuit limit heat and help protect workers in flammable environments such as coal and gold mines. The full-silicone body is sealed to IP67 (IP68 on request) and carries a 5-year replacement warranty.
- 200–240V AC driverless — no power supplies along the run
- Up to 50 m continuous from one feed, cuttable at marked intervals
- Fuse + constant-temperature IC + patented anti-surge protection
- IP67 silicone extrusion (IP68 on request), UV and weather resistant

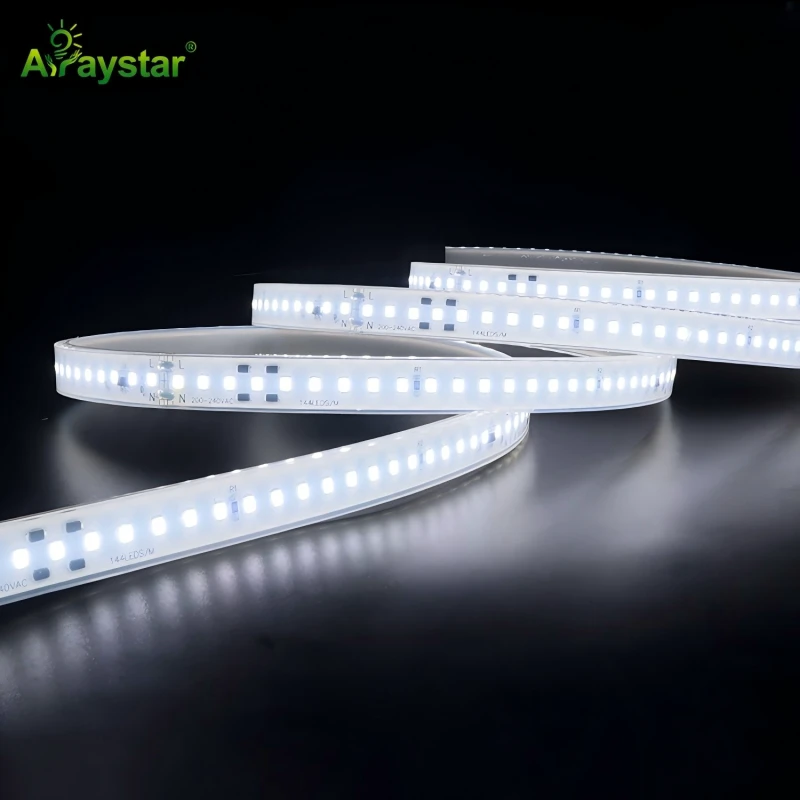

- 120 / 144 / 240 LEDs per metre, 1800K–6000K, CRI >80
Safety & reliability
Three protection circuits, one mine-grade strip
Underground drifts cannot afford overheating, surge tripping or frequent replacement. Each high-voltage mining strip is built with three independent protection circuits, then backed by a direct-replacement warranty.
-

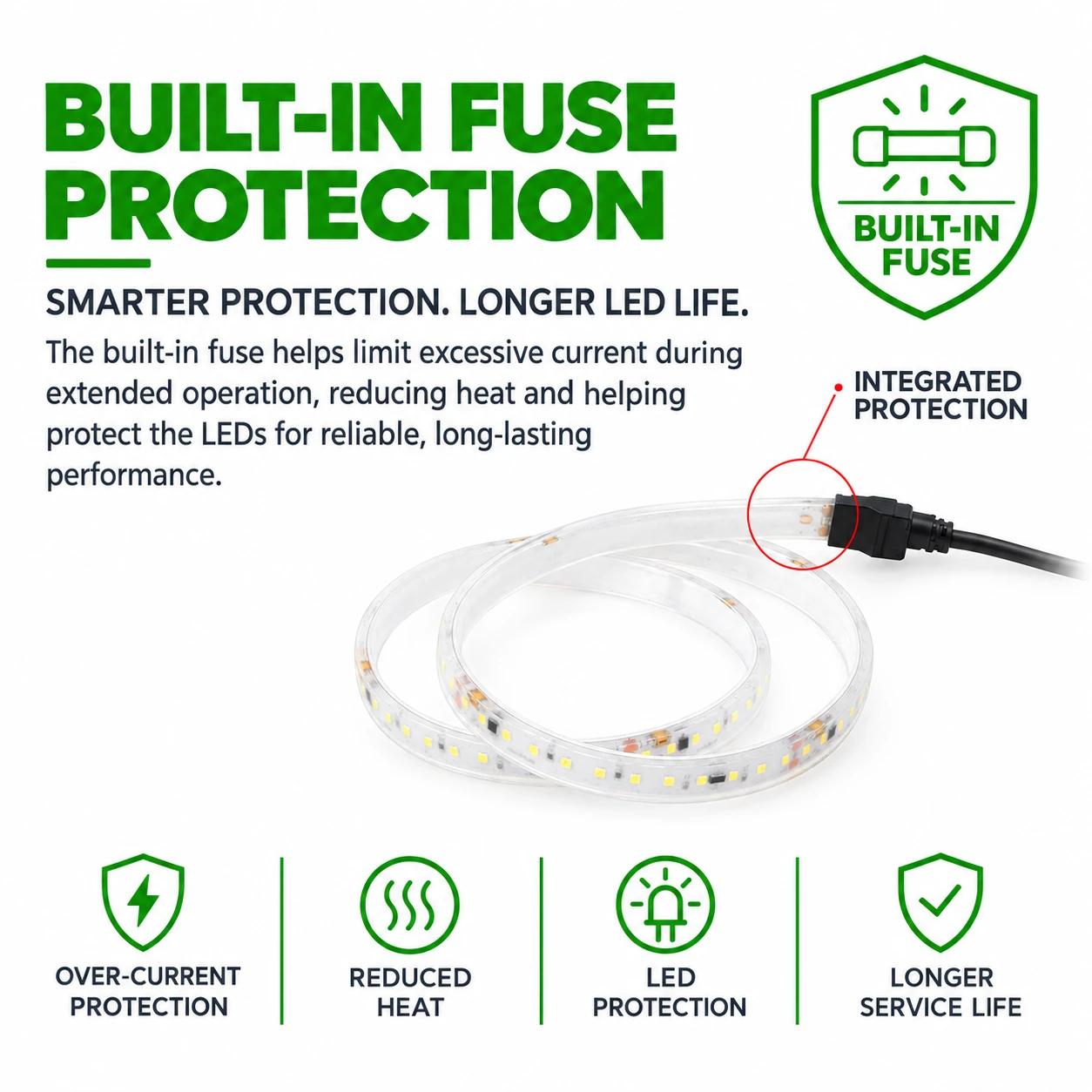

Built-in fuse
A fuse on the strip limits current if it runs too high during long-term use. Lower current means less heat, protecting the LEDs and extending service life on continuously lit runs.
-

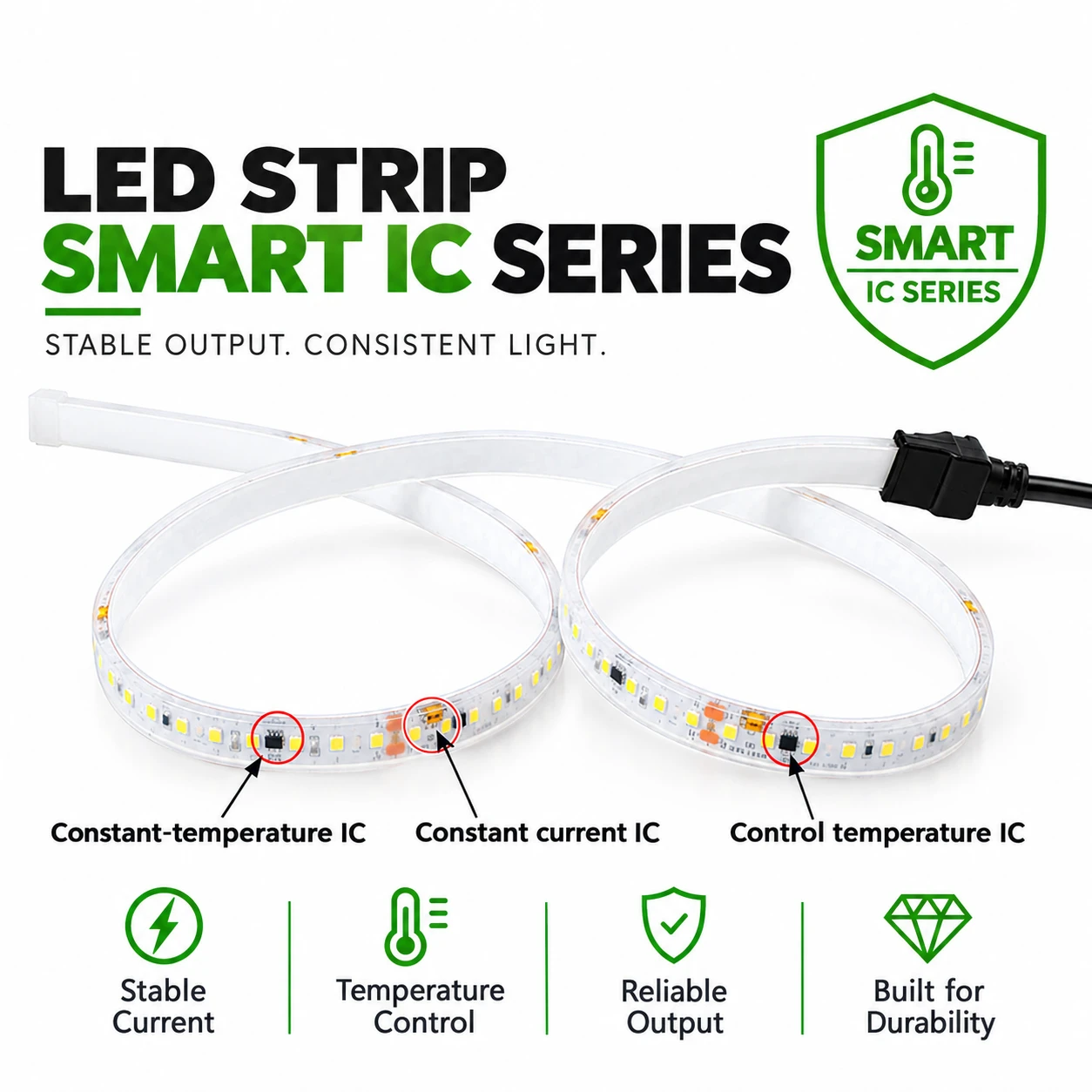

Constant-temperature IC
A protection IC holds the strip temperature steady during long operating hours and hot ambient conditions, so it does not overheat — helping protect workers in flammable environments such as coal and gold mines.
-

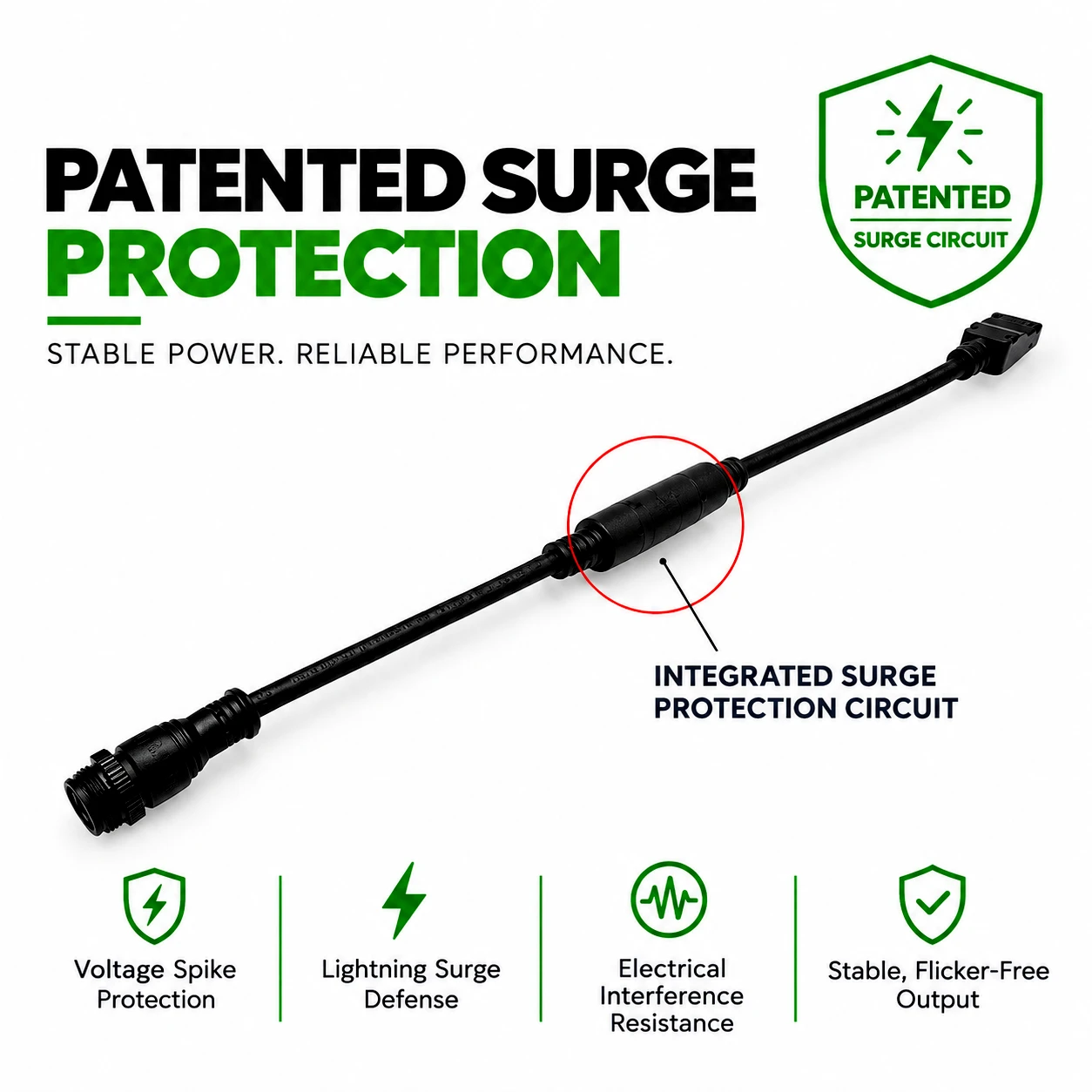

Patented anti-surge
The patented anti-surge circuit handles unstable voltage, lightning and interference from nearby machinery, keeping the line stable and reliable instead of flickering or failing.
-

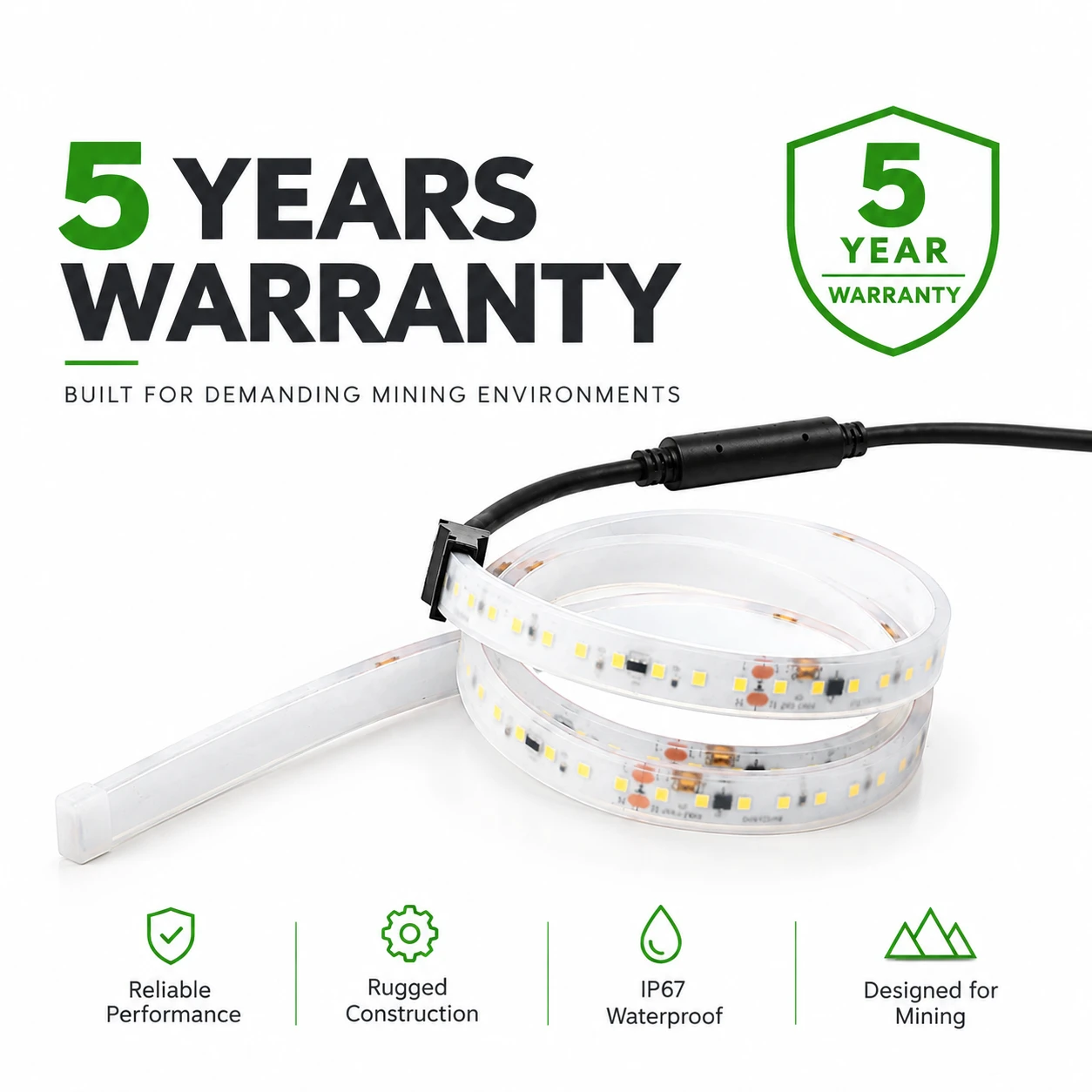

5-year replacement
The high-voltage mining range carries a 5-year warranty. If a strip has any quality issue within the warranty period, it is replaced with a new product directly.
Where it works
Mining drifts, tunnels & wet underground sections
The same driverless strip is used on walls, roof centrelines, track sides and junction outlines, in both dry and water-bearing ground.

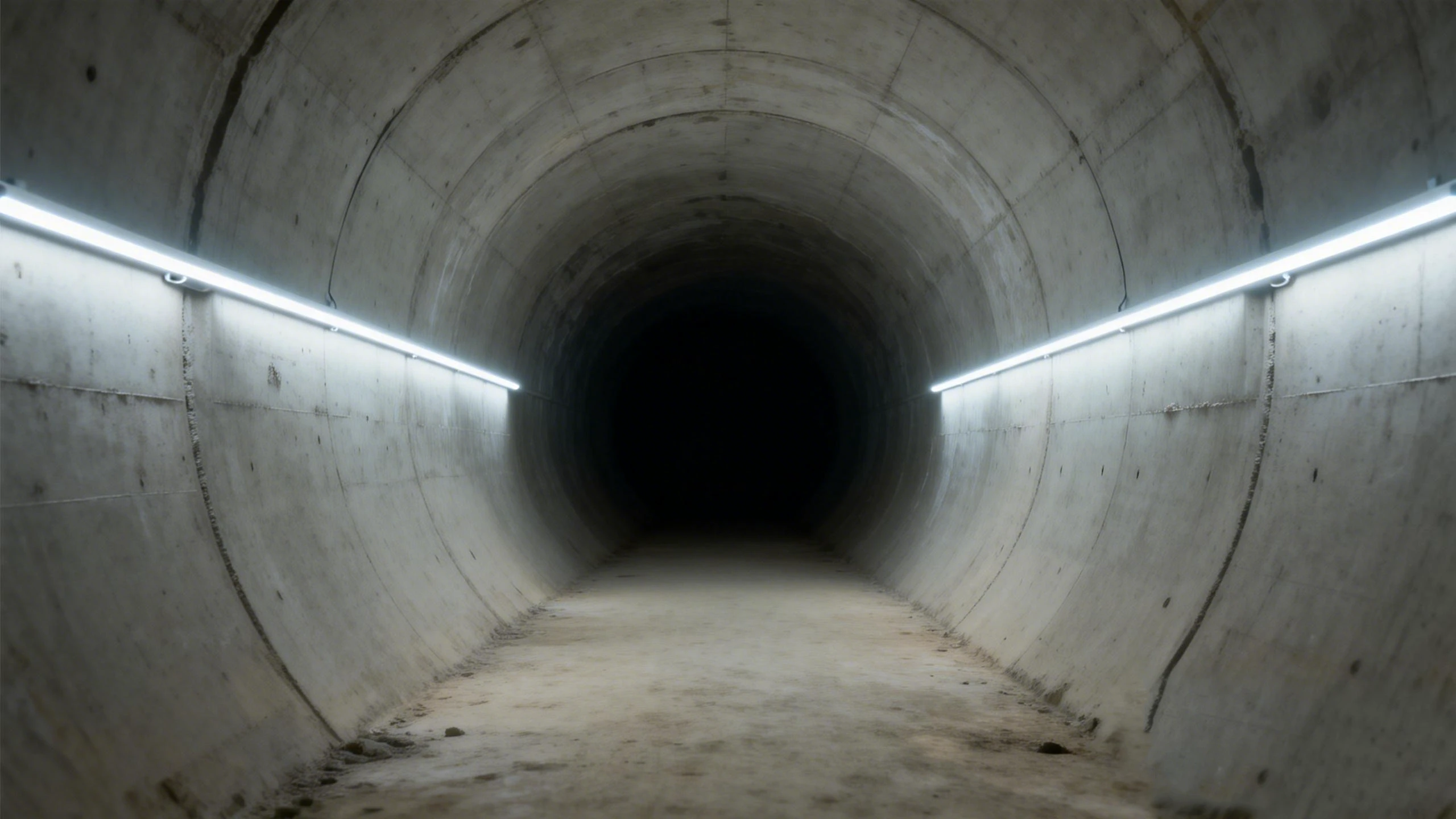

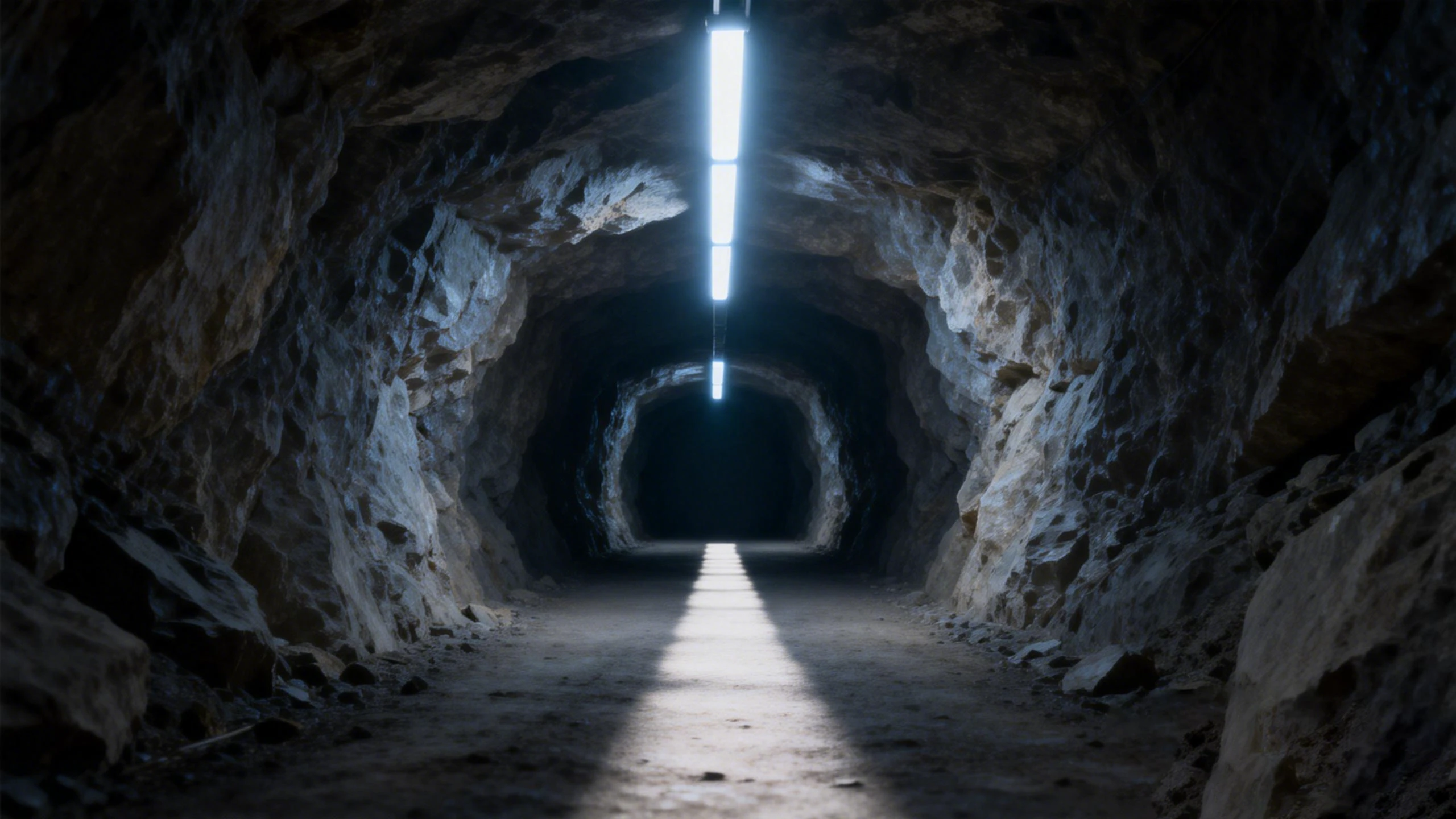

Concrete-lined tunnels: continuous wall-to-wall lighting with no dark gaps Roof centreline: one straight visual guide down the drift

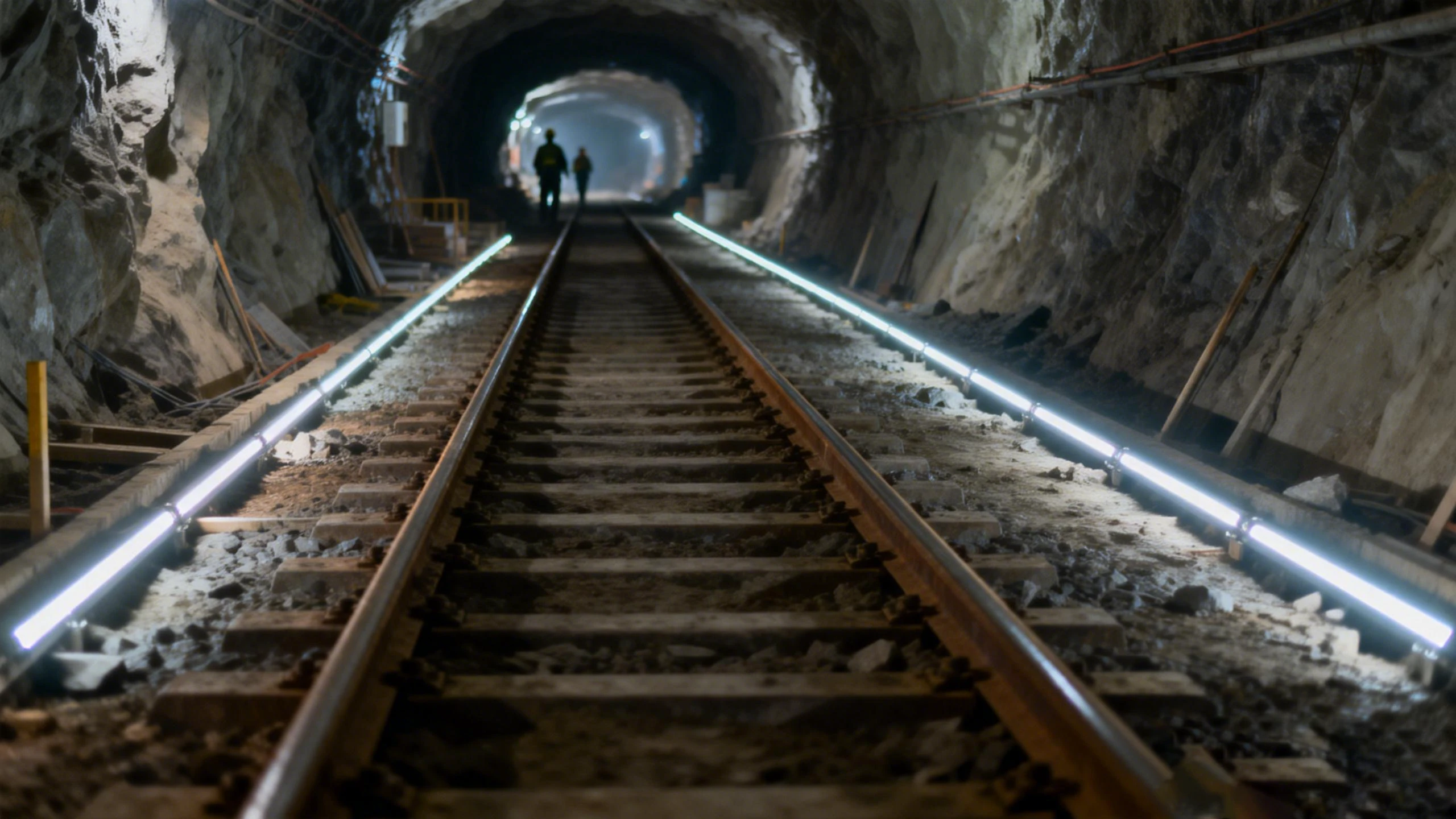

Track-side haulage drifts: low mounting beside rails and conveyors

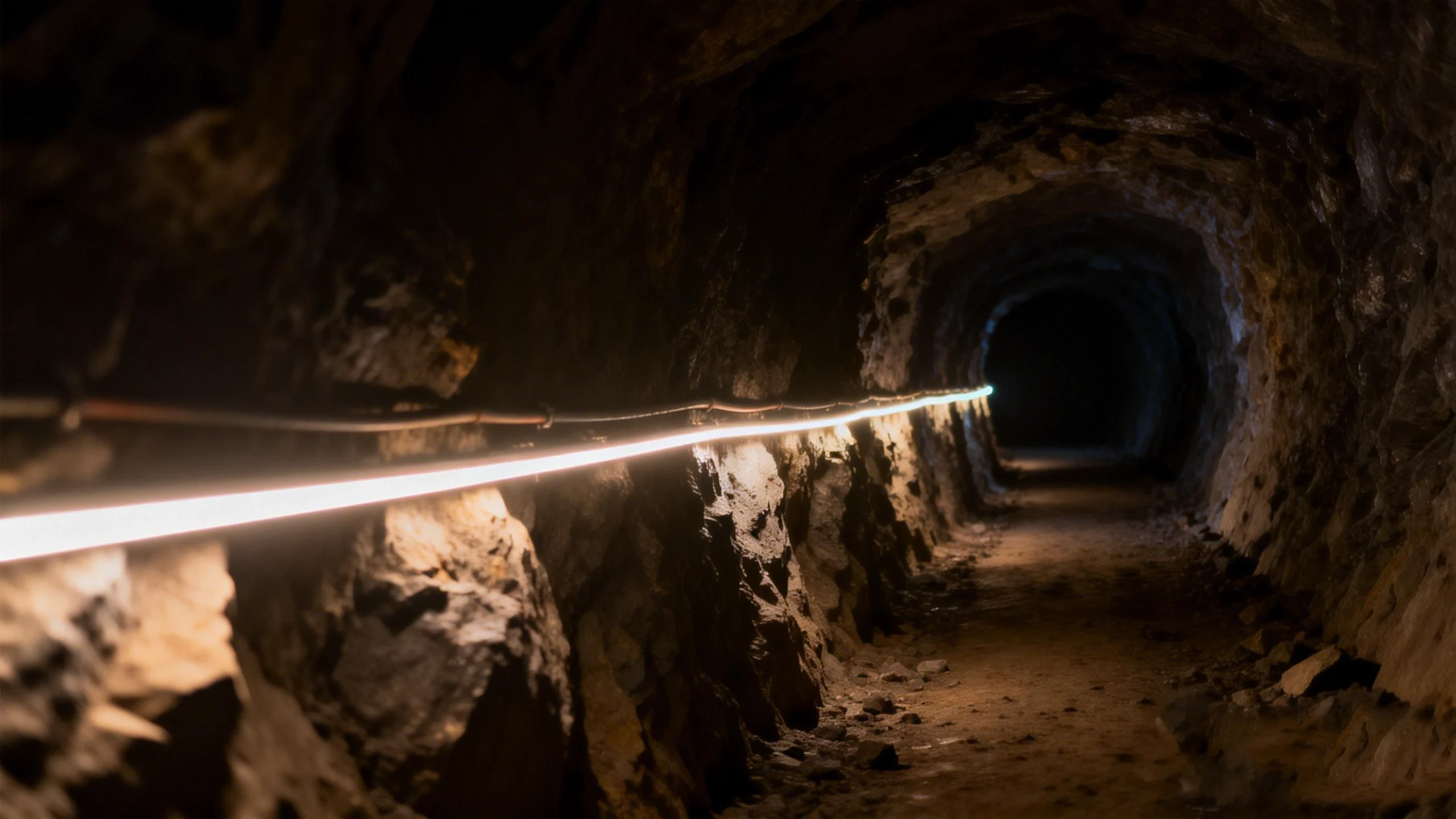

Rough rock drifts: flexible body follows uneven rock surfaces

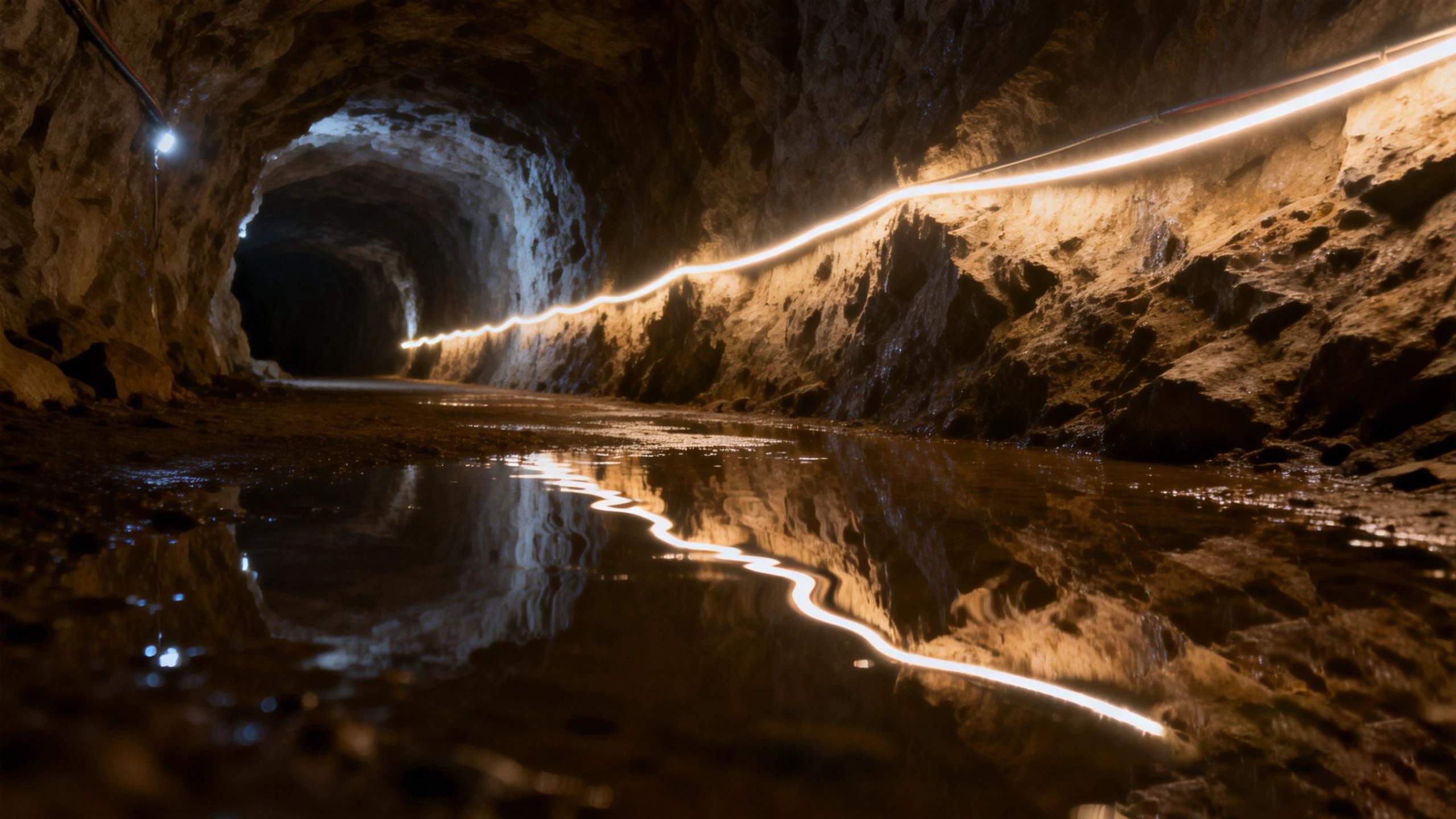

Wet, water-bearing sections: sealed silicone body over standing water

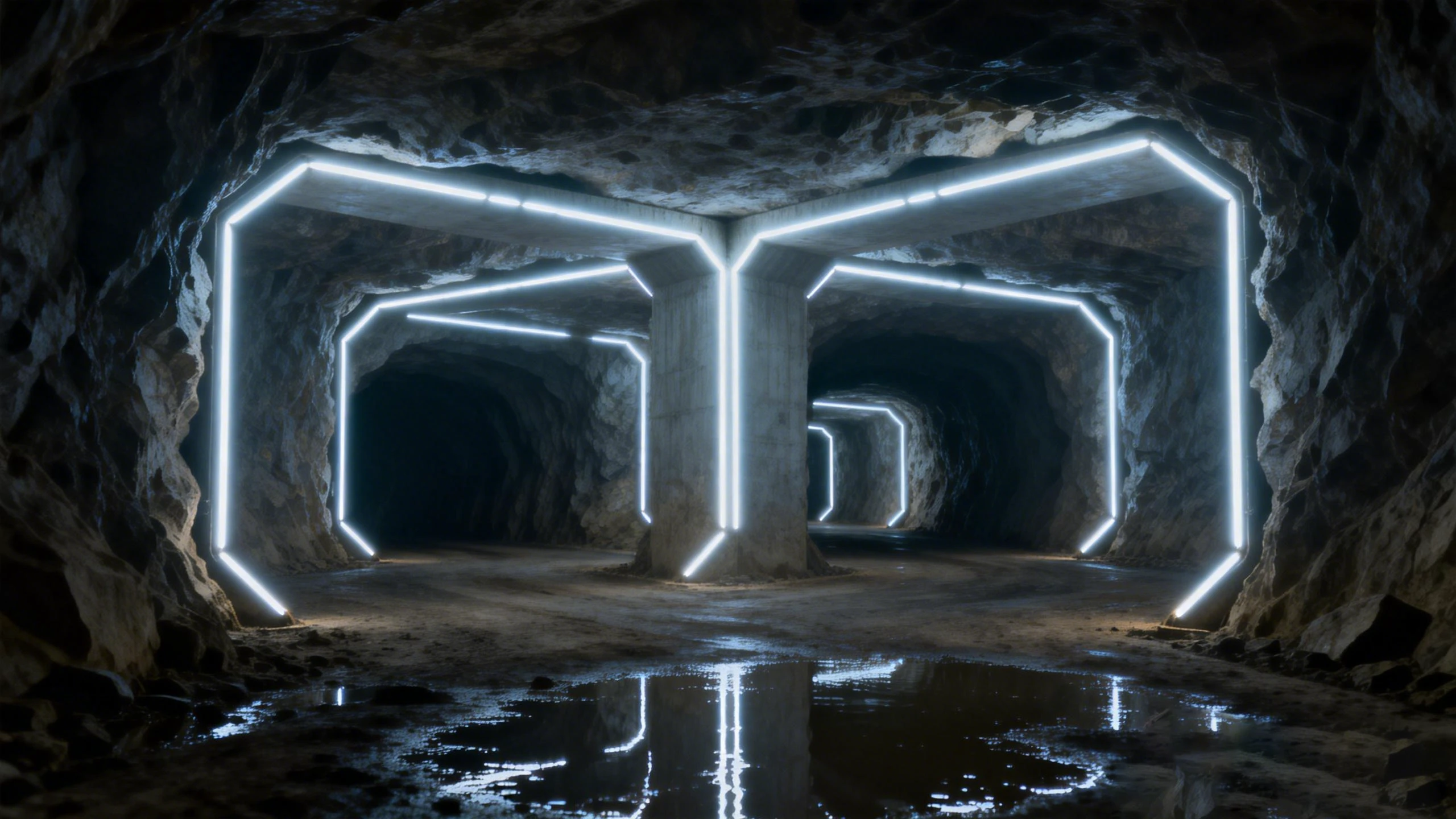

Cross-cuts & junctions: outline lighting marks every portal

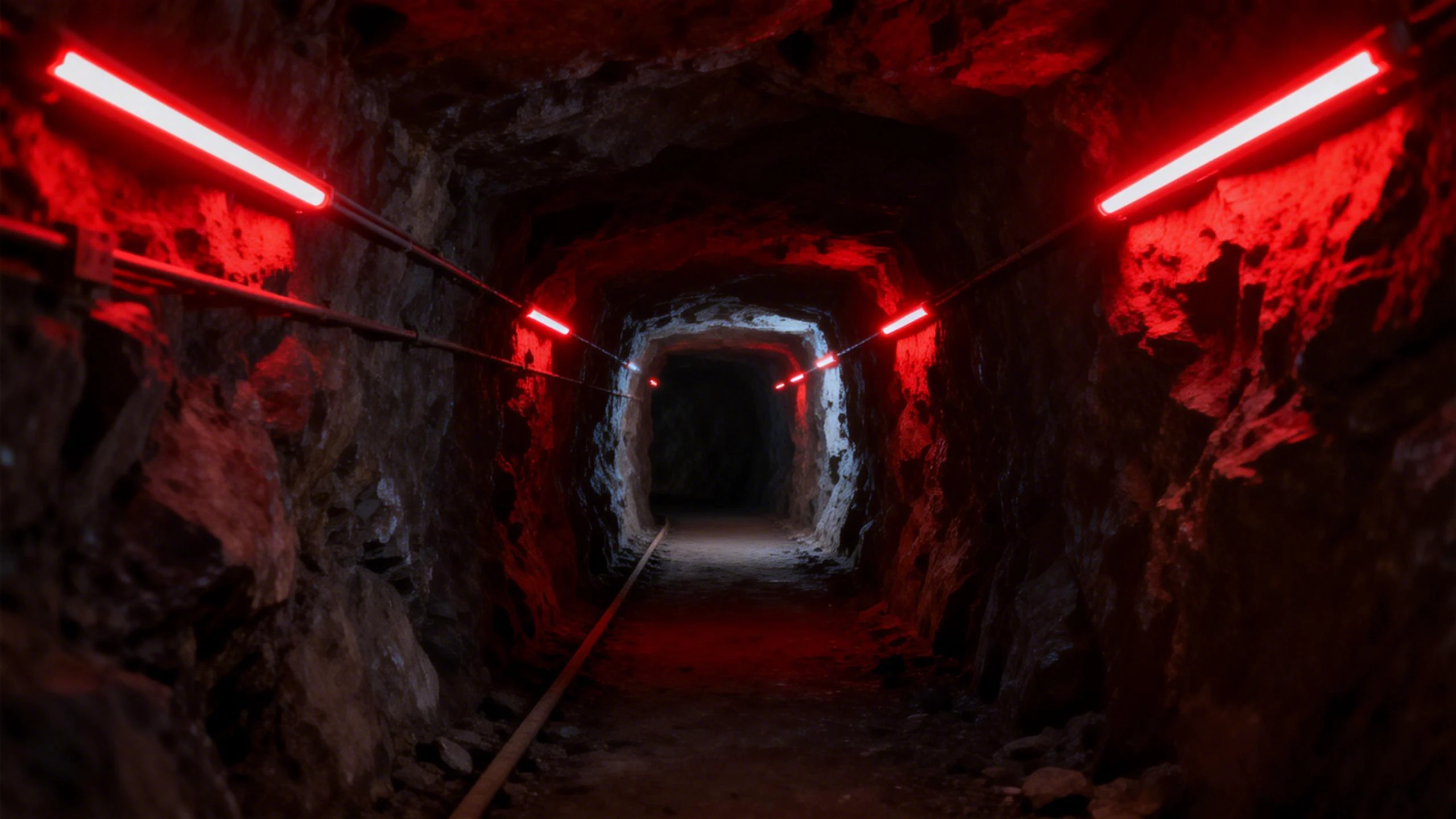

Hazard & emergency zones: red warning runs for danger areas

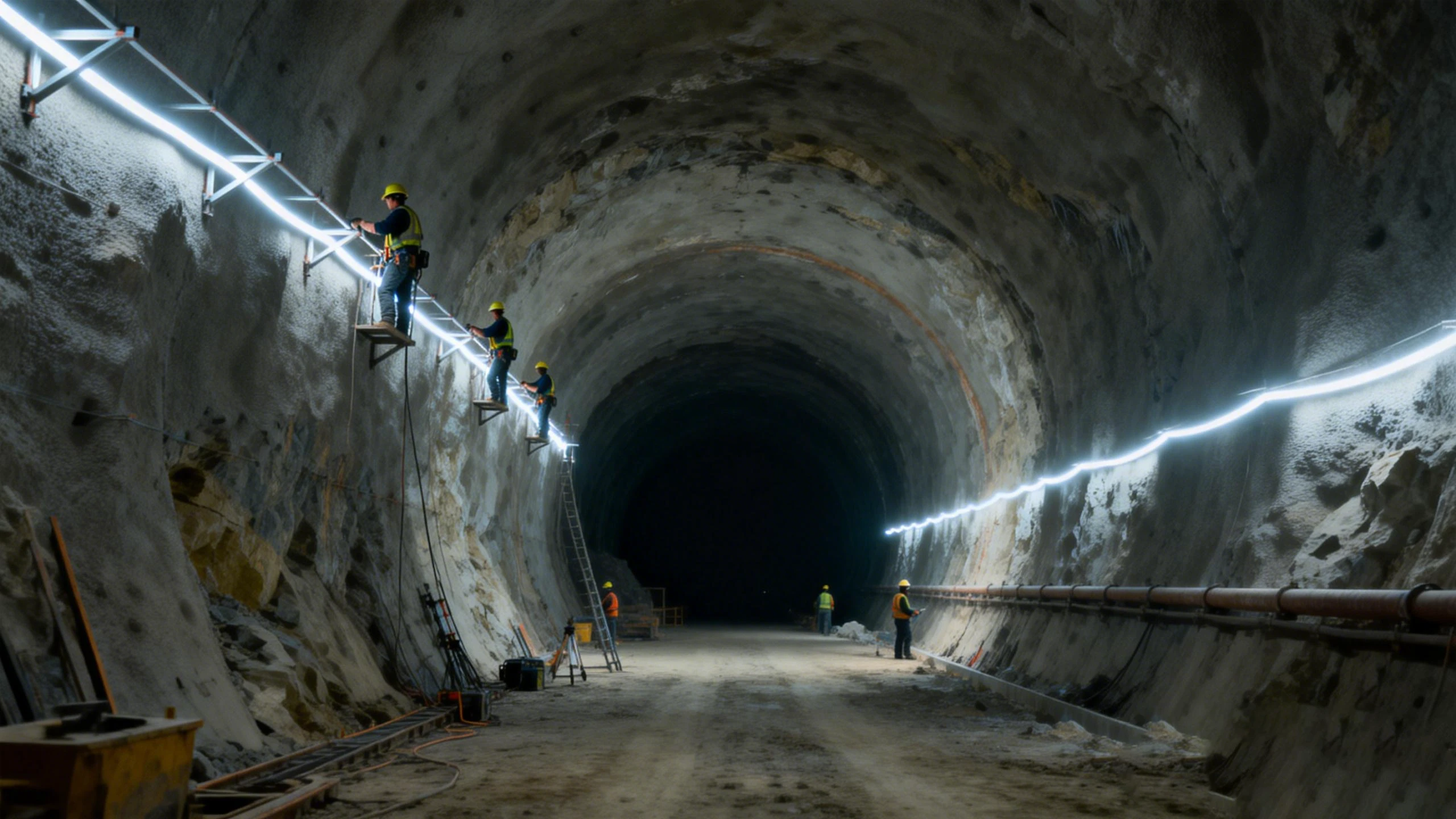

Fast installation: long reels fixed by crews from platforms
Why high voltage
Why mines choose 220V driverless strip over low-voltage tape
- No drivers along the run — it connects directly to 200–240V AC, removing power supplies that fail in dusty, wet tunnels.
- Up to 50 m from one feed — far fewer joins, cables and power points than 12/24V strip, and no voltage-drop planning every few metres.
- Full silicone extrusion — sealed to IP67 (IP68 on request), resisting dripping water, humidity, dust and corrosion; UV-stable for portals.
- Even, continuous light — high-density 2835 packages at 120–240 LEDs/m give uniform roadway and wall illumination.
- Cuttable & quick to fix — marked cut intervals and 50 m reels let crews mount long lines fast along ribs, arches and channels.
- Right colour for the task — 1800K amber for low-glare dusty air, 2700–6000K for inspection and task areas.
Specifications
220V high-voltage SMD mining strip — technical data
Common specification
| Input voltage | 200–240V AC, driverless (no external driver) |
| LED package | SMD 2835, 120 / 144 / 240 LEDs per metre |
| Colour temperature | 1800K (amber), 2700K, 3000K, 4000K, 6000K |
| CRI | >80 standard; 90 / 95 on request |
| Protection rating | IP67 standard (full silicone extrusion); IP68 on request |
| Maximum run | 50 metres per reel from one feed |
| PCB width | 10 mm / 12 mm |
| Safety circuits | Fuse + constant-temperature protection IC + patented anti-surge |
| Warranty | 5 years, direct replacement within warranty period |
Model comparison
| Model | LEDs/m | Power | PCB width | Cut unit | Lumens/m | Max run | IP |
|---|---|---|---|---|---|---|---|
| ART-HS2835-240 | 240 | 14 W/m | 10 mm | 12 LEDs / 100 mm | 1400 lm | 50 m | IP67 |
| ART-HS2835-144 | 144 | 18.6 W/m | 12 mm | 24 LEDs / 166.6 mm | 1860 lm | 50 m | IP67 |
| ART-HS2835-120 | 120 | 15 W/m | 10 mm | 12 LEDs / 100 mm | 1500 lm | 50 m | IP67 |
Values are from the factory datasheet for standard production. Voltage, LED density, CCT, CRI, cut length, IP rating, reel length and packaging can be customised under OEM/ODM. Contact us for model-specific test reports and IP68 options.
Featured Product
Five mining-grade options: three driverless 200–240V AC SMD densities (120, 144, 240 LEDs/m), a 220V black-cover run, and a 36V safety-voltage version. All fully silicone-encapsulated (IP67), with custom CCT, CRI, cut length and reel packaging — request a sample or bulk quote.
Accessories
We provide accessories such as silicone caps, power cables, connectors if you need for installation.
-
Clip
-
Connector
-
End Cap
-
Female Connector
-
Front Cap
Installation videos
Connecting & waterproofing the strip
Watch how the high-voltage connector joins two reels into one continuous run, and how every joint is sealed to stay waterproof in wet drifts and tunnels.
FAQ
Mining & tunnel high-voltage LED strip questions
What is a driverless 220V high-voltage LED strip, and why use it in mines and tunnels?
A driverless high-voltage strip runs directly on 200–240V AC mains, so no switching power supply has to be installed along the line. In long mine drifts and tunnels, one 50 metre reel can be fed from a single point, with fewer connectors and fewer components exposed to dust and moisture. Installation is faster and there are fewer potential failure points.
How do the fuse and constant-temperature IC improve safety in coal and gold mines?
The built-in fuse limits current if a run is overloaded or damaged, which reduces heat. The constant-temperature protection IC monitors and holds the strip temperature during long operating hours and in hot ambient conditions so the line does not overheat. Together they keep the lighting surface cooler in flammable and explosive environments such as coal and gold mines, helping protect workers.
What does the patented anti-surge protection do?
Underground mains power can fluctuate, and lightning or nearby machinery can induce voltage spikes. The patented anti-surge circuit absorbs these surges so the strip keeps running instead of flickering or failing when the voltage is unstable.
How long can one continuous run be, and do I need a driver?
Up to 50 metres per reel from a single 200–240V AC feed with no driver. The strip is cuttable at marked intervals (for example 12 LEDs per 100 mm on the 240 and 120 models). Longer tunnels are covered by joining reels with the matching connectors.
What IP rating and warranty apply to the mining strip?
Standard production is full-silicone extrusion sealed to IP67, with IP68 available on request for continuously wet or wash-down areas. The high-voltage mining range is covered by a 5-year warranty; if a strip fails within the warranty period it is replaced with a new product.
Which colour temperatures and LED densities are available?
Colour temperature options are 1800K amber, 2700K, 3000K, 4000K and 6000K. CRI is greater than 80 standard, with 90/95 on request. Density options are 120, 144 and 240 LEDs per metre using 2835 packages, delivering roughly 1400 to 1860 lumens per metre.
