Long run 48V COB LED Strip

What Is a 48V COB LED Strip?

A 48V COB LED strip mounts hundreds of diodes directly on a continuous phosphor layer, so there are no visible LED dots, just a smooth, seamless line of light. Running at 48V instead of 12/24V sharply reduces current and voltage drop, which lets a single feed power runs of 100 metres or more without the brightness fading toward the end or needing frequent power injection.

Series and Configurations

• Single color ART-COB10-480-X-48: 480 LEDs/m, 48V DC, 10 W/m, 10 mm wide, CRI 90+, CCT 2700K-6000K.

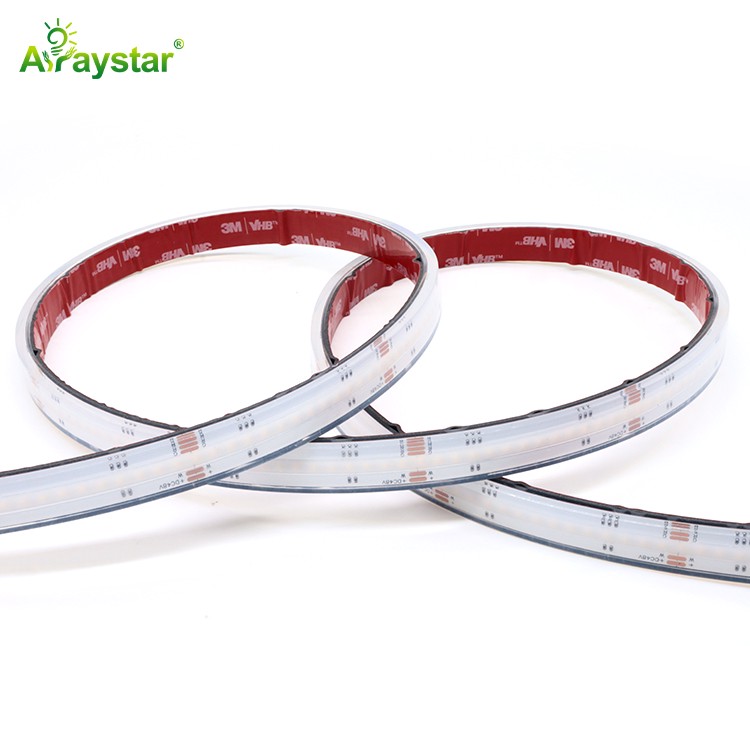

• IP67 version of the same strip for damp and outdoor linear runs.

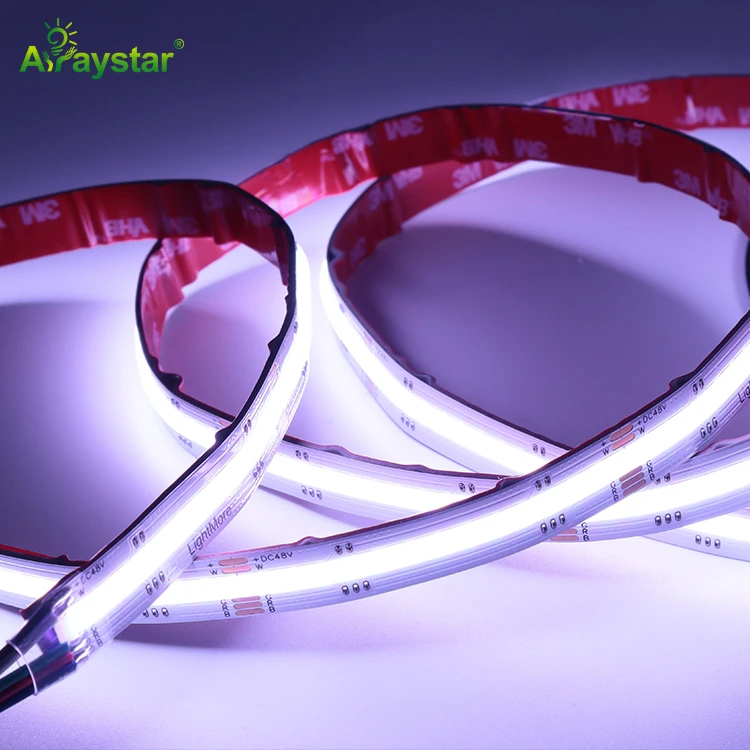

• RGBW ART-COB12-896-RGBW-48: 896 LEDs/m, 16 W/m, 12 mm, RGB plus 2700K-6500K white.

Why 48V COB Stands Out

• 100 m+ continuous runs from one feed, far longer than 24V strip before dimming.

• Almost no voltage drop, so brightness stays uniform end to end.

• Dot-free COB output with CRI 90+ for clean, comfortable light.

• Lower current means smaller-gauge wiring and fewer injection points.

• IP67 and RGBW options cover commercial, industrial and outdoor projects.

Typical Applications

48V COB is the practical choice for long corridors, open offices, retail aisles and shelf lines, hotels, airports and transport hubs, warehouses and parking, continuous facade and architectural outlines, and any installation where pulling multiple power feeds would be costly or visible.

How to Choose

• Long, straight white runs: the 480 LEDs/m single-color strip.

• Color scenes plus white: the 896 LEDs/m RGBW strip.

• Outdoor or washdown locations: specify the IP67 version and a 48V IP-rated driver.

FAQ

How far can a 48V COB strip run on one feed?

In most layouts 100 metres or more with no visible dimming. The exact length depends on W/m, wire gauge and tolerance; very long runs still benefit from a mid or end feed.

Is 48V safer than 24V?

Both are SELV low voltage and safe to touch. 48V carries lower current for the same power, which cuts voltage drop and heat in the wiring over long distances.

Do I still need power injection?

Far less often than with 24V strip. For runs beyond the rated length or very high density RGBW, add a feed at the far end to keep brightness perfectly even.
