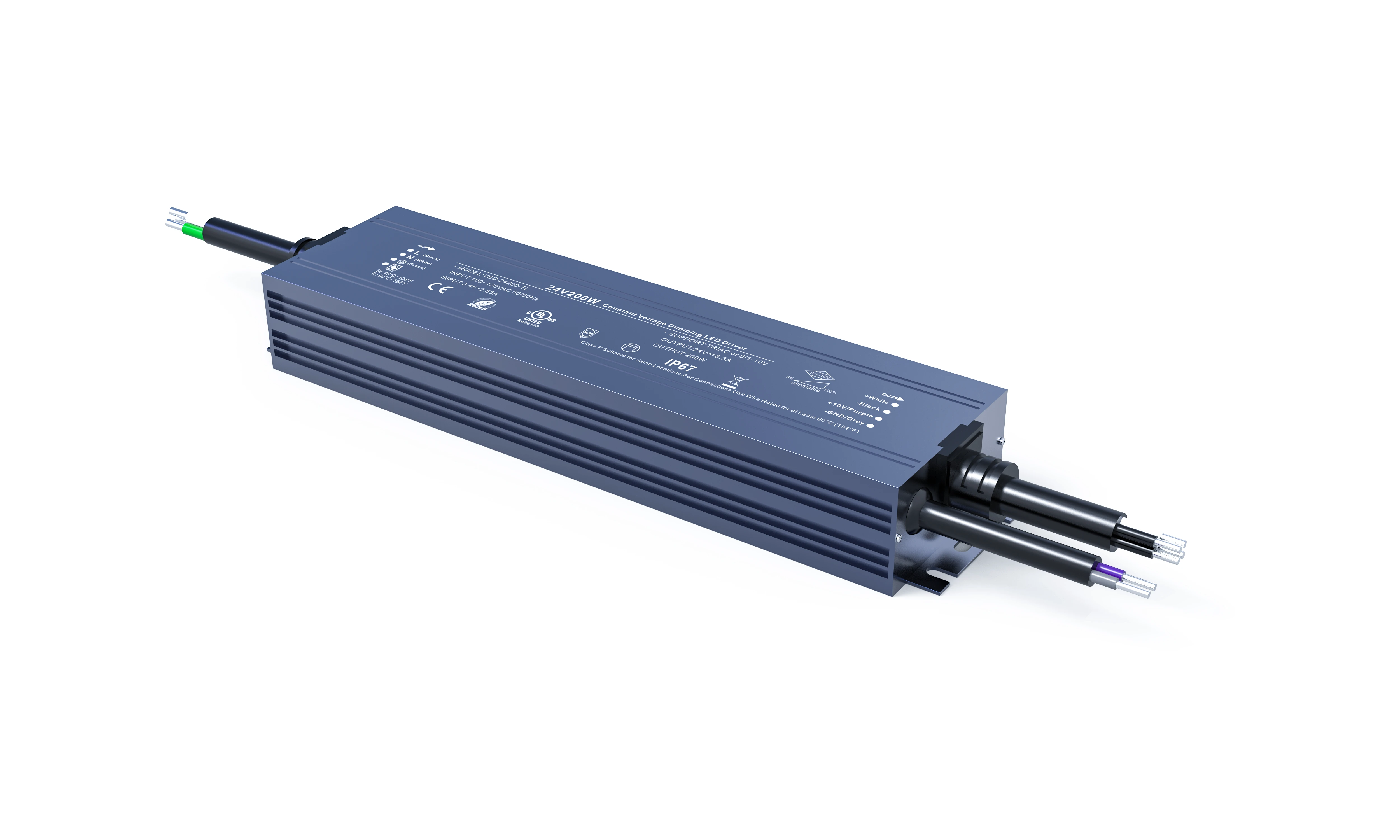

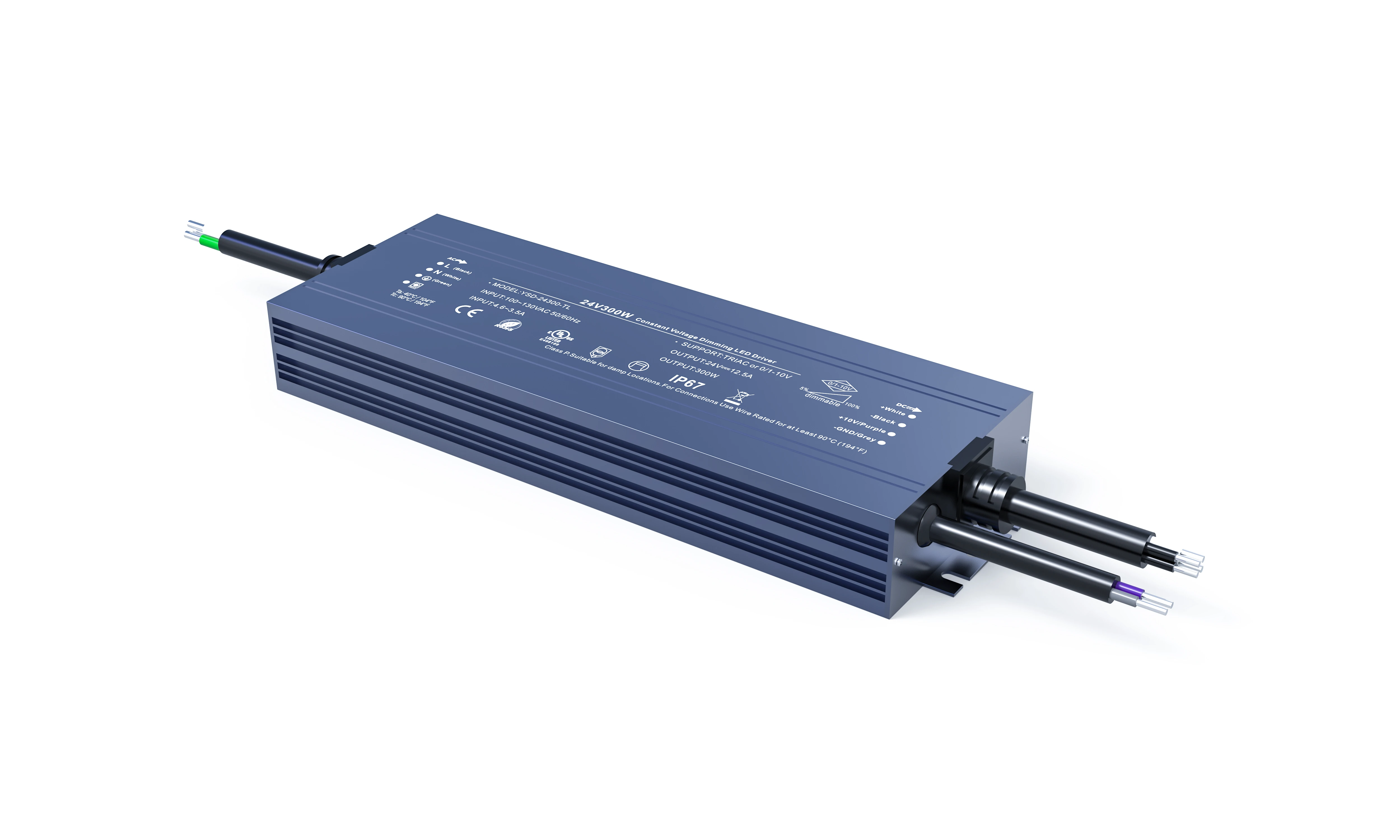

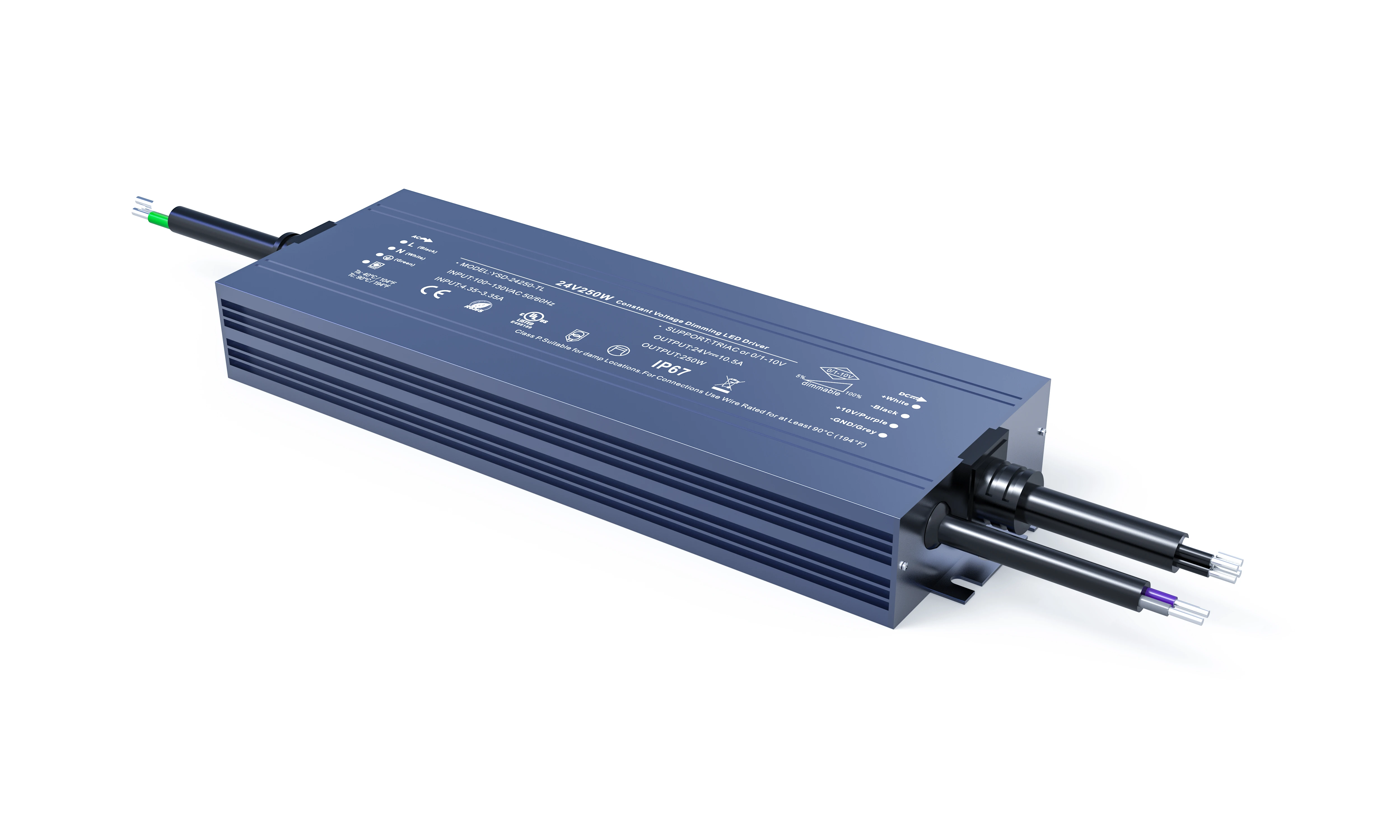

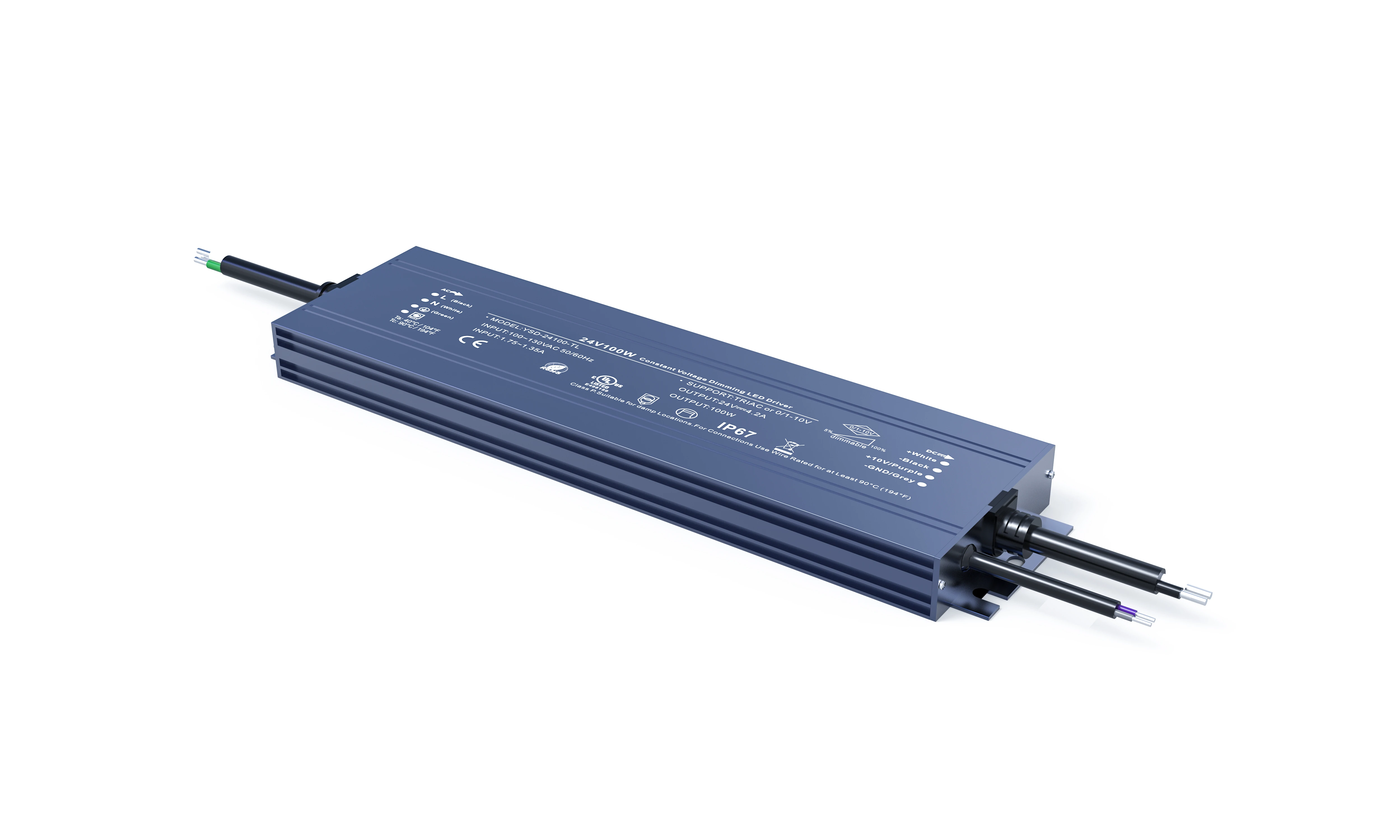

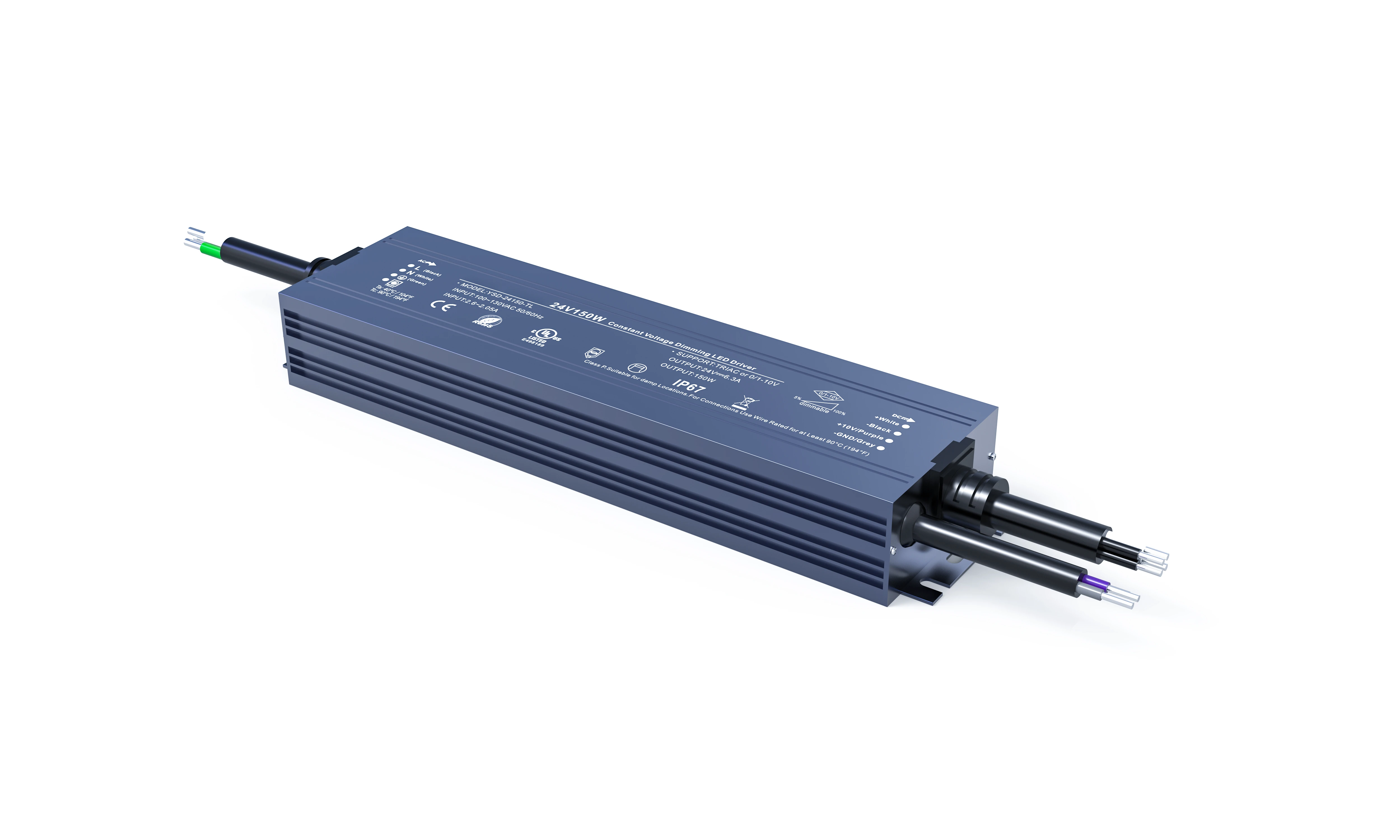

60W–300W LED Waterproof Dimmable Power Supply
- Model:YSD Series
- LED Type:N/A
- LED Qty/M:N/A
- Voltage:12V / 24V
- Power W/m:N/A
- CCT/Color:N/A
- CRI:N/A
- Dimension:varies by power
- Warranty:5 years
Product Description
For outdoor and damp-location strips that also need dimming, this waterproof power supply keeps the driver outside the fixture instead of hiding it indoors. The YSD series spans 60W to 300W in an aluminum housing, delivers a stable 12V or 24V constant-voltage output, and is built to be dimmable.
Why a waterproof dimmable driver
On exterior architectural and sign projects, the driver often ends up as exposed as the strip. A sealed IP-rated supply can mount next to the load, shortening the low-voltage cable run and reducing voltage drop, and the dimmable input means it pairs straight with wall and PWM dimmers rather than needing a separate dimming module. The aluminum case also sheds heat without a fan.
Key Features
- 60W–300W range, 12V or 24V constant voltage
- Waterproof sealed aluminum housing
- Dimmable output with compatible dimmers
- Fan-free, stable output with overload protection
- Mounts close to the load for shorter DC runs
Typical Applications
- Outdoor architectural and facade lighting
- Exterior signage and channel letters
- Garden, landscape, and covered exterior strips
- Damp-location installs needing dimming
Specifications
| Parameter | Value |
|---|---|
| Series | YSD |
| Power range | 60W–300W |
| Output voltage | 12V / 24V DC |
| Housing | Waterproof aluminum |
| Dimming | Dimmable (match dimmer type) |
| Cooling | Convection, fan-free |
| Warranty | 5 years |
Installation notes
- Confirm the exact IP rating for the mounting location.
- Size the driver at 120% of total strip wattage.
- Match the dimming method (PWM, 0–10V, or triac) to the driver model.
- Use waterproof glands on cable entries and keep connectors sealed.
Frequently Asked Questions
Can it sit fully in the open outdoors?
It's sealed for outdoor mounting; verify the IP rating against the exposure and use weatherproof connectors.
How do I pick the wattage?
Add up strip watts, then add 20% headroom — e.g. a 100W load takes a 120W-or-larger driver.
Is every YSD model dimmable?
The series is offered in dimmable versions; confirm the specific model and supported dimmer before ordering.
Can I order custom specifications or OEM branding?
Yes. As the manufacturer we support custom lengths, colour temperature, CRI, packaging and OEM labeling; send us your specification.
Can I request a sample before a bulk order?
Yes, samples are available so you can confirm the colour, build and output before a bulk order. Request a sample through our contact page.
