0408mm Solder-Free Connector
- Model:0408 Connector
- LED Type:COB LED Strip Compatible
- LED Qty/M:Depends on LED Strip
- Voltage:24V DC
- Power W/m:Depends on LED Strip
- CCT/Color:2700K–6500K / RGB
- CRI:Depends on LED Strip
- Dimension:4.6mm × 9mm
- Warranty:3 Years
Technical Specifications
| Model | 0408 Connector |
|---|---|
| LED Type | COB LED Strip Compatible |
| LED Qty/m | Depends on LED Strip |
| Voltage | 24V DC |
| Power (W/m) | Depends on LED Strip |
| CCT/Color | 2700K–6500K / RGB |
| CRI | Depends on LED Strip |
| Dimension | 4.6mm × 9mm |
| Warranty | 3 Years |
| Material | Transparent PC + Copper Alloy |
| Package | 1M / Roll |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description

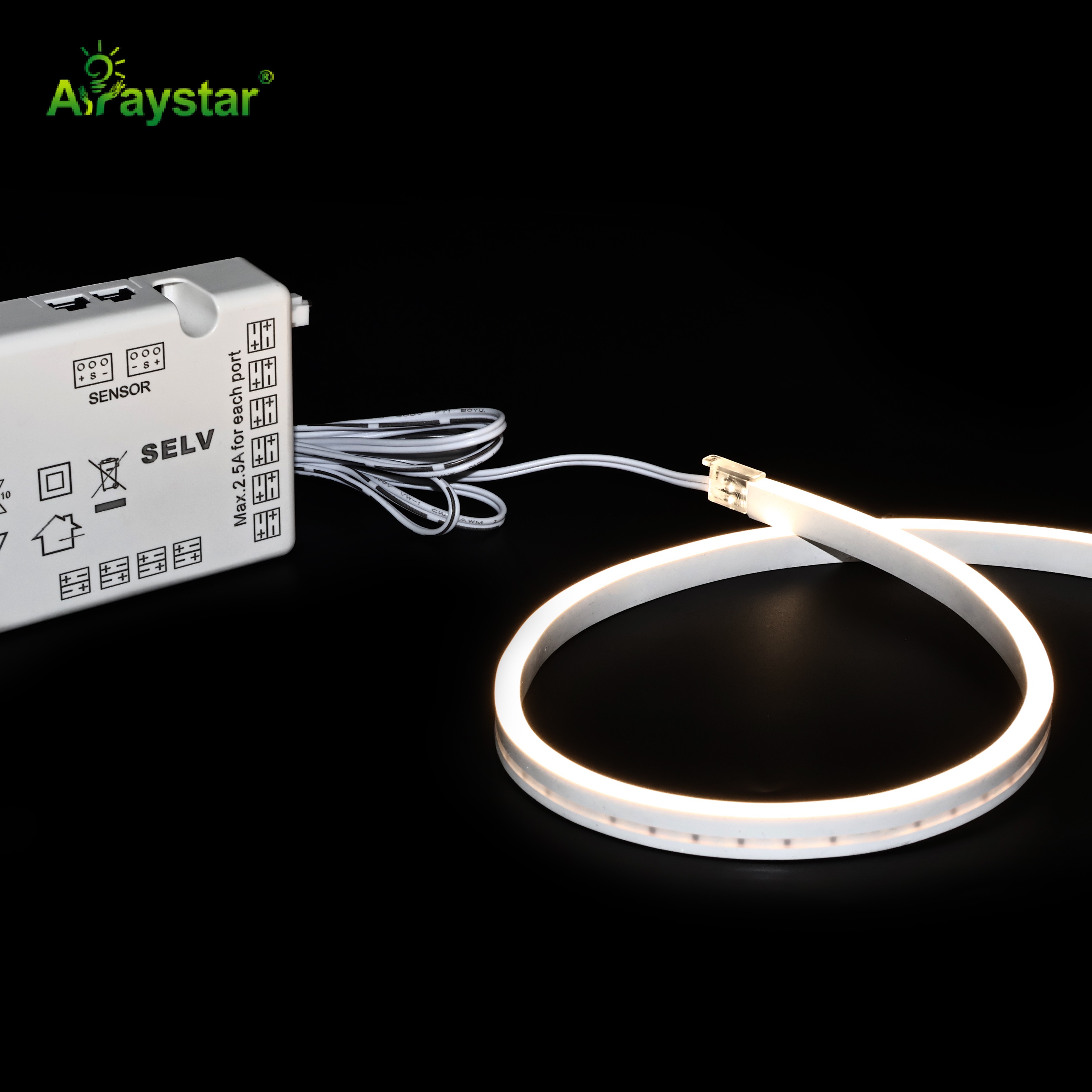

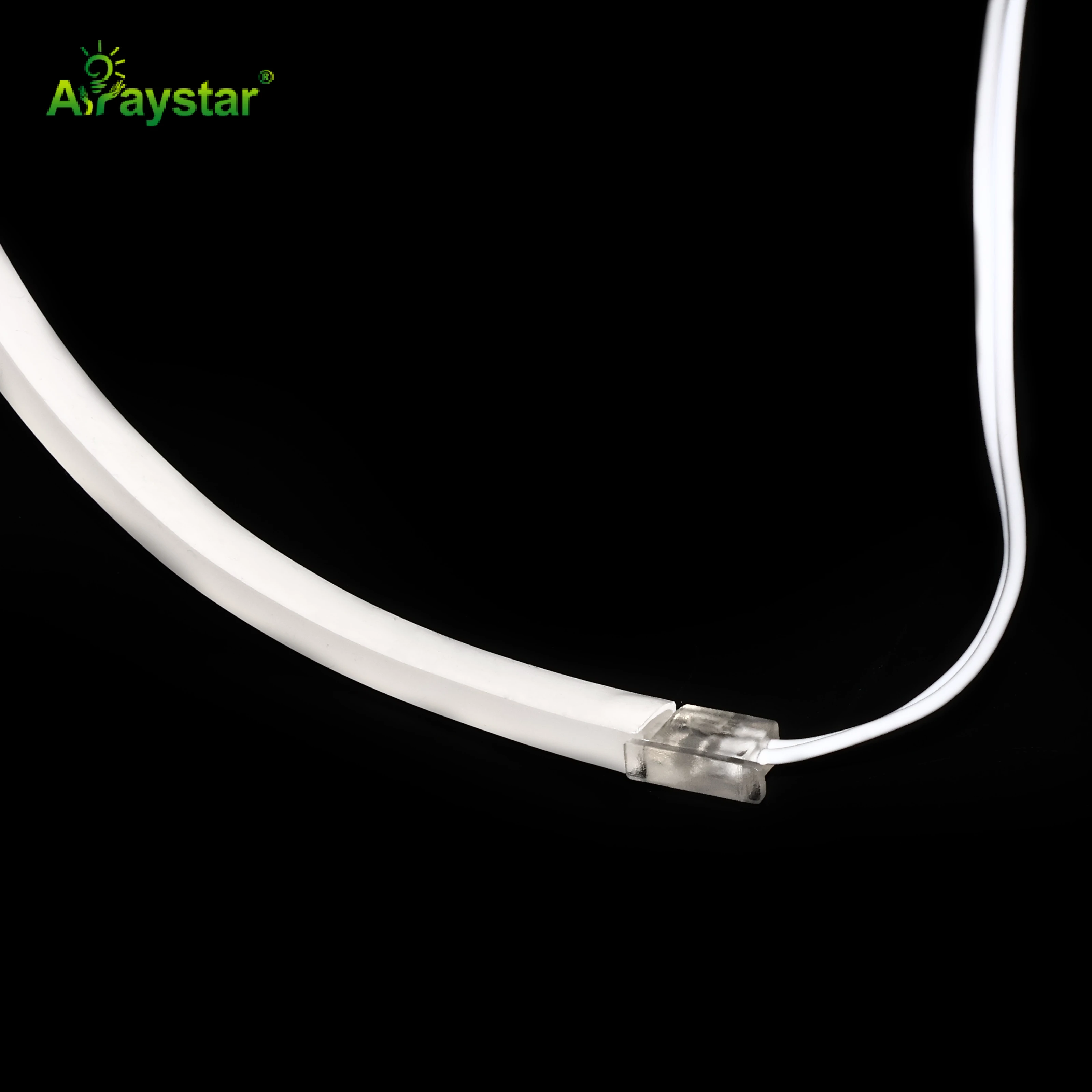

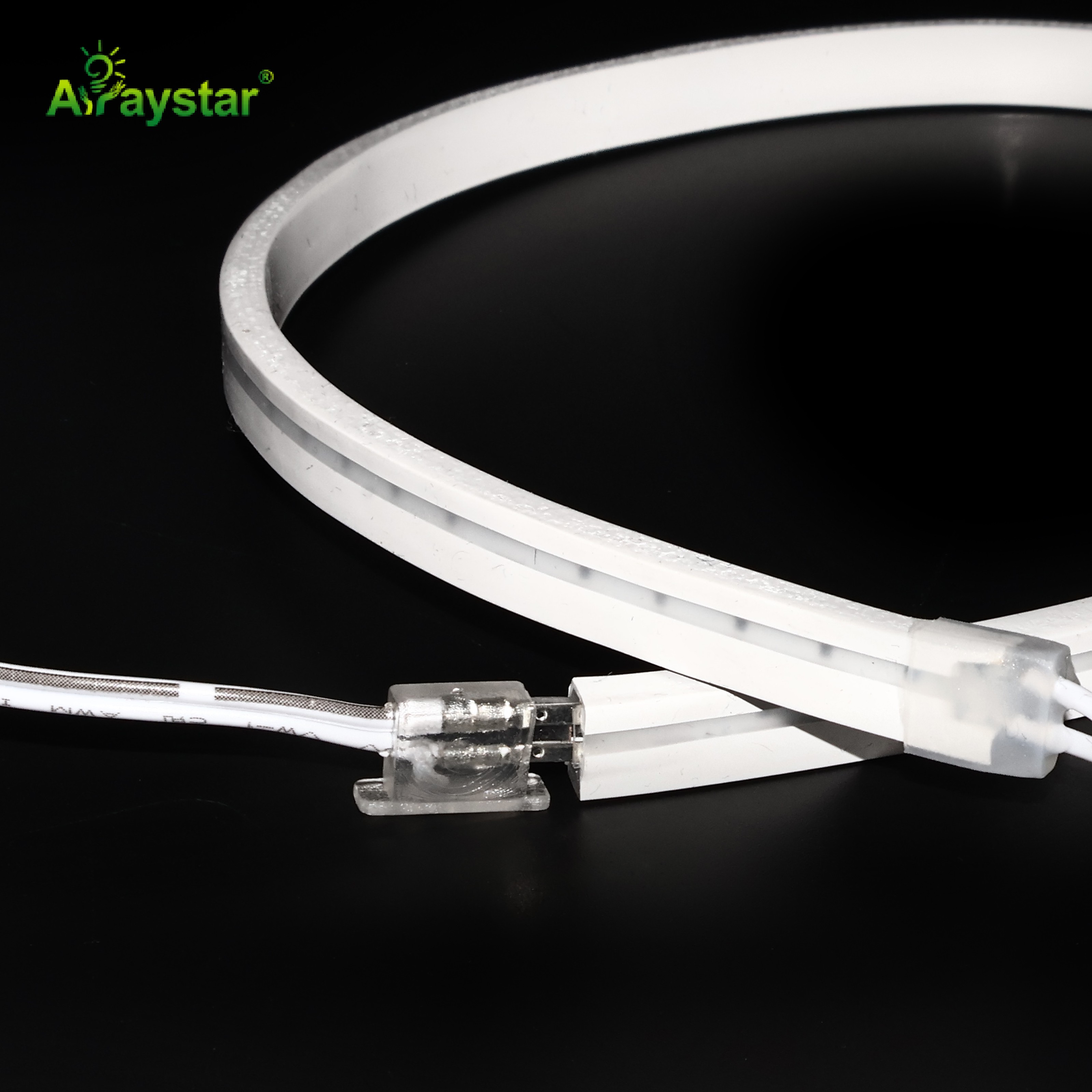

The 0408 Connector is an LED strip connector from the Arraystar accessory range. It joins LED strip sections to each other or to a power lead for 4mm strips without soldering.
Transparent PC + Copper Alloy, designed for a firm, low-resistance contact. Using the matching connector keeps the joint neat and avoids cold solder joints on site; always confirm the connector matches your strip width, pad layout and voltage (24V DC).
Key Features
- Compatible strip: 4mm
- Solder-free quick connection
- Transparent PC + Copper Alloy
- Voltage: 24V DC
- Reusable for easy rework
- Insulated housing for a clean, safe joint
Typical Applications
- Joining LED strip runs in cabinets and furniture
- Strip-to-power-lead connections
- L- and T-shaped corners with matching parts
- On-site repairs and rework
- Signage and display wiring
Frequently Asked Questions
Which strip width does it fit?
It is matched to 4mm; check the connector code against your strip before ordering.
Do I need to solder?
No soldering is needed for this solder-free connector: open the clip, seat the strip with the pads aligned, and close it firmly.
Will it work with waterproof strips?
Waterproof (IP-rated) strips need a waterproof connector, and the silicone coating often has to be peeled at the contact area. Ask for the IP-rated version.
What voltage is it rated for?
24V DC
Can it be reused?
Clip connectors can usually be opened and re-seated; replace any part that no longer holds firm contact.
