0508mm Solder-Free Connector
- Model:0508 Connector
- LED Type:COB / Flexible LED Strip Compatible
- LED Qty/M:Depends on LED Strip
- Voltage:24V DC
- Power W/m:Depends on LED Strip
- CCT/Color:2700K–6500K / RGB
- CRI:Depends on LED Strip
- Dimension:4.6mm × 9mm
- Warranty:3 Years
Technical Specifications
| Model | 0508 Connector |
|---|---|
| LED Type | COB / Flexible LED Strip Compatible |
| LED Qty/m | Depends on LED Strip |
| Voltage | 24V DC |
| Power (W/m) | Depends on LED Strip |
| CCT/Color | 2700K–6500K / RGB |
| CRI | Depends on LED Strip |
| Dimension | 4.6mm × 9mm |
| Warranty | 3 Years |
| Material | Transparent PC + Copper Alloy |
| Package | 1M / Roll |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description

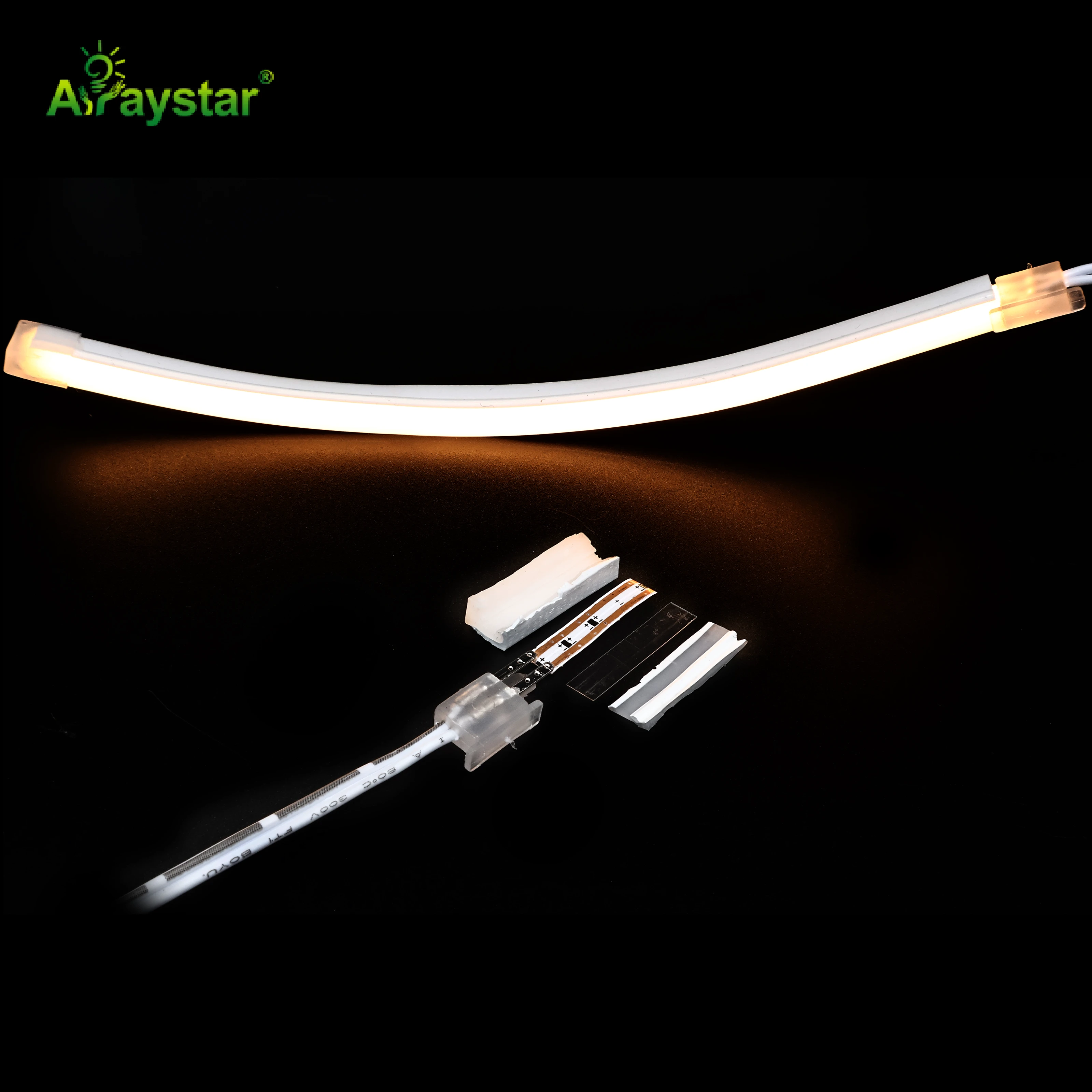

These 0508 solder-free connectors are what I keep on hand for joining narrow 5mm and 8mm COB strips without a soldering iron. The transparent PC clip with copper-alloy contacts clamps straight onto the strip pads, giving a clean, reworkable connection in seconds.
When solder-free wins on site
Soldering dense COB boards on a ladder or inside a cabinet is slow and easy to mess up, and a cold joint is exactly what causes flickering callbacks. A clamp connector opens, seats over the cut pads, and locks down — the copper contacts bite the pads and the clear body lets you visually confirm alignment. It's also re-openable, so correcting a wrong cut doesn't scrap the strip.
Key Features
- Fits 5mm and 8mm COB / flexible strips
- Transparent PC body, copper-alloy contacts
- No soldering; open, align, and clamp
- Reworkable and reusable
- 4.6×9mm compact size, 24V rated
Typical Applications
- On-site joins and corners without a soldering station
- Quick repairs and rework of COB runs
- High-volume installs where speed matters
- Strip-to-wire and strip-to-strip connections
Specifications
| Parameter | Value |
|---|---|
| Model | 0508 Connector |
| Fits strip | 5 mm / 8 mm COB |
| Size | 4.6 × 9 mm |
| Material | Transparent PC + copper alloy |
| Voltage | 24V DC |
| Warranty | 3 years |
Installation notes
- Make a clean square cut across the pads — ragged cuts won't seat.
- Open the clip, align pads with contacts through the clear body, then press shut.
- Tug gently to confirm contact before fixing the strip.
- For wet locations add heat-shrink or use a sealed connector.
Frequently Asked Questions
Does it work on any 8mm strip?
It's made for the 5/8mm COB pad layout; check pad spacing against the connector.
Can I reopen it?
Yes, lift the clip to reposition or reuse it without damaging the strip.
Is it reliable for permanent installs?
When seated correctly it gives a solid connection; for vibration-heavy or outdoor use add strain relief and sealing.
Can I order custom specifications or OEM branding?
Yes. As the manufacturer we support custom lengths, colour temperature, CRI, packaging and OEM labeling; send us your specification.
Can I request a sample before a bulk order?
Yes, samples are available so you can confirm the colour, build and output before a bulk order. Request a sample through our contact page.
