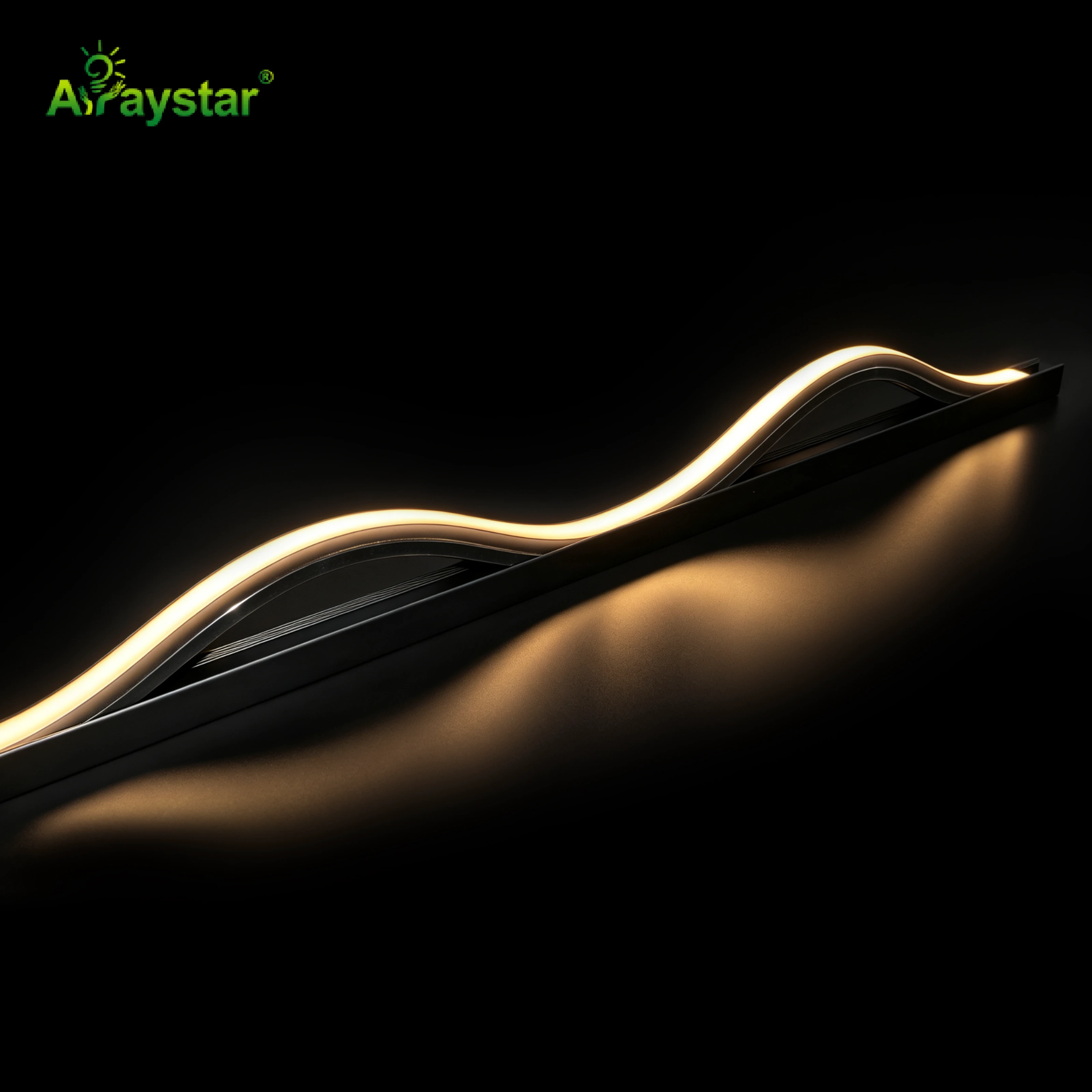

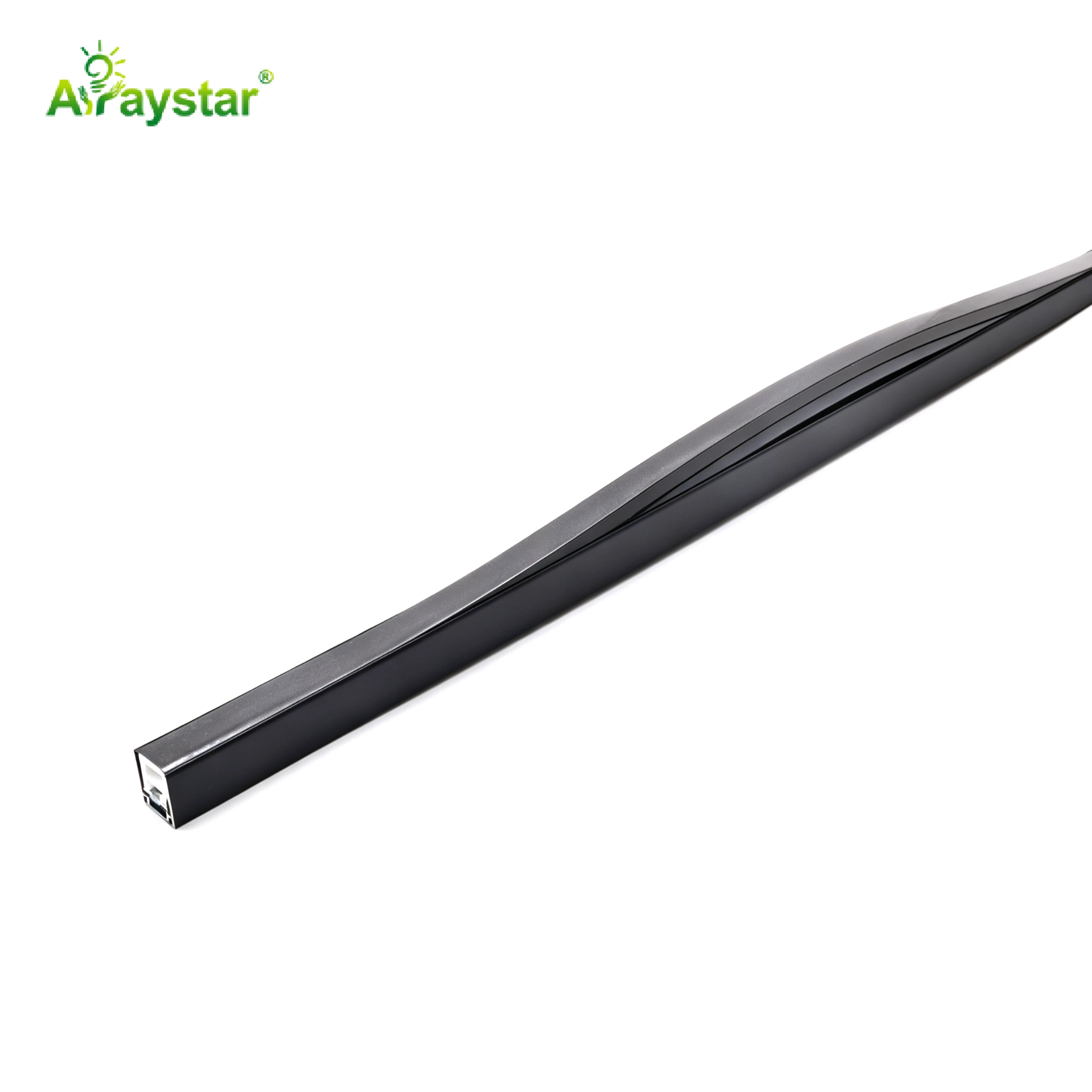

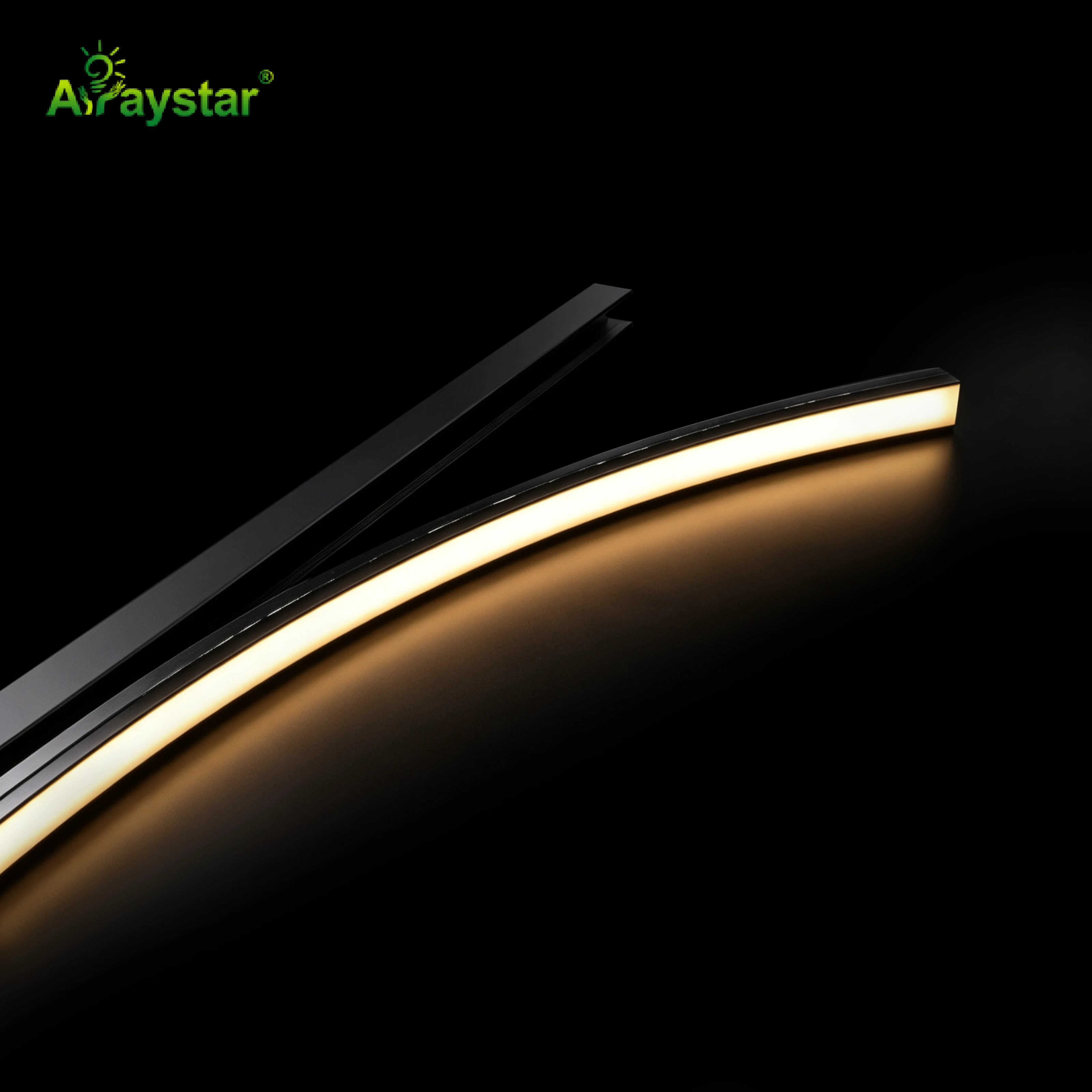

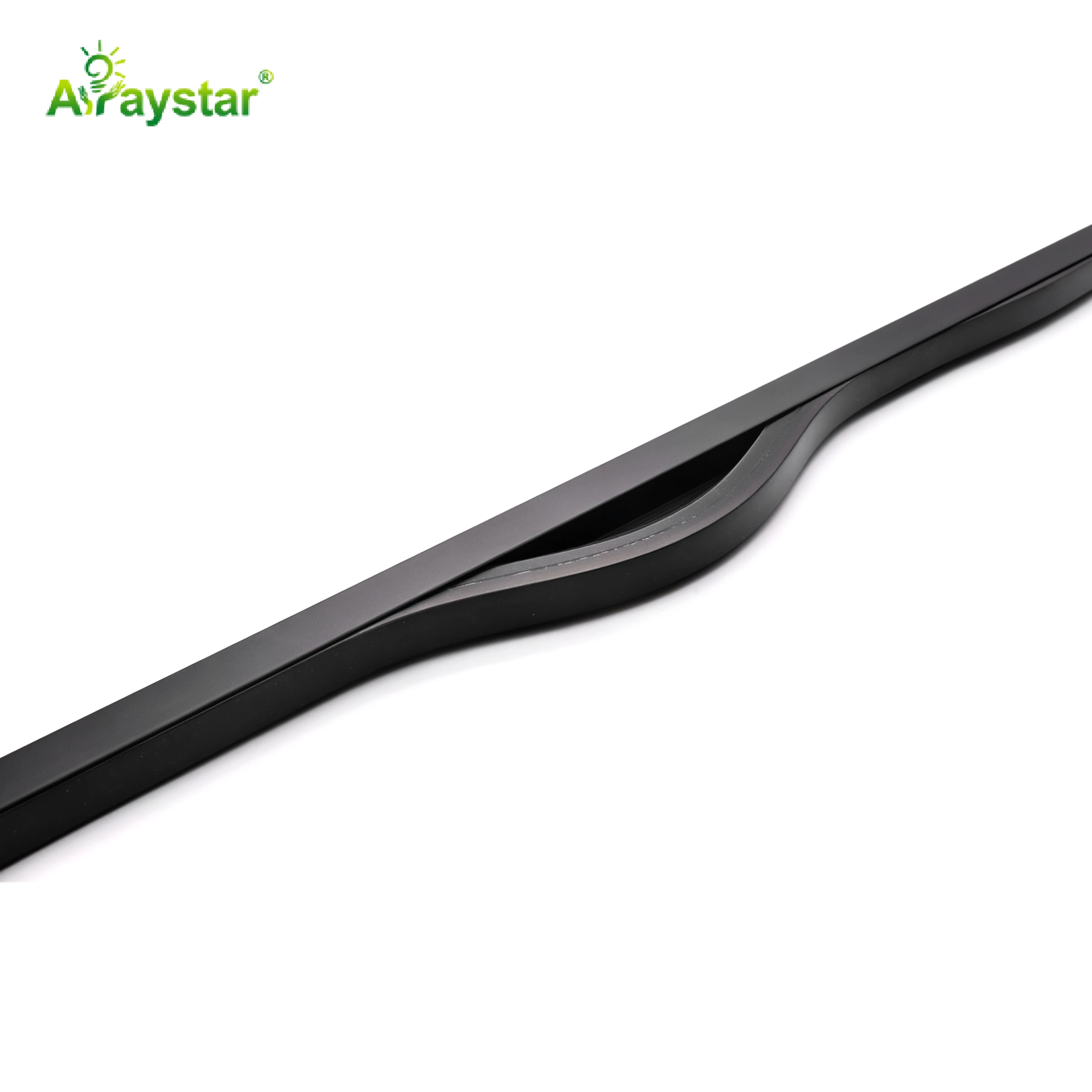

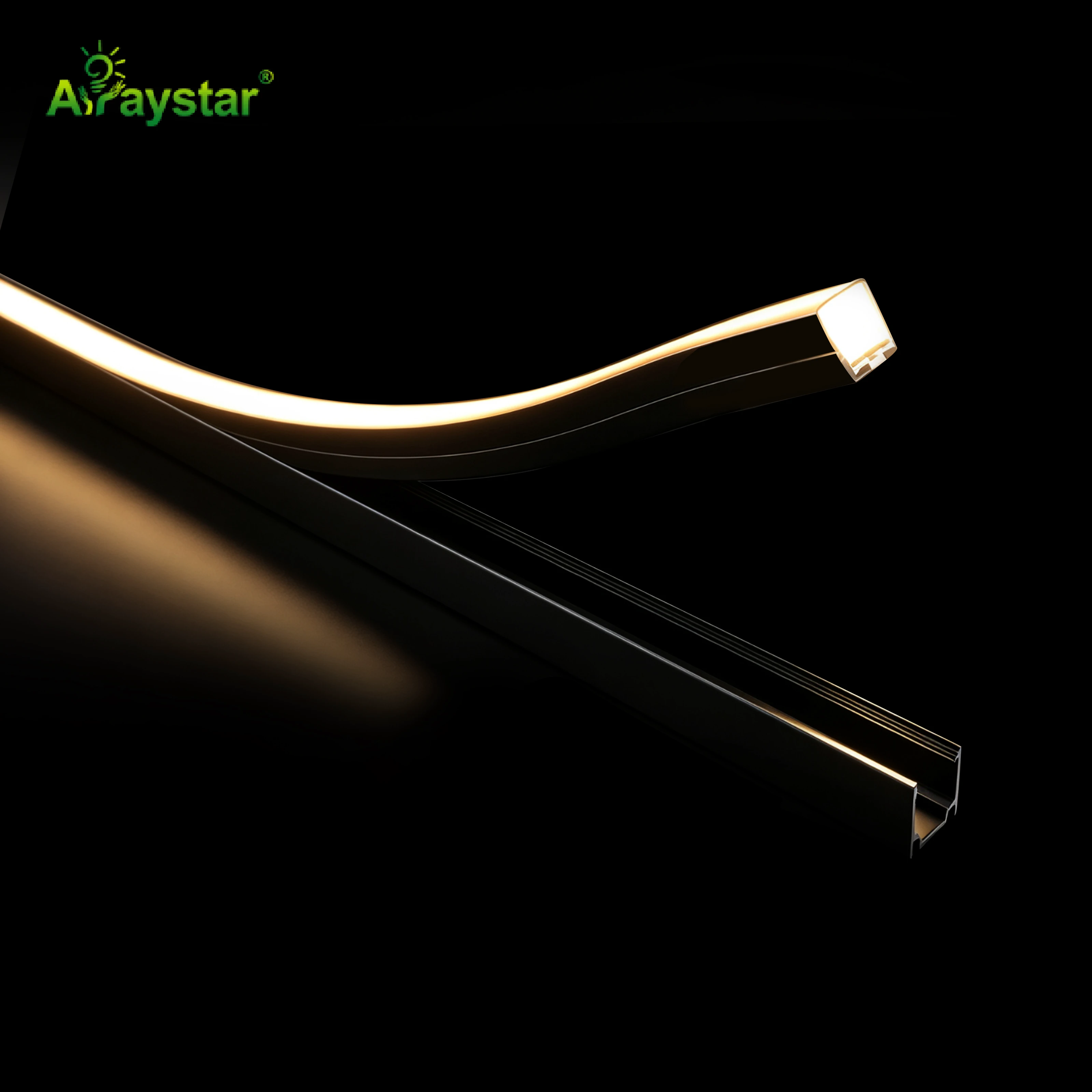

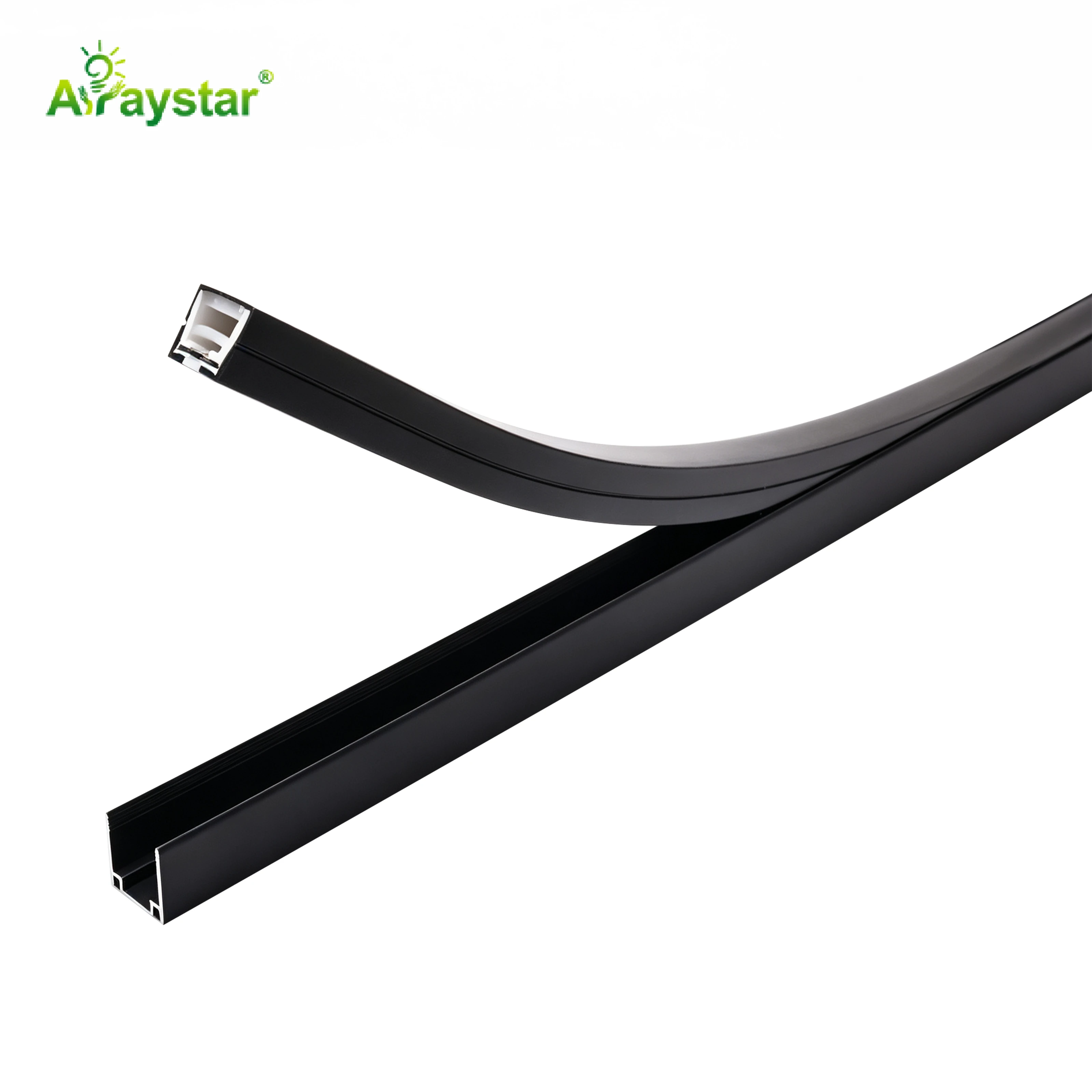

11.7(W) × 12.8(H) mm Black Aluminum Profile
- Model:ART-1010
- LED Type:Fits 1010 COB/SMD
- LED Qty/M:N/A (Not applicable for empty profiles)
- Voltage:DC 12V/24V
- Power W/m:N/A
- CCT/Color:N/A
- CRI:N/A
- Dimension:W11.7 x H12.8mm
- Warranty:3 Years
Product Description
This compact 11.7×12.8mm black aluminum profile is made to house 1010-size COB and SMD strips, giving a slim sealed line with dot-free illumination. The 6063-T5 aluminum comes in 1m, 2m, and 3m lengths with a black anodized finish.
A small profile for tight channels
When a design only leaves a narrow groove, a wide standard profile won't fit and a bare strip gives no heat path or diffusion. This profile keeps the outer body under 13mm while still enclosing a strip up to 10mm wide, so it slots into tight furniture and architectural grooves, protects the board, and spreads its points into an even line.
Key Features
- 11.7 × 12.8mm body, fits strips up to 10mm
- 6063-T5 aluminum, black anodized
- 1m / 2m / 3m lengths
- Diffuser for uniform dot-free light
- Slim enough for tight recessed grooves
Typical Applications
- Tight furniture and cabinet grooves
- Slim architectural recessed lines
- 10mm COB/SMD protection and diffusion
- Dark interiors where the housing should hide
Specifications
| Parameter | Value |
|---|---|
| Model | ART-1010 |
| Outer size | 11.7 × 12.8 mm |
| Max strip width | ≤10 mm |
| Material | 6063-T5 aluminum |
| Finish | Black anodized |
| Lengths | 1 / 2 / 3 m |
| Warranty | 3 years |
Installation notes
- Route the groove to the outer dimensions before fitting.
- Confirm your strip is ≤10mm wide and seats flat.
- Fix the base, lay the strip, and press in the diffuser.
- Trim lengths square and cap the ends.
Frequently Asked Questions
Will a 10mm COB strip fit?
Yes, the channel is sized for strips up to 10mm, including 1010 COB/SMD.
Can lengths be joined to cover longer runs?
Use butt connectors between sections and align the diffusers for a continuous line.
Is it deep enough to hide the dots?
With the matching diffuser the strip reads dot-free at normal viewing distance.
Can I order custom specifications or OEM branding?
Yes. As the manufacturer we support custom lengths, colour temperature, CRI, packaging and OEM labeling; send us your specification.
Can I request a sample before a bulk order?
Yes, samples are available so you can confirm the colour, build and output before a bulk order. Request a sample through our contact page.
