Technical Parameter

Specification Details

Remarks / Features

Product Code

ART-0814/AL/FLEX/N

Model Name

Application

Bend it. Curve it. Shape light the way you like

Product Slogan

Compatibility

Suitable for 0612 neon strip

Match Strip Size

Raw Material

Flexible Aluminum Profile: 6063-T5

High-quality Aluminum

Profile Thickness

1mm

Shell Thickness

Available Colors

Silvery White / Black

Finish Colors

Available Lengths

1m / 2m / 3m / 2.44m (8ft)

Standard Lengths

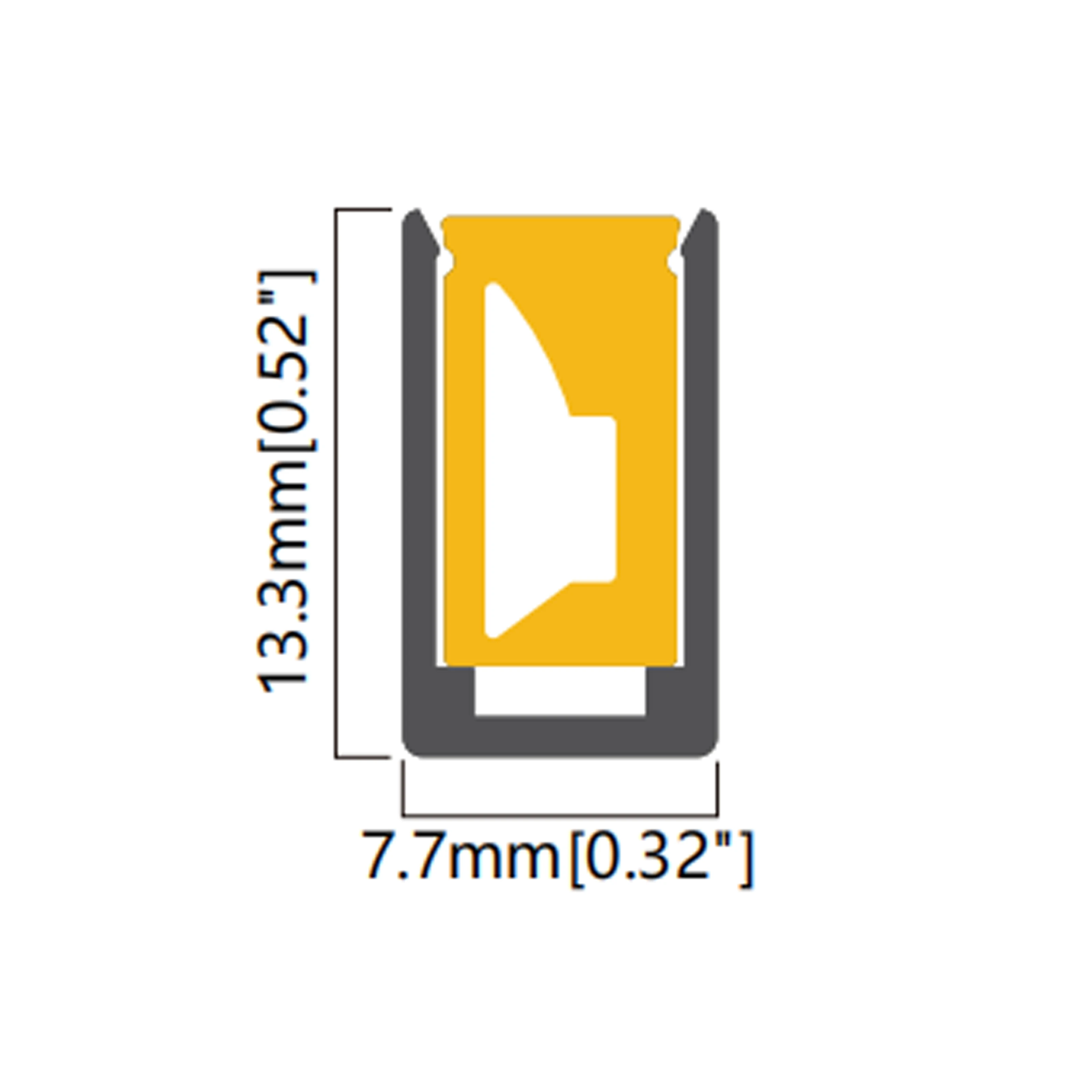

Size / Dimension

7.7 * 13.3 mm ($0.3″ \times 0.52″$)

Section Size

PCB Width Supported

0.83mm (0.33″) (Note: Possible typo for 8.3mm in factory data)

Internal PCB Width

Voltage Support

12V / 24V

Working Voltage

IP Rating

IP20

Indoor Use / Dustproof

Installation Method

Recessed

Mounting Type

Bending Feature

No tooling required, very easy to bend by hand

Extremely Flexible

Protection

Profile with foam

Packaging Protection

UV Resistance

Yes

UV Proof

Lighting Direction

Downward / Inward / Outward Lighting

Bending/Lighting Options

Min Bending Radius

Downward Lighting: R100 / 200mmInward Lighting: R100 / 1200mmOutward Lighting: R100 / 200mm

Minimum Bending Radius

Certificates

CE / RoHS / GS (CESGS)

Compliance

Warranty

2 Years Warranty

Quality Guarantee
