Aluminium Channels for Neon Flex

ART-1414/AL/FLEX/N Flexible Aluminum Profile for 1212 Neon Strip, Recessed Flexible LED Channel Aluminium Channels for Neon Flex
ART-1414/AL/FLEX/N Flexible Aluminum Profile for 1212 Neon Strip, Recessed Flexible LED Channel Aluminium Channels for Neon Flex
ART-1414/AL/FLEX/N Flexible Aluminum Profile for 1212 Neon Strip, Recessed Flexible LED Channel Aluminium Channels for Neon Flex
ART-1414/AL/FLEX/N Flexible Aluminum Profile for 1212 Neon Strip, Recessed Flexible LED Channel Aluminium Channels for Neon Flex

ART-1414/AL/FLEX/N Flexible Aluminum Profile for 1212 Neon Strip, Recessed Flexible LED Channel

  • Model:ART-1414/AL/FLEX/N
  • LED Type:Be suitable for 1212 neon strip
  • LED Qty/M:Depend on the 1212 neon strip used
  • Voltage:12/24V
  • Power W/m:Depend on the 1212 neon strip used
  • CCT/Color:Profile: Silvery White / Black (LED color depends on the strip used)
  • CRI:Depend on the 1212 neon strip used

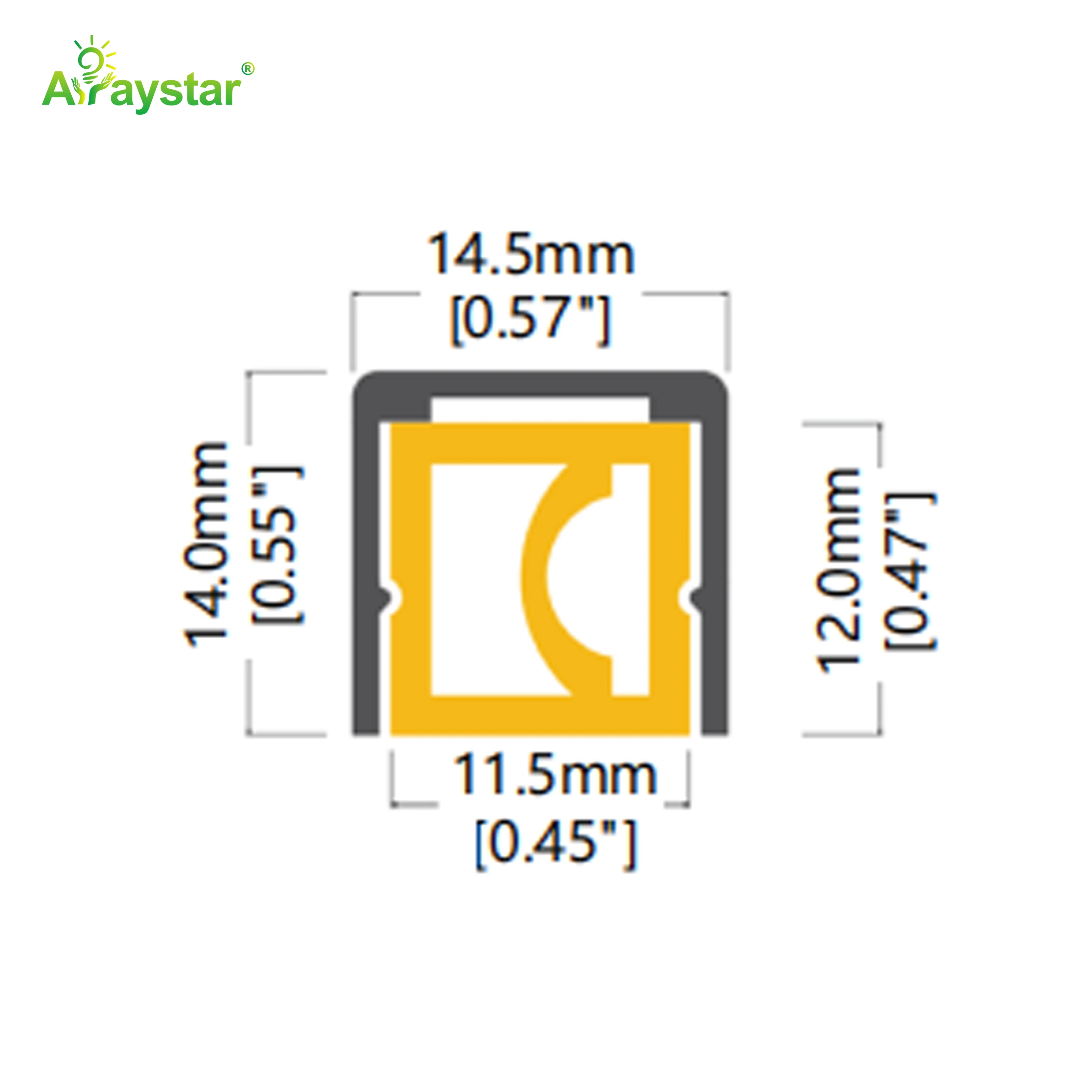

  • Dimension:14.5 * 14.0 mm ($0.57″ \times 0.55″$)
  • Warranty:5 Year
Certification: UL 1598C (Cert. E501132, selected models) · CE · RoHS · UKCA Pricing: quotations in USD · 30% deposit / 70% before shipment Lead time: 3–7 working days (stock) · 15–25 (custom) · express to the US 3–5 days

Technical Specifications

ModelART-1414/AL/FLEX/N
LED TypeBe suitable for 1212 neon strip
LED Qty/mDepend on the 1212 neon strip used
Voltage12/24V
Power (W/m)Depend on the 1212 neon strip used
CCT/ColourProfile: Silvery White / Black (LED color depends on the strip used)
CRIDepend on the 1212 neon strip used
Dimension14.5 * 14.0 mm ($0.57″ \times 0.55″$)
Warranty5 Year
Material
Package
Minimum Order QuantityFactory-direct - on request
CertificationsCE, RoHS, UKCA; UL 1598C (Cert. E501132, selected models)

Product Description

The ART-1414/AL/FLEX/N is an Arraystar aluminium channel from the LED strip mounting profile range. It is designed to hold and protect the LED strip, provide a heat path, and turn discrete chips into one even, dot-free line for strips up to 14.0mm.

Extruded aluminium construction, 14.5 * 14.0 mm ($0.57″ \times 0.55″$). Pair it with a matching diffuser, end caps and mounting clips for a clean linear fixture.

Key Features

  • Fits strip width: 14.0mm
  • Outer size: 14.5 * 14.0 mm ($0.57″ \times 0.55″$)
  • Diffuser for uniform dot-free light
  • Heat-dissipating aluminium body
  • End caps and mounting clips available as a kit
  • Recessed or surface mounting
  • Standard lengths, cut to size on site
  • Bulk and OEM supply available

Typical Applications

  • Recessed cabinet and furniture lighting
  • Architectural wall and ceiling lines
  • Neon flex and LED strip mounting
  • Shelf, display and signage lighting
  • Decorative edge and contour lighting

Frequently Asked Questions

What width of strip will fit?

This channel is sized for 14.0mm; confirm your strip board width against the inner channel before ordering.

Does it make the light dot-free?

With the matching diffuser, a suitably dense strip reads as a continuous line at normal viewing distance.

Which lengths are available?

Standard extruded lengths are available; channels can be cut to size on site and joined with butt connectors.

Are the diffuser and end caps included?

Profiles, diffusers, clips and end caps can be supplied as a complete kit; confirm the parts list when you request a quote.

Can it be recessed?

Yes, route the groove to the outer dimensions and recess the channel, or surface-mount with the matching brackets.
