| Model | ART-1616/AL/FLEX/N |
|---|---|
| LED Type | Be suitable for 1414 neon strip |
| LED Qty/m | Be suitable for 1414 neon strip |
| Voltage | 12/24V |
| Power (W/m) | Depend on the 1414 neon strip used |
| CCT/Colour | Profile: Silvery White / Black (LED color depends on the strip used) |
| CRI | Depend on the 1414 neon strip used |

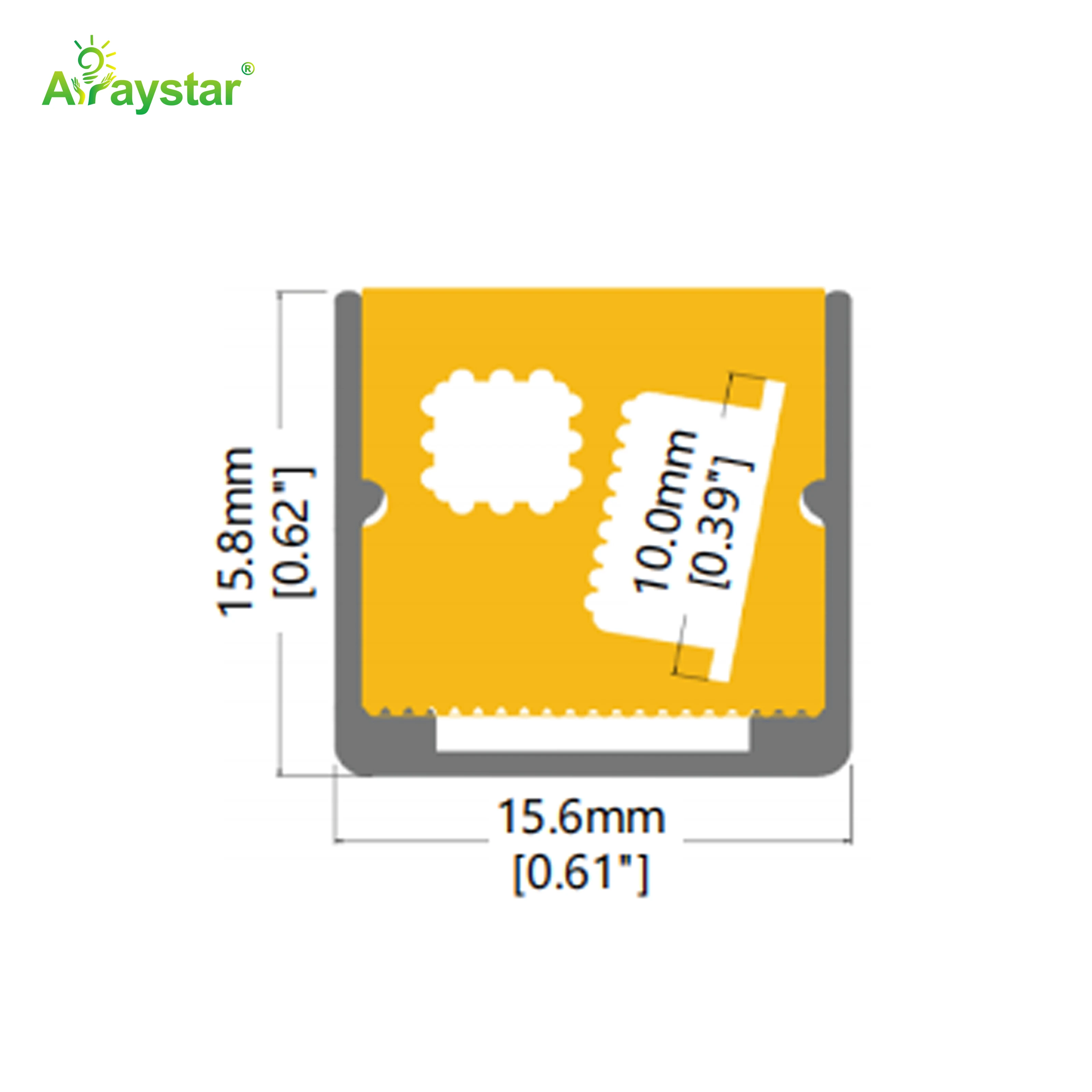

| Dimension | 15.6 * 15.8 mm |
| Warranty | 5 Year |
| Material | |
| Package | |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS, UKCA; UL 1598C (Cert. E501132, selected models) |
The ART-1616/AL/FLEX/N is an Arraystar aluminium channel from the LED strip mounting profile range. It is designed to hold and protect the LED strip, provide a heat path, and turn discrete chips into one even, dot-free line for strips up to 15.8mm.
Extruded aluminium construction, 15.6 * 15.8 mm. Pair it with a matching diffuser, end caps and mounting clips for a clean linear fixture.
This channel is sized for 15.8mm; confirm your strip board width against the inner channel before ordering.
With the matching diffuser, a suitably dense strip reads as a continuous line at normal viewing distance.
Standard extruded lengths are available; channels can be cut to size on site and joined with butt connectors.
Profiles, diffusers, clips and end caps can be supplied as a complete kit; confirm the parts list when you request a quote.
Yes, route the groove to the outer dimensions and recess the channel, or surface-mount with the matching brackets.
