ART-AL6161 Silver 90 Degree Corner Connector Profile Connector for LED Strip Light Aluminum Channel

  • Model:ART-AL6161
  • LED Type:Depends on the LED strip used.
  • LED Qty/M:Depends on the LED strip used.
  • Voltage:Depends on the LED strip used.
  • Power W/m:Depends on the LED strip used.
  • CCT/Color:Silver
  • CRI:Depends on the LED strip used.

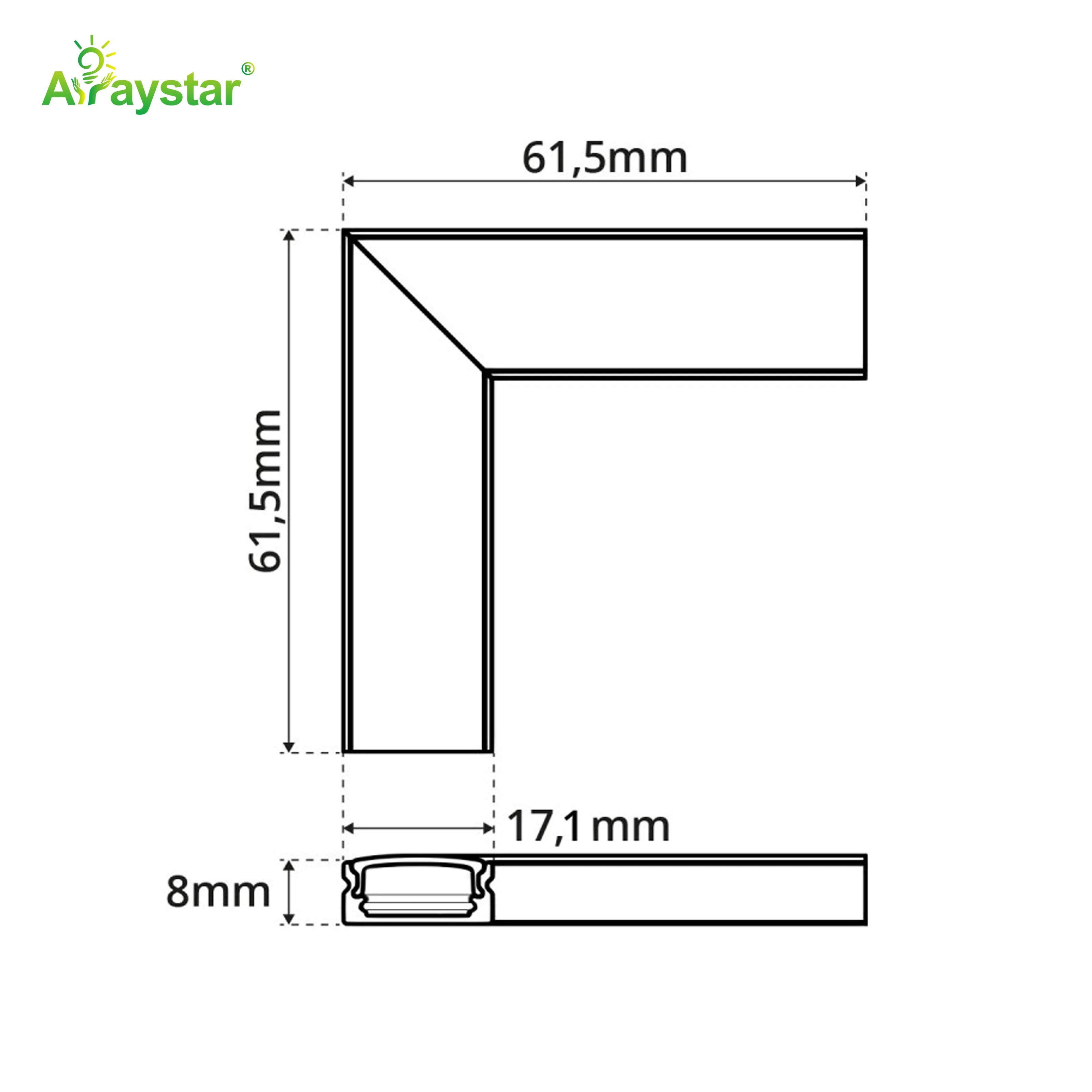

  • Dimension:61.5mm × 61.5mm
  • Warranty:5 Year
Certification: UL 1598C (Cert. E501132, selected models) · CE · RoHS · UKCA Pricing: quotations in USD · 30% deposit / 70% before shipment Lead time: 3–7 working days (stock) · 15–25 (custom) · express to the US 3–5 days

Technical Specifications

ModelART-AL6161
LED TypeDepends on the LED strip used.
LED Qty/mDepends on the LED strip used.
VoltageDepends on the LED strip used.
Power (W/m)Depends on the LED strip used.
CCT/ColourSilver
CRIDepends on the LED strip used.
Dimension61.5mm × 61.5mm
Warranty5 Year
MaterialDepends on the LED strip used.
PackageDepends on the LED strip used.
Minimum Order QuantityFactory-direct - on request
CertificationsCE, RoHS, UKCA; UL 1598C (Cert. E501132, selected models)

Product Description

The ART-AL6161 is an Arraystar aluminium channel from the LED strip mounting profile range. It is designed to hold and protect the LED strip, provide a heat path, and turn discrete chips into one even, dot-free line for strips up to 61.5mm.

Extruded aluminium construction, 61.5mm × 61.5mm. Pair it with a matching diffuser, end caps and mounting clips for a clean linear fixture.

Key Features

  • Fits strip width: 61.5mm
  • Outer size: 61.5mm × 61.5mm
  • Diffuser for uniform dot-free light
  • Heat-dissipating aluminium body
  • End caps and mounting clips available as a kit
  • Recessed or surface mounting
  • Standard lengths, cut to size on site
  • Bulk and OEM supply available

Typical Applications

  • Recessed cabinet and furniture lighting
  • Architectural wall and ceiling lines
  • Neon flex and LED strip mounting
  • Shelf, display and signage lighting
  • Decorative edge and contour lighting

Frequently Asked Questions

What width of strip will fit?

This channel is sized for 61.5mm; confirm your strip board width against the inner channel before ordering.

Does it make the light dot-free?

With the matching diffuser, a suitably dense strip reads as a continuous line at normal viewing distance.

Which lengths are available?

Standard extruded lengths are available; channels can be cut to size on site and joined with butt connectors.

Are the diffuser and end caps included?

Profiles, diffusers, clips and end caps can be supplied as a complete kit; confirm the parts list when you request a quote.

Can it be recessed?

Yes, route the groove to the outer dimensions and recess the channel, or surface-mount with the matching brackets.
