Full Model Name

ART-Square19 Corner Aluminum Profile

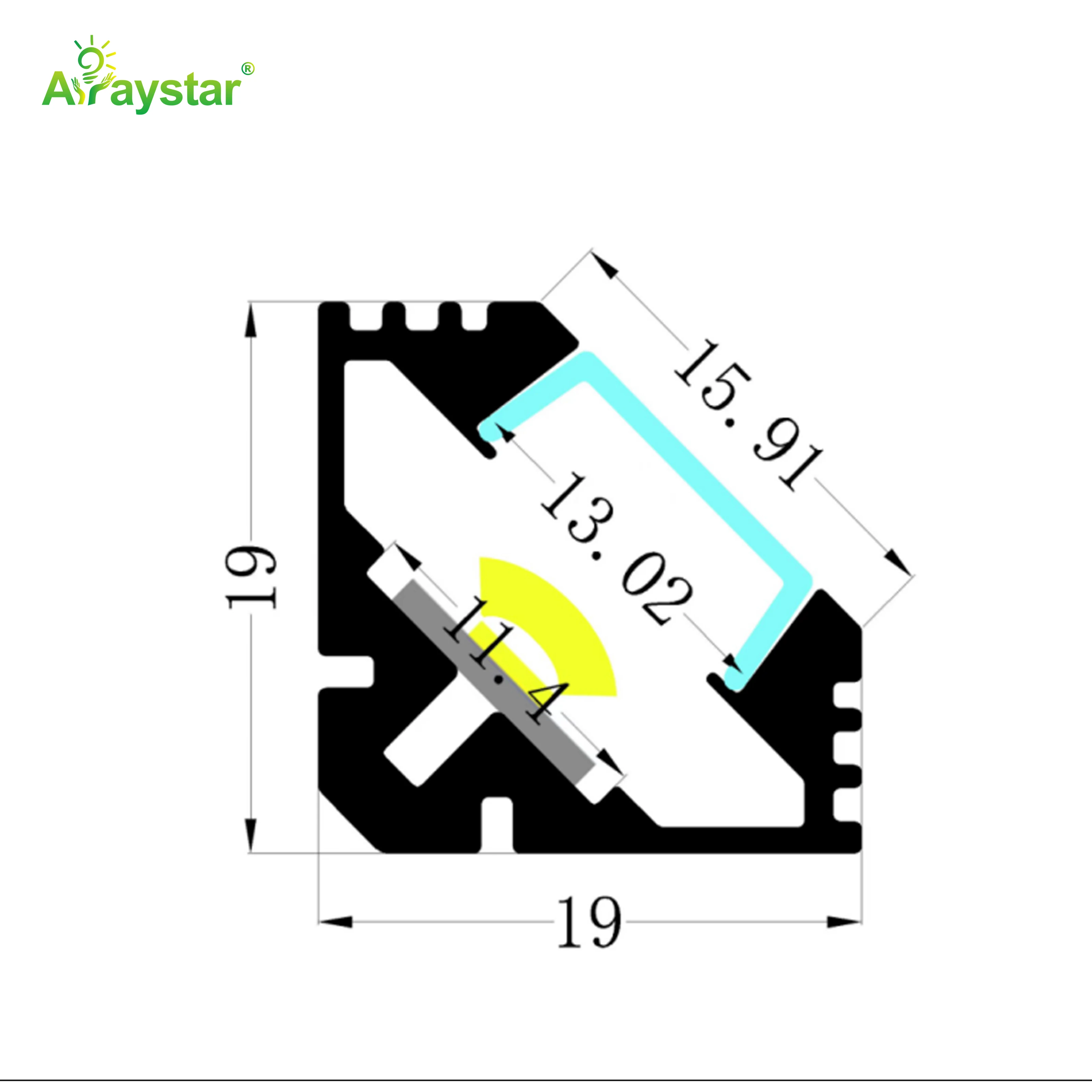

Overall Outer Size

19mm width × 19mm height

Available LED Strip Width Limit

≤11.4mm

Internal Light Trough Size

13.02mm diagonal

External Diffuser Frame Diagonal

15.91mm

Profile Shape

Square 90° corner extrusion channel

Main Body Material

Aluminum Alloy

Diffuser Cover Material

PC Polycarbonate

Surface Finish

Anodized aluminum / Frosted PC cover

Installation Method

In-wall corner, surface mount inner corner

Cuttable Length

Custom cut length available

Light Emission Type

Side-angle corner lighting

Compatible Accessories

Matching end caps, stainless steel mounting clips

Waterproof Grade

/

Max Loading Power

/

Color Options

/
