Reel to Reel COB & SCOB LED Strip

Technical Specifications

Product Description

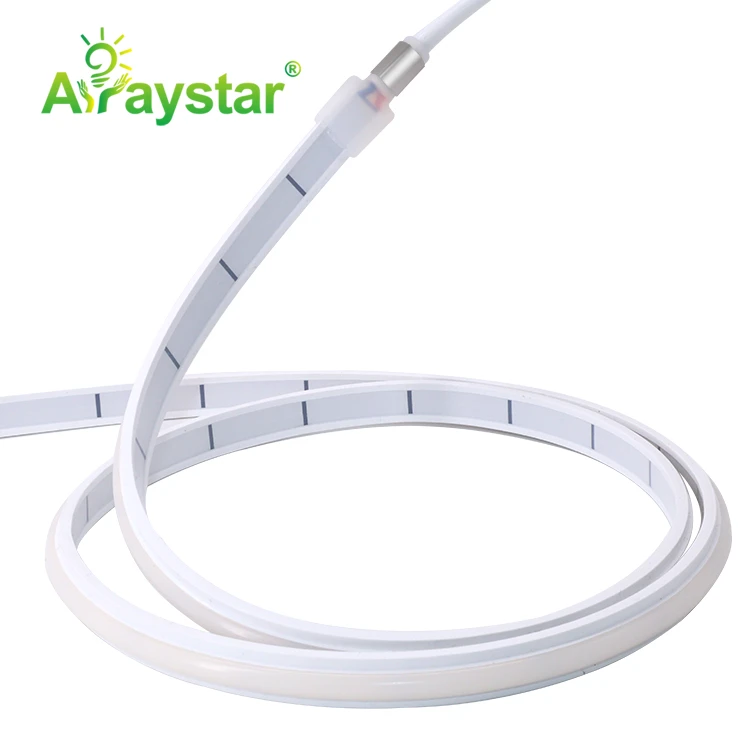

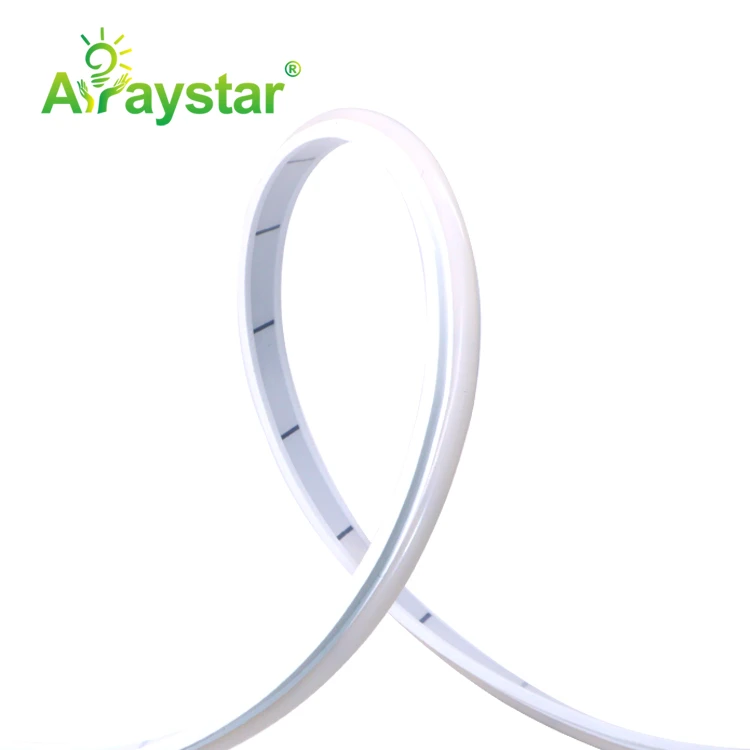

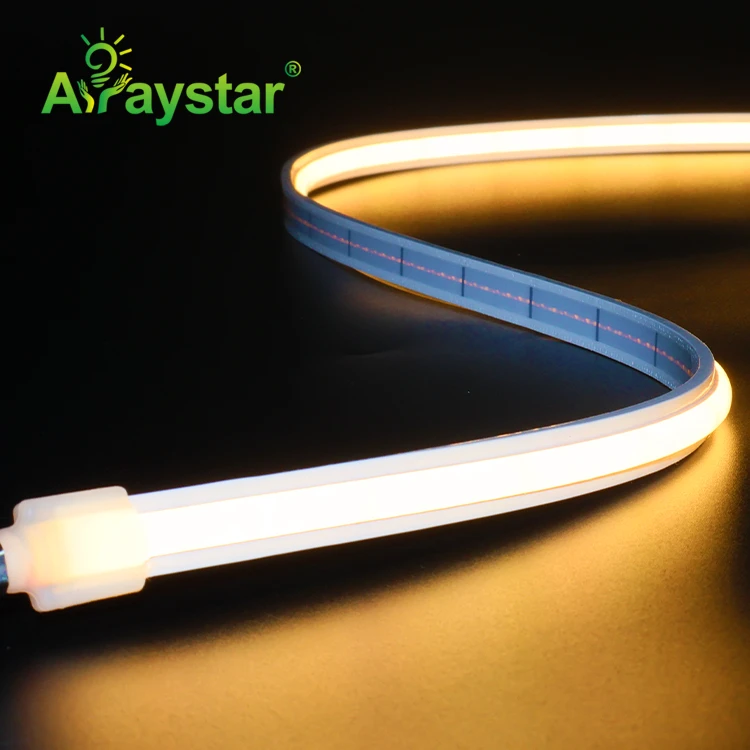

The ART-SOB08-0510SE-240-X-24 is an Arraystar Reel to Reel COB LED Strip. It uses SMD 2835s at 240 LEDs/m, on DC 24V, drawing around 11W/m, in 2300K/3000K/4000K/6500K, delivering a continuous, dot-free line, rated IP24.

It features CRI ≥70/80/90, a 5*10mm profile. It is a flexible, cuttable strip for linear, cove and accent lighting.

Key Features

• SMD 2835 at 240 LEDs/m
• Continuous, dot-free light output
• Input: DC 24V
• Power: 11W/m
• CRI ≥70/80/90
• Colour options: 2300K/3000K/4000K/6500K
• IP24 sealed construction
• Warranty: 3 years

Typical Applications

• Dot-free cove, perimeter and skirting lighting
• High-end hotel and hospitality interiors
• Retail shelf, window and display lighting
• Seamless architectural linear fixtures
• Jewellery and museum-style accent lighting

Frequently Asked Questions

What power supply does this strip need?

A DC 24V constant-voltage LED driver sized for the total wattage (about 11W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.

Will I see voltage drop on a long run?

DC strips can dim at the far end of a long run. Re-feed power at the recommended intervals and use the correct cable size; we confirm the layout for your project.

Is this strip suitable for outdoor use?

It carries an IP24 rating. Outdoor or wet installations still need sealed connectors and proper end sealing to maintain the rating.

Can I cut it on site?

Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.

Which colour temperatures are available?

2300K/3000K/4000K/6500K
