Tunable 8mm PCB SOB LED Strip 560LEDs/m IP20 Non-waterproof
- Model:ART-SOB08-560-W+WW-24
- LED Type:SMD 2835
- LED Qty/M:560 LEDs/m
- Voltage:DC 24V
- Power W/m:12W/m
- CCT/Color:2700K~6500K
- CRI:≥70/80/90
- Dimension:8mm PCB
- Warranty:
Technical Specifications
| Model | ART-SOB08-560-W+WW-24 |
|---|---|
| LED Type | SMD 2835 |
| LED Qty/m | 560 LEDs/m |
| Voltage | DC 24V |
| Power (W/m) | 12W/m |
| CCT/Color | 2700K~6500K |
| CRI | ≥70/80/90 |
| Dimension | 8mm PCB |
| Warranty | |
| Material | |
| Package | |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description

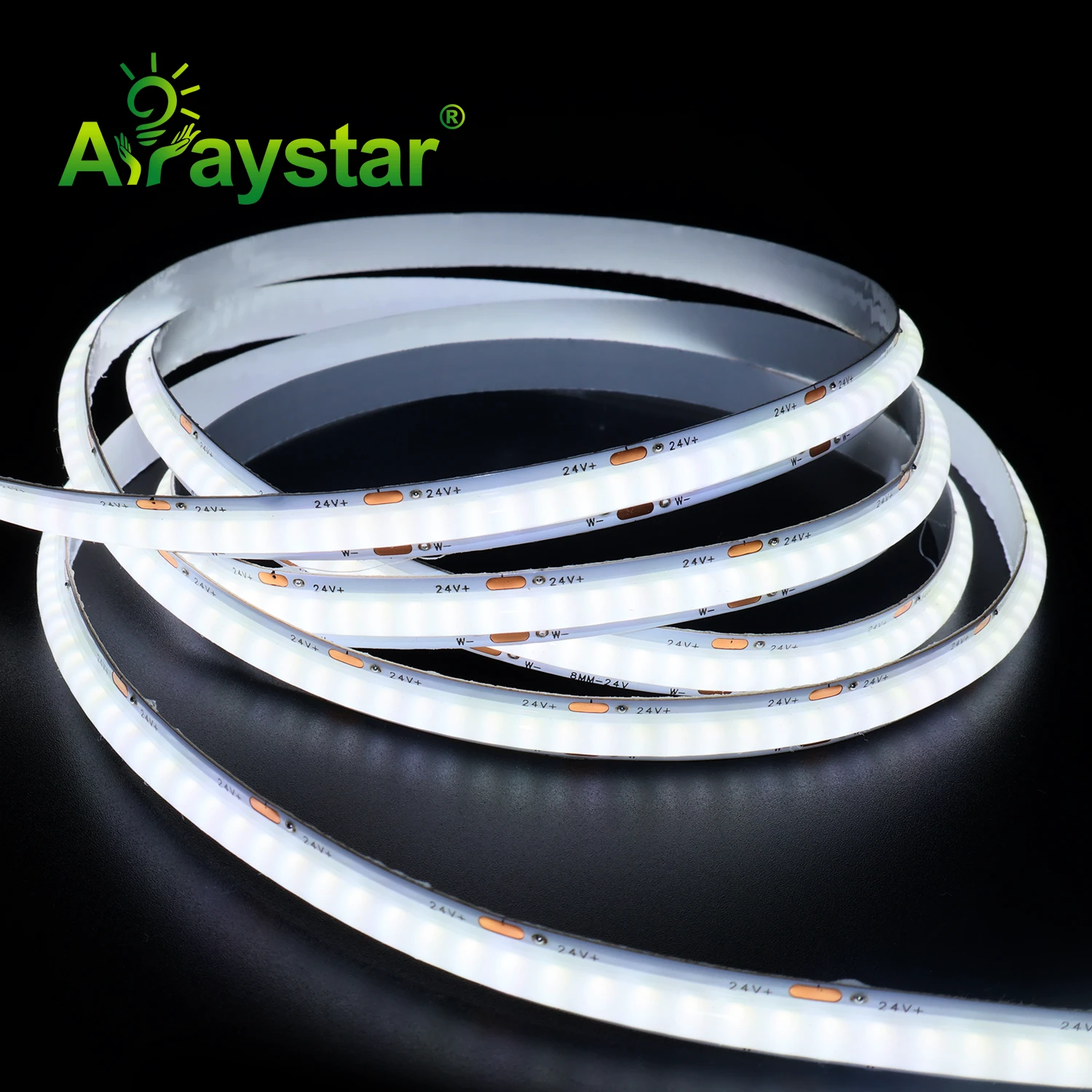

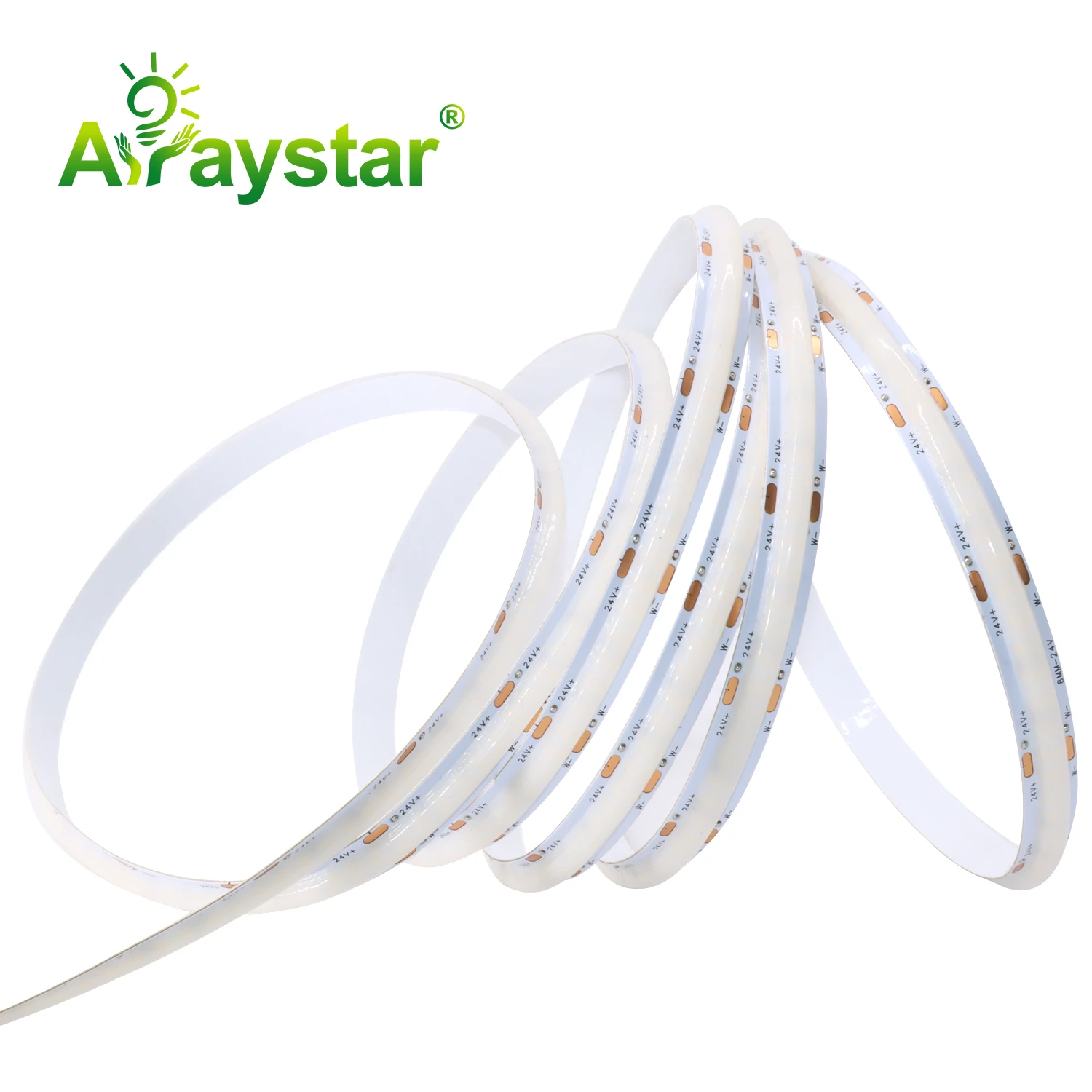

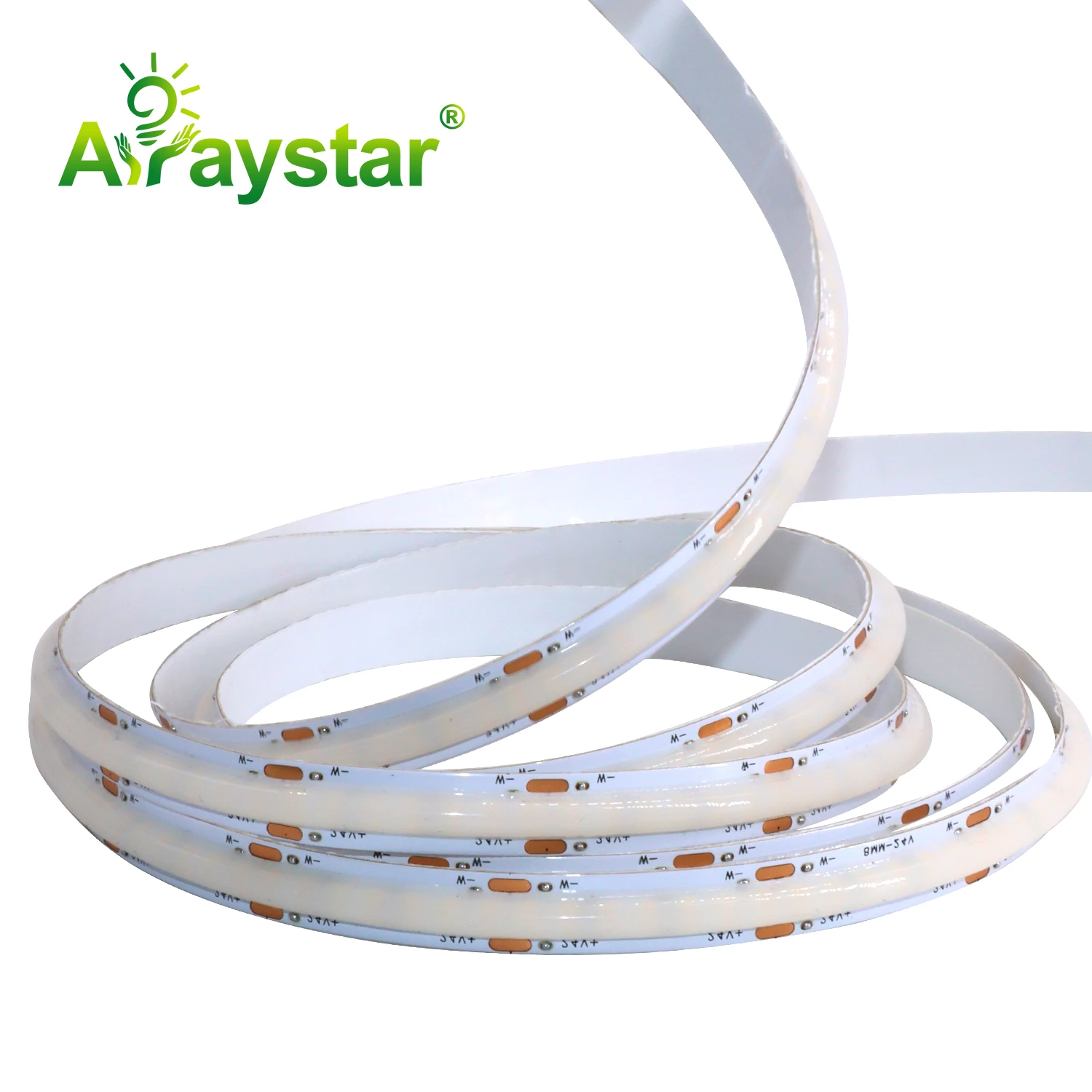

The ART-SOB08-560-W+WW-24 is an Arraystar Reel to Reel COB LED Strip. It uses SMD 2835s at 560 LEDs/m, on DC 24V, drawing around 12W/m, in 2700K~6500K, delivering a continuous, dot-free line, rated IP56.
It features CRI ≥70/80/90, an 8mm PCB profile. It is a flexible, cuttable strip for linear, cove and accent lighting.
Key Features
- SMD 2835 at 560 LEDs/m
- Continuous, dot-free light output
- Input: DC 24V
- Power: 12W/m
- CRI ≥70/80/90
- Colour options: 2700K~6500K
- IP56 sealed construction
Typical Applications
- Dot-free cove, perimeter and skirting lighting
- High-end hotel and hospitality interiors
- Retail shelf, window and display lighting
- Seamless architectural linear fixtures
- Jewellery and museum-style accent lighting
Frequently Asked Questions
What power supply does this strip need?
A DC 24V constant-voltage LED driver sized for the total wattage (about 12W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
DC strips can dim at the far end of a long run. Re-feed power at the recommended intervals and use the correct cable size; we confirm the layout for your project.
Is this strip suitable for outdoor use?
It carries an IP56 rating. Outdoor or wet installations still need sealed connectors and proper end sealing to maintain the rating.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
Which colour temperatures are available?
2700K~6500K
