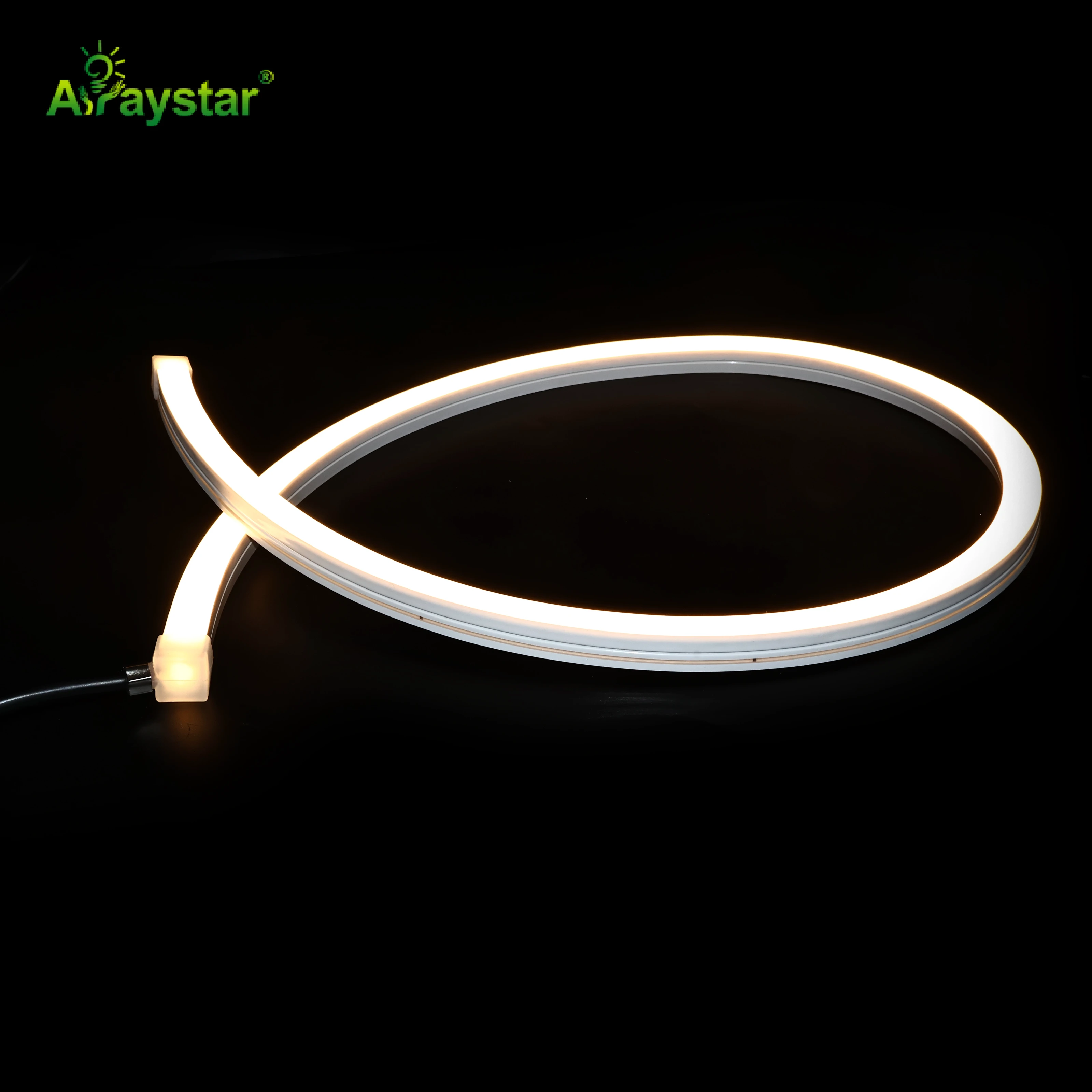

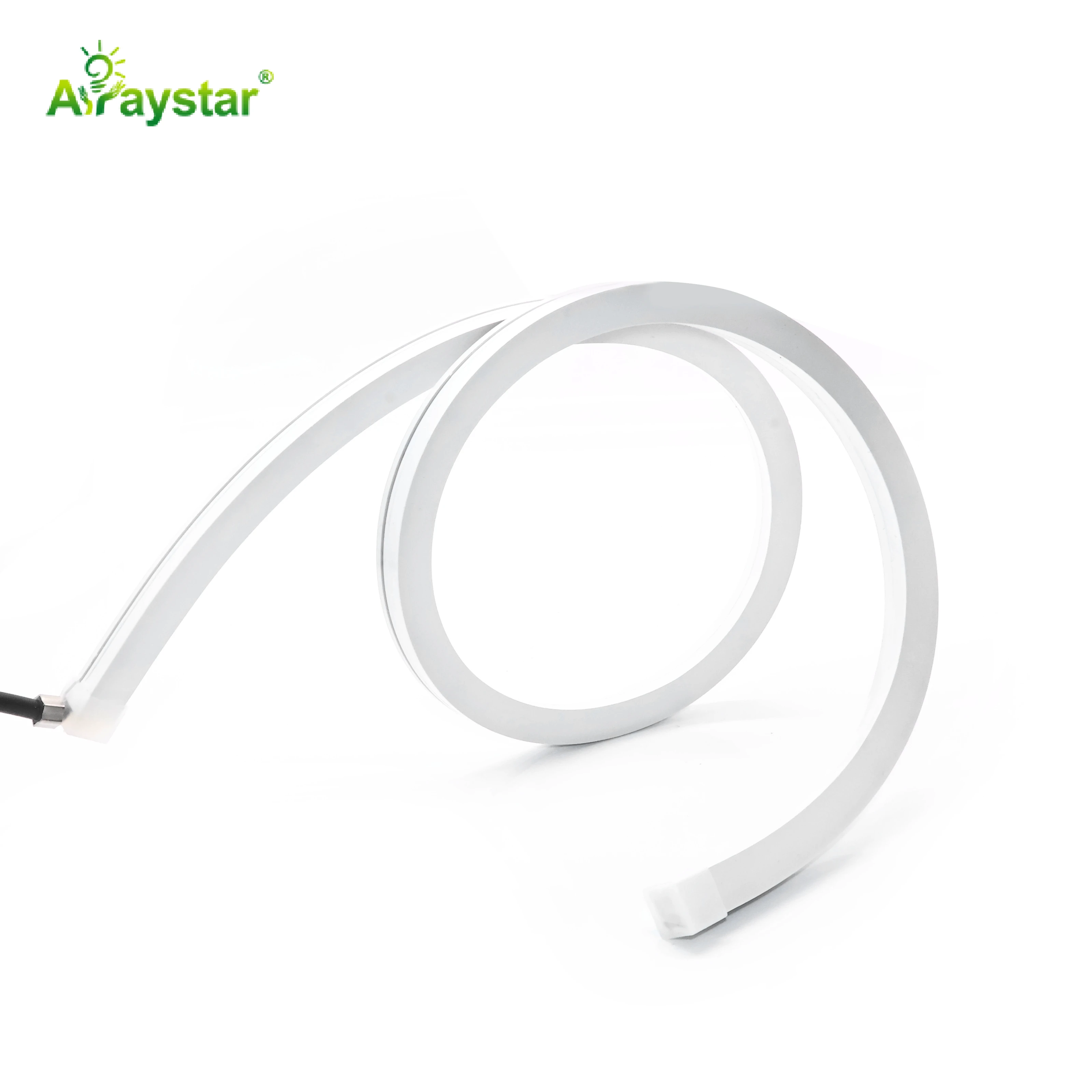

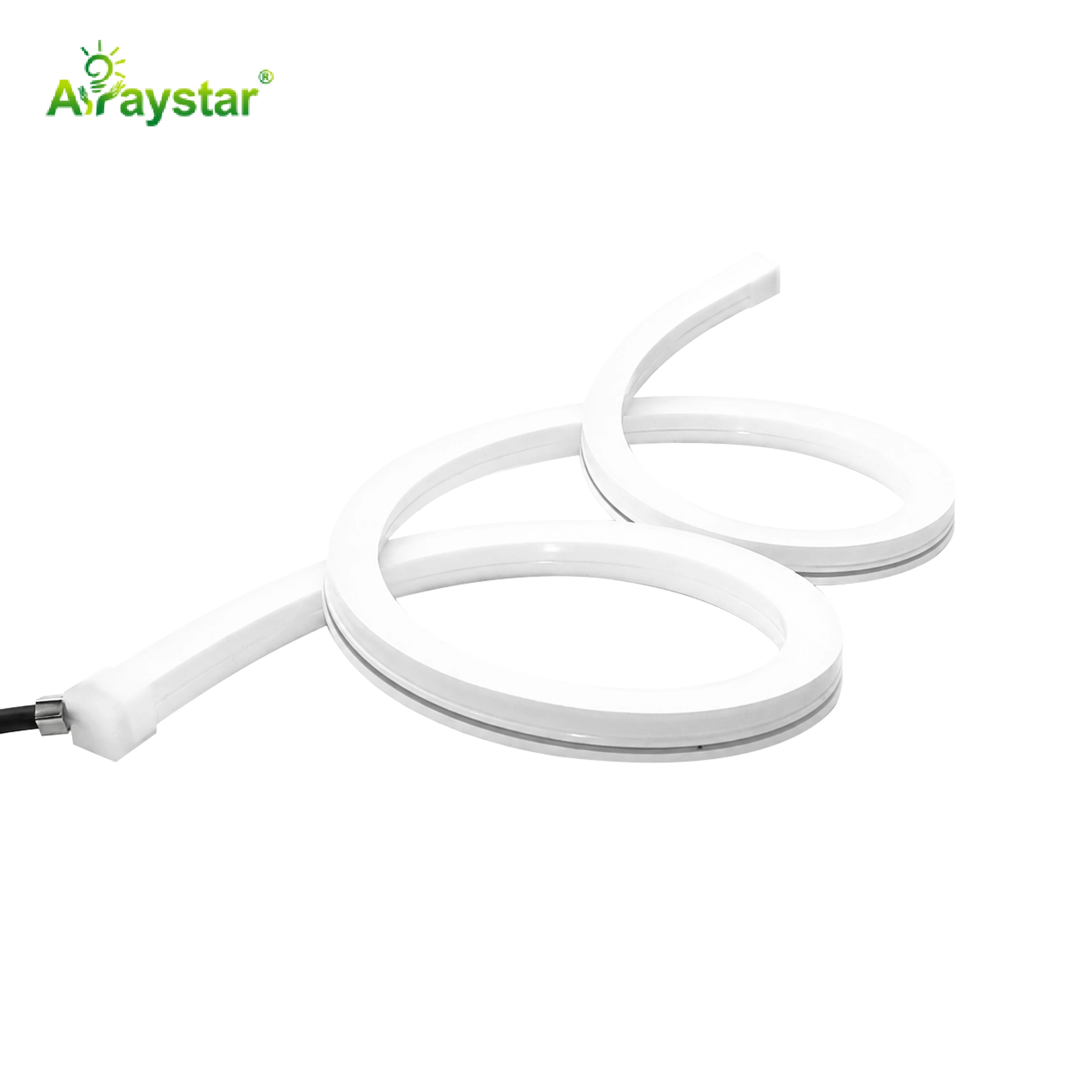

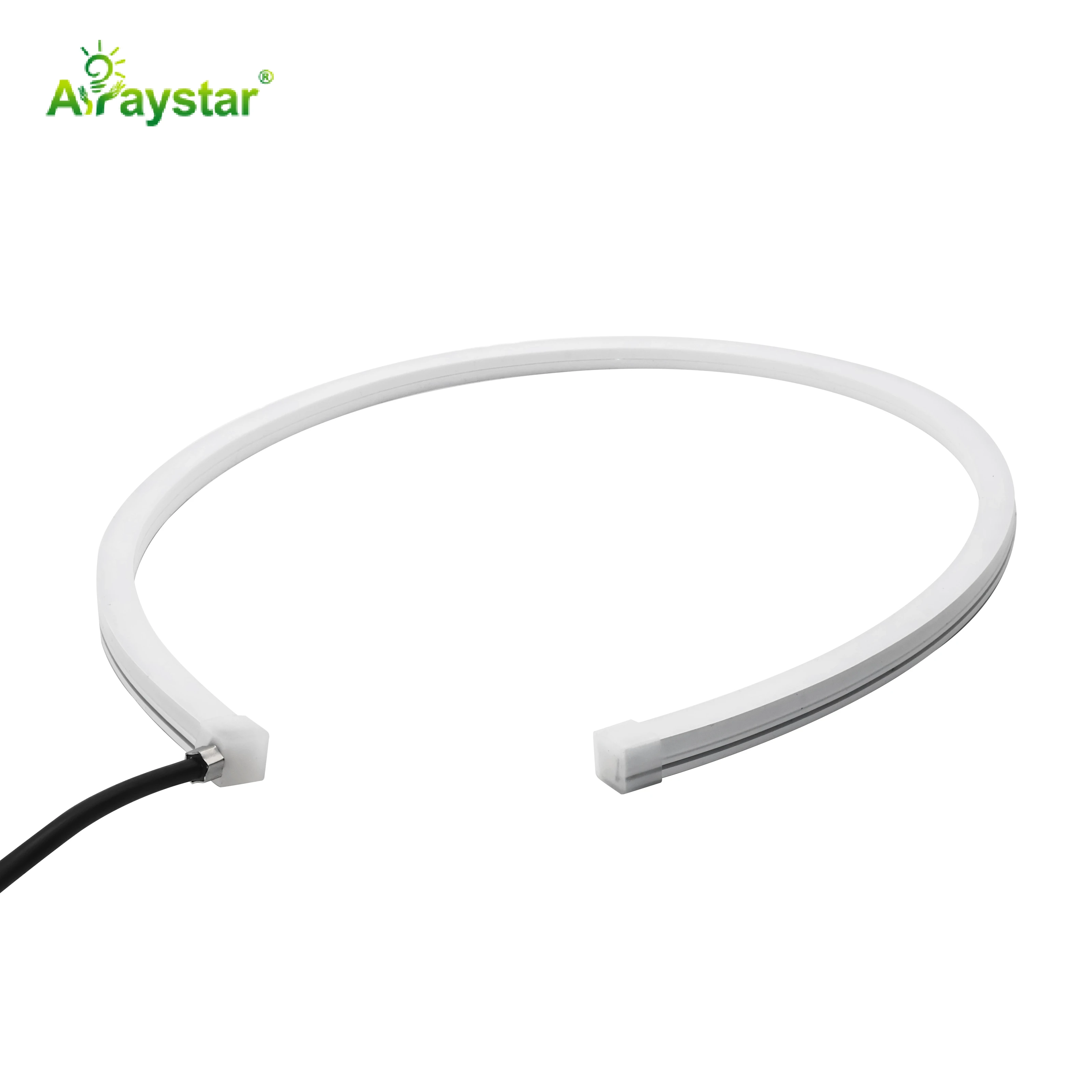

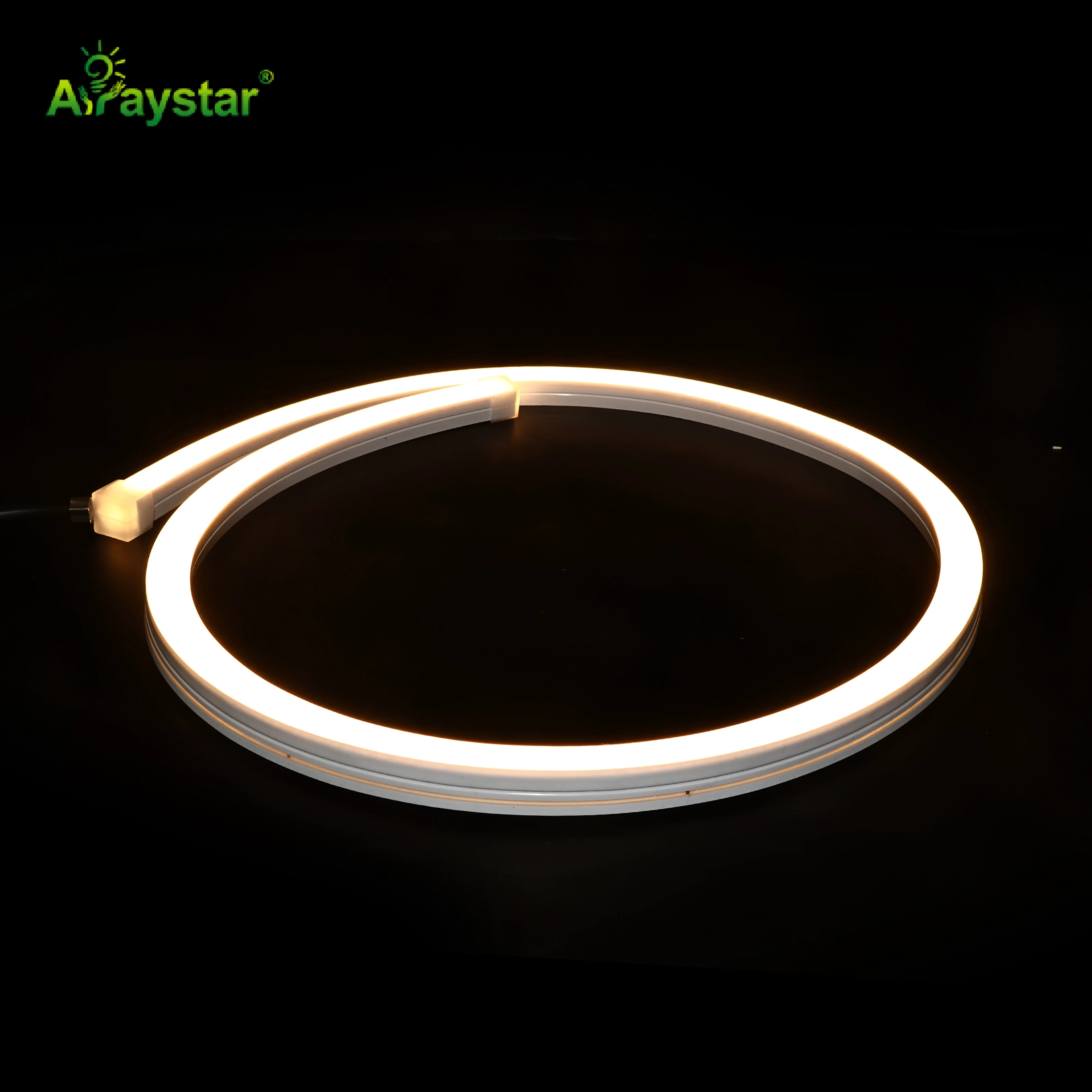

Side Bend High Voltage 1212 LED Neon Strip Light
- Model:ART-NS1212-120-X-220V
- LED Type:SMD2835
- LED Qty/M:120 LEDs/m
- Voltage:200~240V AC
- Power W/m:12 W/m
- CCT/Color:2700K, 3000K, 4000K, 6500K
- CRI:>80
- Dimension:
- Warranty:5 years
Technical Specifications
| Model | ART-NS1212-120-X-220V |
|---|---|
| LED Type | SMD2835 |
| LED Qty/m | 120 LEDs/m |
| Voltage | 200~240V AC |
| Power (W/m) | 12 W/m |
| CCT/Color | 2700K, 3000K, 4000K, 6500K |
| CRI | >80 |
| Dimension | |
| Warranty | 5 years |
| Material | |
| Package | 50 meters per roll |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
This high-voltage 1212 neon combines direct mains operation with a side-bending body, so it can trace long curved outlines without a driver every few meters. The 12mm neon carries 120 LEDs/m at 12W/m across 200–240V AC, bends sideways around curves, and runs up to 50m per roll.
Side bend plus high voltage for long curved runs
Curved facades and sign outlines that also stretch a long distance are awkward with low-voltage strips: you need both side flexibility and repeated power feeds. This neon handles both — the silicone body bends in the side plane around curves, and because it runs on mains voltage, a single feed at the head carries a long 50m run without the voltage-drop planning a 24V strip demands.
Key Features
- 200–240V AC direct, long single-feed runs
- Side-bend silicone body for curved outlines
- 120 LEDs/m, 12W/m, 12mm profile
- CRI >80; 2700K / 3000K / 4000K / 6500K
- 50m per roll, diffused neon glow
Typical Applications
- Long curved building and sign outlines
- Curved rooflines, arches, and perimeter tracing
- Outdoor architectural neon under cover
- Large decorative runs with minimal power points
Specifications
| Parameter | Value |
|---|---|
| Model | ART-NS1212-120-X-220V |
| Cross section | 12 mm neon |
| LED type | SMD 2835 |
| LED quantity | 120 LEDs/m |
| Power | 12 W/m |
| Voltage | 200–240V AC |
| Bending | Side bend |
| CRI | >80 |
| Package | 50 m/roll |
| Warranty | 5 years |
Installation notes
- Have a qualified electrician fit the mains head connector and weatherproof junction.
- Bend only in the side plane to the rated radius; use clips on curves.
- Seal cut ends and joins for outdoor use.
- Plan the single feed at one end and observe the maximum run length.
Frequently Asked Questions
Can it bend around corners in any direction?
This version is optimized for side bending; for vertical/top bends choose the matching model.
Do I need power injection along 50m?
High-voltage operation removes the repeated injection of low-voltage strips; one rated feed at the head covers the run.
Who should connect the mains end?
Always a qualified electrician, using the rated head connector and weatherproof enclosure.
Can I order custom specifications or OEM branding?
Yes. As the manufacturer we support custom lengths, colour temperature, CRI, packaging and OEM labeling; send us your specification.
Can I request a sample before a bulk order?
Yes, samples are available so you can confirm the colour, build and output before a bulk order. Request a sample through our contact page.
