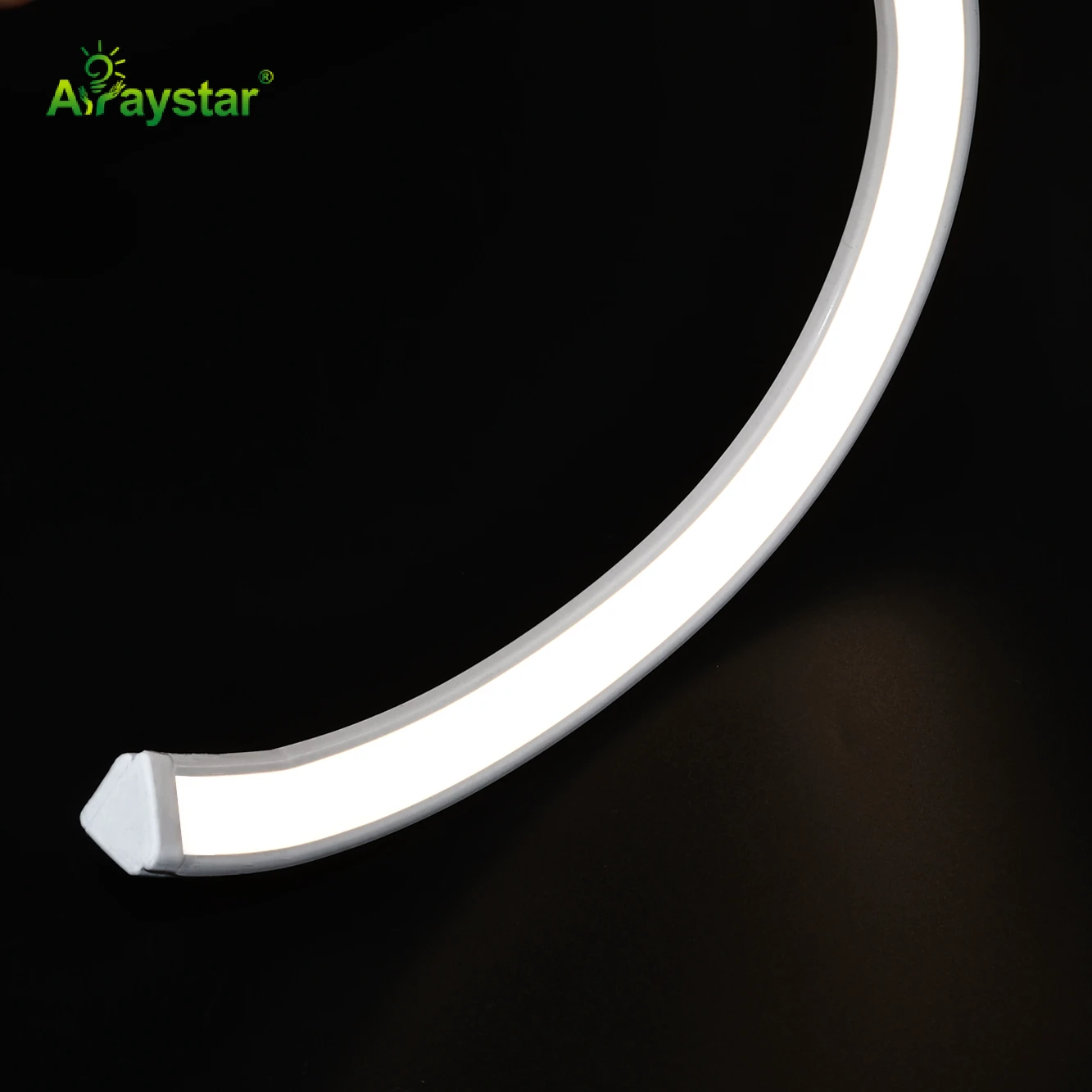

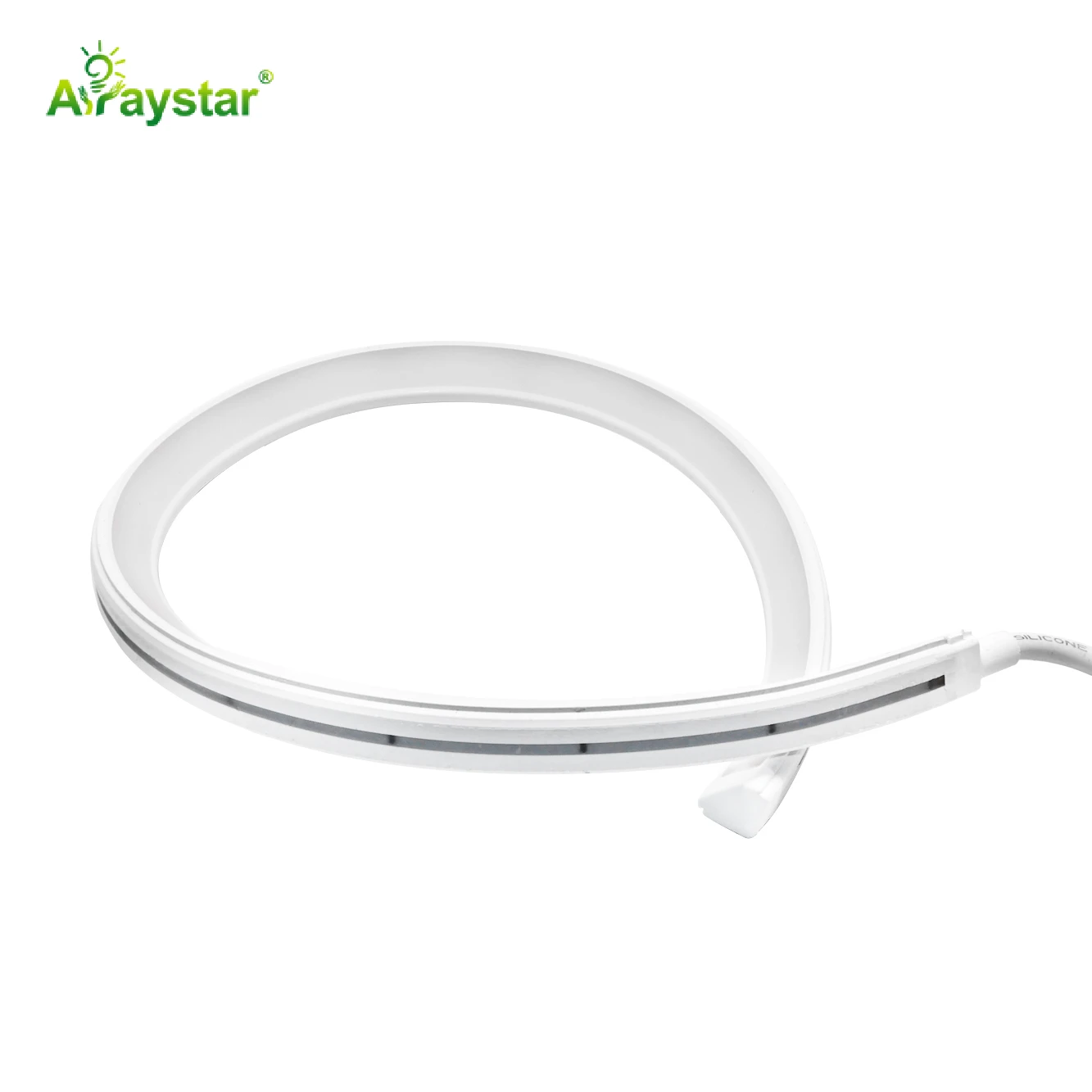

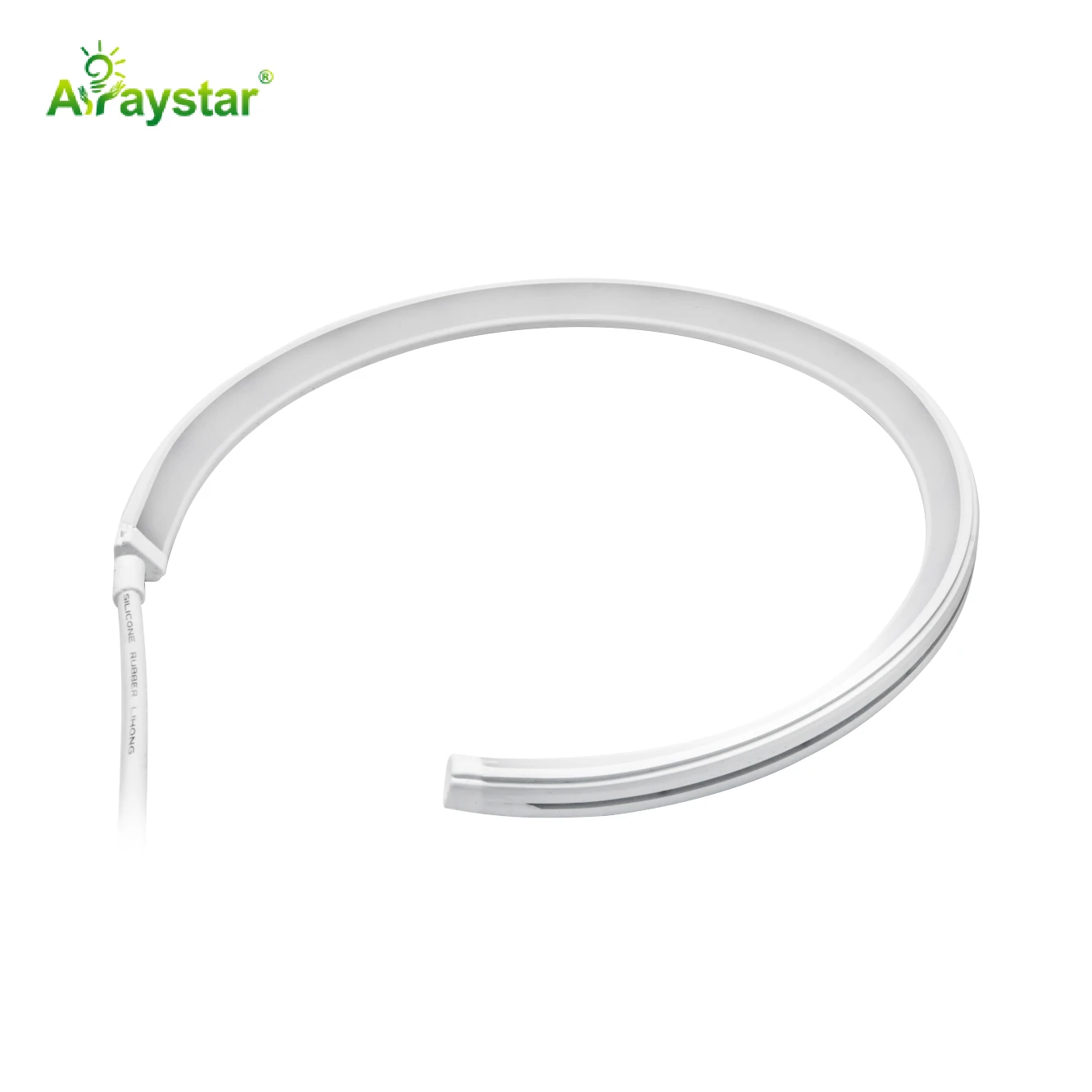

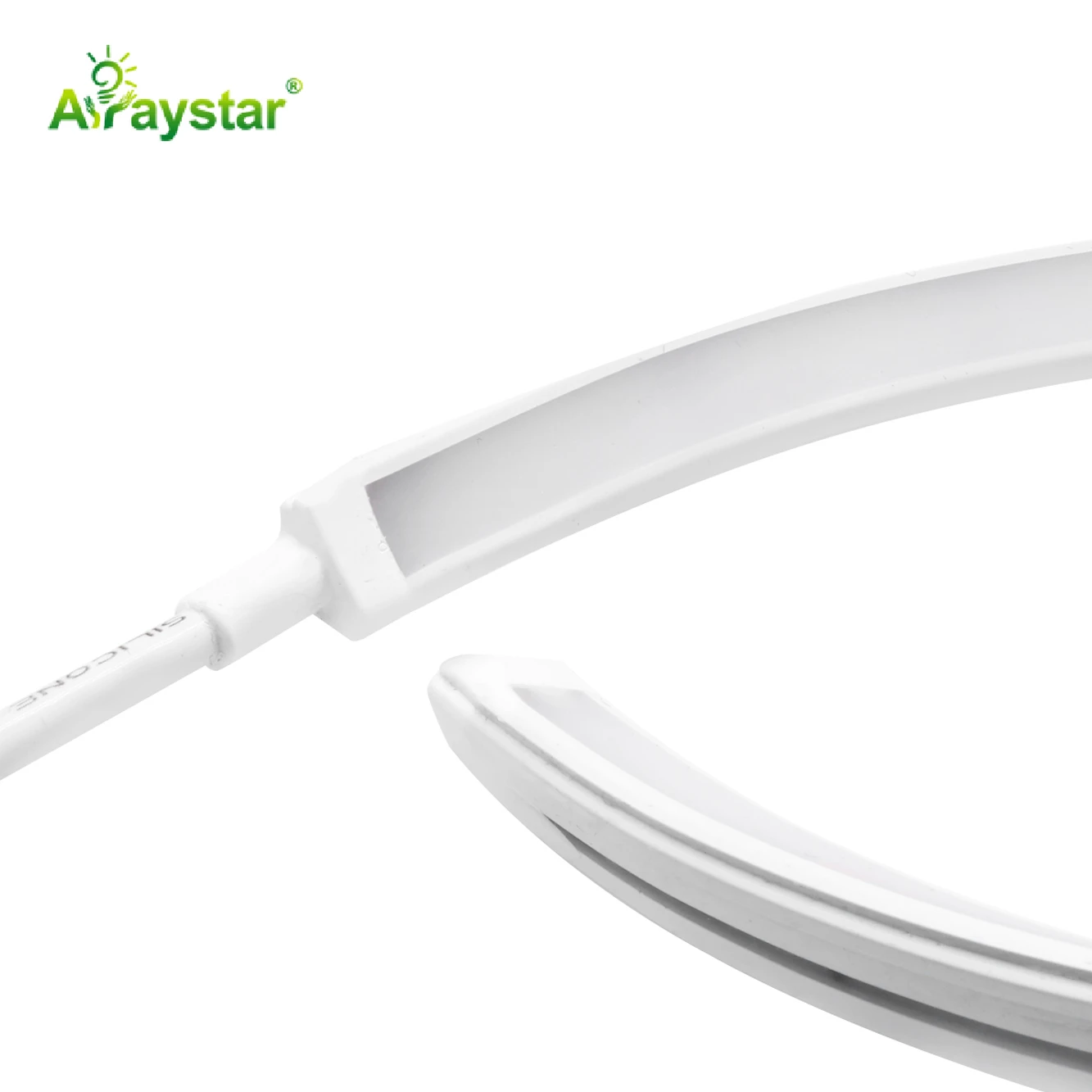

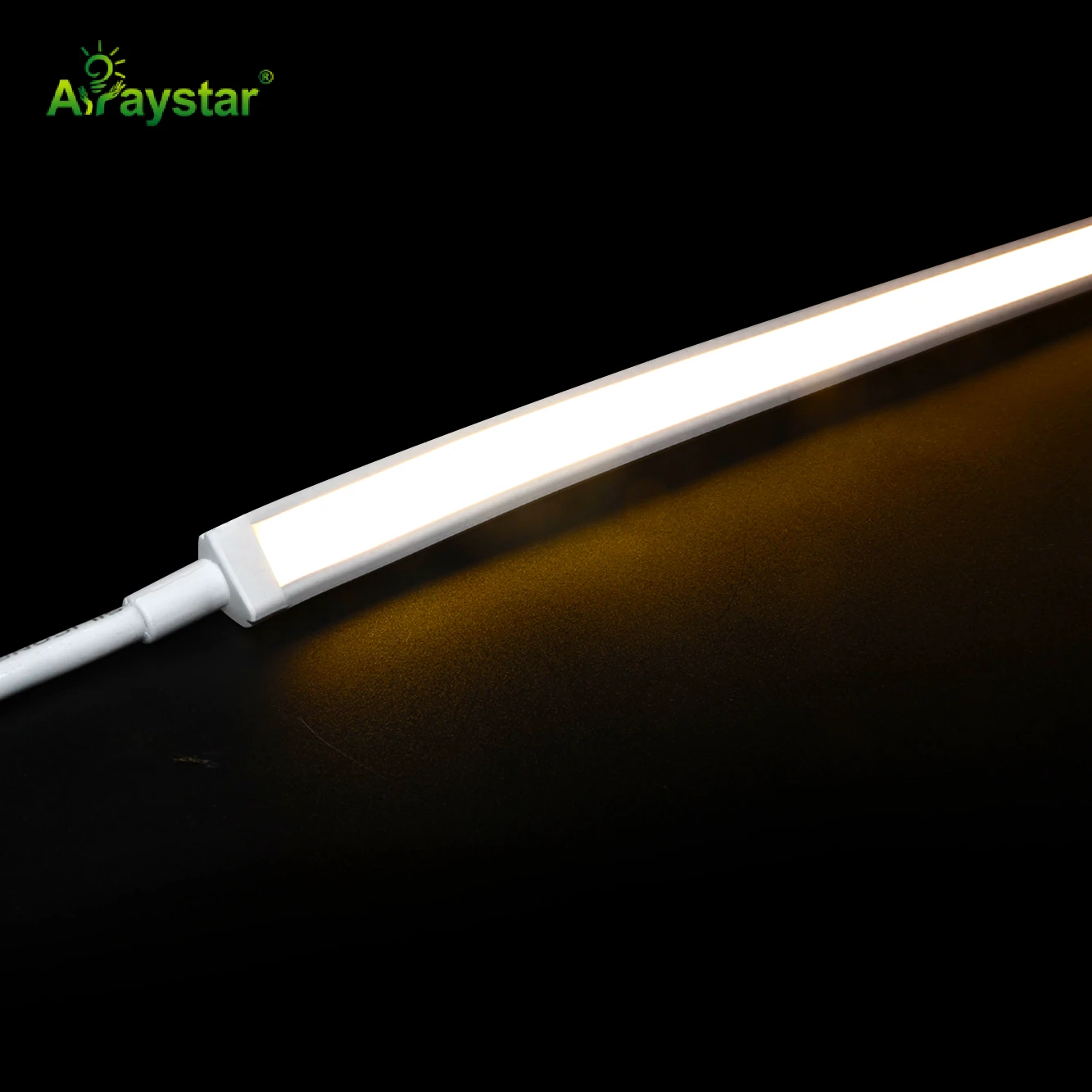

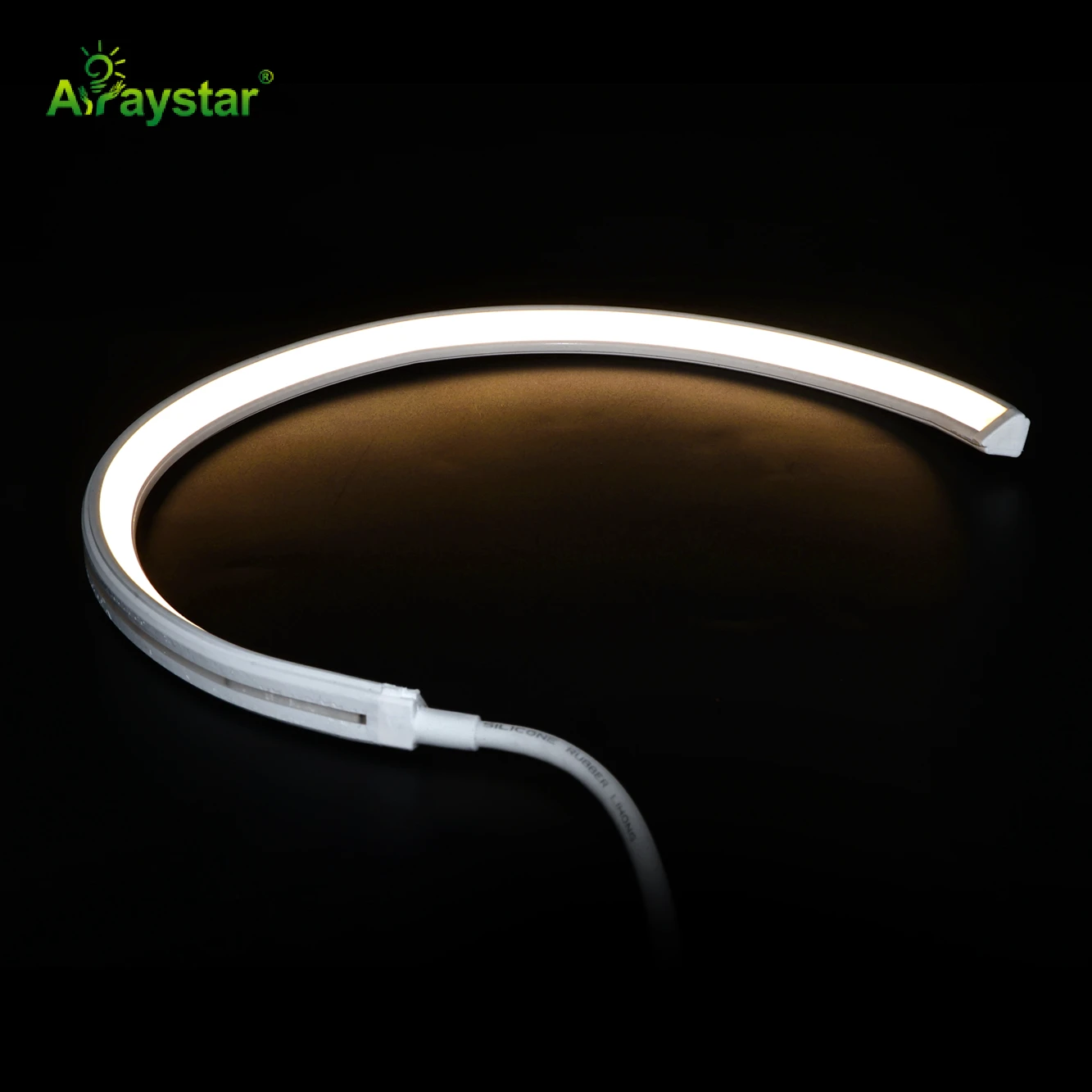

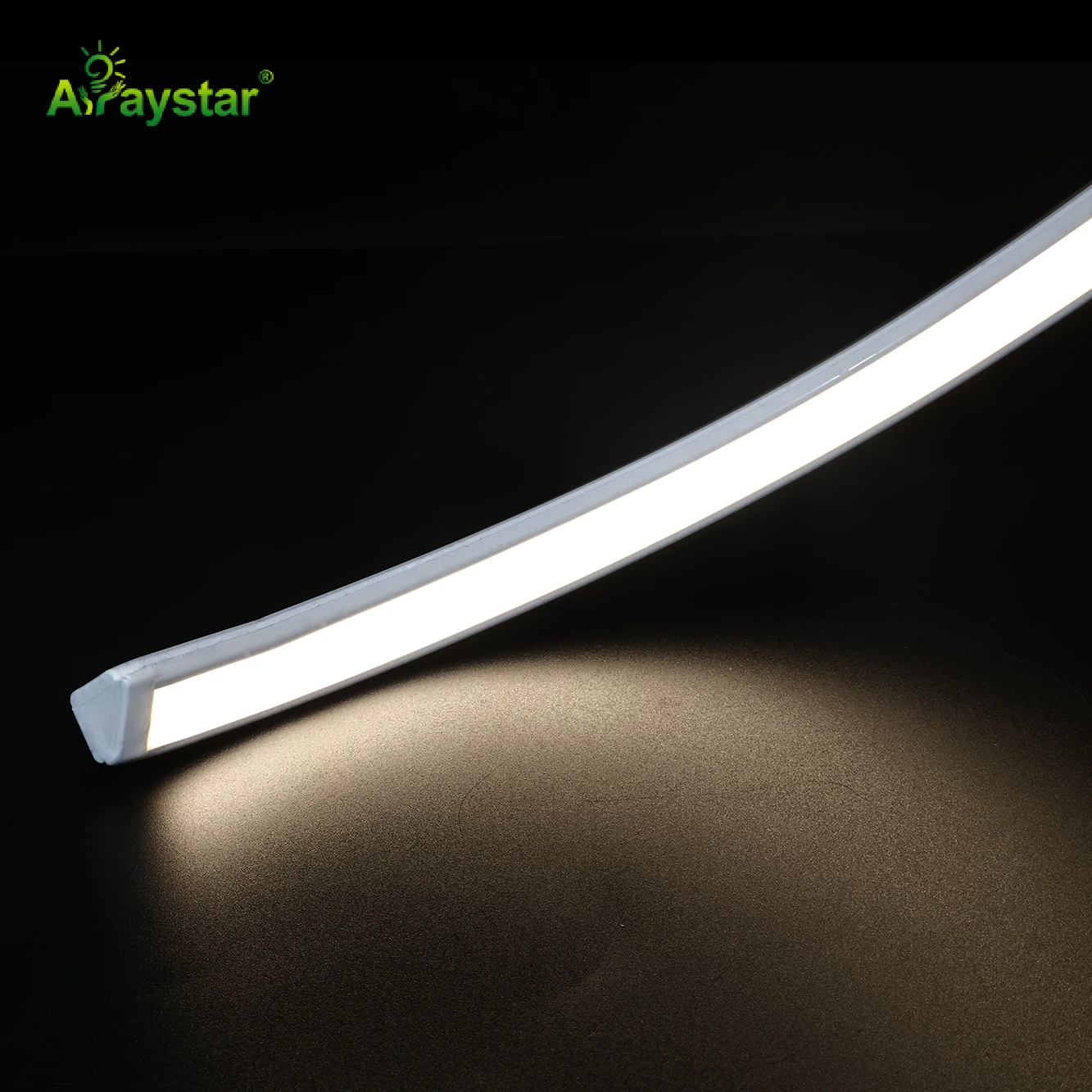

1213 LED Neon Flex 160° Beam Angle
- Model:ART-NS1213-180-X-24
- LED Type:2835 SMD
- LED Qty/M:180 LEDs/m
- Voltage:DC24V
- Power W/m:9W/m
- CCT/Color:3000K / 4000K / 6000K
- CRI:>90
- Dimension:12.2 × 12.8mm
- Warranty:5 Years
Technical Specifications
| Model | ART-NS1213-180-X-24 |
|---|---|
| LED Type | 2835 SMD |
| LED Qty/m | 180 LEDs/m |
| Voltage | DC24V |
| Power (W/m) | 9W/m |
| CCT/Color | 3000K / 4000K / 6000K |
| CRI | >90 |
| Dimension | 12.2 × 12.8mm |
| Warranty | 5 Years |
| Material | Food-grade silicone |
| Package | 5m/roll |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
The ART-NS1213-180-X-24 is an Arraystar 160 Degree LED Neon Strip. It uses 2835 SMDs at 180 LEDs/m, on DC24V, drawing around 9W/m, in 3000K / 4000K / 6000K.
It features CRI >90, an 8mm PCB profile, supplied 5m/roll. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.
Key Features
- 2835 SMD at 180 LEDs/m
- Input: DC24V
- Power: 9W/m
- CRI >90
- Colour options: 3000K / 4000K / 6000K
- Strip width 8mm PCB
- Warranty: 5 Years
Typical Applications
- Building and facade outlines
- Signage, channel letters and logos
- Hotels, bars and leisure interiors
- Landscape and bridge contour lighting
- Festive and architectural decoration
Frequently Asked Questions
What power supply does this strip need?
A DC24V constant-voltage LED driver sized for the total wattage (about 9W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.
Is this strip waterproof?
Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
Which colour temperatures are available?
3000K / 4000K / 6000K
