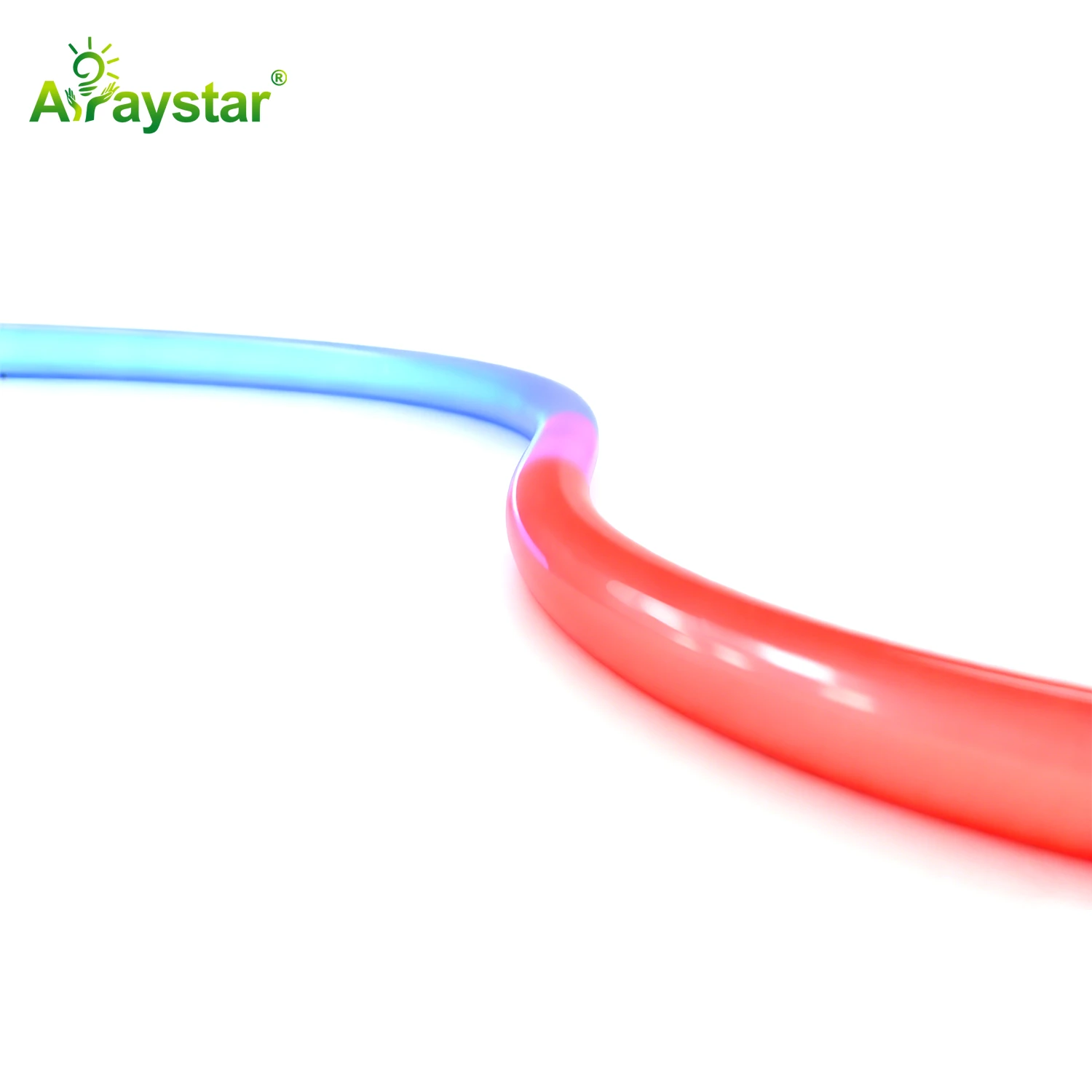

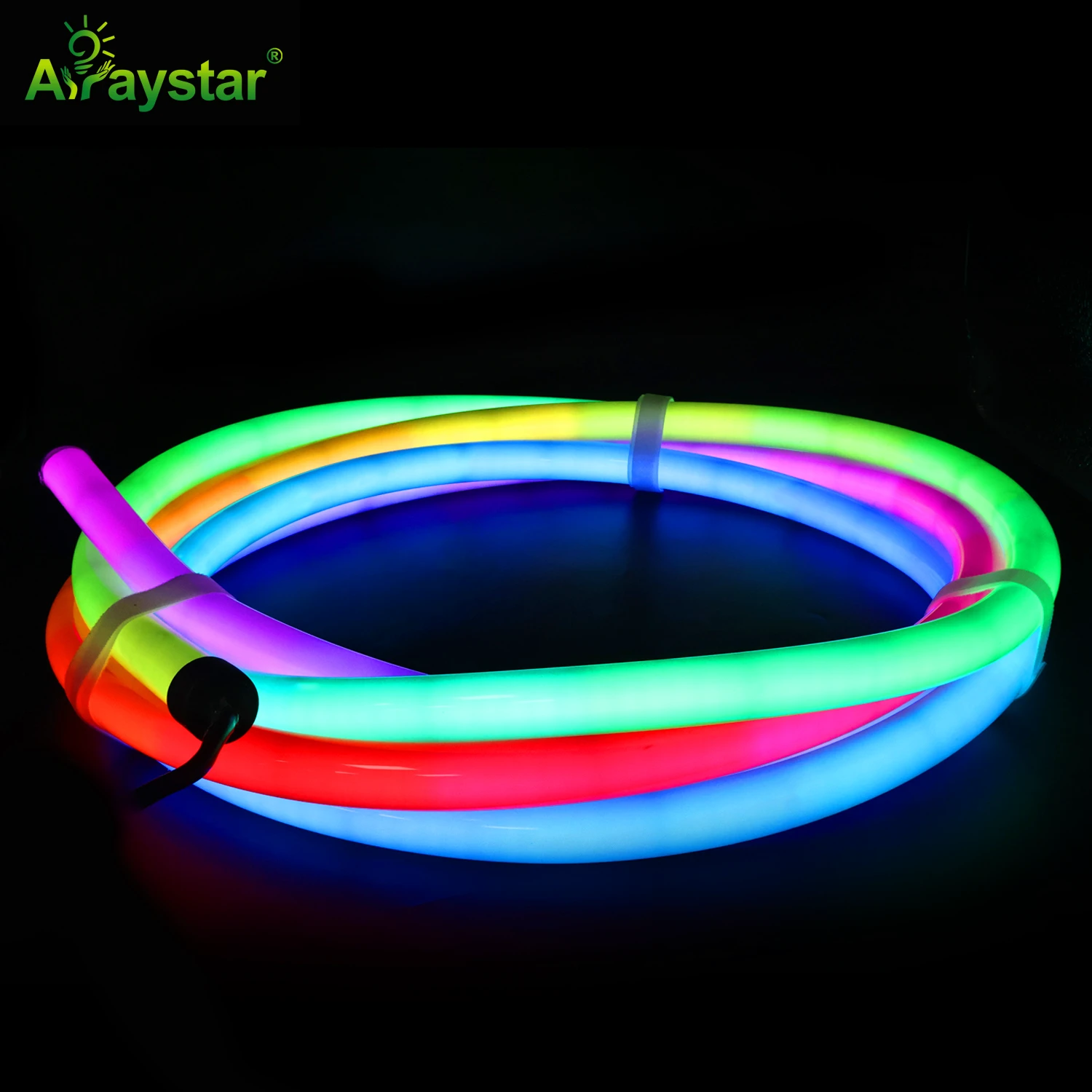

360° D22mm Full Black Magic LED Neon Flex
- Model:ART-NDS22-RGBIC-24-B
- LED Type:LED
- LED Qty/M:180 LEDs/m
- Voltage:24V DC
- Power W/m:28.8W/m
- CCT/Color:RGBIC (magic color changing)
- CRI:>90
- Dimension:22mm diameter (overall); 8MM (PCB width)
- Warranty:3 years
Technical Specifications
| Model | ART-NDS22-RGBIC-24-B |
|---|---|
| LED Type | LED |
| LED Qty/m | 180 LEDs/m |
| Voltage | 24V DC |
| Power (W/m) | 28.8W/m |
| CCT/Color | RGBIC (magic color changing) |
| CRI | >90 |
| Dimension | 22mm diameter (overall); 8MM (PCB width) |
| Warranty | 3 years |

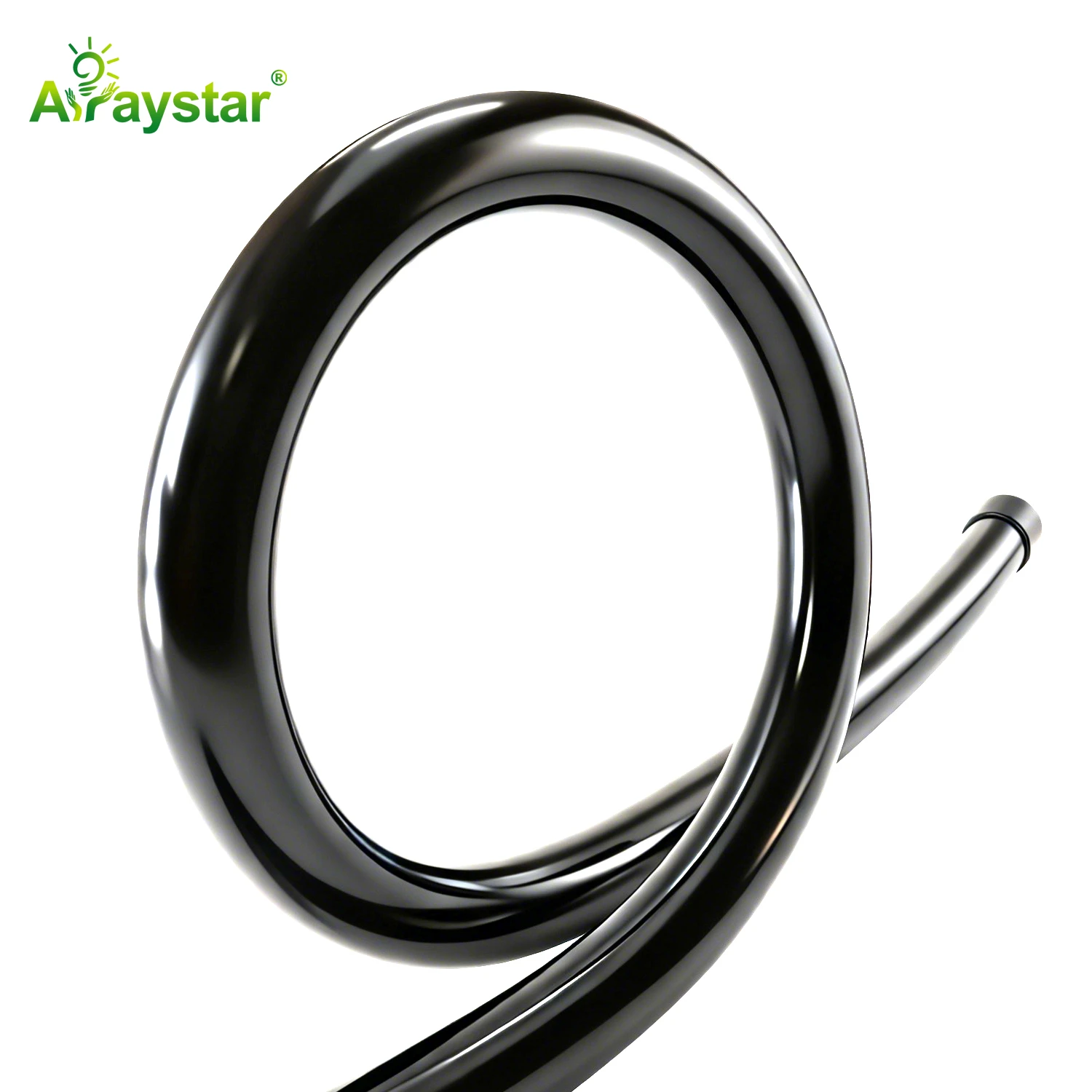

| Material | Full black silicon extrusion housing (IP67 waterproof) |
| Package | 5M/ROLL |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
The ART-NDS22-RGBIC-24-B is an Arraystar 360 Degree LED Neon Strip. It uses LEDs at 180 LEDs/m, on 24V DC, drawing around 28.8W/m, in RGBIC (magic color changing), rated IP67.
It features CRI >90, a 22mm diameter (round tube); 8MM (PCB width) profile, supplied 5m/roll. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.
Key Features
- LED at 180 LEDs/m
- Input: 24V DC
- Power: 28.8W/m
- CRI >90
- Colour options: RGBIC (magic color changing)
- IP67 sealed construction
- Strip width 22mm diameter (round tube); 8MM (PCB width)
- Warranty: 3 years
Typical Applications
- Building and facade outlines
- Signage, channel letters and logos
- Hotels, bars and leisure interiors
- Landscape and bridge contour lighting
- Festive and architectural decoration
Frequently Asked Questions
What power supply does this strip need?
A 24V DC constant-voltage LED driver sized for the total wattage (about 28.8W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.
Is this strip suitable for outdoor use?
It carries an IP67 rating. Outdoor or wet installations still need sealed connectors and proper end sealing to maintain the rating.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
What controller or protocol does it need?
It is addressable, so use a compatible controller for the IC/protocol of the ordered model. Confirm the protocol with us and we can supply the matching controller.
