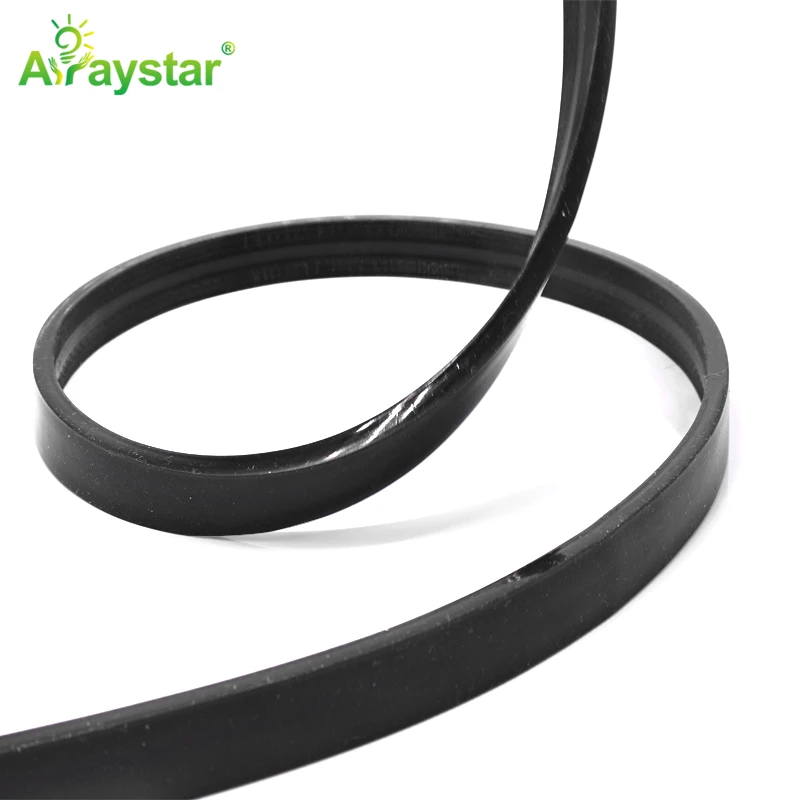

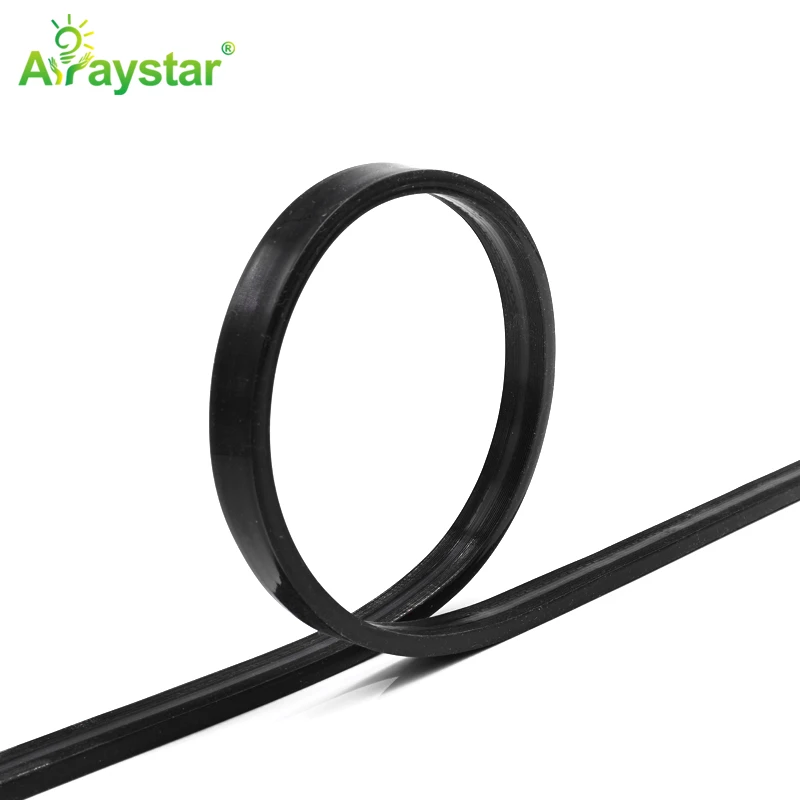

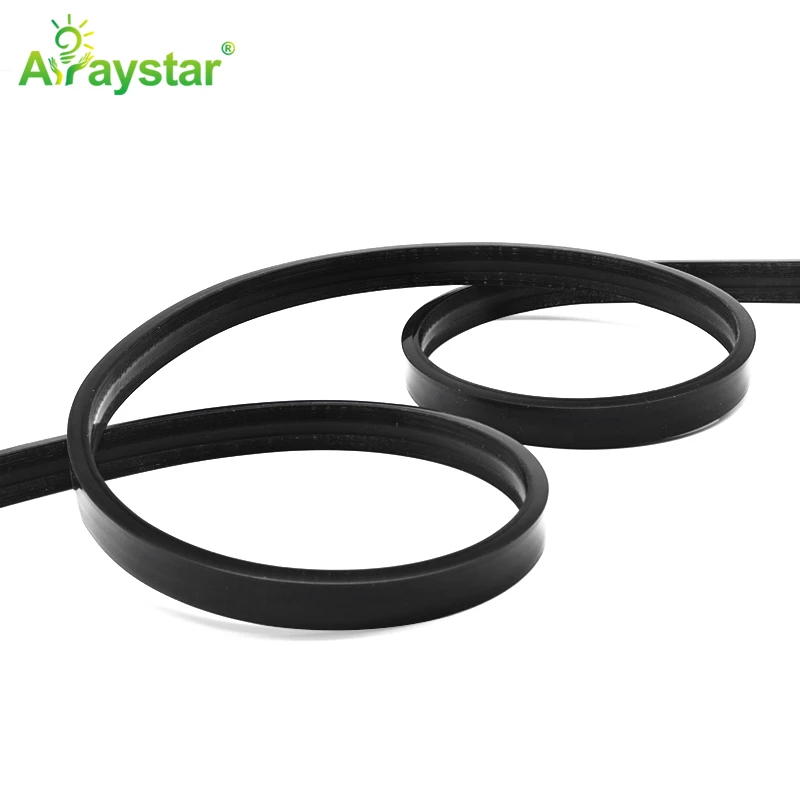

Black LED Neon Strip (5*12mm) ART-NS0512
- Model:ART-NS0512-120-X-12-B
- LED Type:SMD2835
- LED Qty/M:120 LEDs/m
- Voltage:12V DC
- Power W/m:10W/m
- CCT/Color:2700K, 3000K, 4500K (spec), 6000K (spec) / 4000K, 6500K (model list)
- CRI:>90
- Dimension:5MM (PCB Width); 5*12mm (overall size)
- Warranty:3 years
Technical Specifications
| Model | ART-NS0512-120-X-12-B |
|---|---|
| LED Type | SMD2835 |
| LED Qty/m | 120 LEDs/m |
| Voltage | 12V DC |
| Power (W/m) | 10W/m |
| CCT/Color | 2700K, 3000K, 4500K (spec), 6000K (spec) / 4000K, 6500K (model list) |
| CRI | >90 |
| Dimension | 5MM (PCB Width); 5*12mm (overall size) |
| Warranty | 3 years |
| Material | Black silicon extrusion housing |
| Package | 5M/ROLL |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description

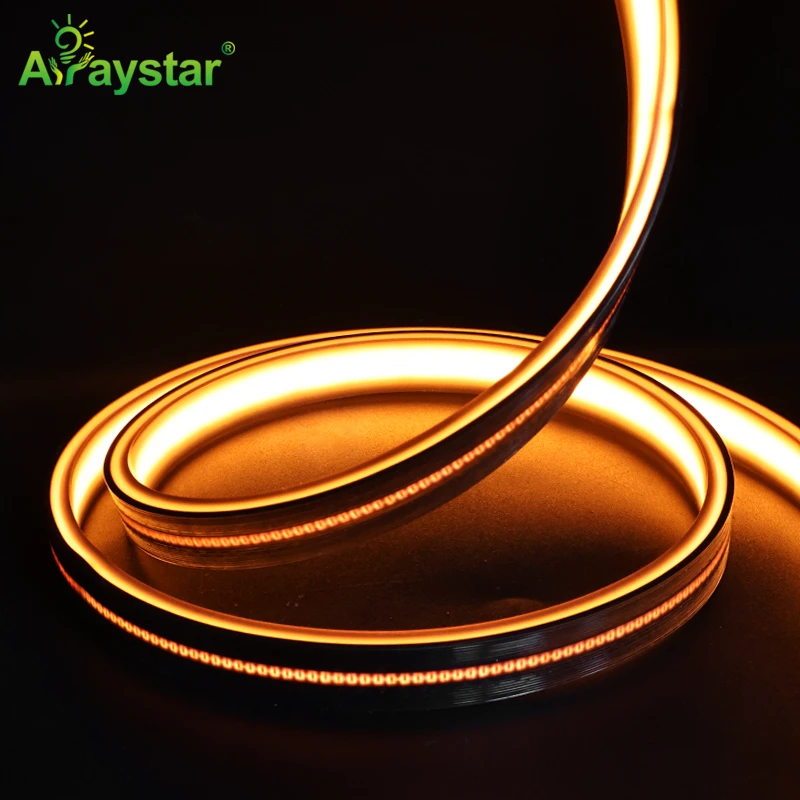

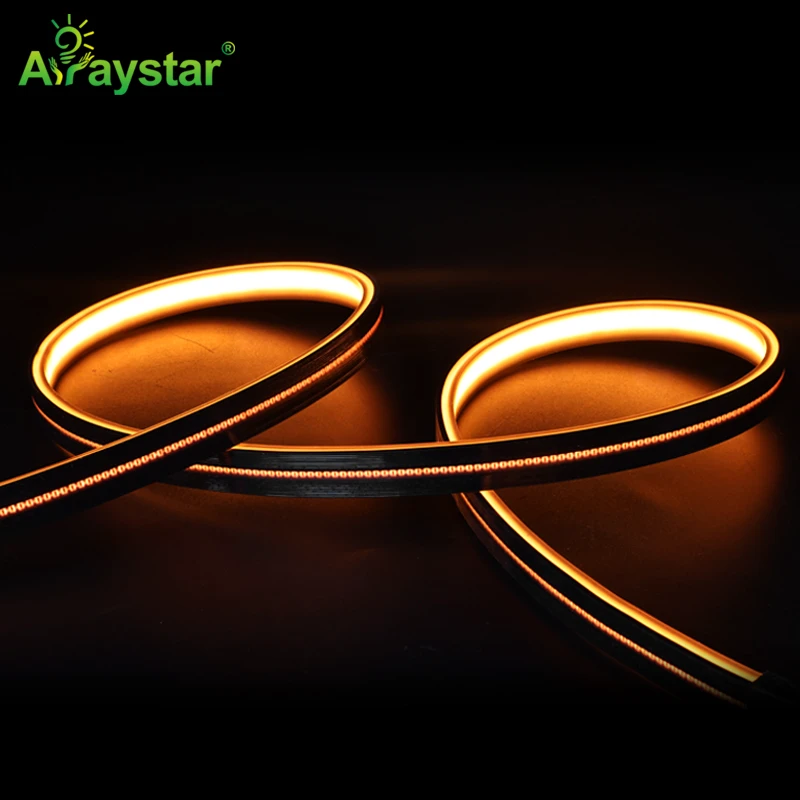

The ART-NS0512-120-X-12-B is an Arraystar Black Housing LED Neon Strip. It uses SMD2835s at 120 LEDs/m, on 12V DC, drawing around 10W/m, in 2700K, 3000K, 4500K (spec), 6000K (spec) / 4000K, 6500K (model list).
It features CRI >90, a 5MM (PCB Width) profile, supplied 5m/roll. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.
Key Features
- SMD2835 at 120 LEDs/m
- Input: 12V DC
- Power: 10W/m
- CRI >90
- Colour options: 2700K, 3000K, 4500K (spec), 6000K (spec) / 4000K, 6500K (model list)
- Strip width 5MM (PCB Width)
- Warranty: 3 years
Typical Applications
- Building and facade outlines
- Signage, channel letters and logos
- Hotels, bars and leisure interiors
- Landscape and bridge contour lighting
- Festive and architectural decoration
Frequently Asked Questions
What power supply does this strip need?
A 12V DC constant-voltage LED driver sized for the total wattage (about 10W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.
Is this strip waterproof?
Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
Which colour temperatures are available?
2700K, 3000K, 4500K (spec), 6000K (spec) / 4000K, 6500K (model list)
