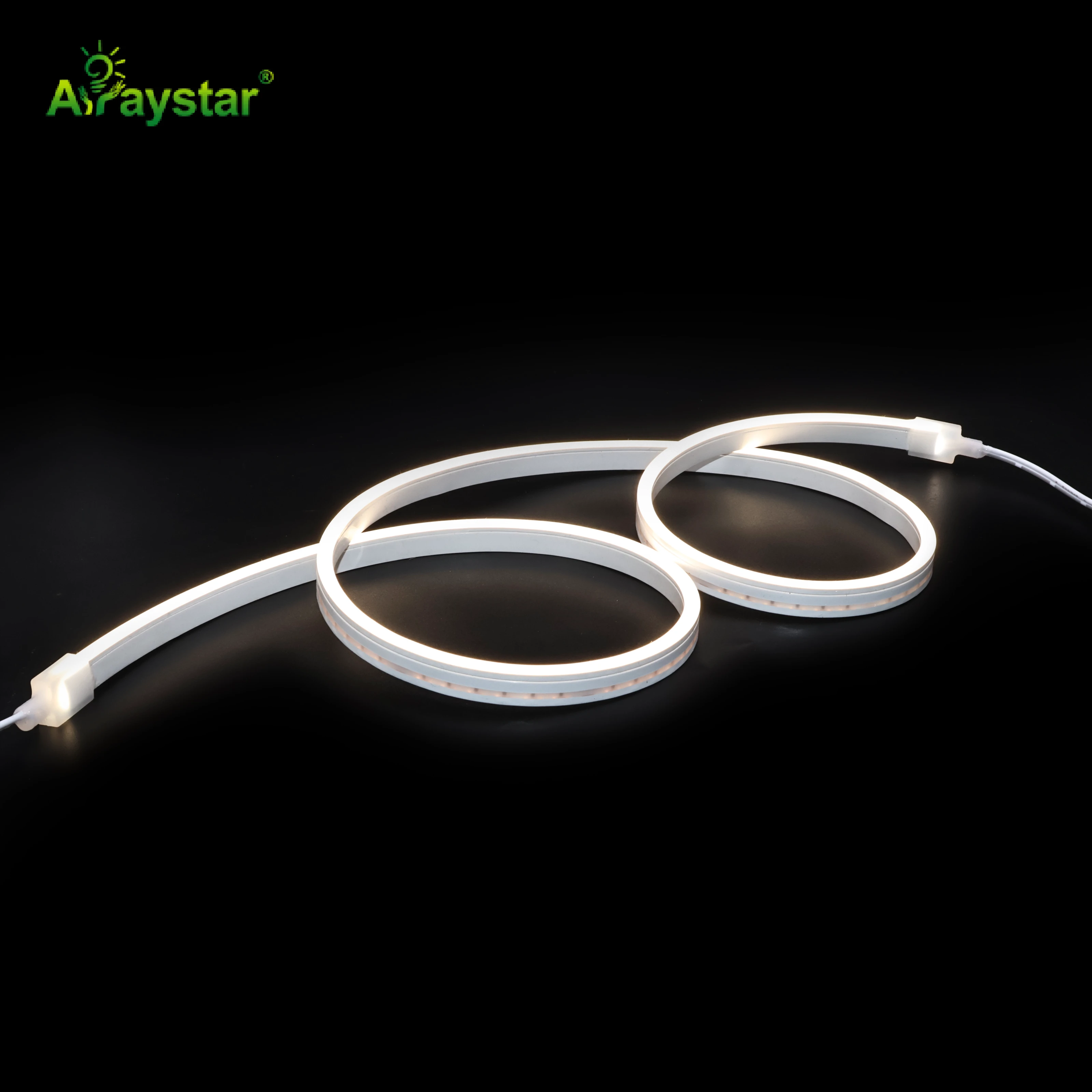

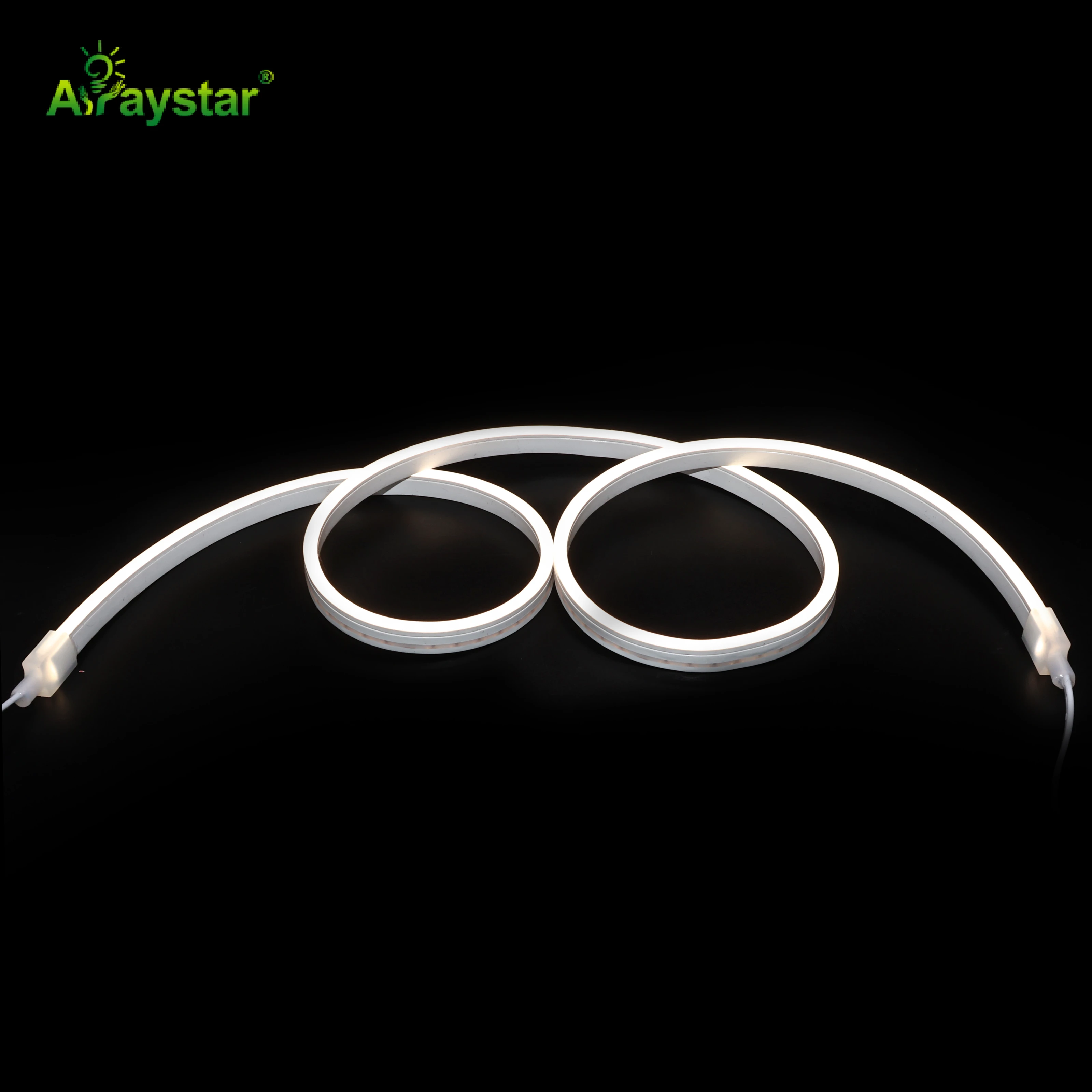

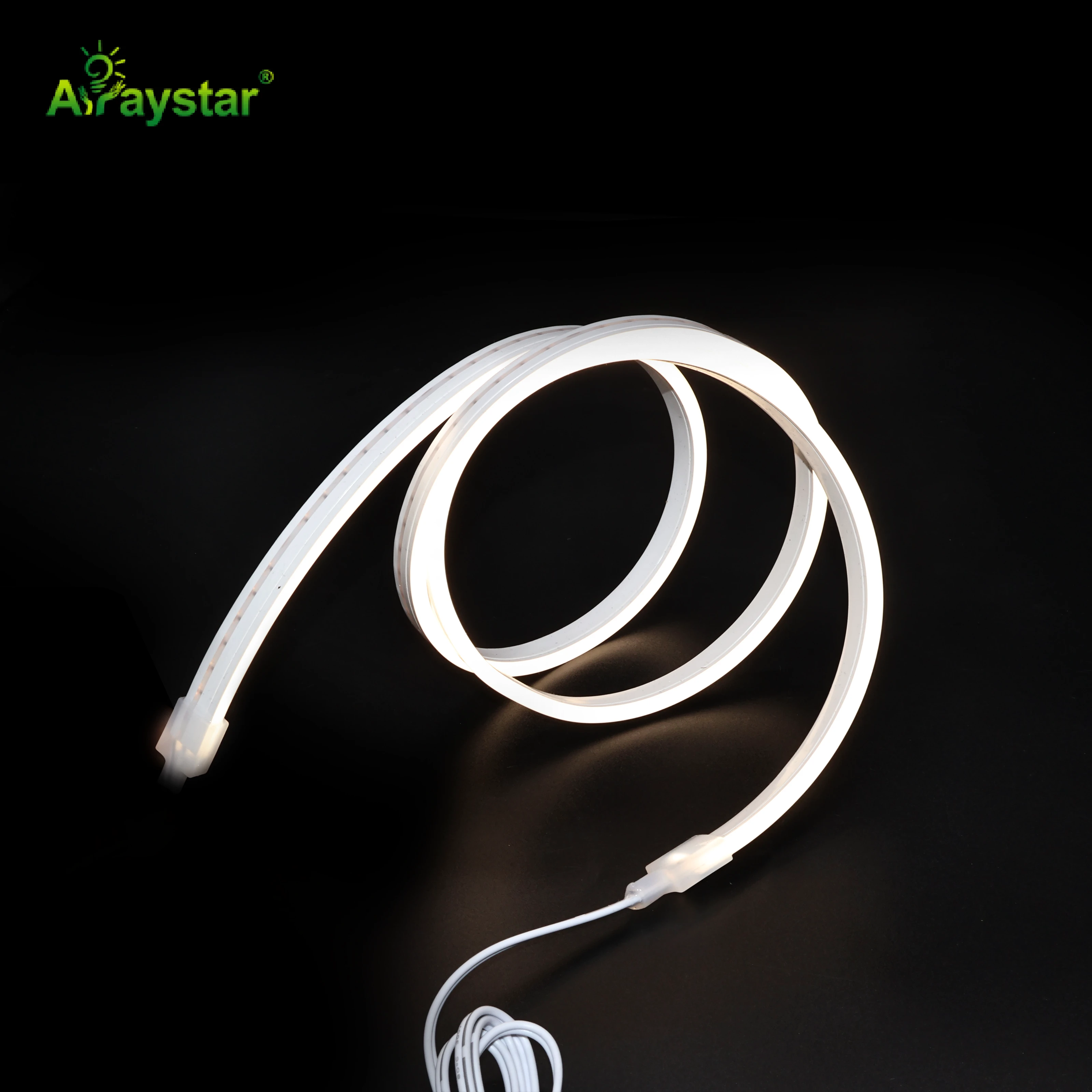

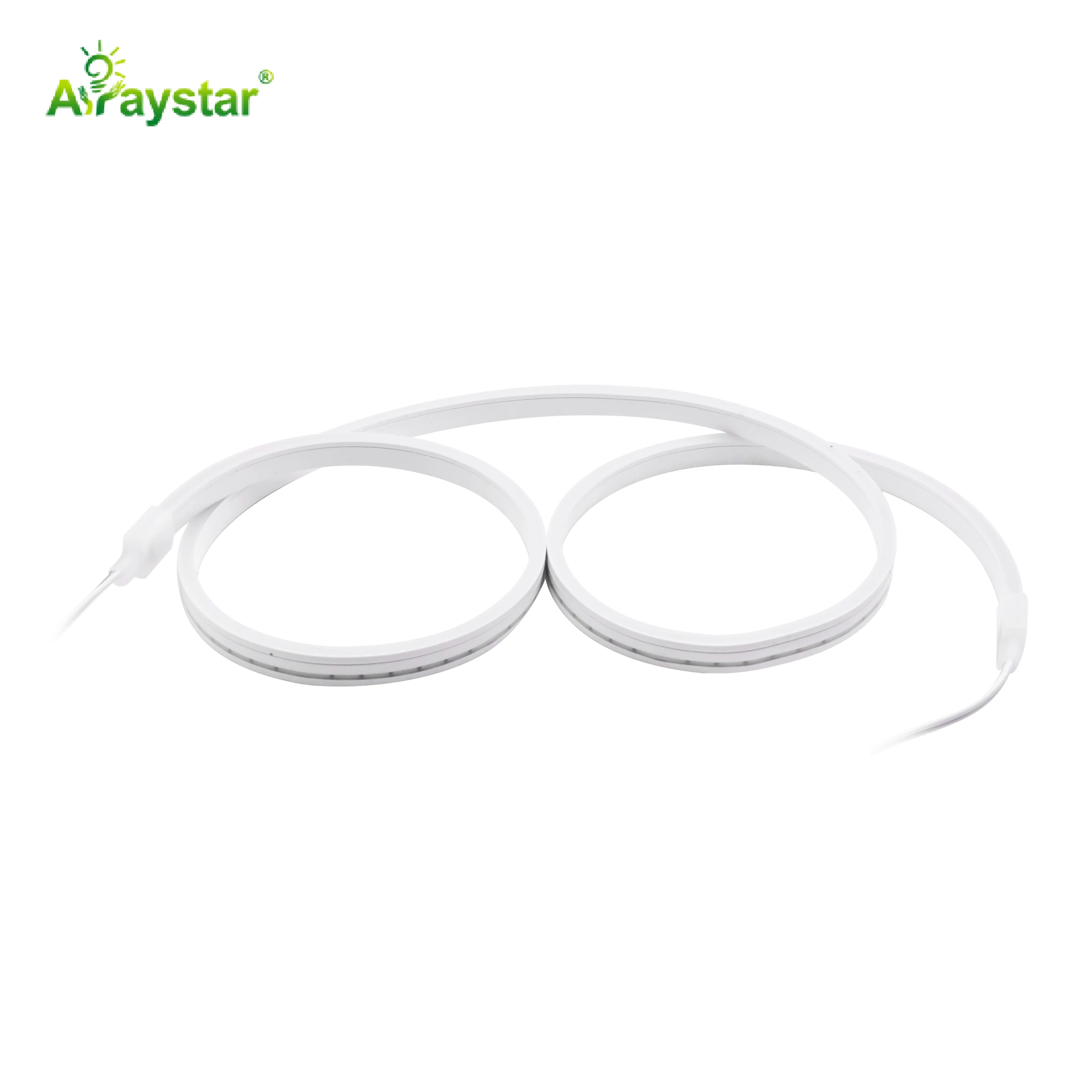

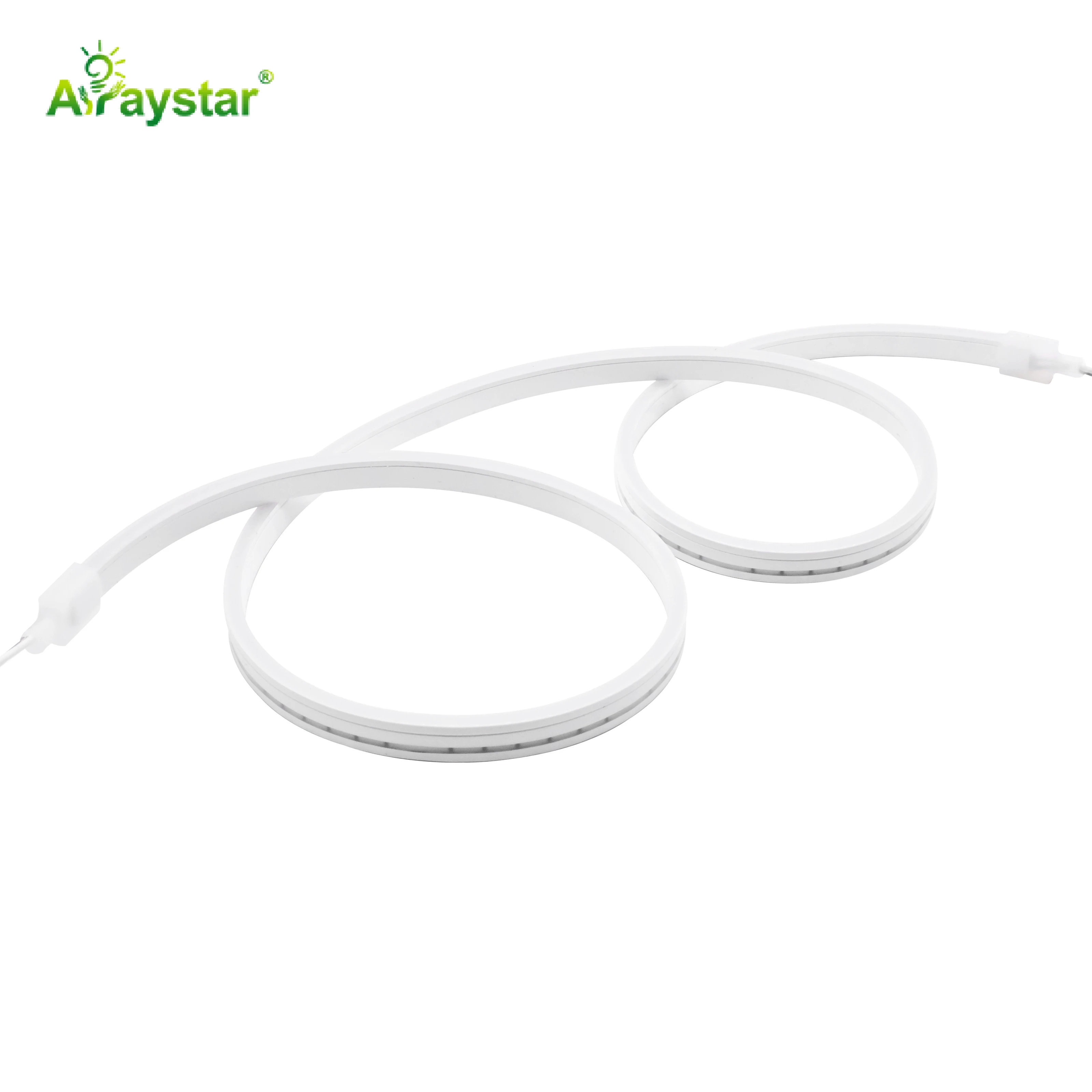

IP67 Free-Cut 0410 Neon LED Strip
- Model:ART-NS0410F-140-X-24
- LED Type:SMD2216
- LED Qty/M:140 LEDS/m
- Voltage:24V DC
- Power W/m: 8W/m
- CCT/Color:2700K / 3000K / 4000K / 6500K
- CRI:>90
- Dimension:Single roll length 5000mm, PCB width 4mm, Free-Cut (no fixed cutting length), minimum bending diameter Φ100mm
- Warranty:3 years
Product Description
The ART-NS0410F-140-X-24 is an Arraystar Mini Cut LED Neon Strip. It uses SMD2216s at 140 LEDS/m, on 24V DC, drawing around 8W/m, in 2700K / 3000K / 4000K / 6500K, rated IP67.
It features CRI >90, a 4mm profile, supplied 5m/roll. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.
Key Features
- SMD2216 at 140 LEDS/m
- Input: 24V DC
- Power: 8W/m
- CRI >90
- Colour options: 2700K / 3000K / 4000K / 6500K
- IP67 sealed construction
- Strip width 4mm
- Warranty: 3 years
Typical Applications
- Building and facade outlines
- Signage, channel letters and logos
- Hotels, bars and leisure interiors
- Landscape and bridge contour lighting
- Festive and architectural decoration
Frequently Asked Questions
What power supply does this strip need?
A 24V DC constant-voltage LED driver sized for the total wattage (about 8W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.
Is this strip suitable for outdoor use?
It carries an IP67 rating. Outdoor or wet installations still need sealed connectors and proper end sealing to maintain the rating.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
Which colour temperatures are available?
2700K / 3000K / 4000K / 6500K
