Mini Cut LED Neon Strip

Technical Specifications

Product Description

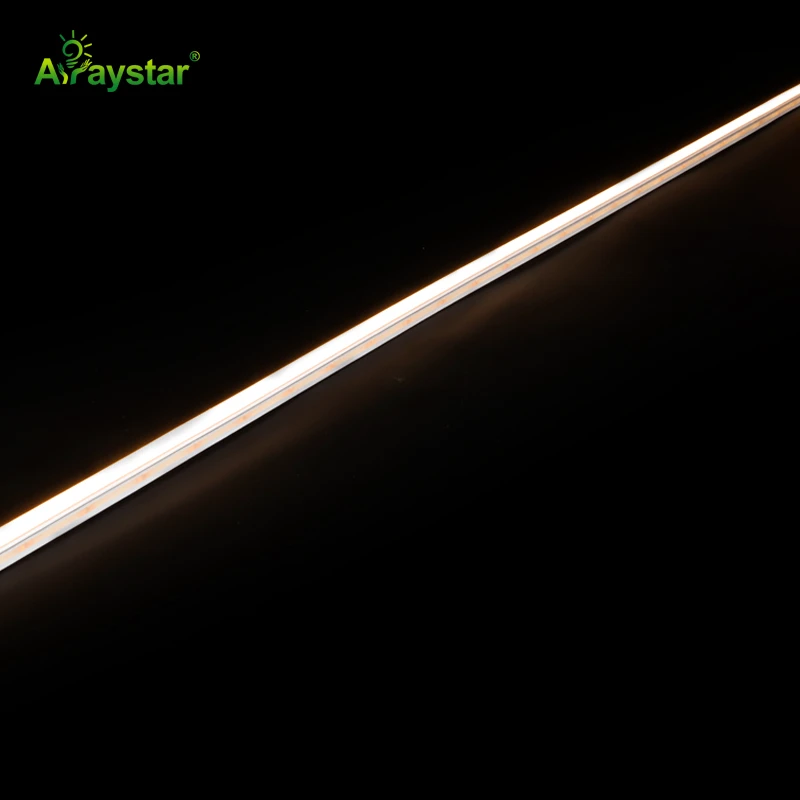

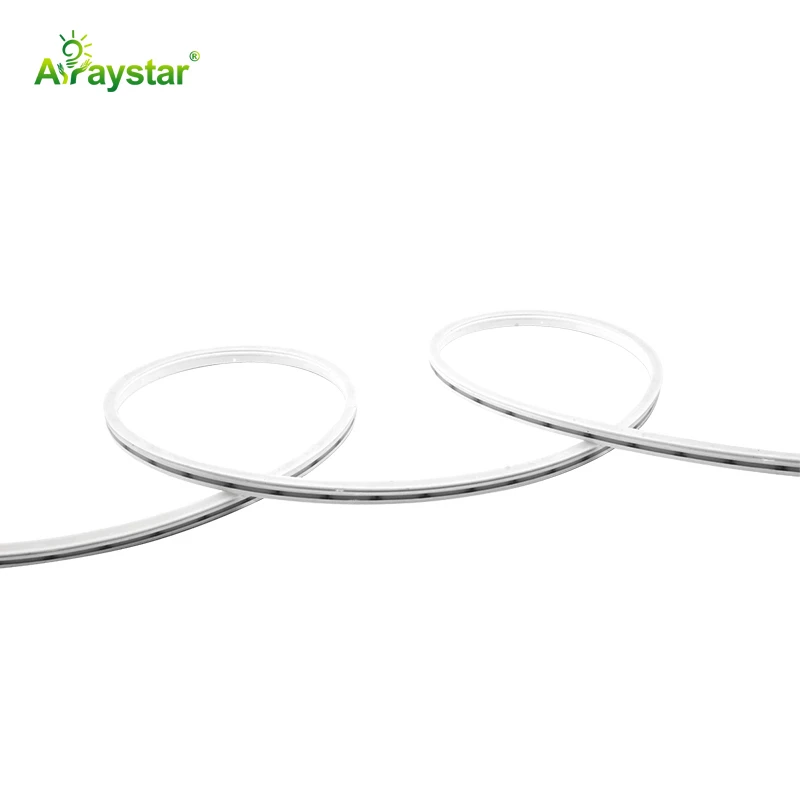

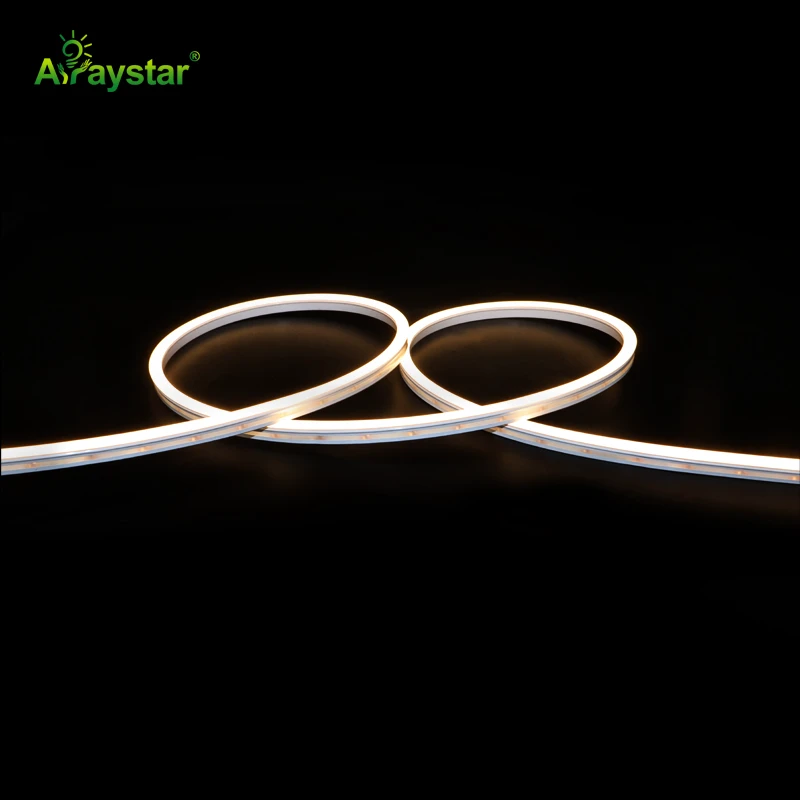

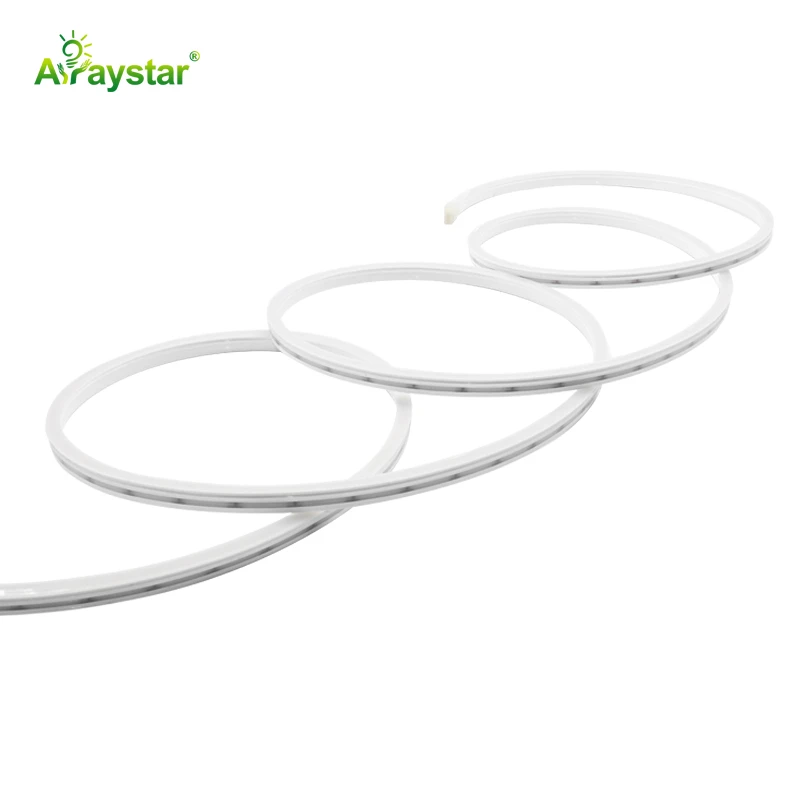

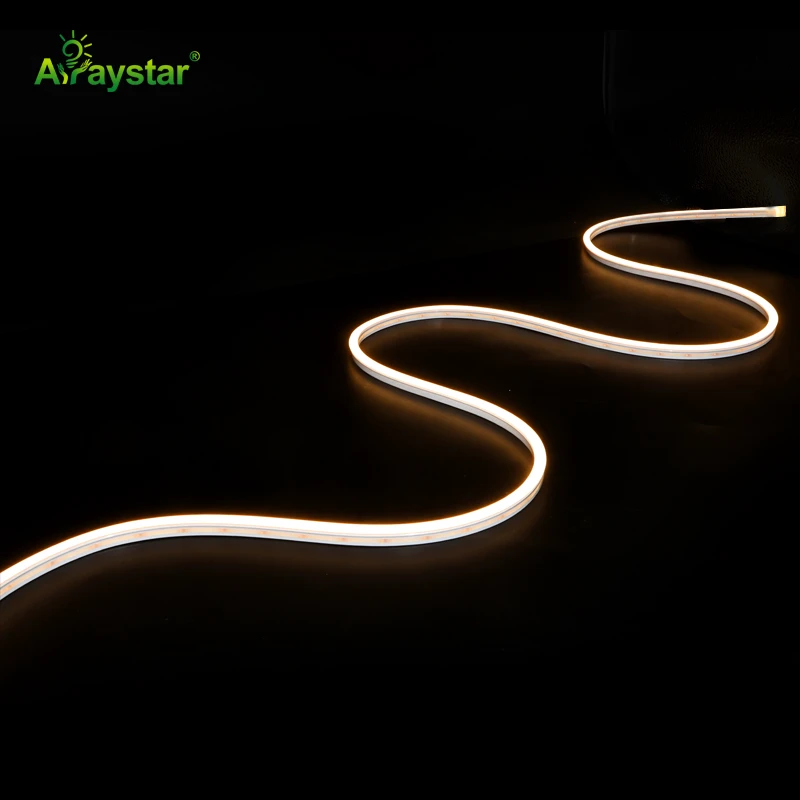

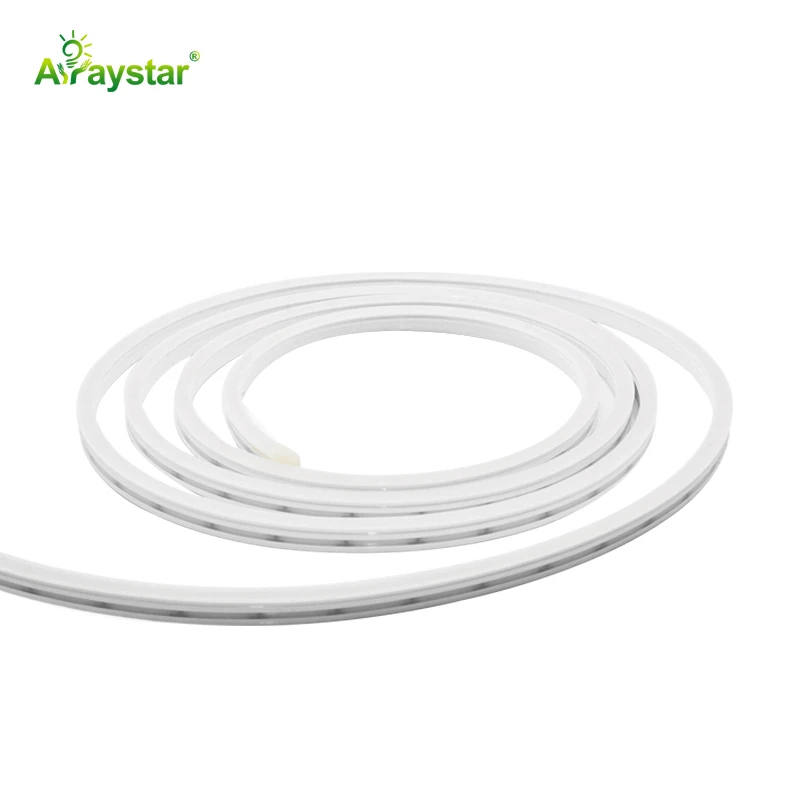

The ART-NS0508-X-12/24 is an Arraystar Mini Cut LED Neon Strip. It uses ART-NS0508-X-12/24 LEDs at 168 LEDs/m, on DC12V / DC24V, drawing around 8W/m, in 2700K / 3000K / 4000K / 6500K.

It features CRI >90, a 5mm profile, supplied 5m/roll. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.

Key Features

• ART-NS0508-X-12/24 at 168 LEDs/m
• Input: DC12V / DC24V
• Power: 8W/m
• CRI >90
• Colour options: 2700K / 3000K / 4000K / 6500K
• Strip width 5mm
• Warranty: 5 Years

Typical Applications

• Building and facade outlines
• Signage, channel letters and logos
• Hotels, bars and leisure interiors
• Landscape and bridge contour lighting
• Festive and architectural decoration

Frequently Asked Questions

What power supply does this strip need?

A DC12V / DC24V constant-voltage LED driver sized for the total wattage (about 8W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.

Will I see voltage drop on a long run?

For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.

Is this strip waterproof?

Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.

Can I cut it on site?

Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.

Which colour temperatures are available?

2700K / 3000K / 4000K / 6500K
