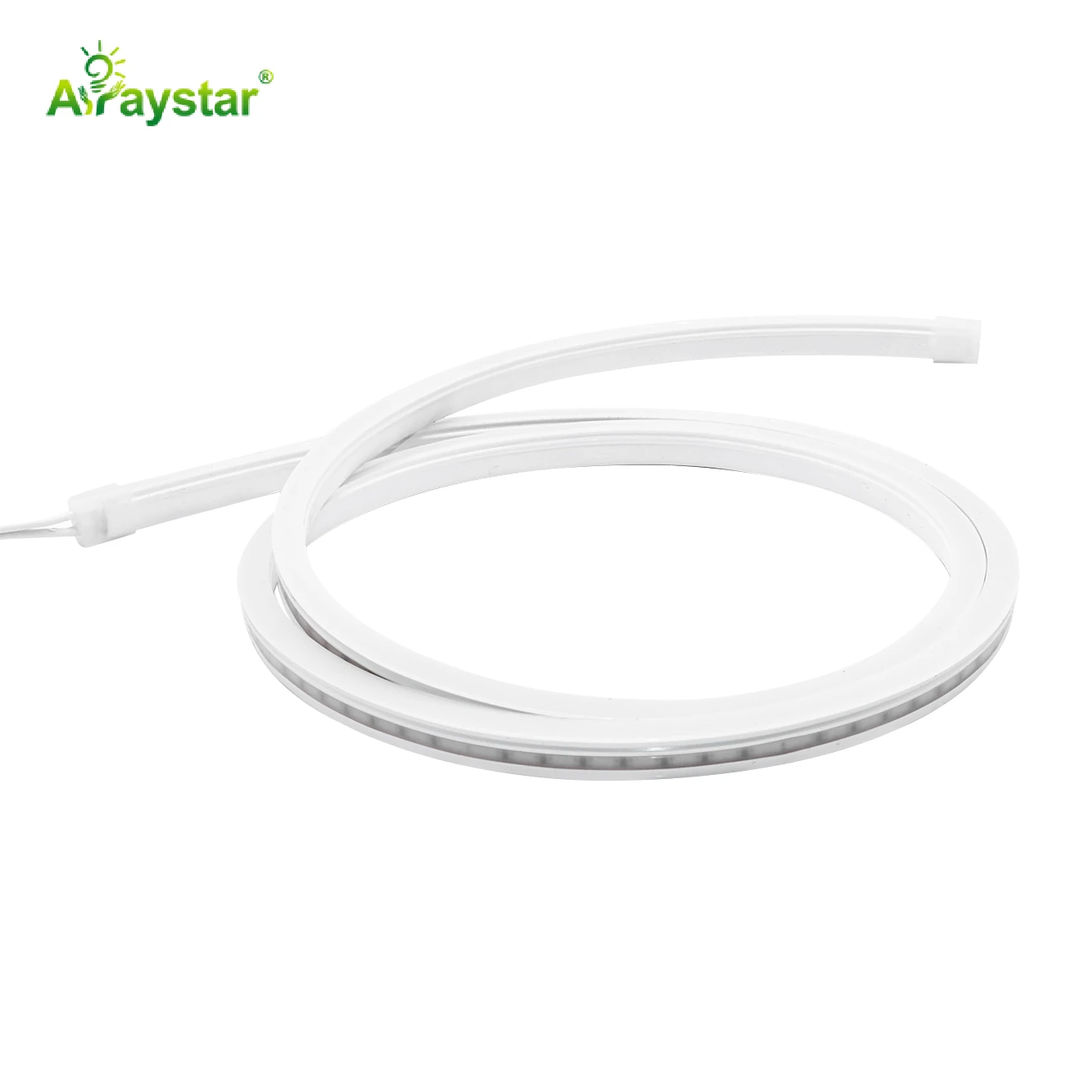

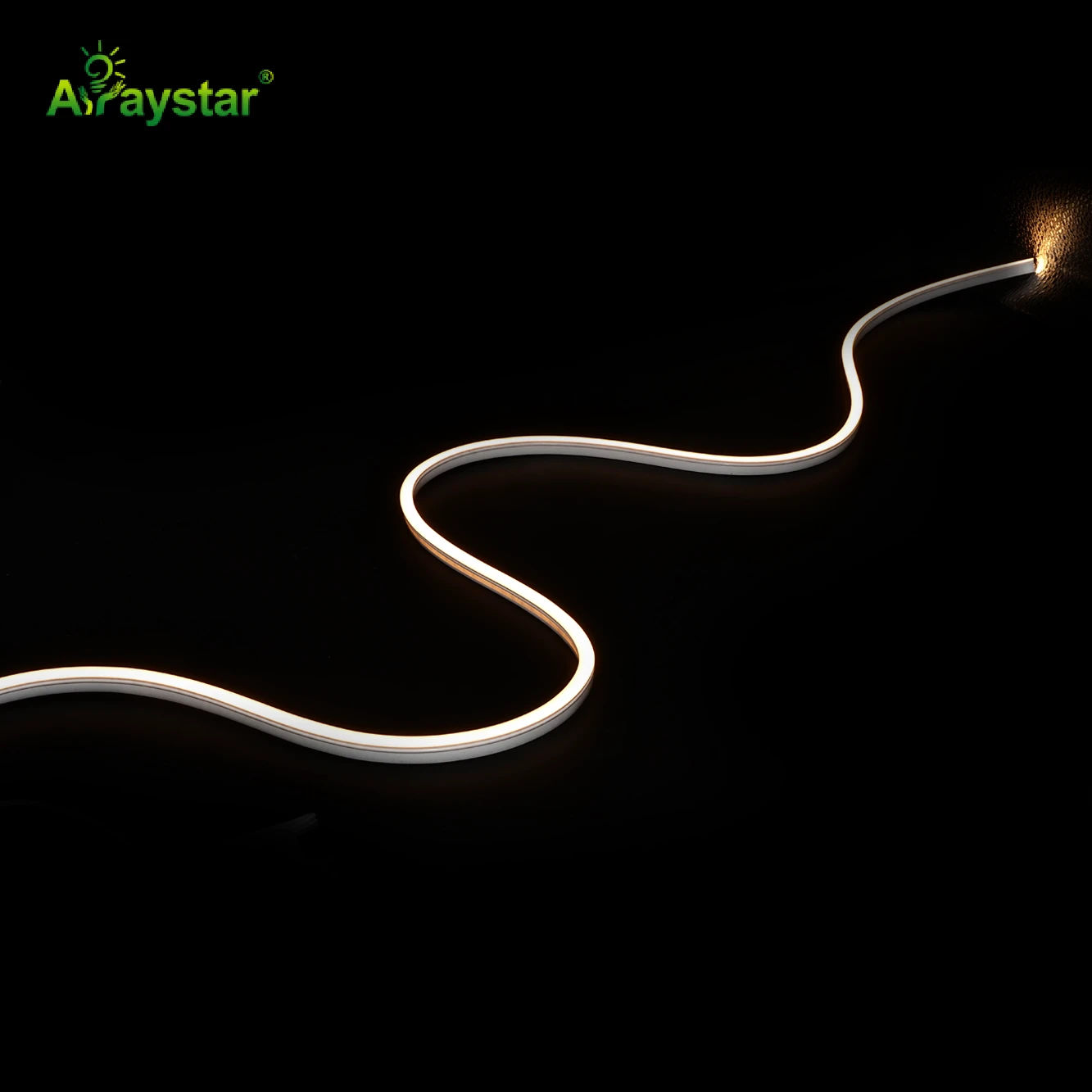

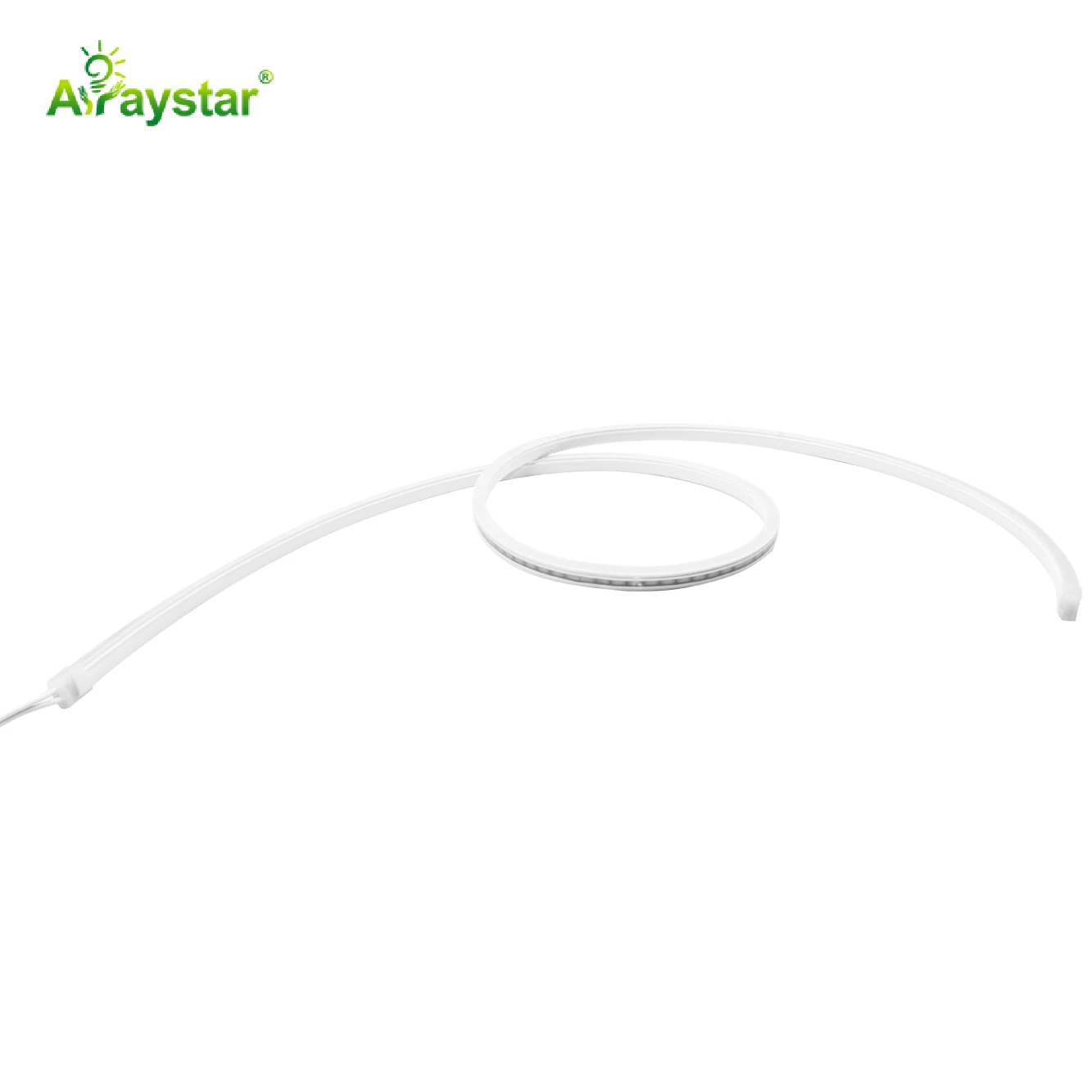

Mini Size Free Cut 5×8mm LED Neon Flex
- Model:ART-NS0508F-X-12/24
- LED Type:Neon Flex
- LED Qty/M:140 LEDs/m
- Voltage:DC12V / DC24V
- Power W/m:9.6W/m
- CCT/Color:2700K / 3000K / 4000K / 6500K
- CRI:>90
- Dimension:5×8mm
- Warranty:5 Years
Technical Specifications
| Model | ART-NS0508F-X-12/24 |
|---|---|
| LED Type | Neon Flex |
| LED Qty/m | 140 LEDs/m |
| Voltage | DC12V / DC24V |
| Power (W/m) | 9.6W/m |
| CCT/Color | 2700K / 3000K / 4000K / 6500K |
| CRI | >90 |
| Dimension | 5×8mm |
| Warranty | 5 Years |
| Material | Food-grade Silicone |
| Package | roll |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
The ART-NS0508F-X-12/24 is an Arraystar Mini Cut LED Neon Strip. It uses Neon Flex LEDs at 140 LEDs/m, on DC12V / DC24V, drawing around 9.6W/m, in 2700K / 3000K / 4000K / 6500K.
It features CRI >90, a 5mm profile, supplied roll. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.
Key Features
- Neon Flex at 140 LEDs/m
- Input: DC12V / DC24V
- Power: 9.6W/m
- CRI >90
- Colour options: 2700K / 3000K / 4000K / 6500K
- Strip width 5mm
- Warranty: 5 Years
Typical Applications
- Building and facade outlines
- Signage, channel letters and logos
- Hotels, bars and leisure interiors
- Landscape and bridge contour lighting
- Festive and architectural decoration
Frequently Asked Questions
What power supply does this strip need?
A DC12V / DC24V constant-voltage LED driver sized for the total wattage (about 9.6W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
DC strips can dim at the far end of a long run. Re-feed power at the recommended intervals and use the correct cable size; we confirm the layout for your project.
Is this strip waterproof?
Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
Which colour temperatures are available?
2700K / 3000K / 4000K / 6500K
