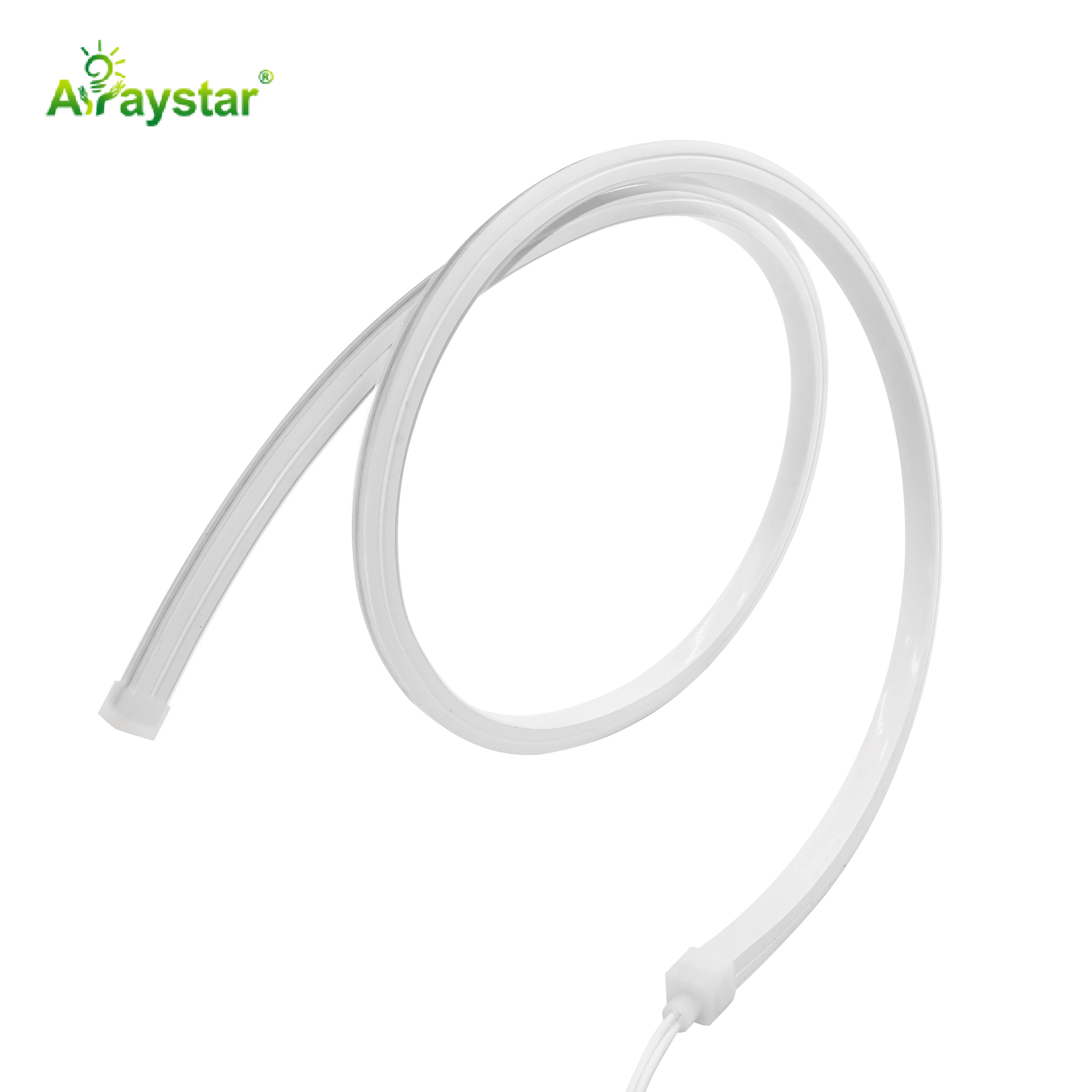

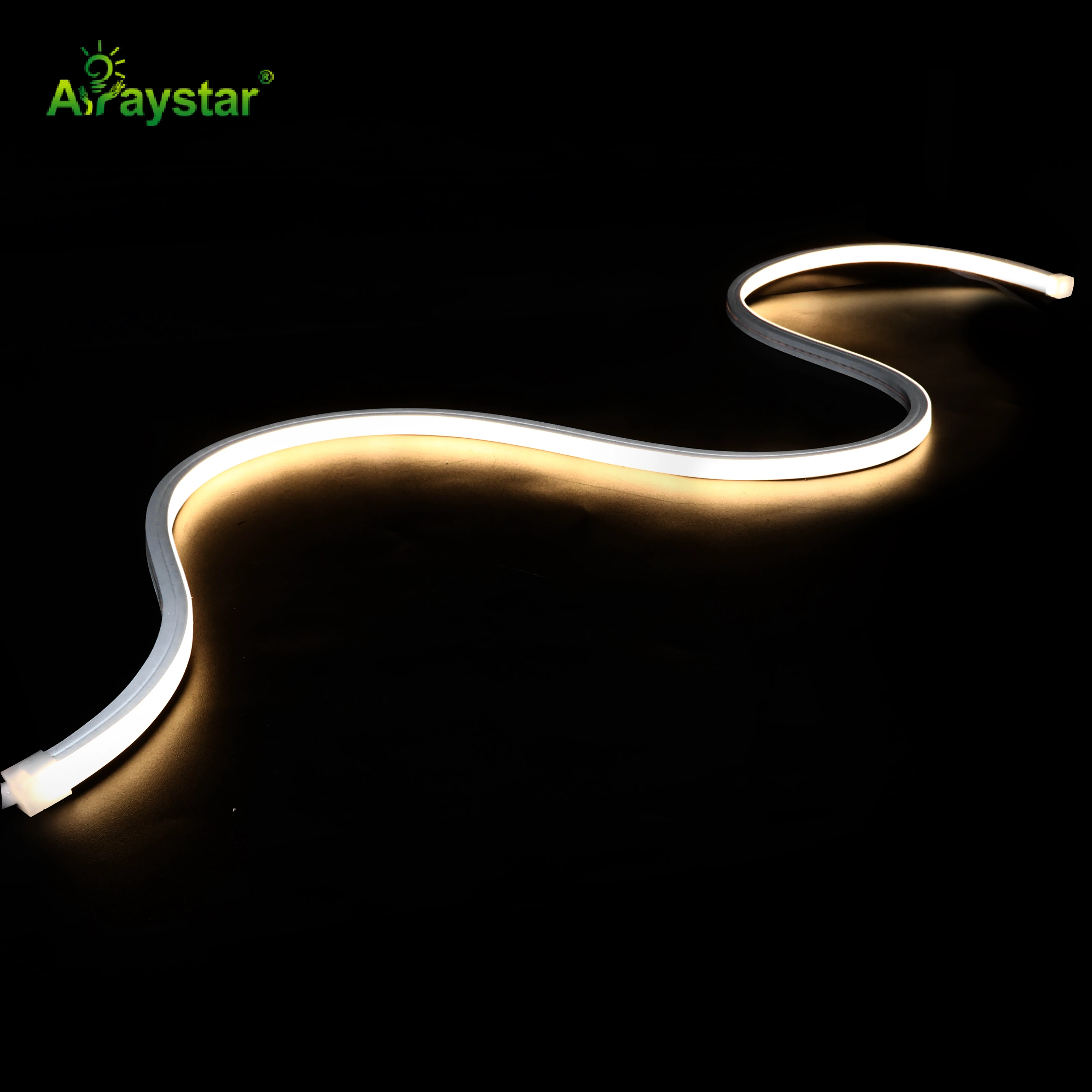

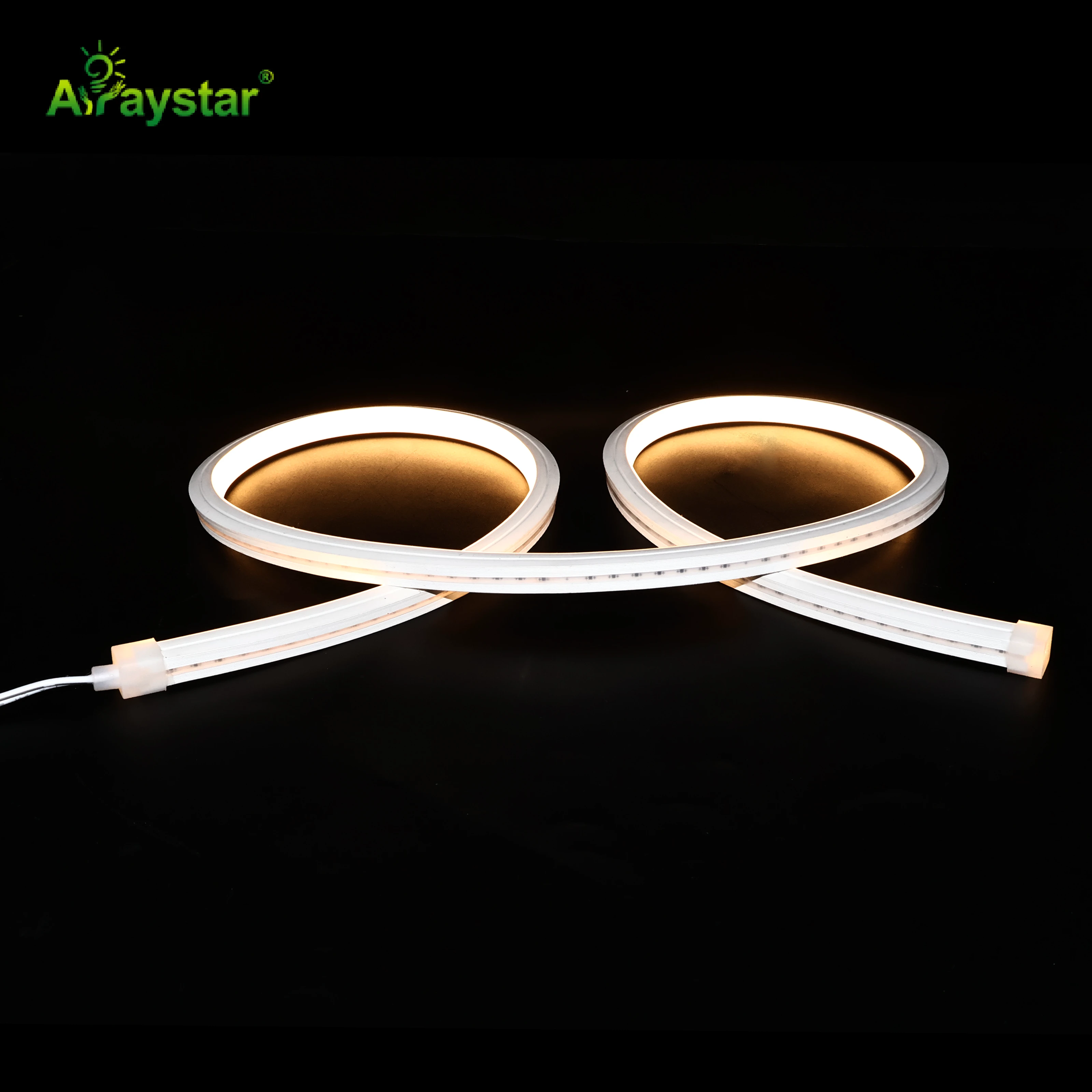

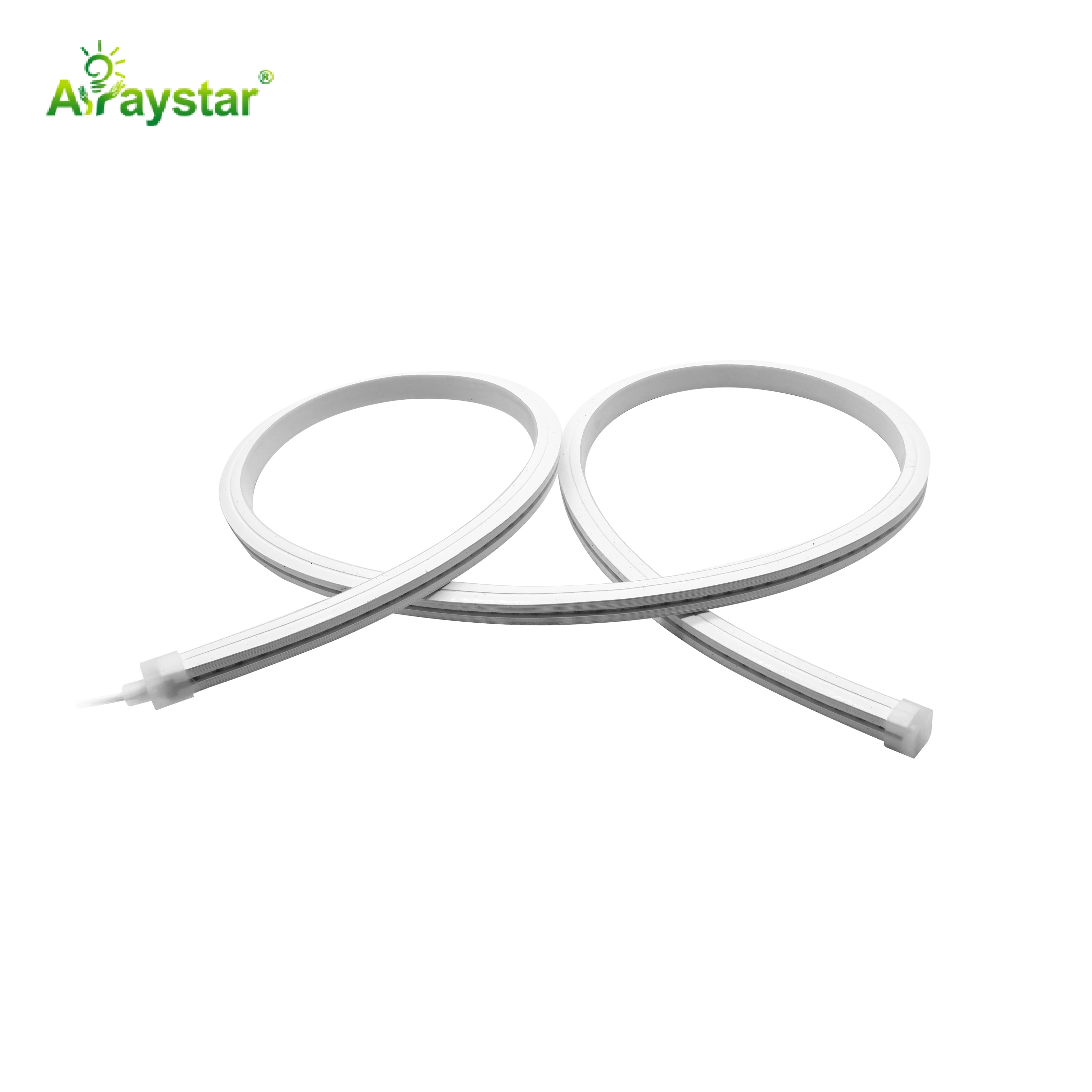

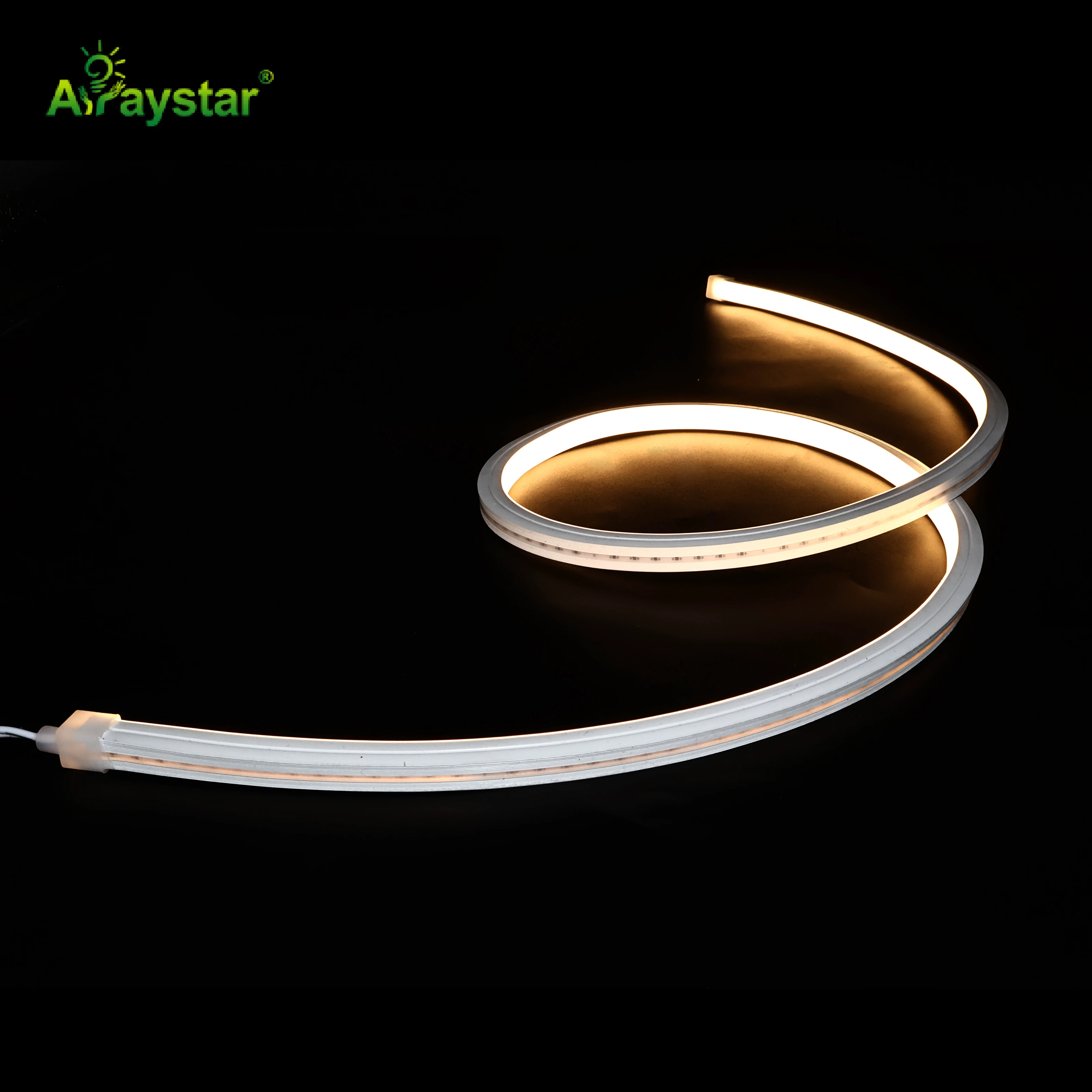

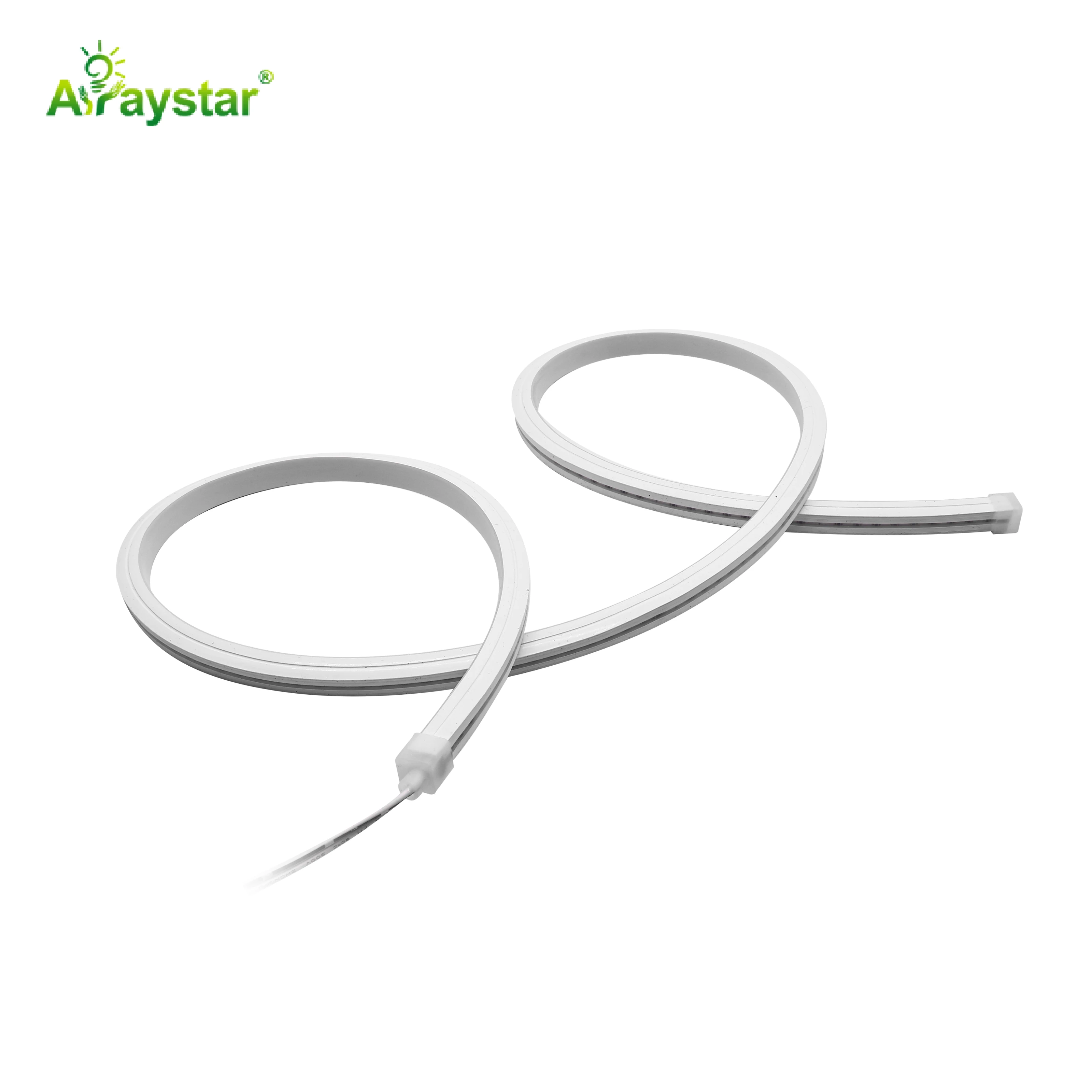

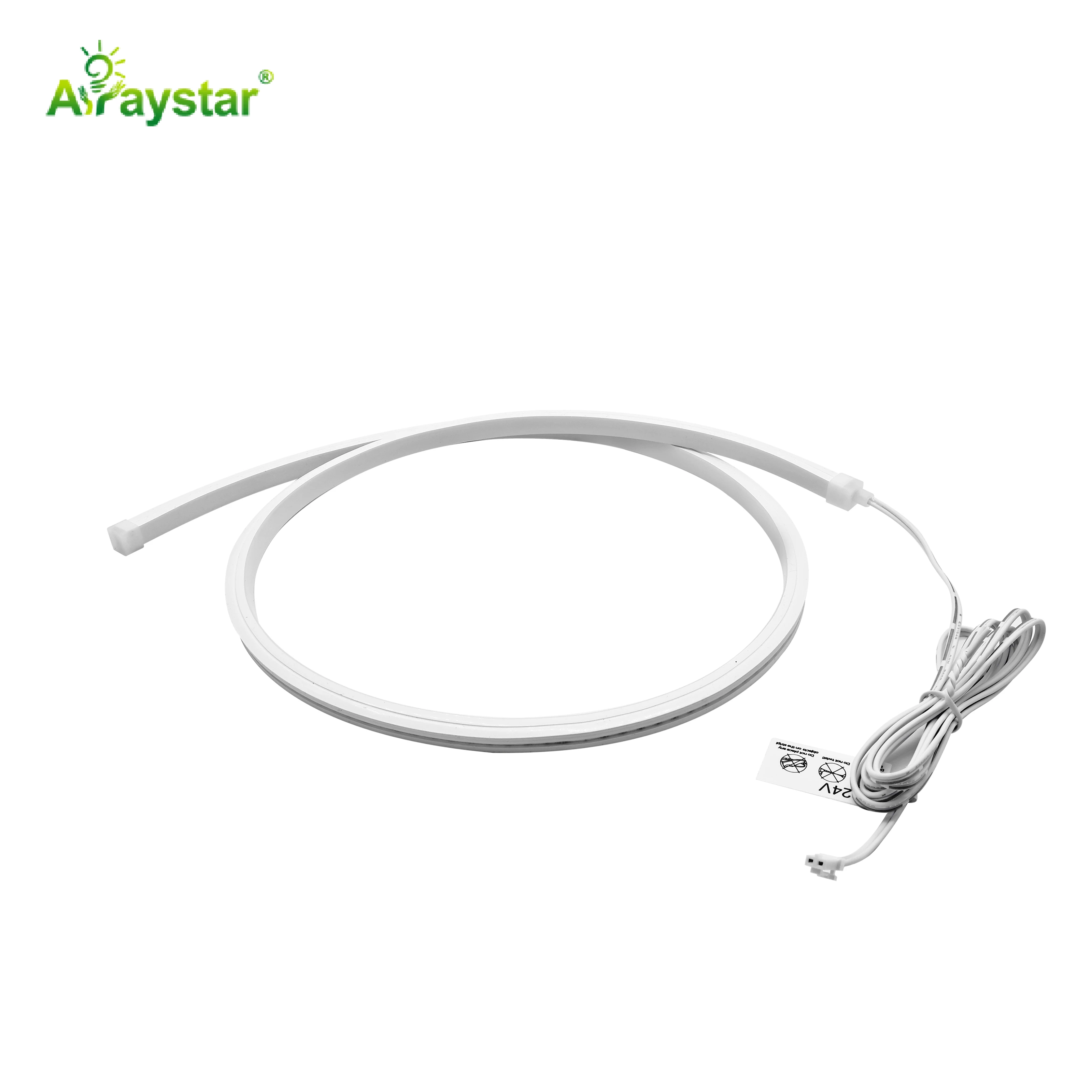

Top Bend 0808 Free Cut Neon Strip
- Model:ART-NS0808F-168-X-24
- LED Type:SMD 2216
- LED Qty/M:168 LEDs/m
- Voltage:24V DC
- Power W/m:8W/m
- CCT/Color:2700K, 3000K, 4000K, 6500K
- CRI:>90
- Dimension:8mm × 8mm
- Warranty:3 years
Technical Specifications
| Model | ART-NS0808F-168-X-24 |
|---|---|
| LED Type | SMD 2216 |
| LED Qty/m | 168 LEDs/m |
| Voltage | 24V DC |
| Power (W/m) | 8W/m |
| CCT/Color | 2700K, 3000K, 4000K, 6500K |
| CRI | >90 |
| Dimension | 8mm × 8mm |
| Warranty | 3 years |
| Material | Silicone extrusion |
| Package | 1M/ROLL |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
For tight letters and shapes that bend up and over edges, this slim 0808 free-cut neon is the one I pick. At just 8×8mm with 168 LEDs/m at 8W/m on 24V, it's built to flex vertically (top bend) and trim at short intervals, with CRI above 90.
Top bend plus free cut for signage
Most neon flex only bends sideways, which makes raised letters and edges that turn over a surface hard to follow. This 0808 profile is engineered to bend in the vertical plane and has short cut intervals, so it tracks tight sign glyphs and folded edges with little waste, while the low 8W/m load keeps small channels cool.
Key Features
- 8×8mm slim silicone extrusion
- Vertical (top) bending for raised letters and edges
- 168 LEDs/m, short free-cut intervals
- 8W/m, 24V DC, CRI >90
- 2700K / 3000K / 4000K / 6500K
Typical Applications
- Raised channel letters and signage
- Edges that fold over cabinet and shelf lips
- Compact decorative outlines and artwork
- Low-heat cove lighting in small profiles
Specifications
| Parameter | Value |
|---|---|
| Model | ART-NS0808F-168-X-24 |
| Outer size | 8 × 8 mm (5mm PCB) |
| LED type | SMD 2216 |
| LED quantity | 168 LEDs/m |
| Power | 8 W/m |
| Voltage | 24V DC |
| Bending | Top / vertical bend, free cut |
| CRI | >90 |
| Warranty | 3 years |
Installation notes
- Use the vertical-bend direction for edges; don't force the flat plane beyond its radius.
- Cut only at the short marked intervals and fit matching end caps.
- Glue into channels with silicone adhesive and add clips on curves.
- Power every 5m on the 24V feed.
Frequently Asked Questions
Can it bend both sideways and vertically?
This version is optimized for vertical (top) bending; for side-bend shapes choose the matching side-bend model.
How short is the cut interval?
The free-cut layout gives short segments suited to tight letters; cut on the marked lines.
Is 8W/m bright enough for signs?
For outlined letters and close-view decorative work yes; for wide-area brightness step up to a larger neon profile.
Can I order custom specifications or OEM branding?
Yes. As the manufacturer we support custom lengths, colour temperature, CRI, packaging and OEM labeling; send us your specification.
Can I request a sample before a bulk order?
Yes, samples are available so you can confirm the colour, build and output before a bulk order. Request a sample through our contact page.
