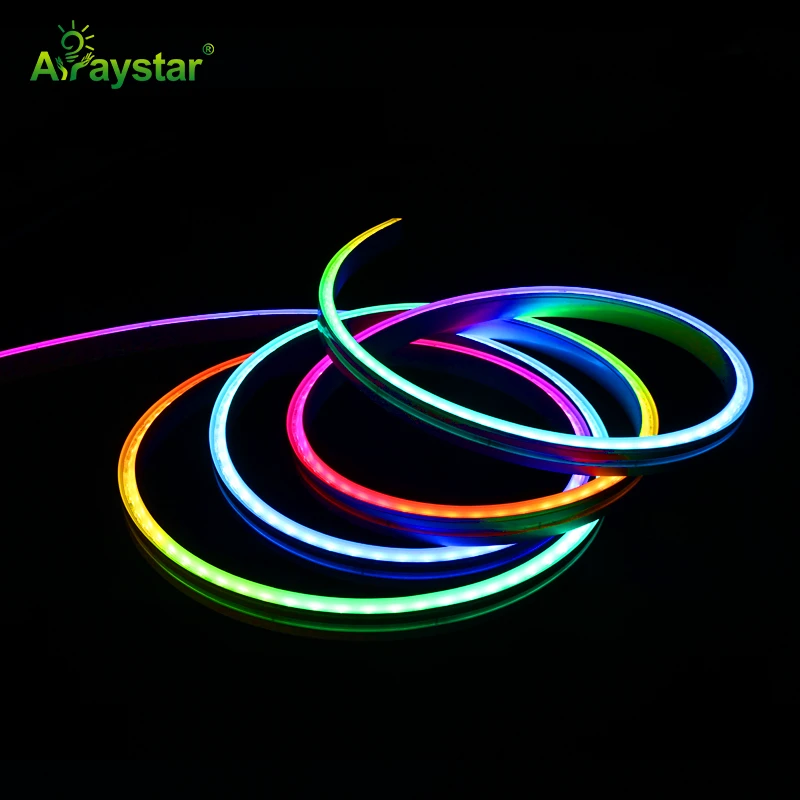

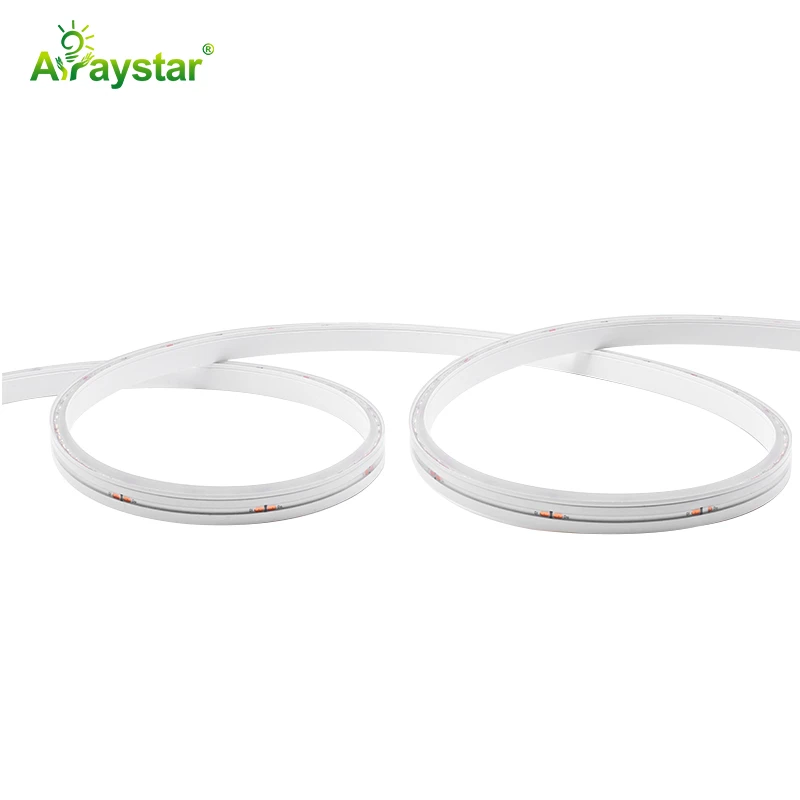

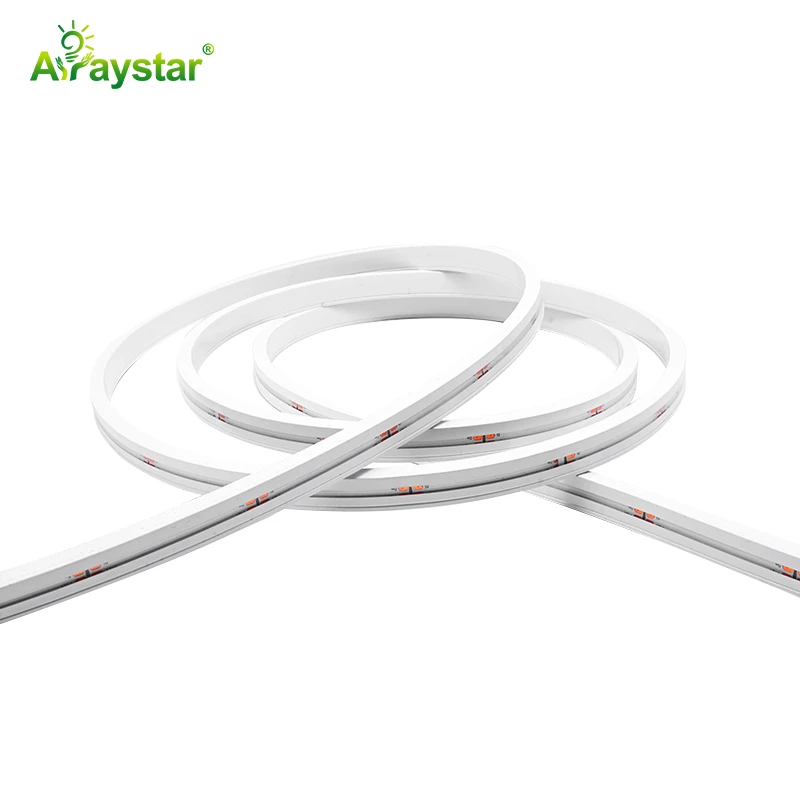

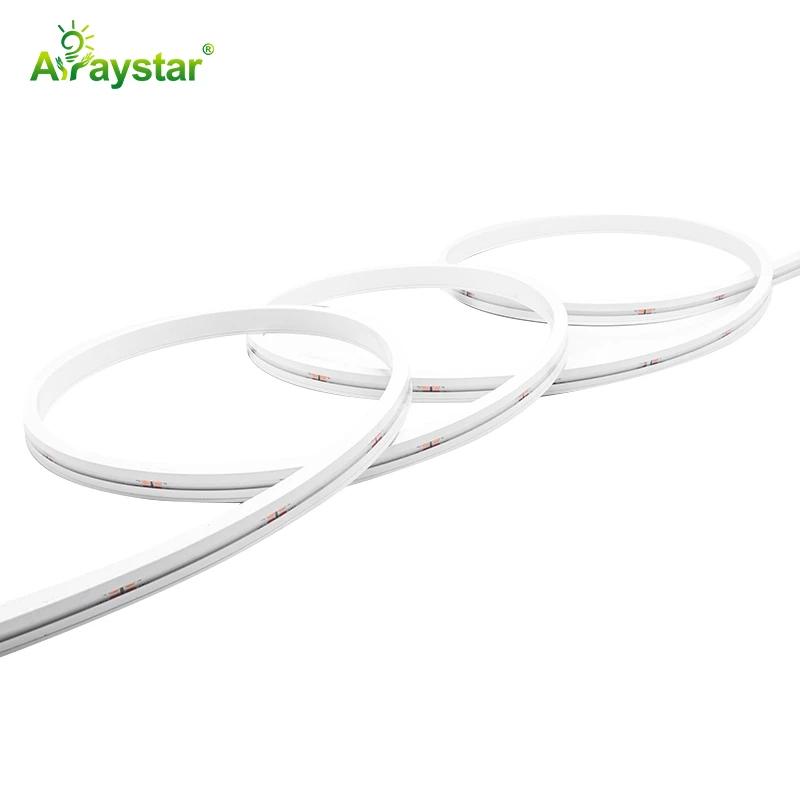

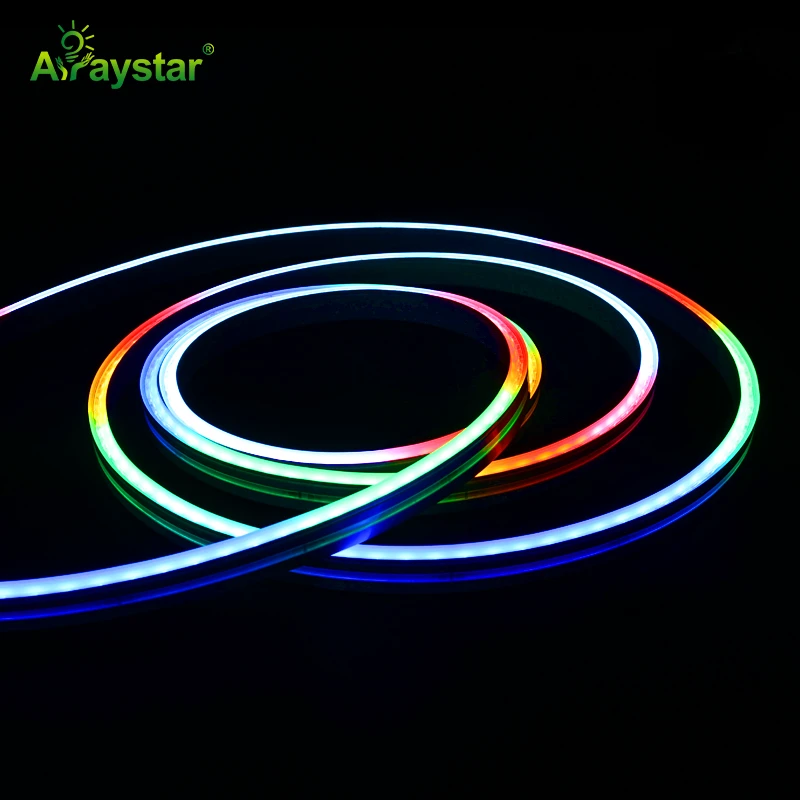

6*12mm Magic Color RGB LED Neon Strip Light
- Model:ART-NS0612IC-120-RGB-12
- LED Type:COB
- LED Qty/M:120 LEDs/m
- Voltage:12V DC
- Power W/m:10W/m
- CCT/Color:Magic RGB
- CRI:>90
- Dimension:6*12MM
- Warranty:3 years
Technical Specifications
| Model | ART-NS0612IC-120-RGB-12 |
|---|---|
| LED Type | COB |
| LED Qty/m | 120 LEDs/m |
| Voltage | 12V DC |
| Power (W/m) | 10W/m |
| CCT/Color | Magic RGB |
| CRI | >90 |
| Dimension | 6*12MM |
| Warranty | 3 years |
| Material | Silicone extrusion housing (multi-resistant) |
| Package | 5M/ROLL |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
The ART-NS0612IC-120-RGB-12 is an Arraystar Pixel LED Neon Strip. It uses COBs at 120 LEDs/m, on 12V DC, drawing around 10W/m, in Magic RGB, delivering a continuous, dot-free line.
It features CRI >90, a 6*12MM (overall size) profile, supplied 5m/roll. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.
Key Features
- COB at 120 LEDs/m
- Continuous, dot-free light output
- Input: 12V DC
- Power: 10W/m
- CRI >90
- Colour options: Magic RGB
- Strip width 6*12MM (overall size)
- Warranty: 3 years
Typical Applications
- Building and facade outlines
- Signage, channel letters and logos
- Hotels, bars and leisure interiors
- Landscape and bridge contour lighting
- Festive and architectural decoration
Frequently Asked Questions
What power supply does this strip need?
A 12V DC constant-voltage LED driver sized for the total wattage (about 10W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.
Is this strip waterproof?
Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
What controller or protocol does it need?
It is addressable, so use a compatible controller for the IC/protocol of the ordered model. Confirm the protocol with us and we can supply the matching controller.
