RGB Pixel LED Neon Strip ART-NS0612

  • Model:ART-NS0612-84-SPIRGB-24
  • LED Type:SMD 3838 with FW1935 IC
  • LED Density:84 LEDs/m (28 px/m @12V, 14 px/m @24V)
  • Voltage:12V / 24V DC
  • Power (W/m):14 W/m
  • CCT/Colour:SPI RGB (full color, addressable)
  • CRI:Not applicable (RGB)
  • PCB Width:6 mm
  • Dimension:6 x 12 mm
  • Emitting:Top emitting, top bend, addressable pixels
  • Material:Food-grade silicone, IP67
  • Package:Not specified
  • Warranty:3 years
Certification: UL 1598C (Cert. E501132, selected models) · CE · RoHS · UKCA Pricing: quotations in USD · 30% deposit / 70% before shipment Lead time: 3–7 working days (stock) · 15–25 (custom) · express to the US 3–5 days

Technical Specifications

ModelART-NS0612-84-SPIRGB-24
LED TypeSMD 3838 with FW1935 IC
LED Density84 LEDs/m (28 px/m @12V, 14 px/m @24V)
Voltage12V / 24V DC
Power (W/m)14 W/m
CCT/ColourSPI RGB (full color, addressable)
CRINot applicable (RGB)
PCB Width6 mm
Dimension6 x 12 mm
EmittingTop emitting, top bend, addressable pixels
MaterialFood-grade silicone, IP67
PackageNot specified
Warranty3 years
Minimum Order QuantityFactory-direct - on request
CertificationsCE, RoHS, UKCA; UL 1598C (Cert. E501132, selected models)

Product Description

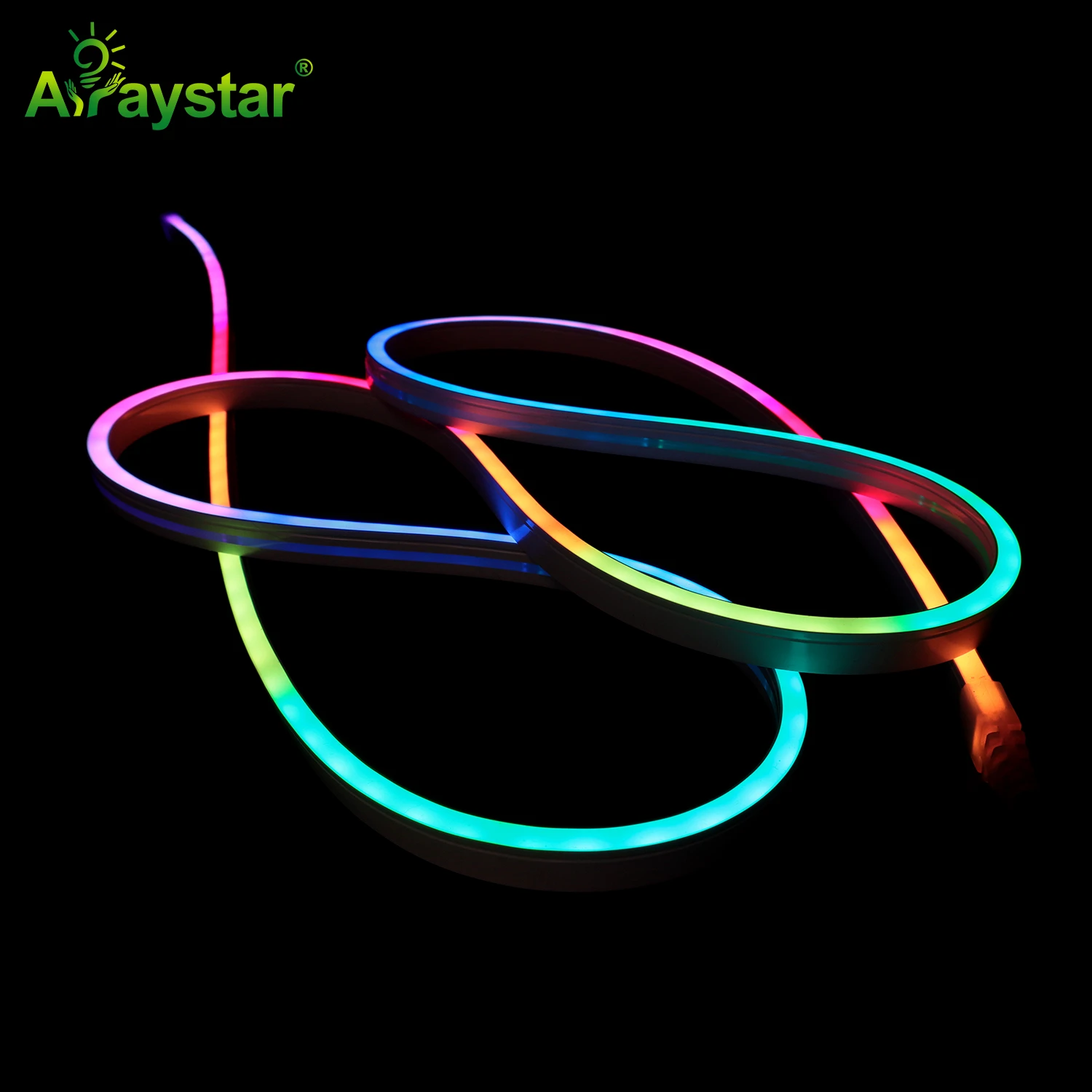

The ART-NS0612-84-SPIRGB-24 is an Arraystar Pixel LED Neon Strip. It uses SMD 3838 with FW1935 ICs at 84 LEDs/m (28 px/m @12V, 14 px/m @24V), on 12V / 24V DC, drawing around 14 W/m, in SPI RGB (full color, addressable), rated IP67.

It features CRI Not applicable (RGB), a 6 mm profile, supplied not specified. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.

Key Features

  • SMD 3838 with FW1935 IC at 84 LEDs/m (28 px/m @12V, 14 px/m @24V)
  • Input: 12V / 24V DC
  • Power: 14 W/m
  • CRI Not applicable (RGB)
  • Colour options: SPI RGB (full color, addressable)
  • IP67 sealed construction
  • Strip width 6 mm
  • Warranty: 3 years

Typical Applications

  • Building and facade outlines
  • Signage, channel letters and logos
  • Hotels, bars and leisure interiors
  • Landscape and bridge contour lighting
  • Festive and architectural decoration

Frequently Asked Questions

What power supply does this strip need?

A 12V / 24V DC constant-voltage LED driver sized for the total wattage (about 14 W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.

Will I see voltage drop on a long run?

DC strips can dim at the far end of a long run. Re-feed power at the recommended intervals and use the correct cable size; we confirm the layout for your project.

Is this strip suitable for outdoor use?

It carries an IP67 rating. Outdoor or wet installations still need sealed connectors and proper end sealing to maintain the rating.

Can I cut it on site?

Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.

What controller or protocol does it need?

It is addressable, so use a compatible controller for the IC/protocol of the ordered model. Confirm the protocol with us and we can supply the matching controller.
