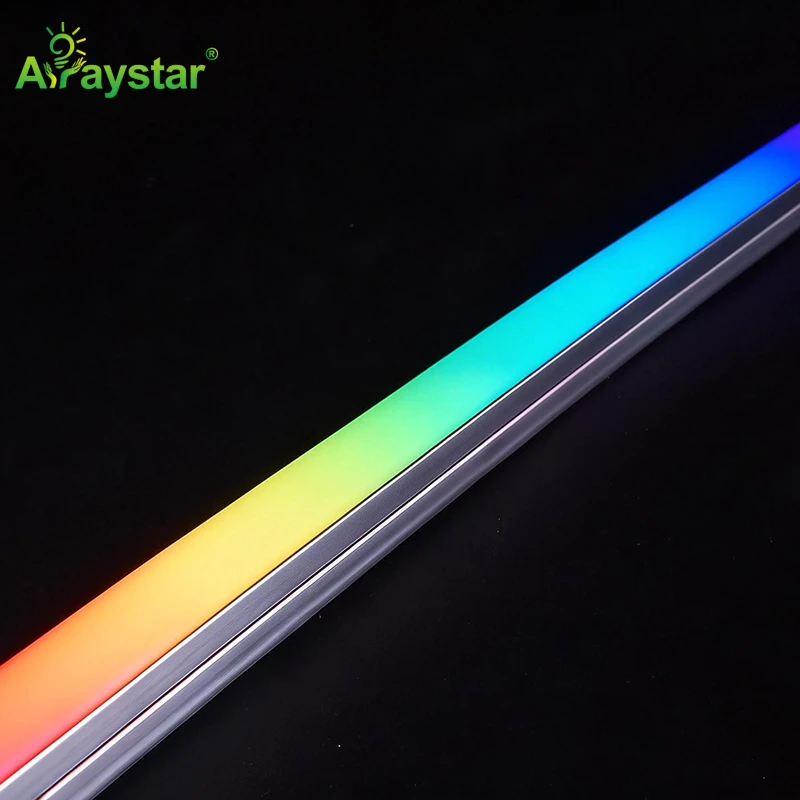

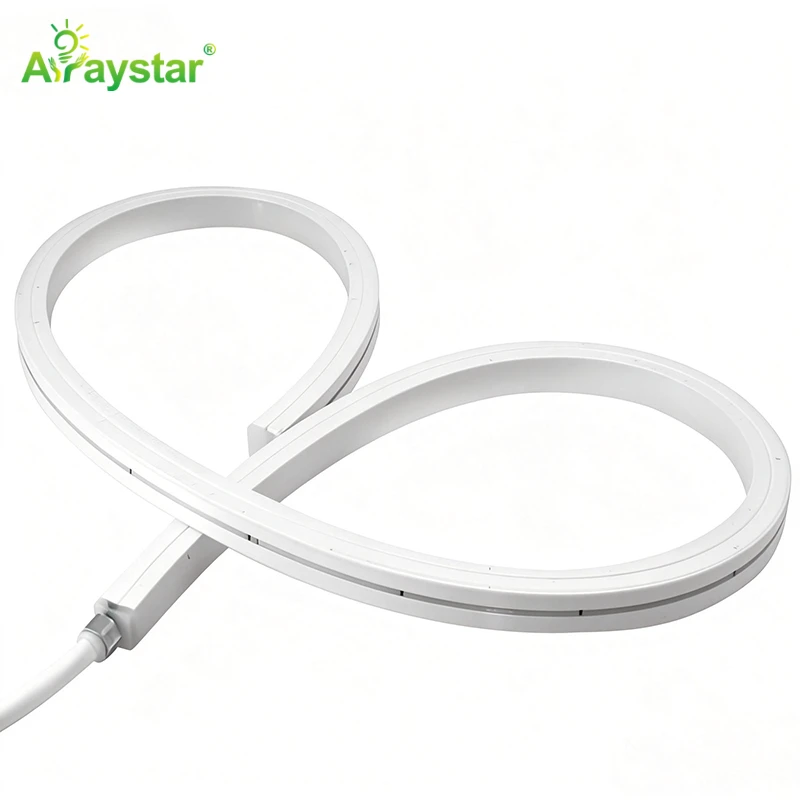

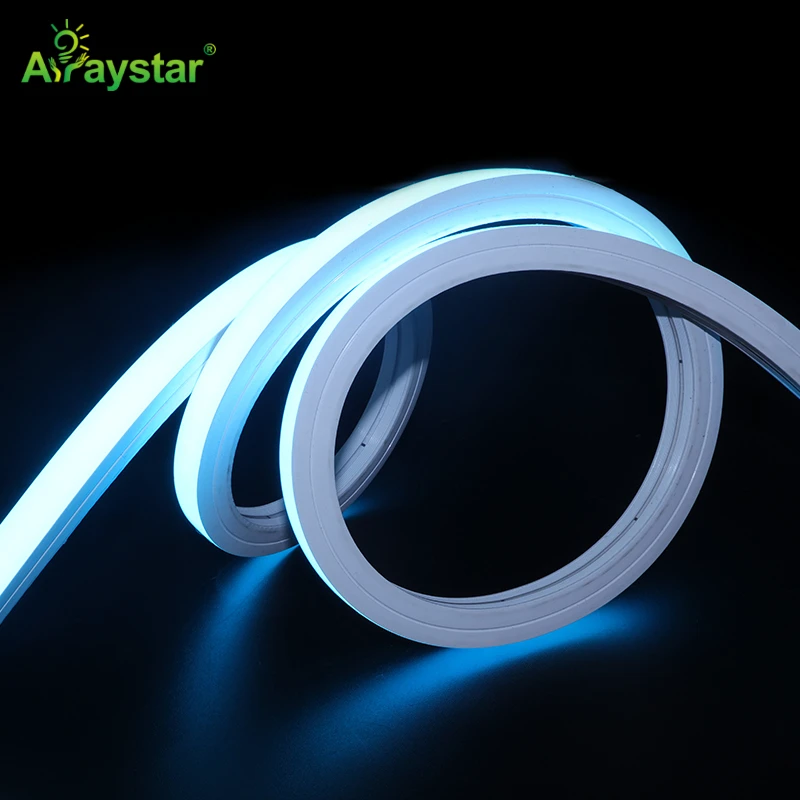

Top Bend 12*12mm RGBW LED Neon Strip
- Model:ART-NS1212-120-RGBW-24
- LED Type:SMD 3535
- LED Qty/M:120 LEDs/m
- Voltage:24V DC
- Power W/m:14W/m
- CCT/Color:RGB, RGB+SWW 2700K/3000K/4000K/6500K (RGBW)
- CRI:>90
- Dimension:12*12MM (PCB width/overall size)
- Warranty:3 years
Technical Specifications
| Model | ART-NS1212-120-RGBW-24 |
|---|---|
| LED Type | SMD 3535 |
| LED Qty/m | 120 LEDs/m |
| Voltage | 24V DC |
| Power (W/m) | 14W/m |
| CCT/Color | RGB, RGB+SWW 2700K/3000K/4000K/6500K (RGBW) |
| CRI | >90 |
| Dimension | 12*12MM (PCB width/overall size) |
| Warranty | 3 years |
| Material | Silicon extrusion housing |
| Package | 5M/ROLL |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
The ART-NS1212-120-RGBW-24 is an Arraystar Pixel LED Neon Strip. It uses SMD 3535s at 120 LEDs/m, on 24V DC, drawing around 14W/m, in RGB, RGB+SWW 2700K/3000K/4000K/6500K (RGBW).
It features CRI >90, a 12*12MM (overall size) profile, supplied 5m/roll. The silicone body gives a smooth neon glow without visible LED dots, and it bends to follow signs and architectural outlines.
Key Features
- SMD 3535 at 120 LEDs/m
- Input: 24V DC
- Power: 14W/m
- CRI >90
- Colour options: RGB, RGB+SWW 2700K/3000K/4000K/6500K (RGBW)
- Strip width 12*12MM (overall size)
- Warranty: 3 years
Typical Applications
- Building and facade outlines
- Signage, channel letters and logos
- Hotels, bars and leisure interiors
- Landscape and bridge contour lighting
- Festive and architectural decoration
Frequently Asked Questions
What power supply does this strip need?
A 24V DC constant-voltage LED driver sized for the total wattage (about 14W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.
Is this strip waterproof?
Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
How do I control the colours?
Use a matching RGB/RGBW controller or DMX/SPI system. We can supply the controller and wiring matched to this strip.
