Power Optional SMD 2835 LED Strip 8mm PCB
- Model:ART-2835P-120-X-24
- LED Type:SMD 2835
- LED Qty/M:120LEDs/m
- Voltage:24V DC
- Power W/m:4.8~9.6 W/m
- CCT/Color:2700K/3000K/4000K/6500K
- CRI:>90
- Dimension:8 mm PCB
- Warranty:3 Years
Technical Specifications
| Model | ART-2835P-120-X-24 |
|---|---|
| LED Type | SMD 2835 |
| LED Qty/m | 120LEDs/m |
| Voltage | 24V DC |
| Power (W/m) | 4.8~9.6 W/m |
| CCT/Color | 2700K/3000K/4000K/6500K |
| CRI | >90 |
| Dimension | 8 mm PCB |
| Warranty | 3 Years |
| Material | |
| Package | |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description

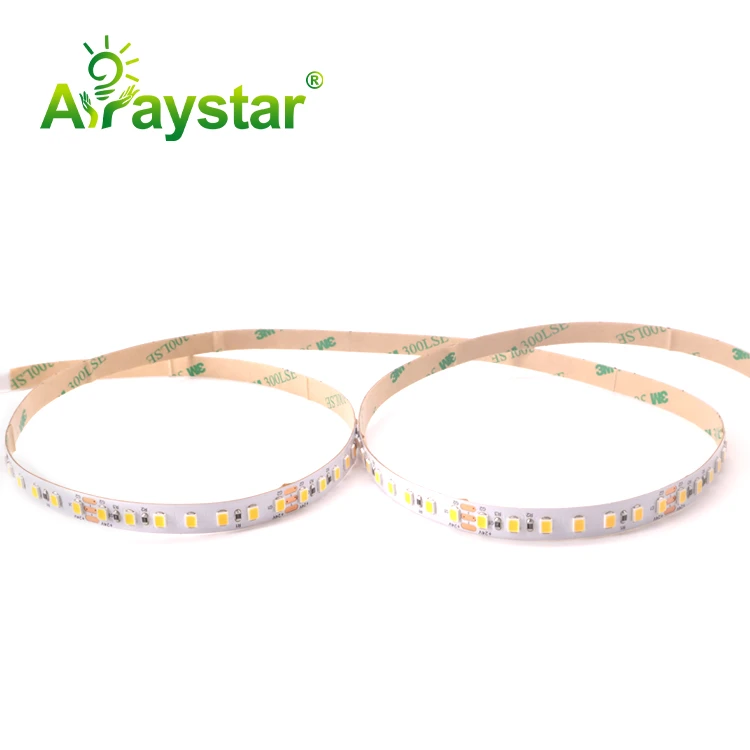

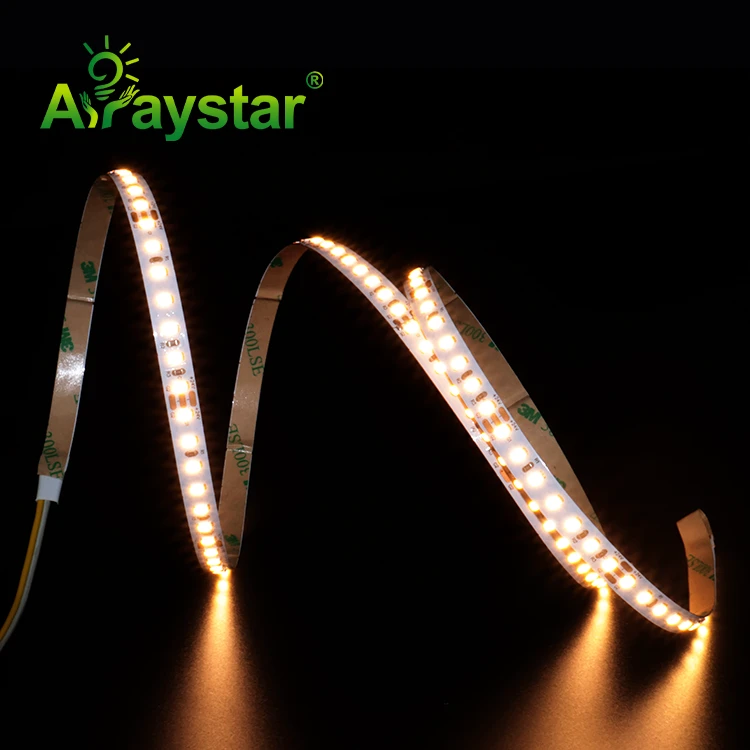

The ART-2835P-120-X-24 is an Arraystar New Design SMD LED Strip. It uses SMD 2835s at 120LEDs/m, on 24V DC, drawing around 4.8~9.6 W/m, in 2700K/3000K/4000K/6500K.
It features CRI >90, an 8 mm PCB profile. It is a flexible, cuttable strip for linear, cove and accent lighting.
Key Features
- SMD 2835 at 120LEDs/m
- Input: 24V DC
- Power: 4.8~9.6 W/m
- CRI >90
- Colour options: 2700K/3000K/4000K/6500K
- Warranty: 3 Years
Typical Applications
- Under-cabinet and cove lighting in kitchens and retail
- Furniture, shelving and display case lighting
- Hotel, bar and restaurant interior accents
- Architectural recessed linear lighting
- Signage backlighting and decorative outlines
Frequently Asked Questions
What power supply does this strip need?
A 24V DC constant-voltage LED driver sized for the total wattage (about 4.8~9.6 W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
DC strips can dim at the far end of a long run. Re-feed power at the recommended intervals and use the correct cable size; we confirm the layout for your project.
Is this strip waterproof?
Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
Which colour temperatures are available?
2700K/3000K/4000K/6500K
