Category | Parameter | Specification |
|---|---|---|

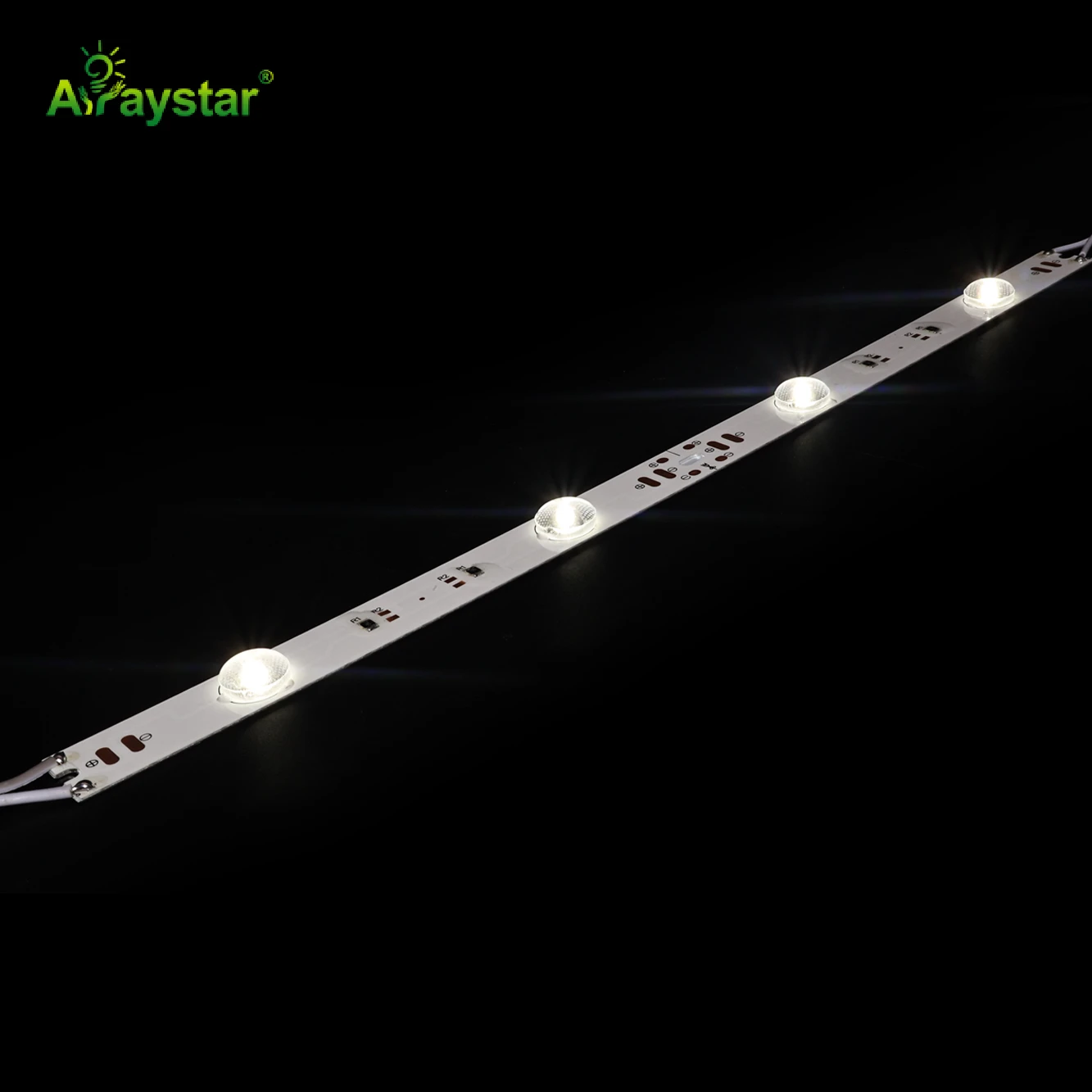

General | Model | ART-FL320-CV-24 |
General | Product Type | Constant Voltage Rigid LED Module |
General | LED Brand | Osram |
General | LED Quantity | 4 LEDs/module |
Electrical | Input Voltage | 24V DC |
Electrical | Power | 4W |
Electrical | Dimmable | Yes |
Optical | Luminous Flux | 432 lm |
Optical | Efficiency | ≥108 lm/W |
Optical | CCT | 2700K / 3000K / 4000K / 5000K / 6000K / 6500K |
Optical | CRI | >80 |
Optical | Beam Angle | 170° |
Mechanical | Dimension | 320 × 17 × 1.2 mm |
Mechanical | Strip Width | 17 mm |
Mechanical | Color | White |
Protection | IP Rating | IP60 |
Environment | Working Temperature | -20°C ~ +60°C |
Certification | Certification | CE, RoHS |
Others | Warranty | 3 Years |
About the Manufacturer
ArrayStar LED is a professional LED strip manufacturer in Shenzhen, China since 2010, serving 80+ countries. We support custom OEM/ODM projects (custom CCT, CRI, PCB, logo, packaging) and wholesale supply for distributors and contractors worldwide.
A: For standard LED strip models, the MOQ is 100 meters per reel. For custom specifications or OEM/ODM projects, MOQ may vary. Contact our sales team for a detailed quote based on your specific requirements.
A: All Arraystar LED strip lights come with a standard 3-year warranty. Some premium series offer up to 5 years warranty. Our products undergo strict QC testing including IQC, QC, and FQC throughout the production process to ensure reliable quality.
A: Yes, but you need to choose the appropriate IP rating. IP65 rated strips are splash-proof and suitable for covered outdoor areas. IP67 rated strips can be briefly submerged in water, and IP68 rated strips are designed for long-term underwater use. Always use matching waterproof power supplies and connectors.
A: Yes, Arraystar specializes in OEM and ODM LED strip manufacturing. We can customize PCB width, LED density, color temperature, CRI, brightness, cut length, cable length, IP grade, and connector types. With 15 years of experience and a 5,000 sqm factory, we provide complete lighting solutions for global clients.
A: Our LED strip lights are CE, RoHS, and ERP certified. Some products are also UL listed. We are an ISO 9001:2015 certified company. All products comply with international safety and environmental standards, suitable for export to Europe, North America, and other global markets.
