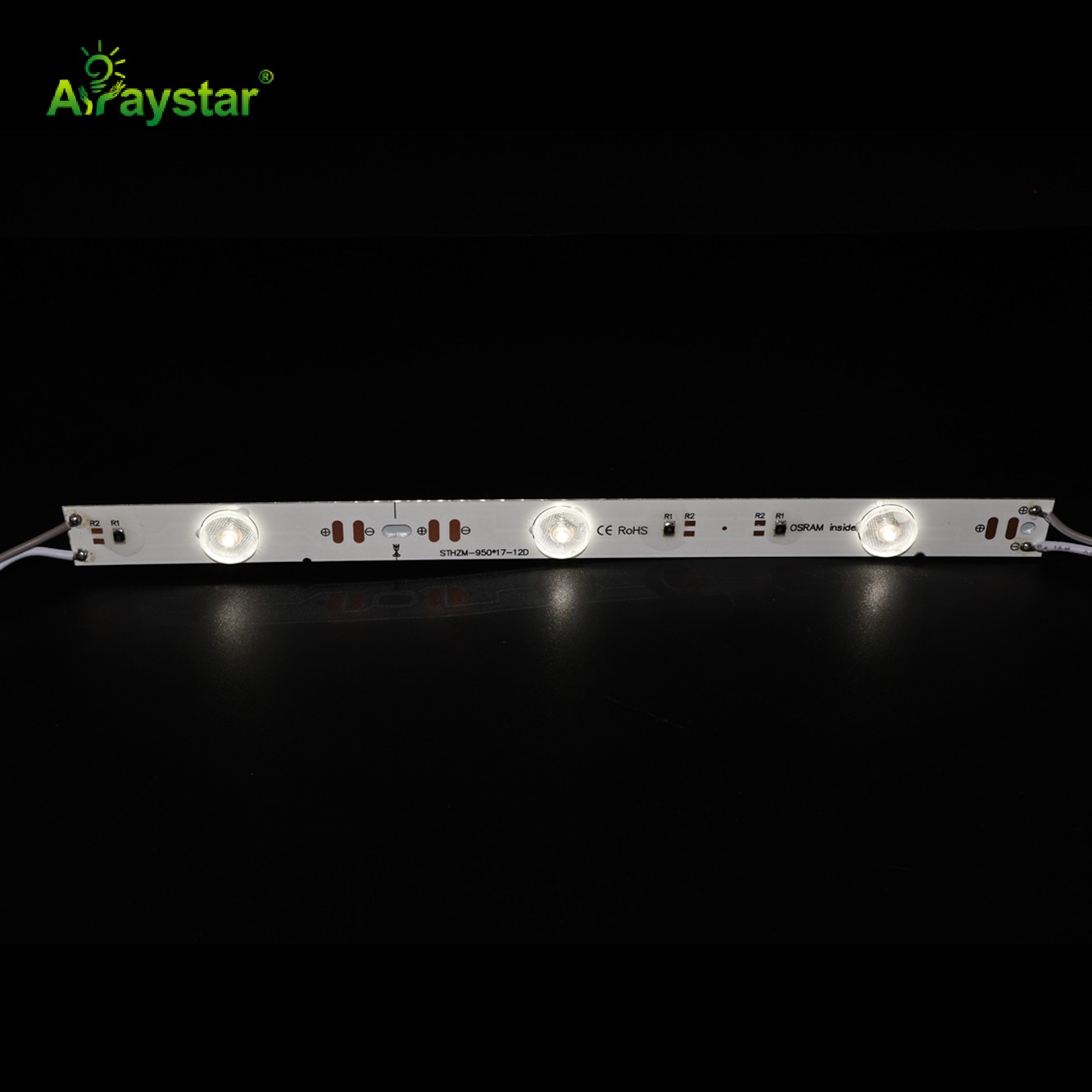

Constant Voltage Rigid LED Module, 24V, 240×17mm – ART-FL240-CV-24
- Model:ART-FL240-CV-24
- LED Type:Osram
- LED Qty/M:3 LEDs/pc
- Voltage:24V
- Power W/m:3W
- CCT/Color:2700K / 3000K / 4000K / 5000K / 6000K / 6500K
- CRI:>80
- Dimension:240 × 17 × 1.2 mm
- Warranty:3 Years
Technical Specifications
| Model | ART-FL240-CV-24 |
|---|---|
| LED Type | Osram |
| LED Qty/m | 3 LEDs/pc |
| Voltage | 24V |
| Power (W/m) | 3W |
| CCT/Color | 2700K / 3000K / 4000K / 5000K / 6000K / 6500K |
| CRI | >80 |
| Dimension | 240 × 17 × 1.2 mm |
| Warranty | 3 Years |
| Material | — |
| Package | — |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
The ART-FL240-CV-24 is a rigid LED light bar from the Arraystar range. Unlike flexible tape, it is built on a rigid board for a straight, fixed line with no sag, using Osram at 3 LEDs/pc on 24V at 3W.
The rigid bar holds its shape for neat, repeatable runs and gives the LEDs a heat path. — construction, 240 × 17 × 1.2 mm, 2700K / 3000K / 4000K / 5000K / 6000K / 6500K. It is suited where a flexible strip will not stay perfectly straight.
Key Features
- Osram at 3 LEDs/pc
- Voltage: 24V
- Power: 3W
- CRI >80
- Colour: 2700K / 3000K / 4000K / 5000K / 6000K / 6500K
- Size: 240 × 17 × 1.2 mm
- Rigid board stays straight, no sag
Typical Applications
- Under-cabinet and shelf lighting
- Display case and museum lighting
- Neat cove and pelmet runs
- Workbench and task lighting
- Jewellery and retail counter lighting
Frequently Asked Questions
Can it be cut to length?
Many rigid bars are cut at marked segments or join with connectors; confirm the cut interval for the model.
Why choose rigid over flexible strip?
A rigid bar stays perfectly straight and gives the LEDs a heat path, so it suits visible, precise runs and heat-sensitive high-output LEDs.
What power supply does it need?
Use a 24V constant-voltage driver with around 20% headroom over the total wattage.
How is it mounted?
Use the supplied clips, brackets or adhesive channel; space the fixings to support the bar evenly.
Which colour temperature?
2700K / 3000K / 4000K / 5000K / 6000K / 6500K
