Waterproof CCT Adjustable 2216 LED Strip
- Model:ART-2216SE-280-W+WW-24
- LED Type:2835 SMD LED
- LED Qty/M:280 LEDs/m
- Voltage:24V DC
- Power W/m:16W/m
- CCT/Color:2700K~6000K
- CRI:>90
- Dimension:PCB Width 8MM
- Warranty:3 years
Technical Specifications
| Model | ART-2216SE-280-W+WW-24 |
|---|---|
| LED Type | 2835 SMD LED |
| LED Qty/m | 280 LEDs/m |
| Voltage | 24V DC |
| Power (W/m) | 16W/m |
| CCT/Color | 2700K~6000K |
| CRI | >90 |
| Dimension | PCB Width 8MM |
| Warranty | 3 years |
| Material | High quality double sided PCB, waterproof silicon extrusion housing |

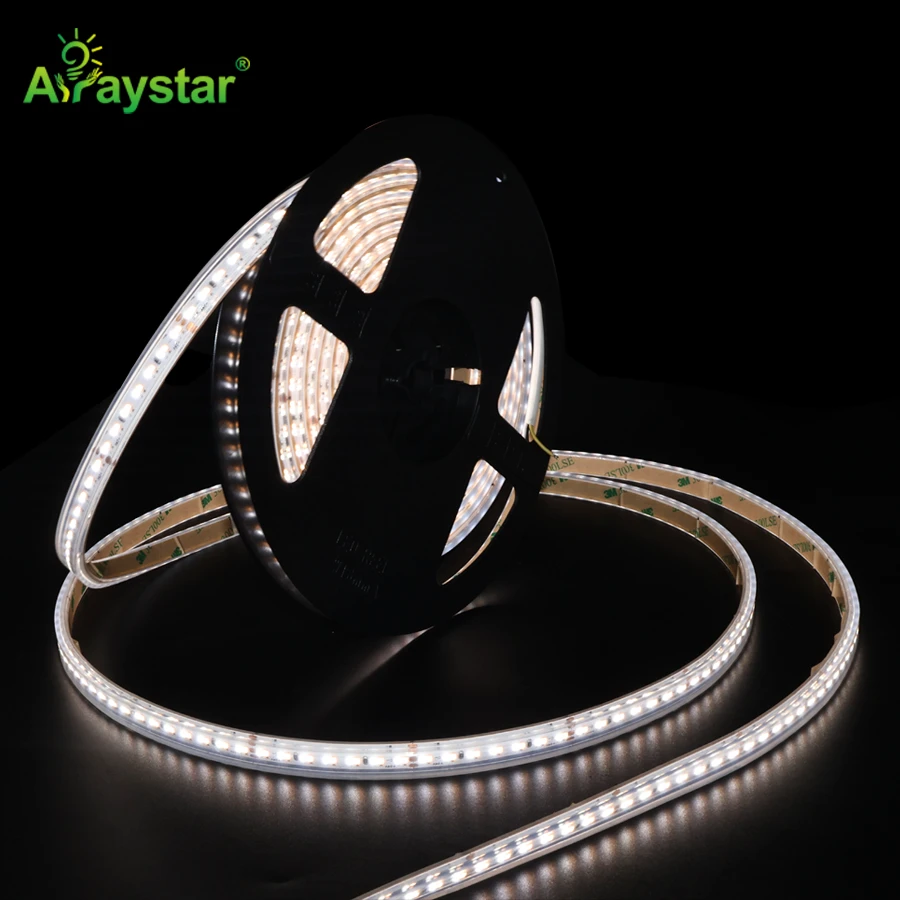

| Package | 5M/ROLL |
| Minimum Order Quantity | Factory-direct - on request |
| Certifications | CE, RoHS |
Product Description
If you need tunable white in a location that sees splashes or humidity, this sealed 2216-based strip covers both. The slim 8mm board runs 280 LEDs/m with warm and cool channels on 24V DC, shifts smoothly from 2700K to 6000K, and is protected by a waterproof silicone extrusion with CRI above 90.
Why a sealed tunable strip
Most tunable-white strips are bare IP20 boards, which rules them out for bathrooms, spas, and covered exterior trim. This one combines the warm-plus-cool channels with a silicone sleeve, so you can set a warm scene for a bath and a bright neutral for cleaning from the same sealed fixture, without adding a separate gasket.
Key Features
- Tunable 2700K–6000K, warm + cool channels
- 280 LEDs/m on an 8mm double-sided PCB
- Waterproof silicone extrusion housing
- 24V DC, dimmable and color adjustable
- CRI >90, continuous high-density output
Typical Applications
- Bathroom mirror and shower-area lighting
- Spa, wellness, and pool-adjacent areas under cover
- Covered exterior architectural tunable lighting
- Humid commercial kitchens
Specifications
| Parameter | Value |
|---|---|
| Model | ART-2216SE-280-W+WW-24 |
| LED type | SMD 2835/2216-class |
| LED quantity | 280 LEDs/m |
| PCB width | 8 mm |
| Power | 16 W/m |
| Voltage | 24V DC |
| Tunable range | 2700K–6000K |

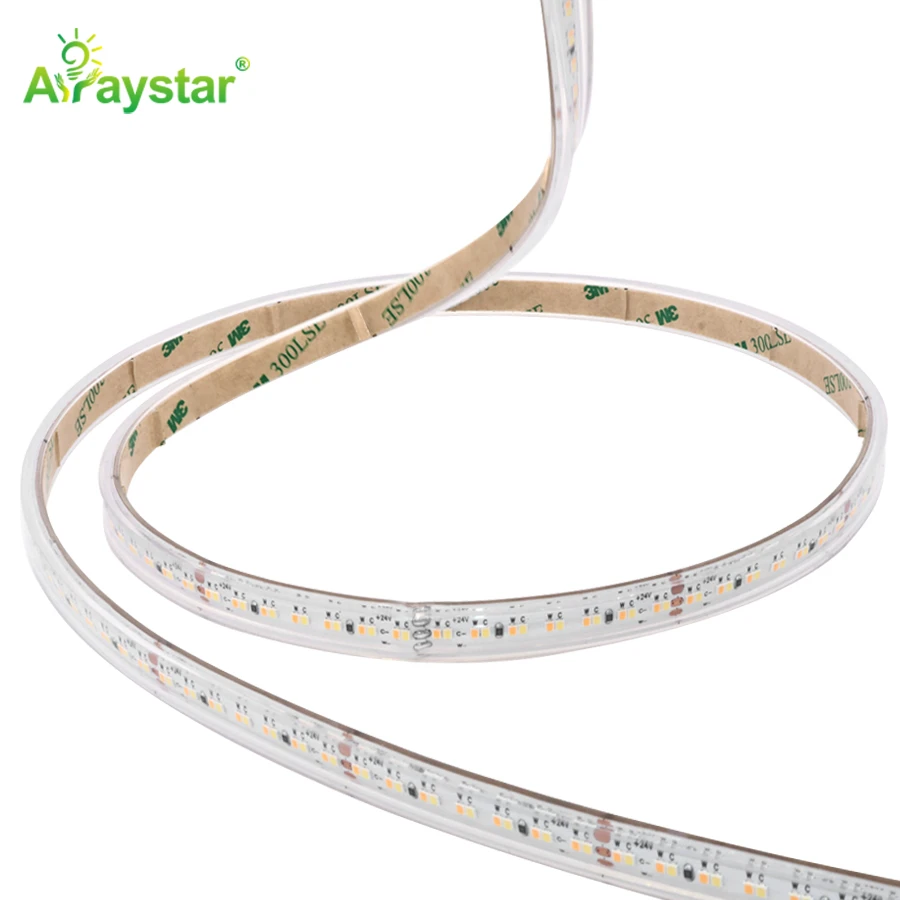

| Housing | Waterproof silicone extrusion |
| CRI | >90 |
| Warranty | 3 years |
Installation notes
- Use a CCT controller with common, warm, and cool 24V outputs.
- Seal connector and cut ends with silicone to preserve the waterproof rating.
- Size the driver for combined warm+cool peak, not just one channel.
- Feed power every 5m on long runs.
Frequently Asked Questions
What waterproof level is the extrusion?
It's sealed for splash and damp locations; confirm the exact IP rating for permanent immersion and step up to IP68 if needed.
Can it be used outdoors?
Yes under cover or in a profile with sealed ends; direct permanent submersion needs an IP68 product.
Does it need a special controller?
A standard dual-white CCT controller for 24V strips works; wire both channels and the common.
Can I order custom specifications or OEM branding?
Yes. As the manufacturer we support custom lengths, colour temperature, CRI, packaging and OEM labeling; send us your specification.
Can I request a sample before a bulk order?
Yes, samples are available so you can confirm the colour, build and output before a bulk order. Request a sample through our contact page.
