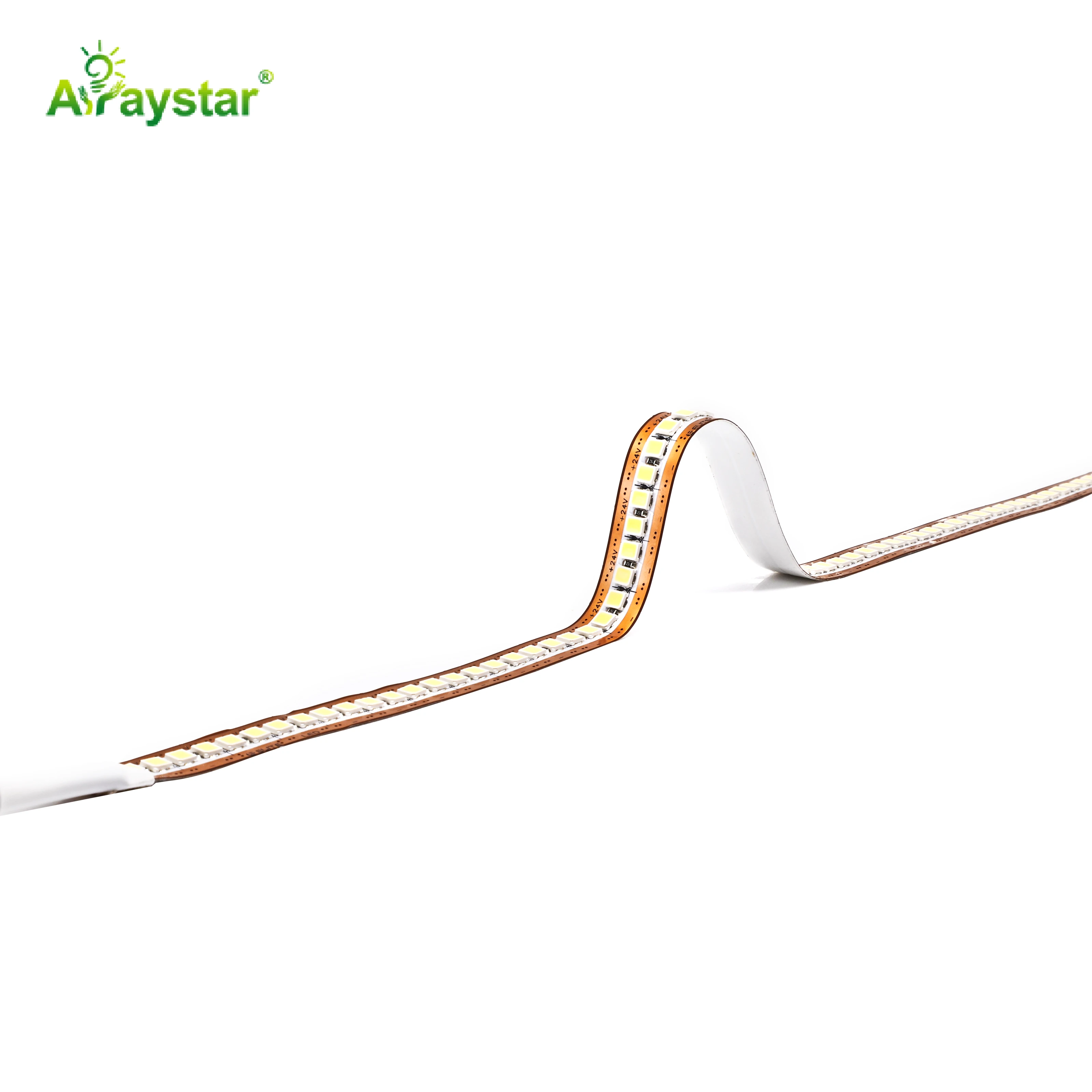

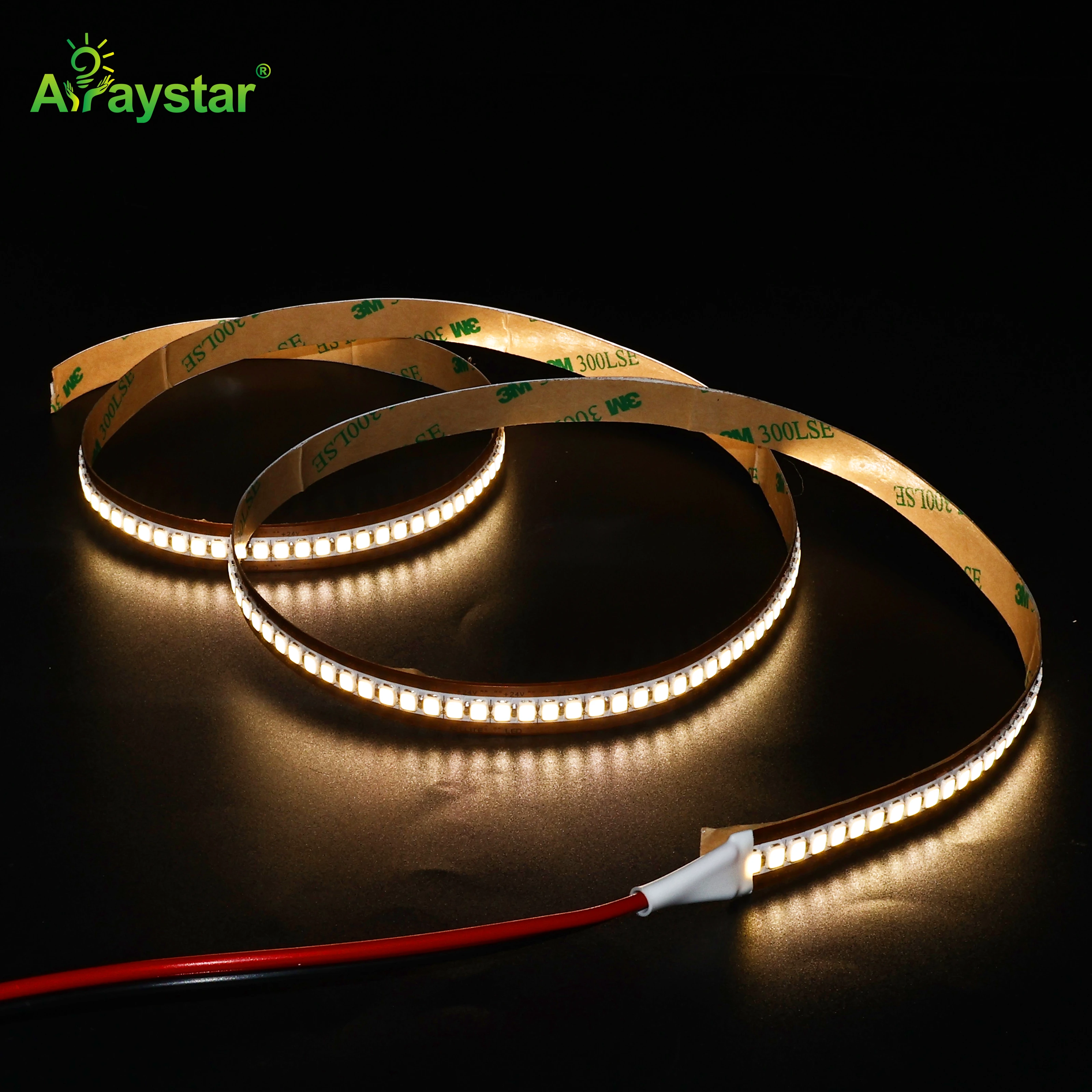

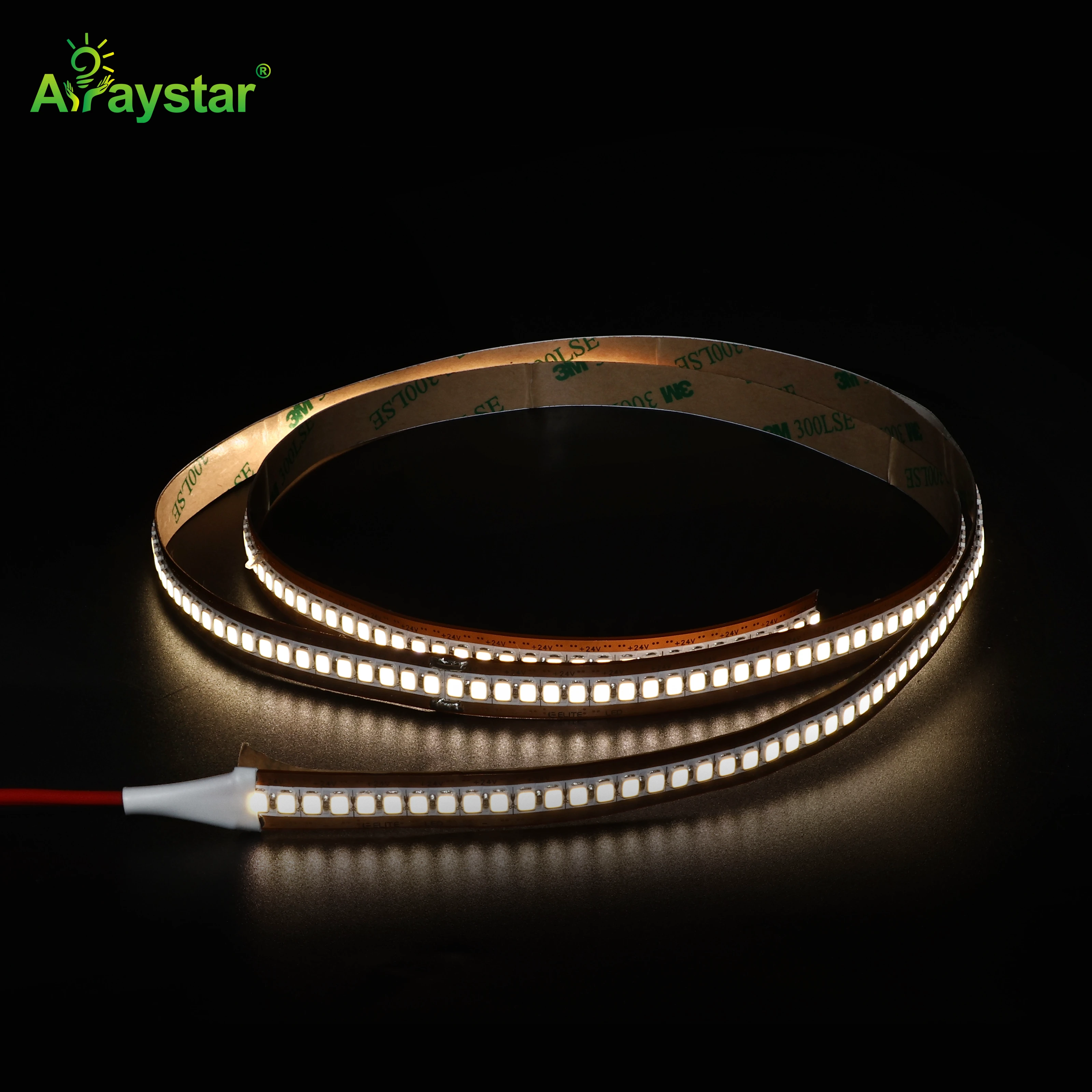

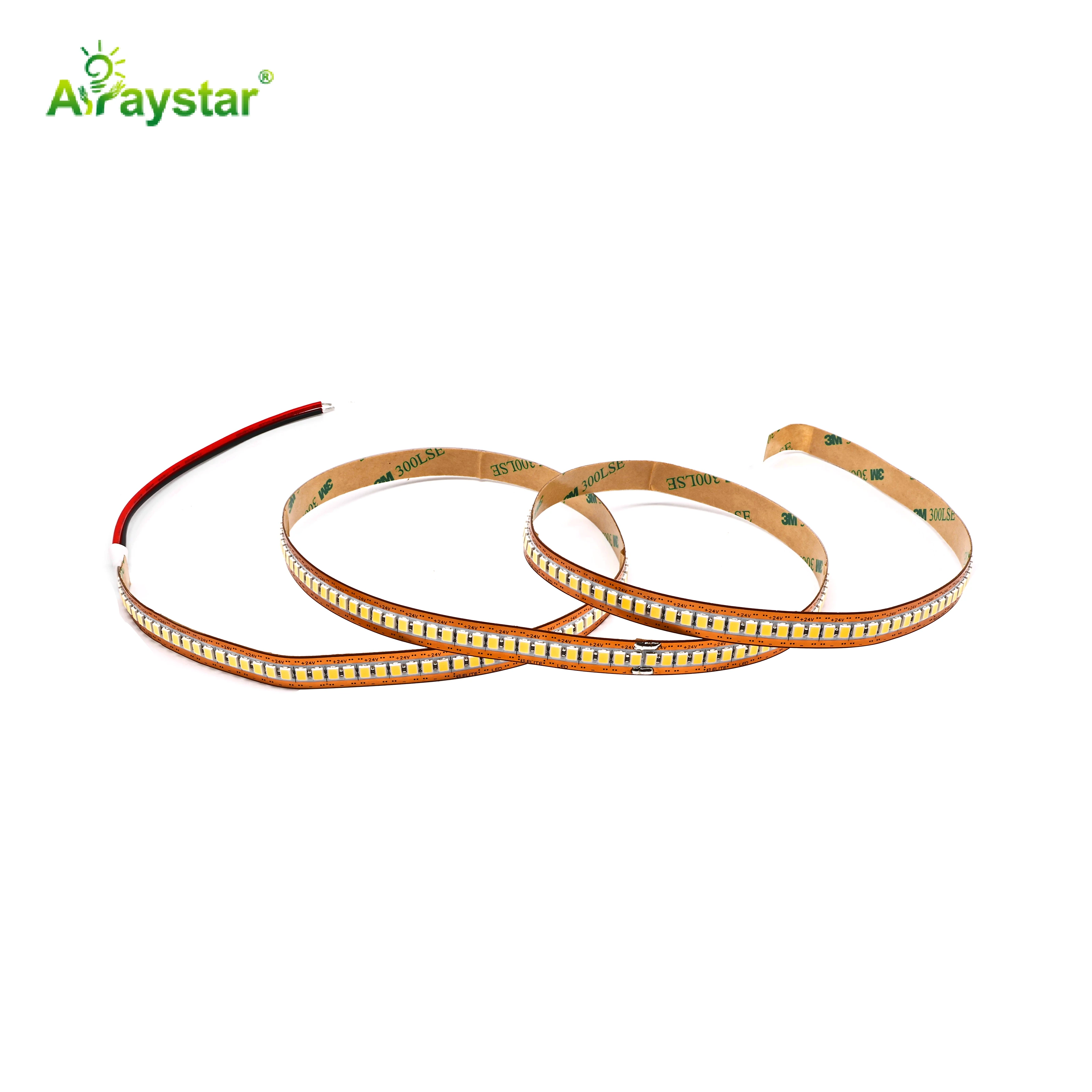

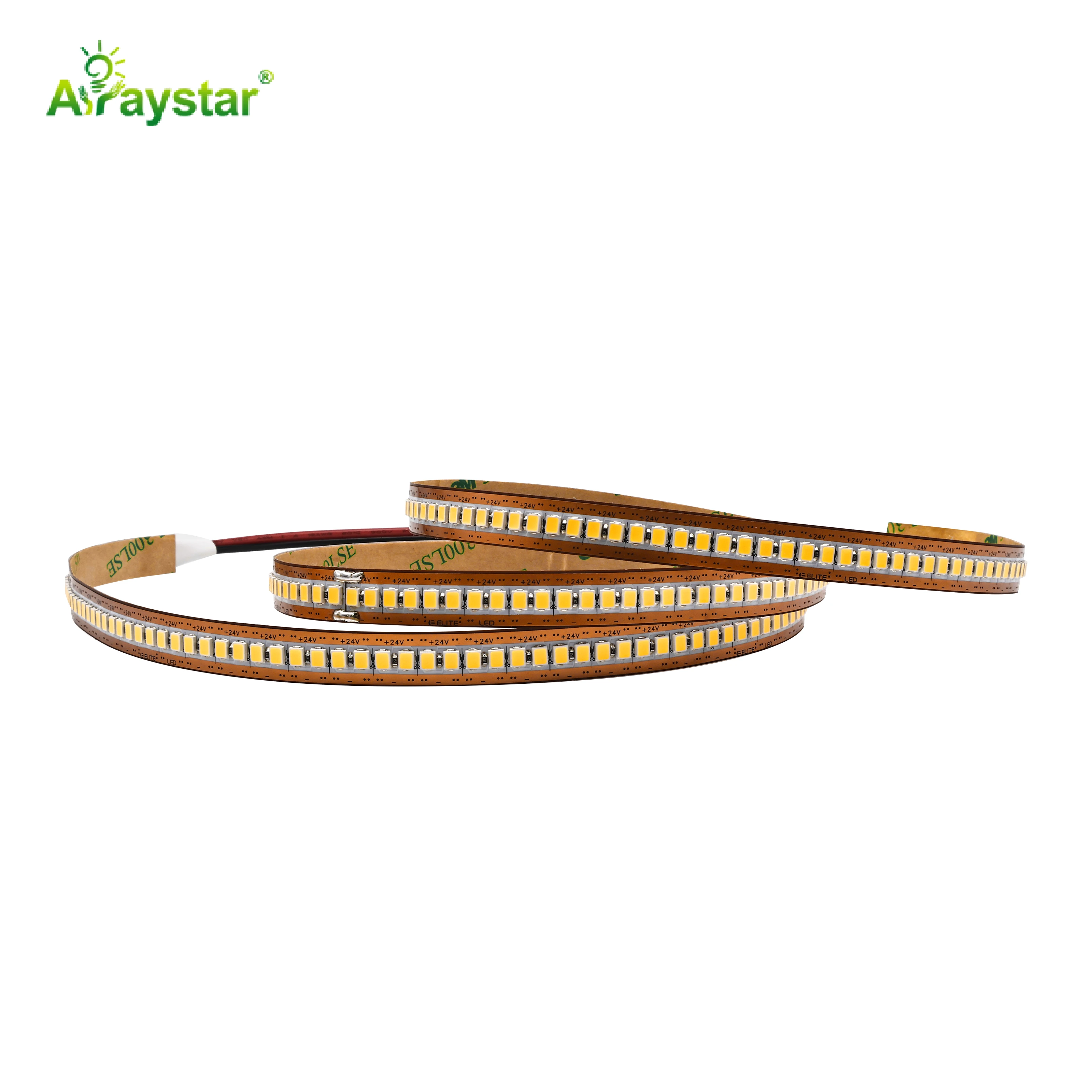

2835 Free Cut SMD LED Strip
- Model:ART-2835-256-X-24
- LED Type:SMD2835
- LED Qty/M:256 LEDs/m
- Voltage:24V DC
- Power W/m:15W/m
- CCT/Color:2700K / 3500K / 4000K / 6500K
- CRI:>90
- Dimension:10 × 5000 mm
- Warranty:5 Years
Product Description
This is the workhorse white SMD strip I recommend when fixtures need to be trimmed to odd lengths and the light still has to look clean. The 10mm board uses 2835 LEDs at 256/m, runs 15W/m on 24V DC, and is laid out for free cutting, with CRI above 90 and the usual 2700K–6500K range.
Where the free-cut layout helps
Standard 2835 strips only cut every 50mm (three LEDs at a time). When you're fitting many cabinets or shelves of slightly different sizes, that leaves awkward offcuts or dead tails. This board adds extra cut points, so each run can be matched to its cavity with minimal waste, and the 24V supply keeps the color consistent from one end to the other.
Key Features
- 2835, 256 LEDs/m, 10mm PCB
- Extra free-cut points for custom lengths
- 15W/m, 24V DC, top emitting
- CRI >90; 2700K / 3500K / 4000K / 6500K
- 5m per roll, dimmable on 24V drivers
Typical Applications
- Multi-cabinet and shelf installs with mixed lengths
- Under-cabinet task lighting
- Cove and plinth lighting
- OEM furniture lighting produced in volume
Specifications
| Parameter | Value |
|---|---|
| Model | ART-2835-256-X-24 |
| LED type | SMD 2835 |
| LED quantity | 256 LEDs/m |
| Strip width | 10 mm |
| Power | 15 W/m |
| Voltage | 24V DC |
| CRI | >90 |
| CCT | 2700K / 3500K / 4000K / 6500K |
| Package | 5 m/roll |
| Warranty | 5 years |
Installation notes
- Cut on the extra marked segments, not just the standard three-LED groups.
- Pair with a 24V dimmer if you need dimming; match driver amperage to total watts.
- Re-power every 5m and keep a common return on long runs.
- Use 10mm connectors or solder for joins.
Frequently Asked Questions
How does free cutting differ from a normal strip?
It provides cut points between the usual groups, so the minimum cut length is shorter and offcuts are reduced.
Will cutting between standard groups kill LEDs?
No — the board is routed so the extra cut points keep complete LED circuits; just stay on the marked lines.
Is it bright enough for task lighting?
At 15W/m behind a diffuser it gives comfortable counter-task levels; use a higher-density strip for un-diffused close work.
Can I order custom specifications or OEM branding?
Yes. As the manufacturer we support custom lengths, colour temperature, CRI, packaging and OEM labeling; send us your specification.
Can I request a sample before a bulk order?
Yes, samples are available so you can confirm the colour, build and output before a bulk order. Request a sample through our contact page.
