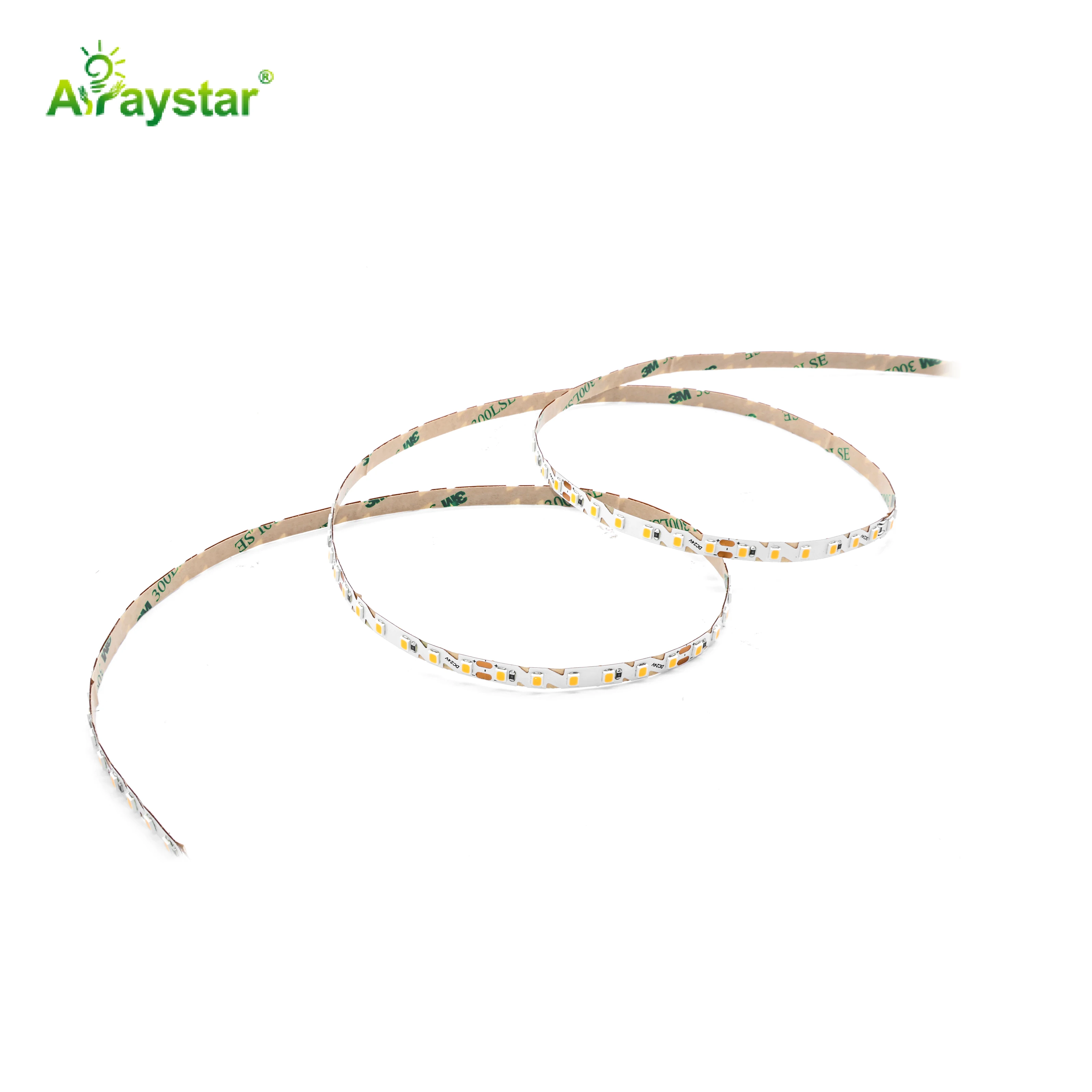

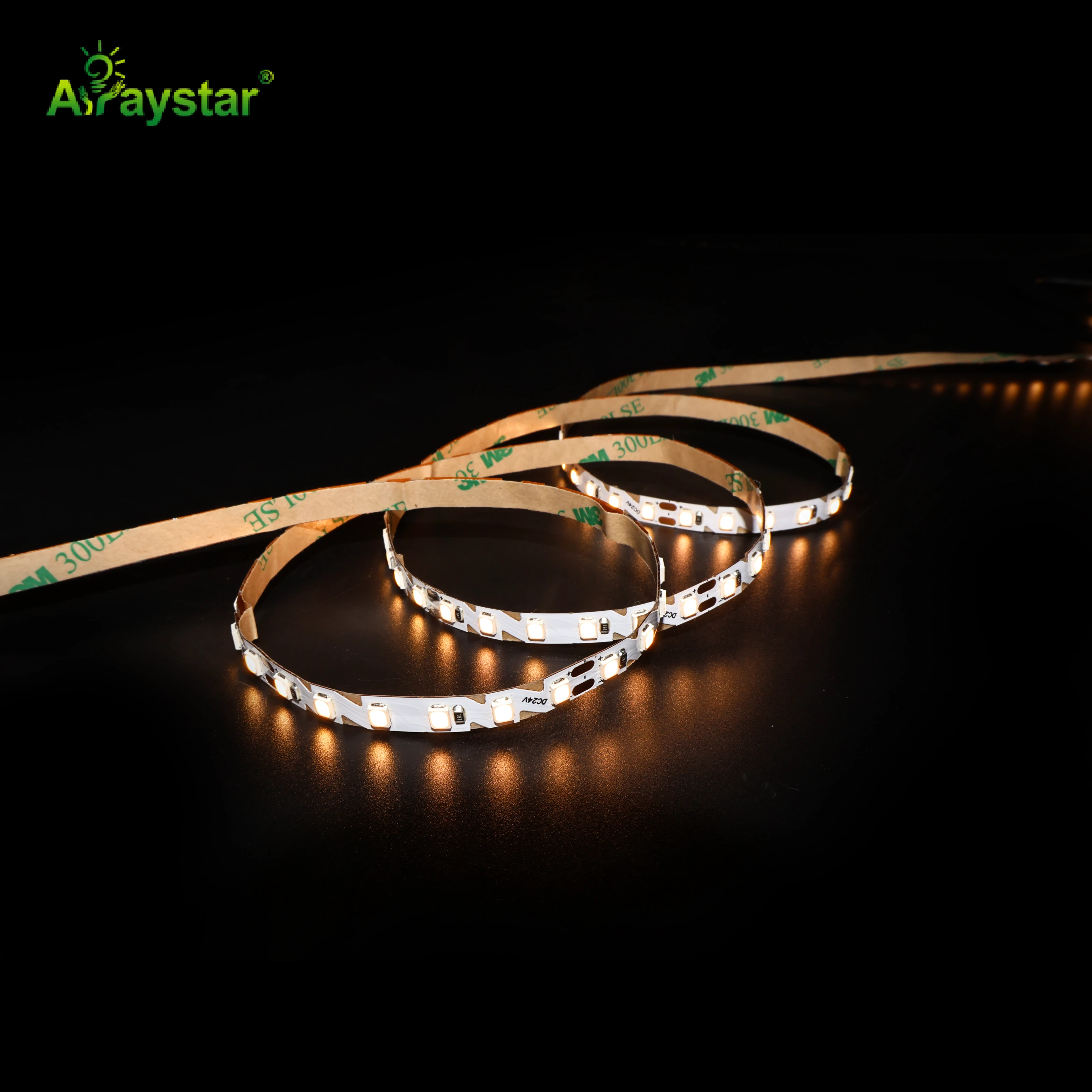

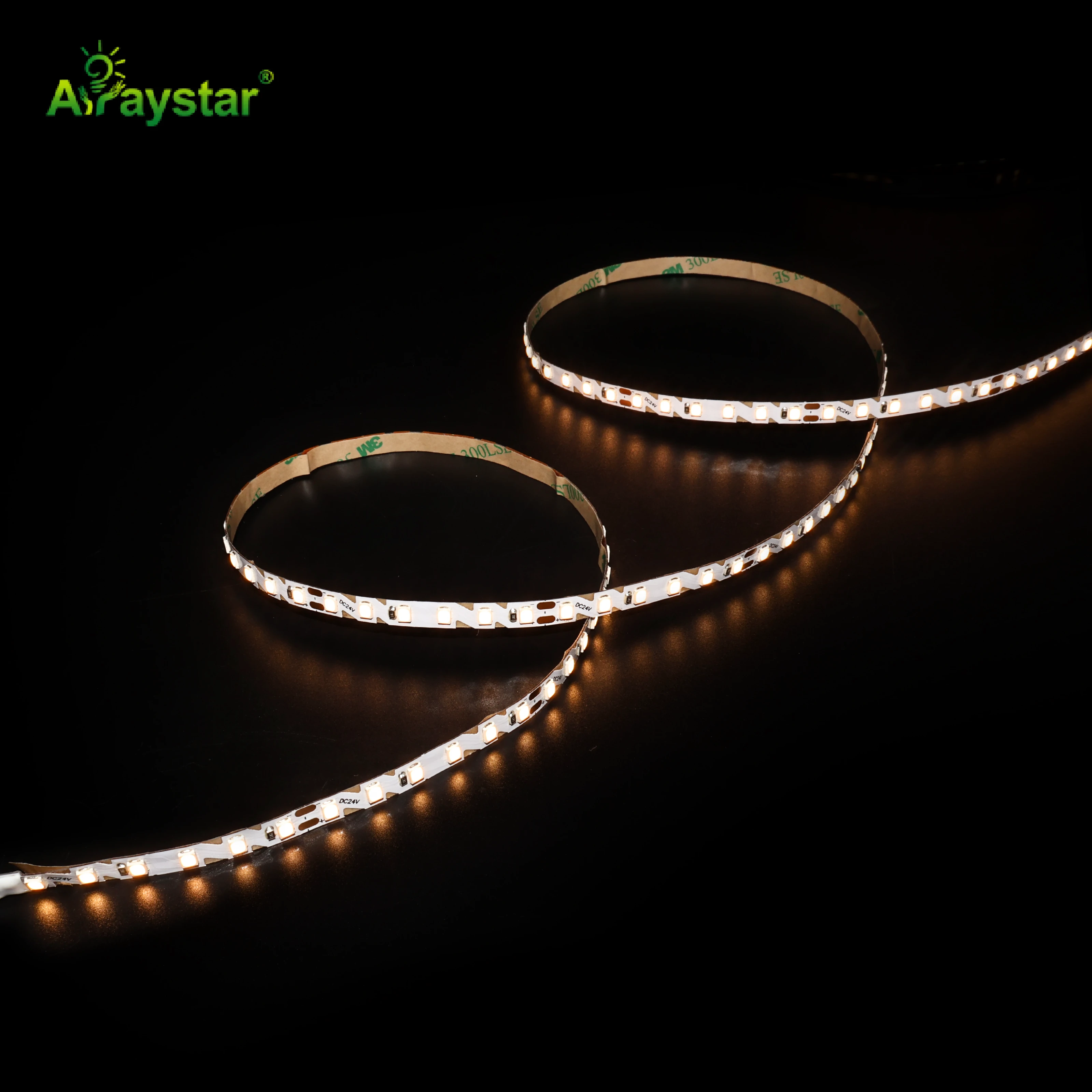

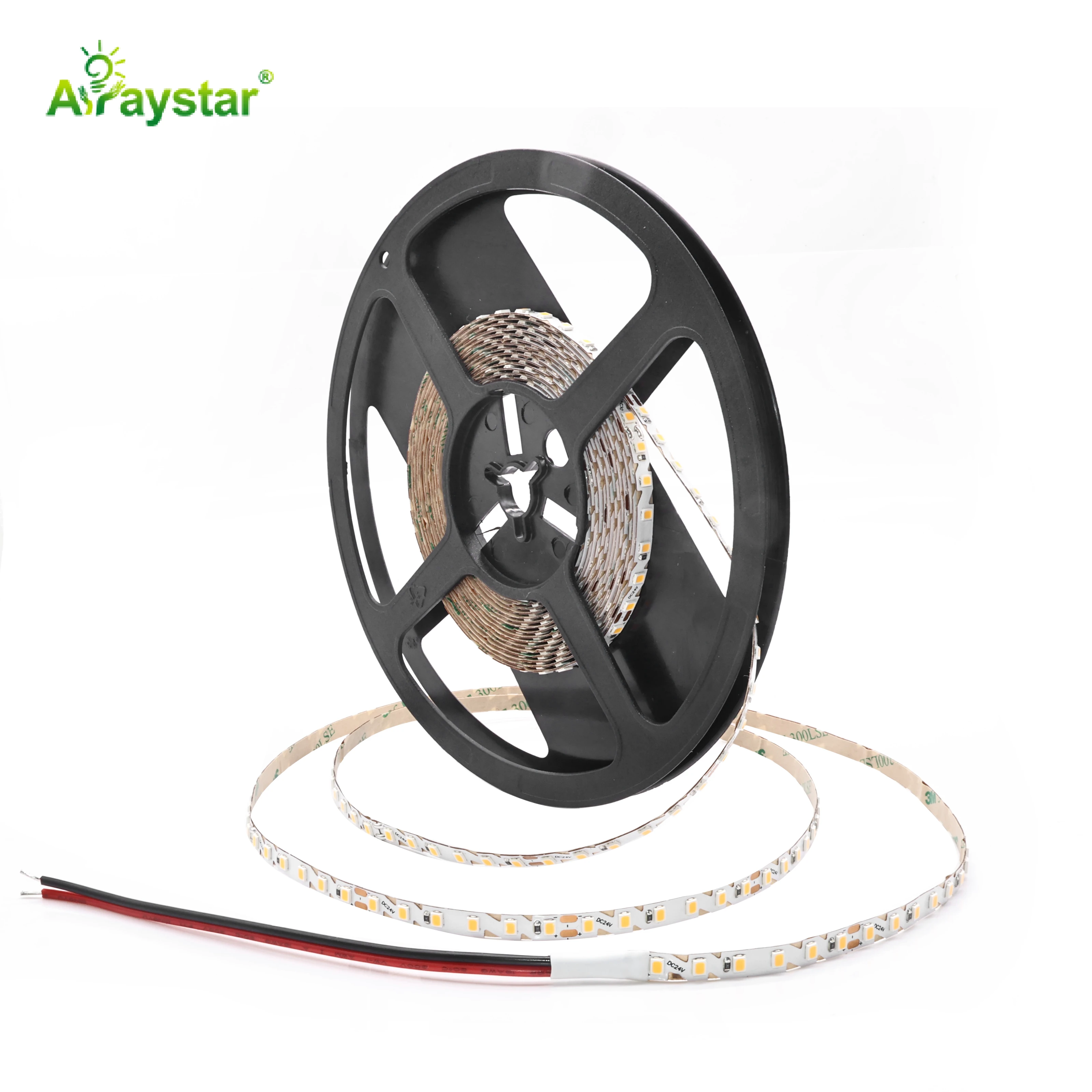

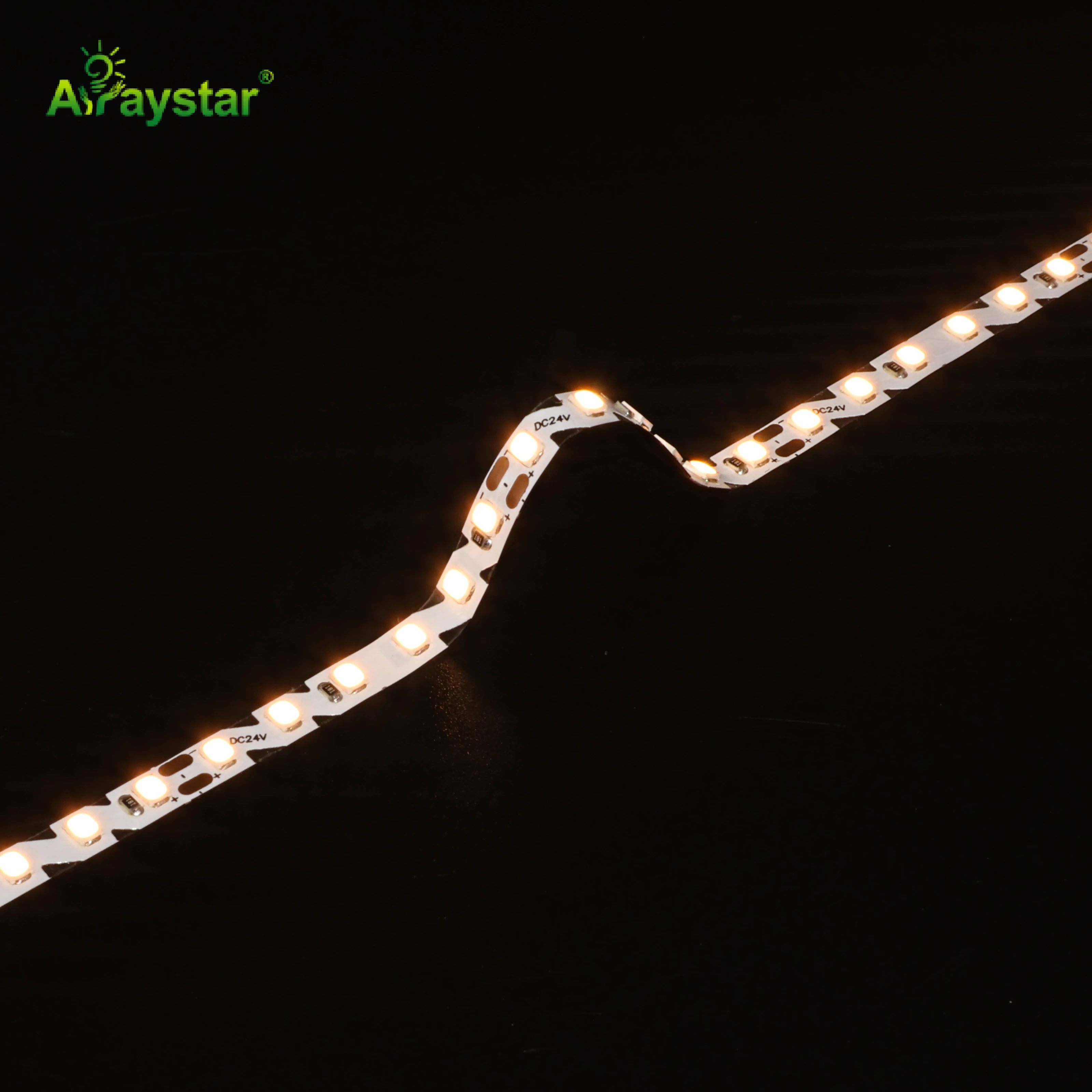

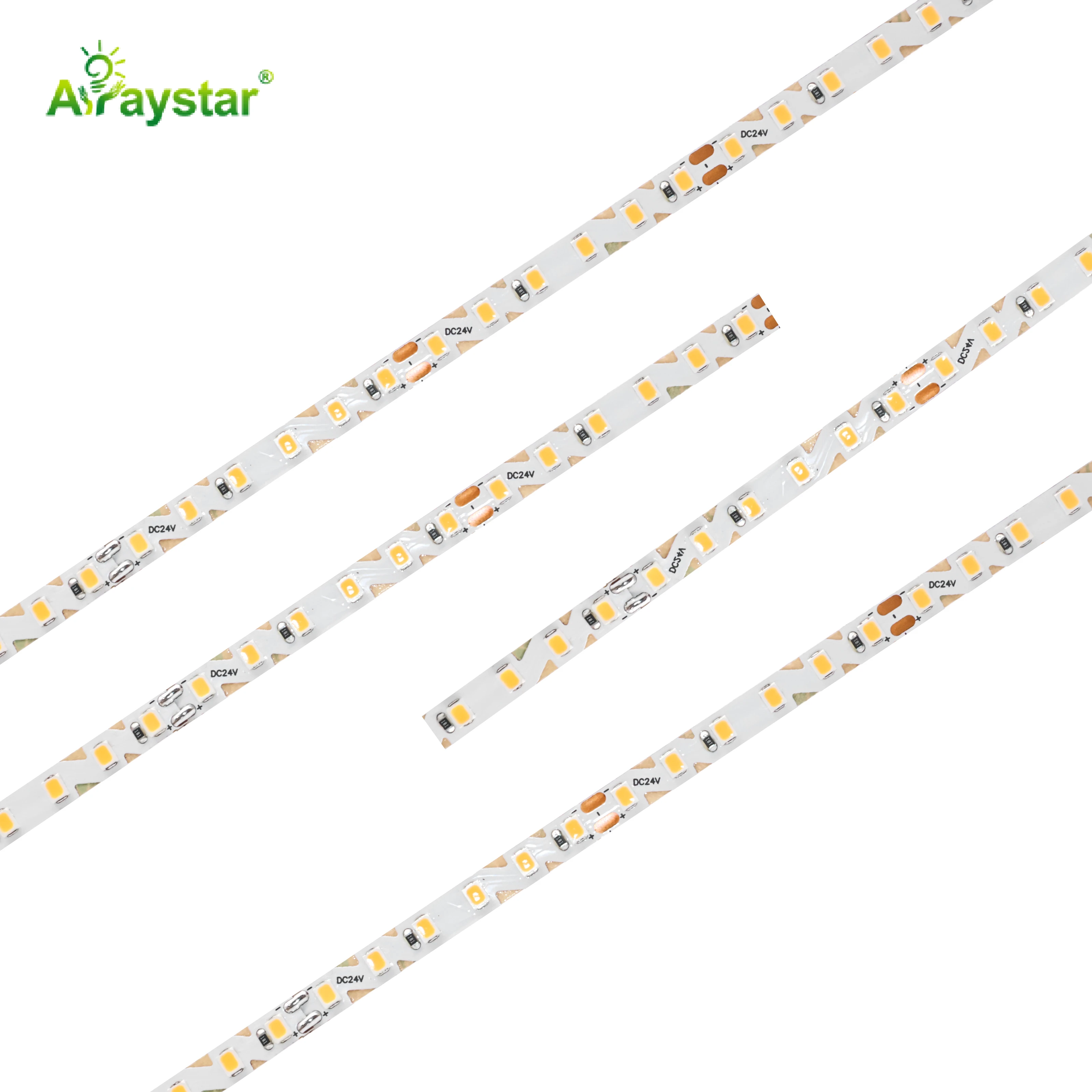

6mm ZigZag LED Strip Light
- Model:ART-2835S-120-X-24-6mm
- LED Type:2835 SMD LED
- LED Qty/M:120 LEDs/m
- Voltage:24V DC
- Power W/m:9W/m
- CCT/Color:2700K / 3000K / 5000K / 6500K
- CRI:>90
- Dimension:5000mm (L) × 6mm (W) × 10mm (H), Cutting length: 50mm
- Warranty:3 years
Product Description
The ART-2835S-120-X-24-6mm is an Arraystar 2835 SMD LED Strip. It uses 2835 SMD LEDs at 120 LEDs/m, on 24V DC, drawing around 9W/m, in 2700K / 3000K / 5000K / 6500K.
It features CRI >90, a 6mm profile, supplied 5m/roll. It is a flexible, cuttable strip for linear, cove and accent lighting.
Key Features
- 2835 SMD LED at 120 LEDs/m
- Input: 24V DC
- Power: 9W/m
- CRI >90
- Colour options: 2700K / 3000K / 5000K / 6500K
- Strip width 6mm
- Cuttable every 50mm
- Warranty: 3 years
Typical Applications
- Under-cabinet and cove lighting in kitchens and retail
- Furniture, shelving and display case lighting
- Hotel, bar and restaurant interior accents
- Architectural recessed linear lighting
- Signage backlighting and decorative outlines
Frequently Asked Questions
What power supply does this strip need?
A 24V DC constant-voltage LED driver sized for the total wattage (about 9W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.
Is this strip waterproof?
Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.
Can I cut it on site?
Yes, cut at the marked points (50mm), then reconnect with matching connectors and end caps.
Which colour temperatures are available?
2700K / 3000K / 5000K / 6500K
