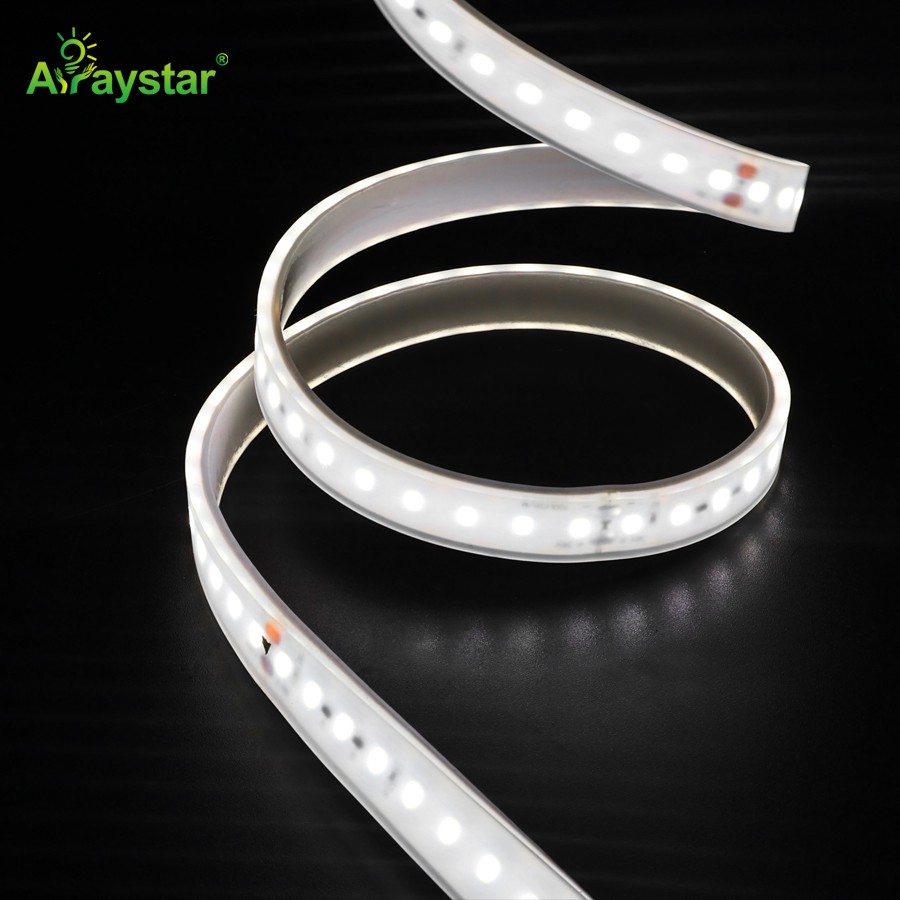

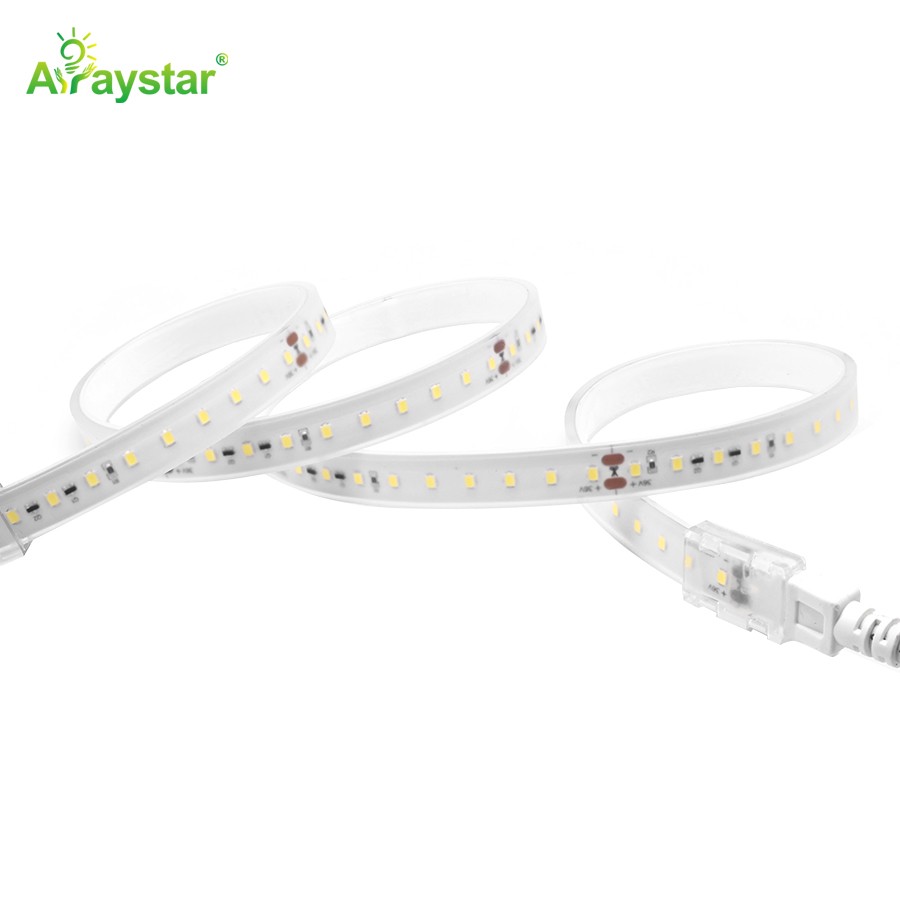

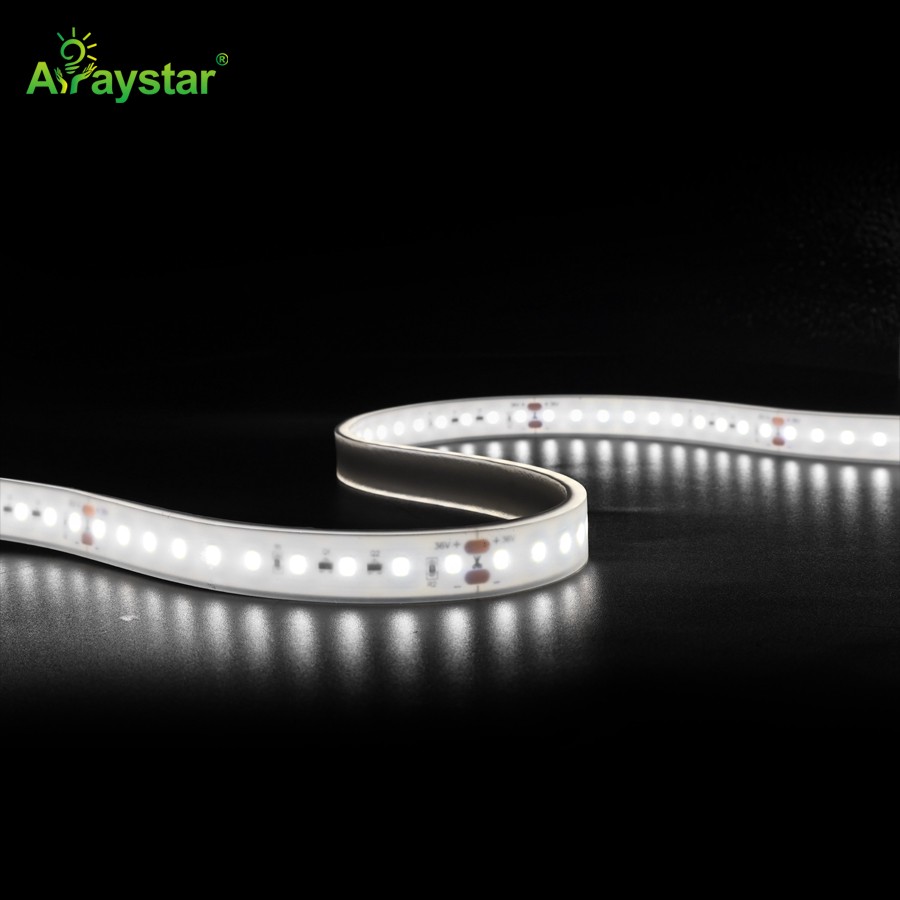

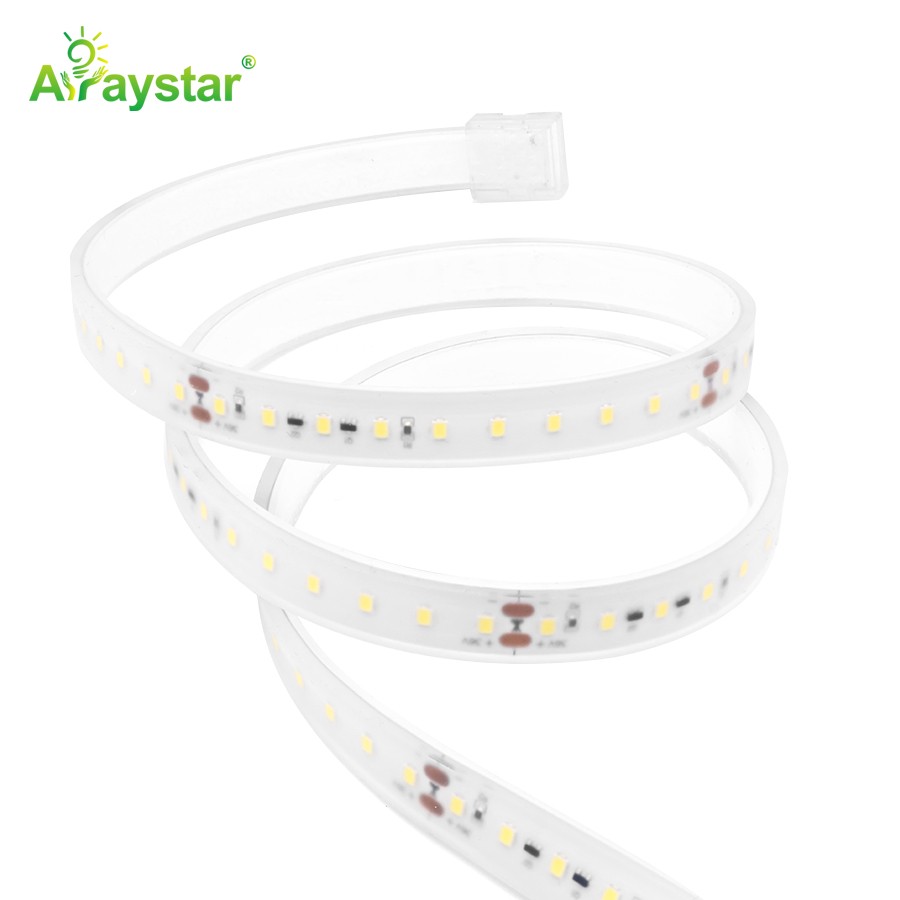

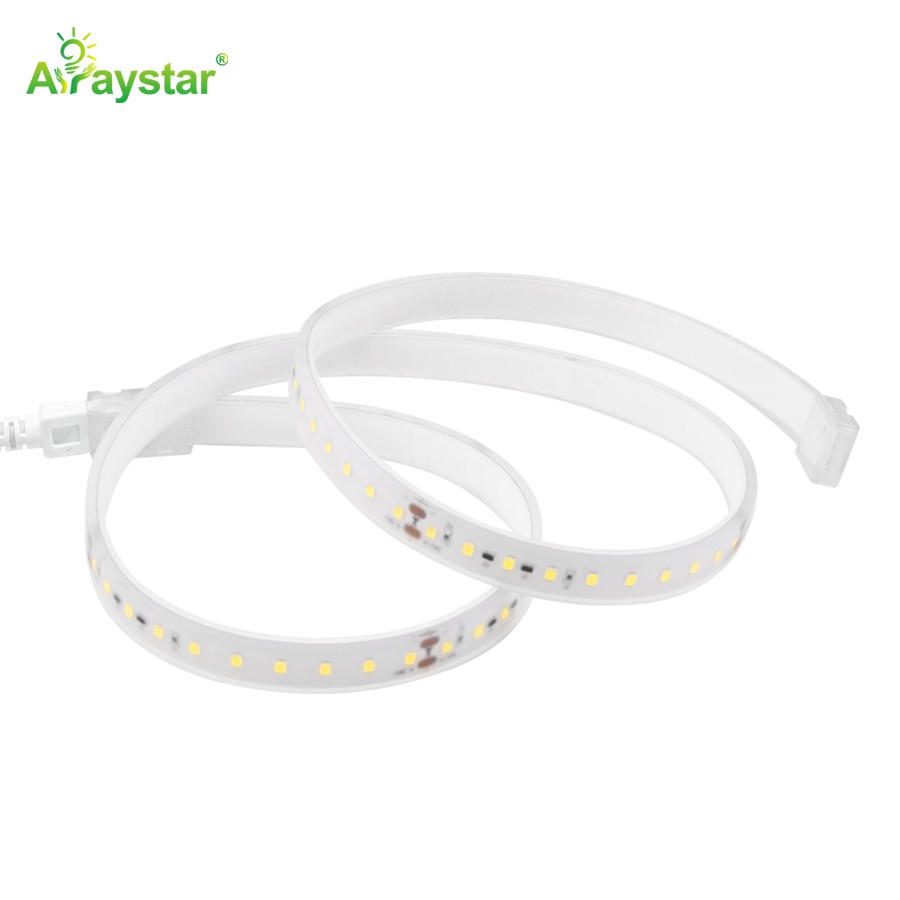

High-Voltage Mining LED Strip Light

Product Description

This high-voltage mining LED strip light is built for continuous illumination in underground tunnels and industrial aisles. It uses 2835 SMD LEDs at 120 LEDs/m, on 200-240V AC, drawing around 12W/m, in 2700K/3000K/4000K/6000K.

It features CRI >80, a 12MM profile, supplied 5m/roll. Its high-voltage design supports long runs with fewer power points, and the sealed construction stands up to the wet, dusty tunnel environment.

Key Features

• 2835 SMD LED at 120 LEDs/m
• Input: 200-240V AC
• Power: 12W/m
• CRI >80
• Colour options: 2700K/3000K/4000K/6000K
• Strip width 12MM
• Warranty: 3 years

Typical Applications

• Underground mining tunnels and drifts
• Industrial and warehouse aisle lighting
• Tunnel and culvert lighting
• Continuous wet and dusty operating environments
• High-voltage long-run site lighting

Frequently Asked Questions

Do I need an LED driver for this strip?

No. It runs directly on mains voltage (200-240V AC), so it suits long runs without a driver every few metres. A qualified electrician must fit the rated mains head connector and weatherproof junction.

How far can it run from one power feed?

High-voltage operation allows long single-feed runs (typically 5M/ROLL). Always observe the maximum run and use the rated head connector.

Is this strip waterproof?

Check the IP rating for the specific model. IP-rated variants and sealed connectors are available for outdoor or wet locations; ask us to confirm the correct version.

Can I cut it on site?

Cut only at the marked points, then reseal the cut end with the rated end cap to keep the full encapsulation; ask us for the sealing details.

Which colour temperatures are available?

2700K/3000K/4000K/6000K
