ip67 SMD2835 Dual Color Temperature Mosquito Repellent LED Strip
- Model:ART-NS2835-X-120-24
- LED Type:SMD2835
- LED Qty/M:120 LEDs/m
- Voltage:24V DC
- Power W/m:12W/m
- CCT/Color:570-590nm / 4000K / 5000K
- CRI:N/A
- Dimension:12 × 5000 mm
- Warranty:5 Years
Product Description

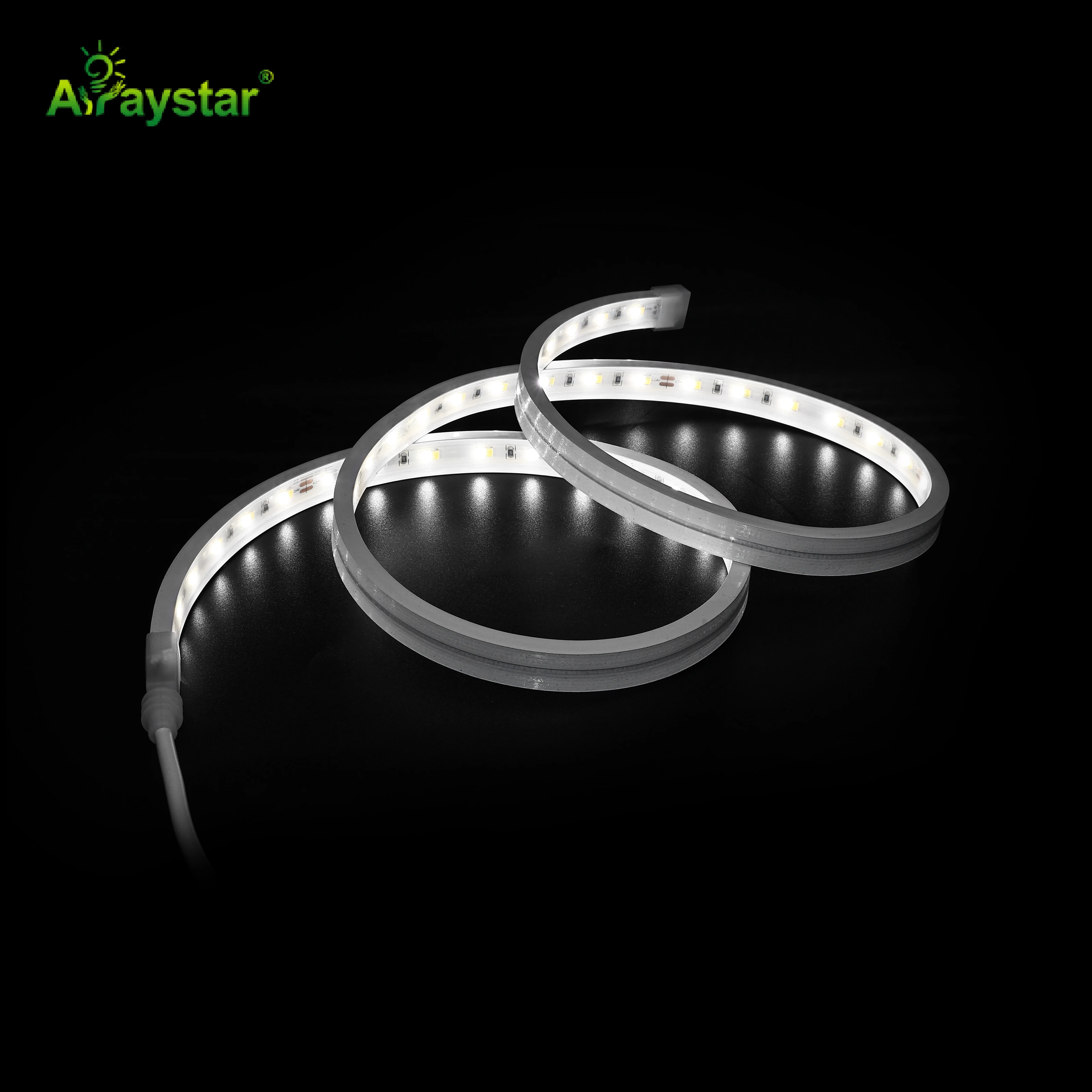

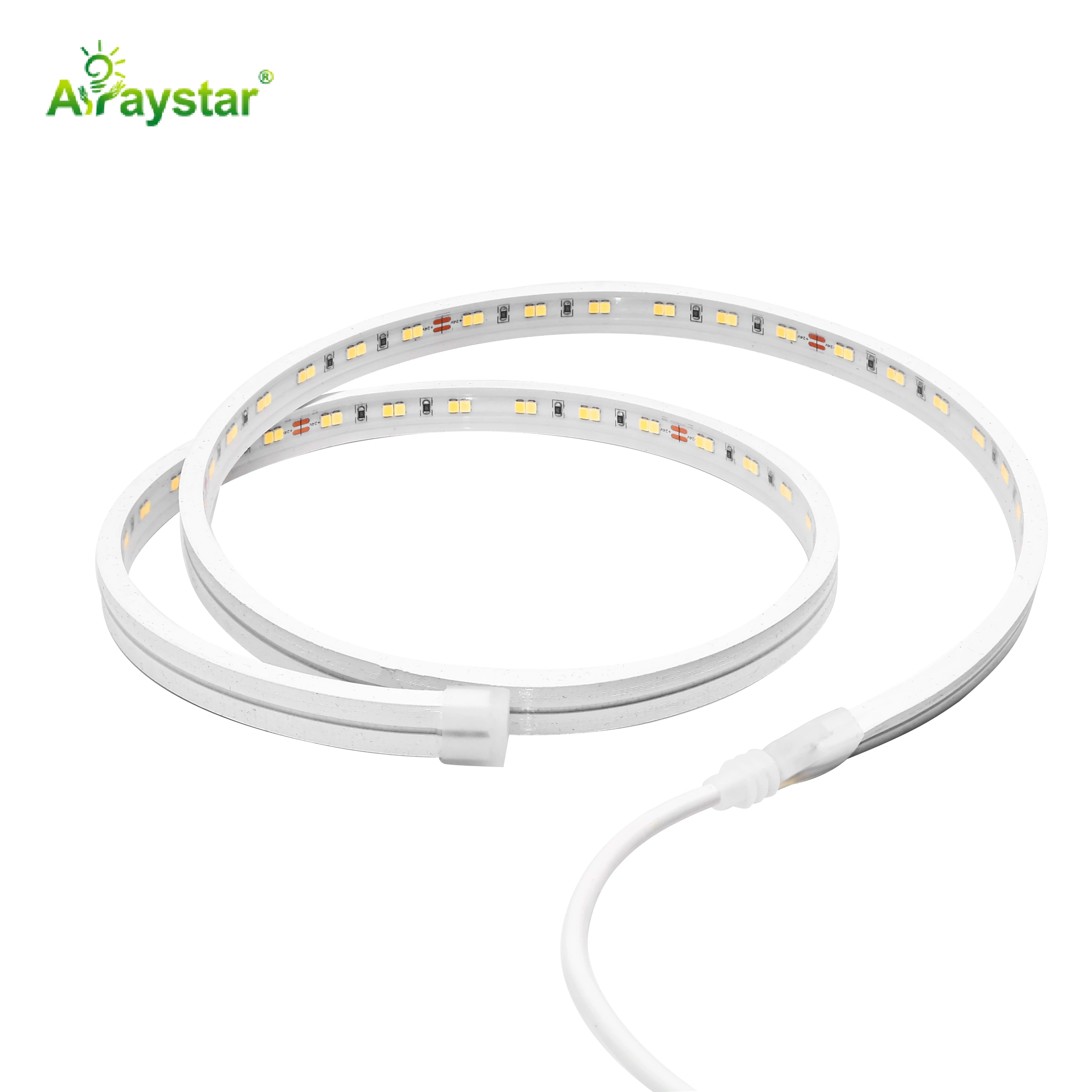

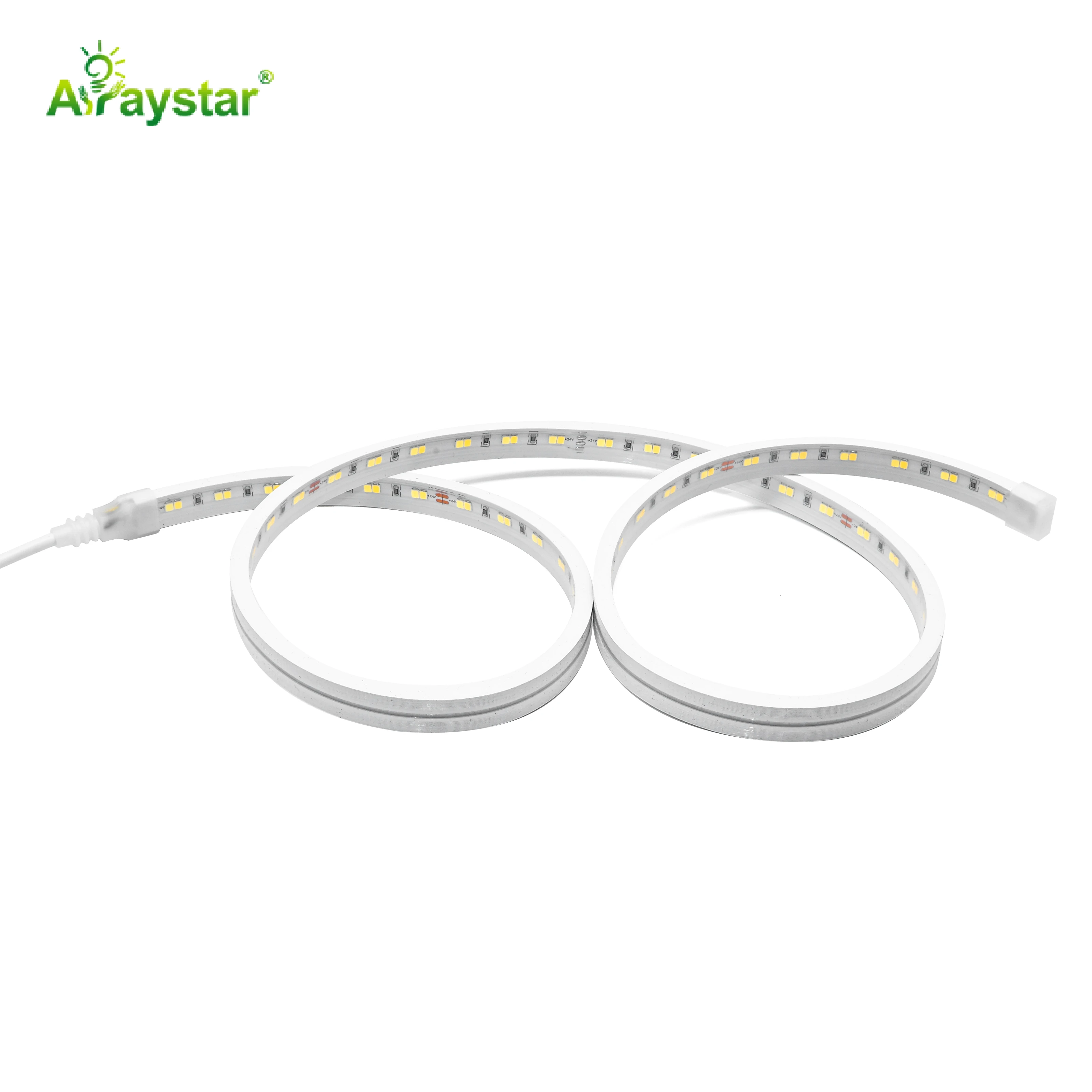

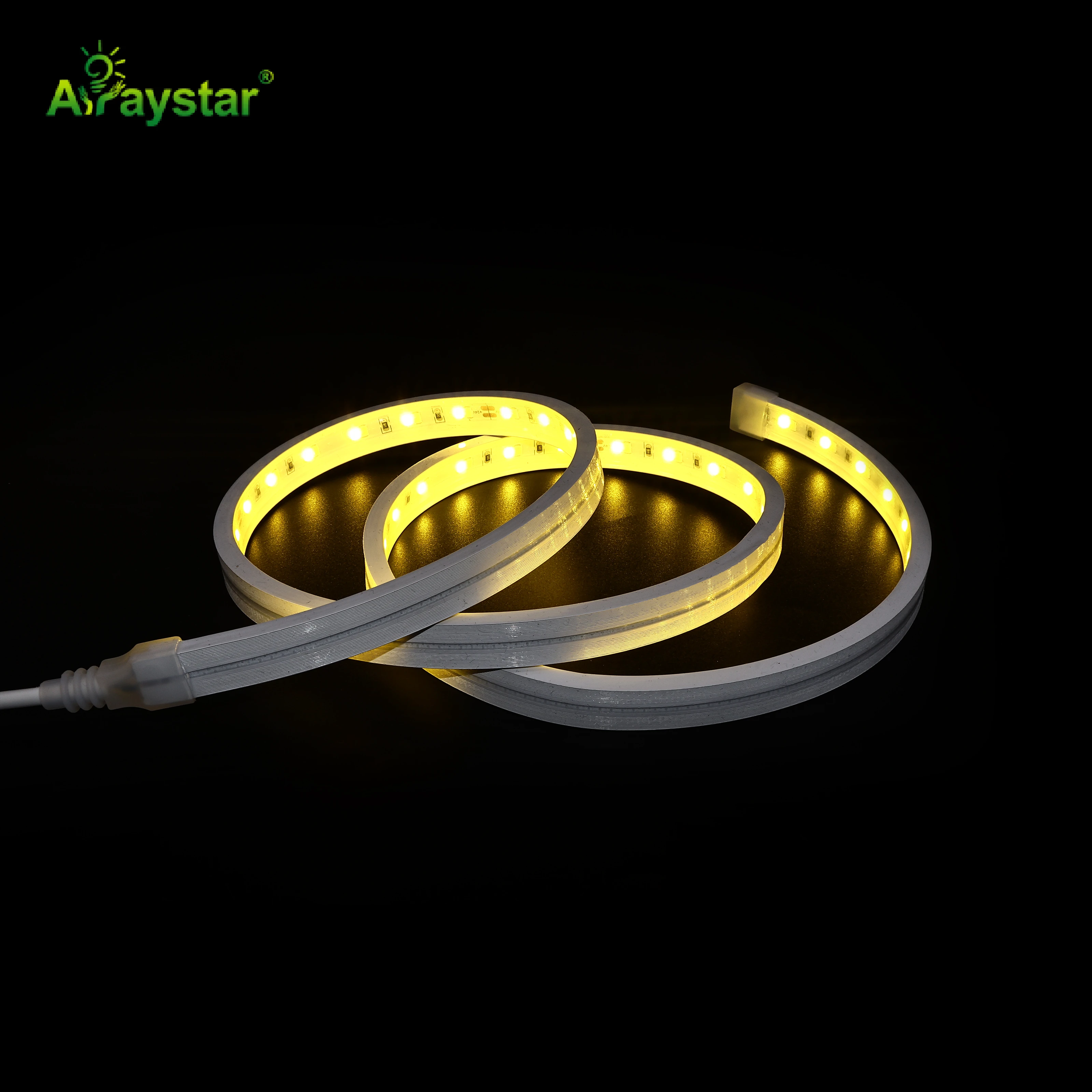

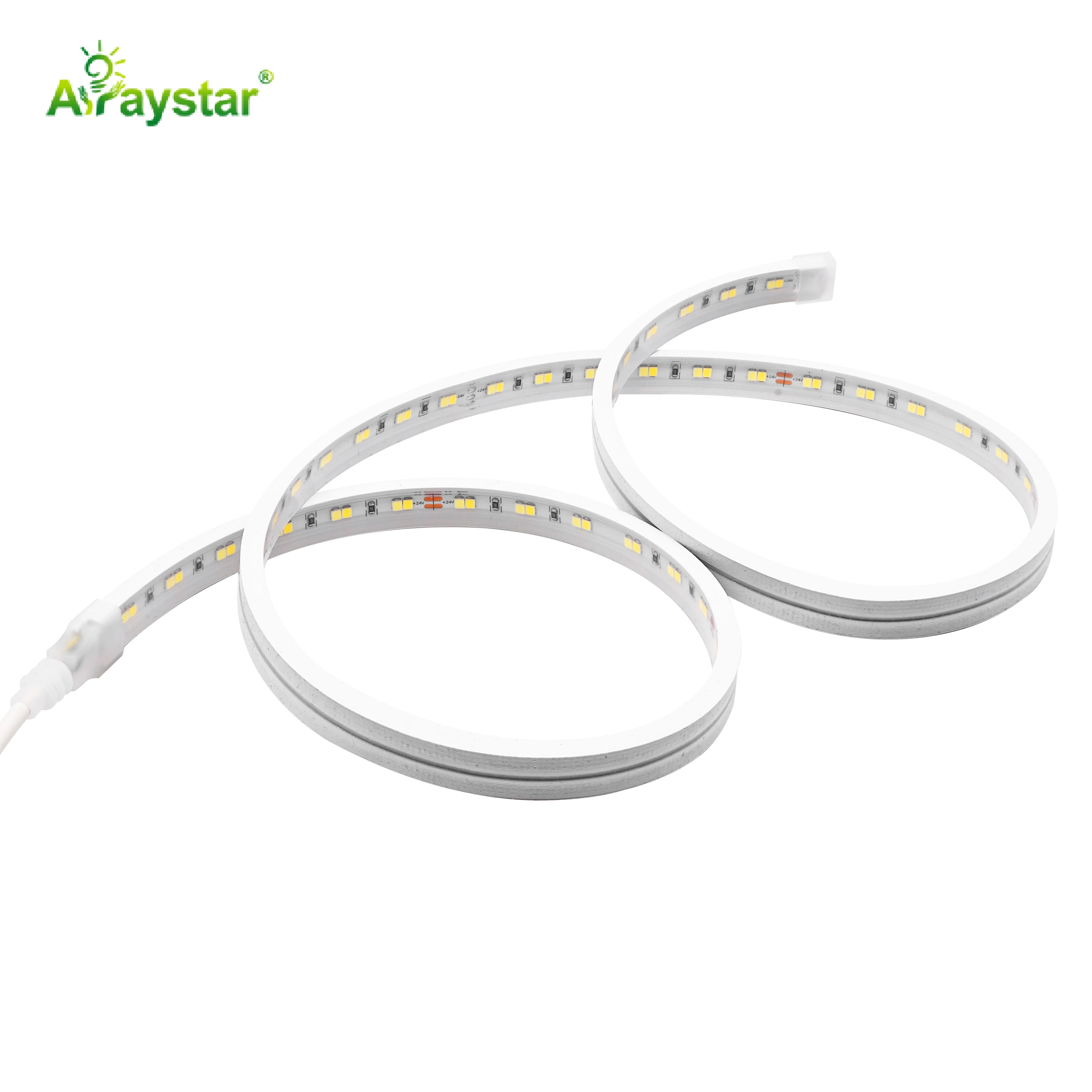

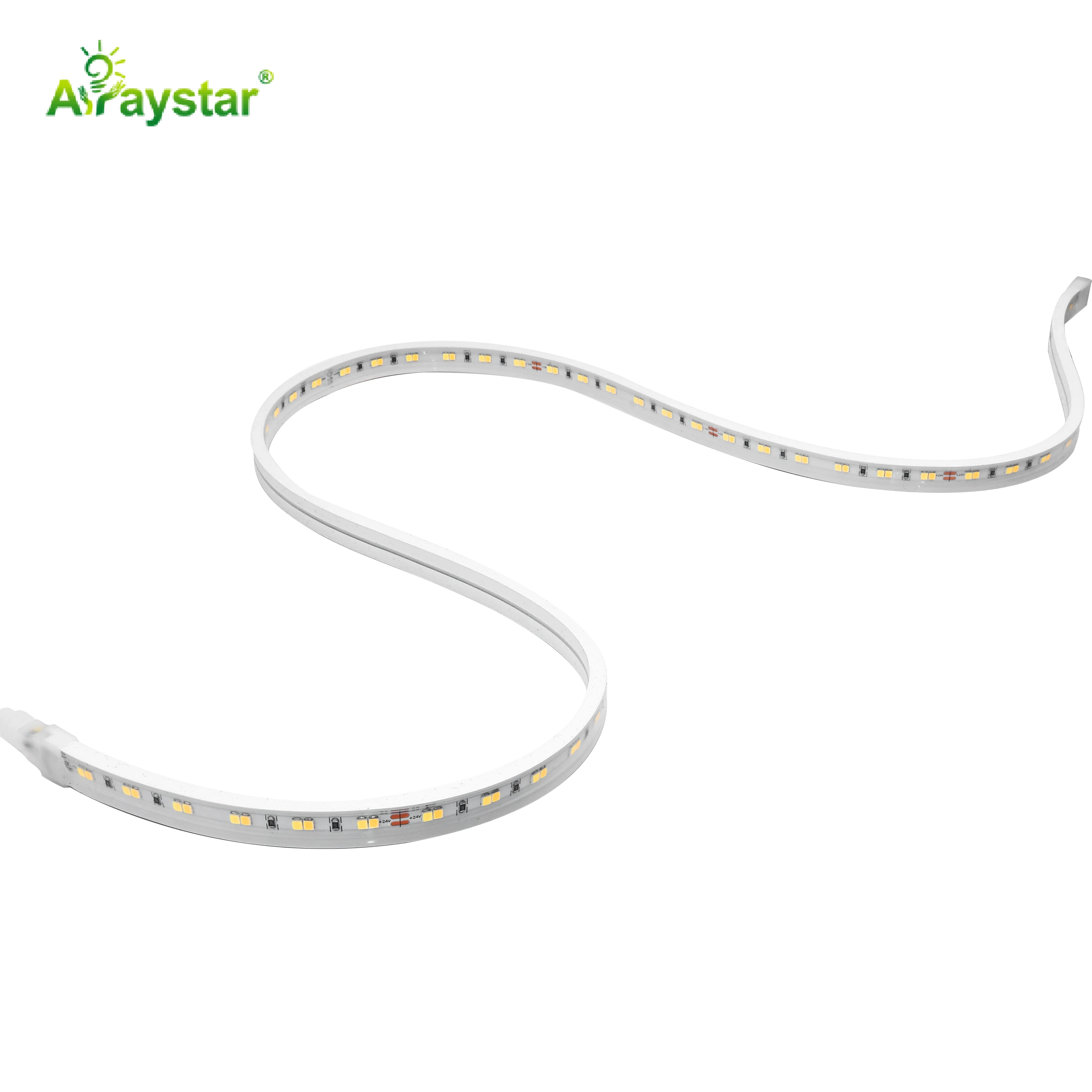

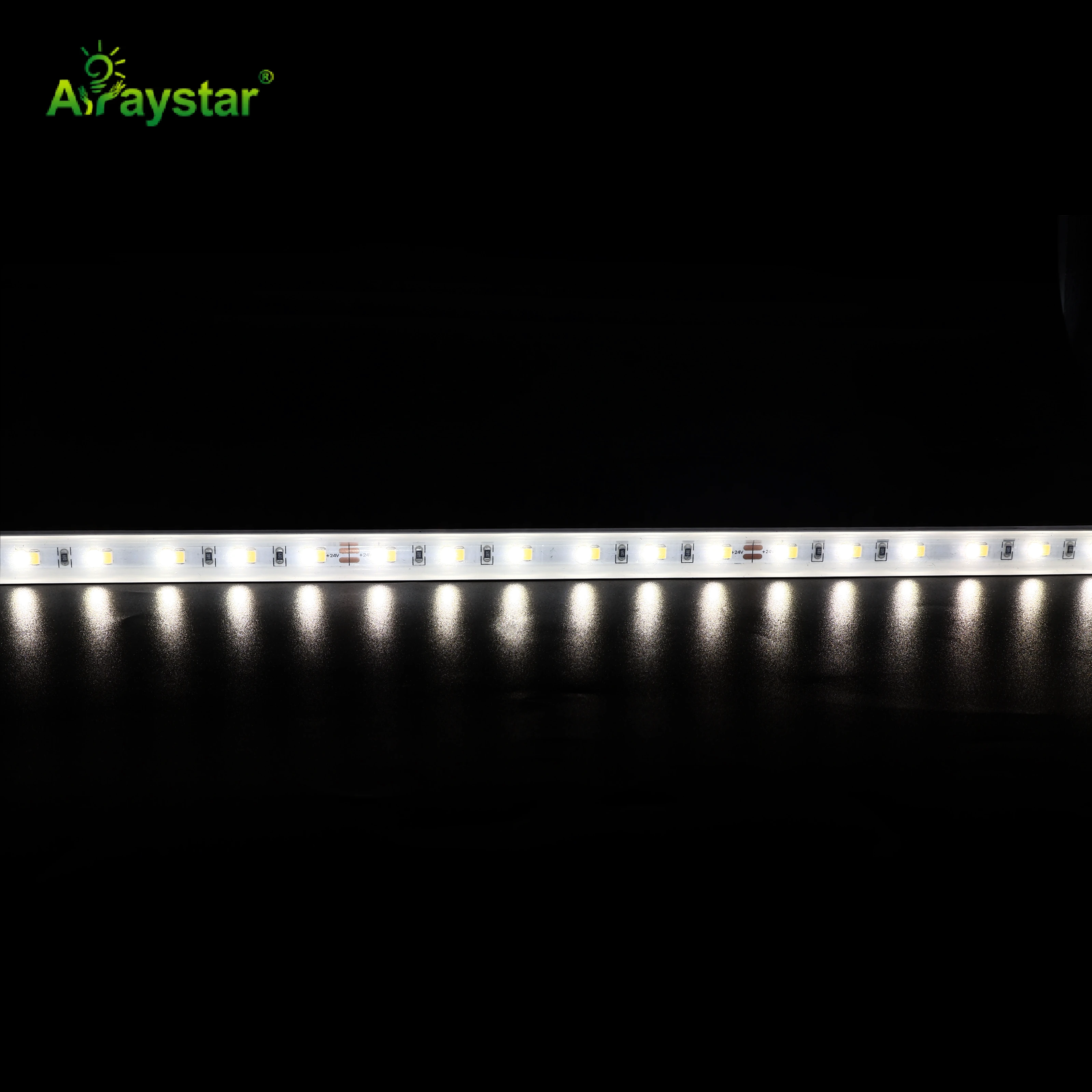

The ART-NS2835-X-120-24 is an Arraystar 2835 SMD LED Strip. It uses SMD2835s at 120 LEDs/m, on 24V DC, drawing around 12W/m, in 570-590nm / 4000K / 5000K, rated IP67.
It features a 12 mm profile, supplied 5m/roll. It is a flexible, cuttable strip for linear, cove and accent lighting.
Key Features
- SMD2835 at 120 LEDs/m
- Input: 24V DC
- Power: 12W/m
- Colour options: 570-590nm / 4000K / 5000K
- IP67 sealed construction
- Strip width 12 mm
- Warranty: 5 Years
Typical Applications
- Under-cabinet and cove lighting in kitchens and retail
- Furniture, shelving and display case lighting
- Hotel, bar and restaurant interior accents
- Architectural recessed linear lighting
- Signage backlighting and decorative outlines
Frequently Asked Questions
What power supply does this strip need?
A 24V DC constant-voltage LED driver sized for the total wattage (about 12W/m, plus around 20% headroom). Ask us to size the driver and wiring for your run length.
Will I see voltage drop on a long run?
For DC runs we recommend re-feeding power at the recommended intervals (usually every 5m) to keep the light even to the end. Our team confirms the feed points for your layout.
Is this strip suitable for outdoor use?
It carries an IP67 rating. Outdoor or wet installations still need sealed connectors and proper end sealing to maintain the rating.
Can I cut it on site?
Yes, cut only at the marked cut points, then reconnect with matching connectors. The cut interval is shown on the model datasheet.
Which colour temperatures are available?
570-590nm / 4000K / 5000K
