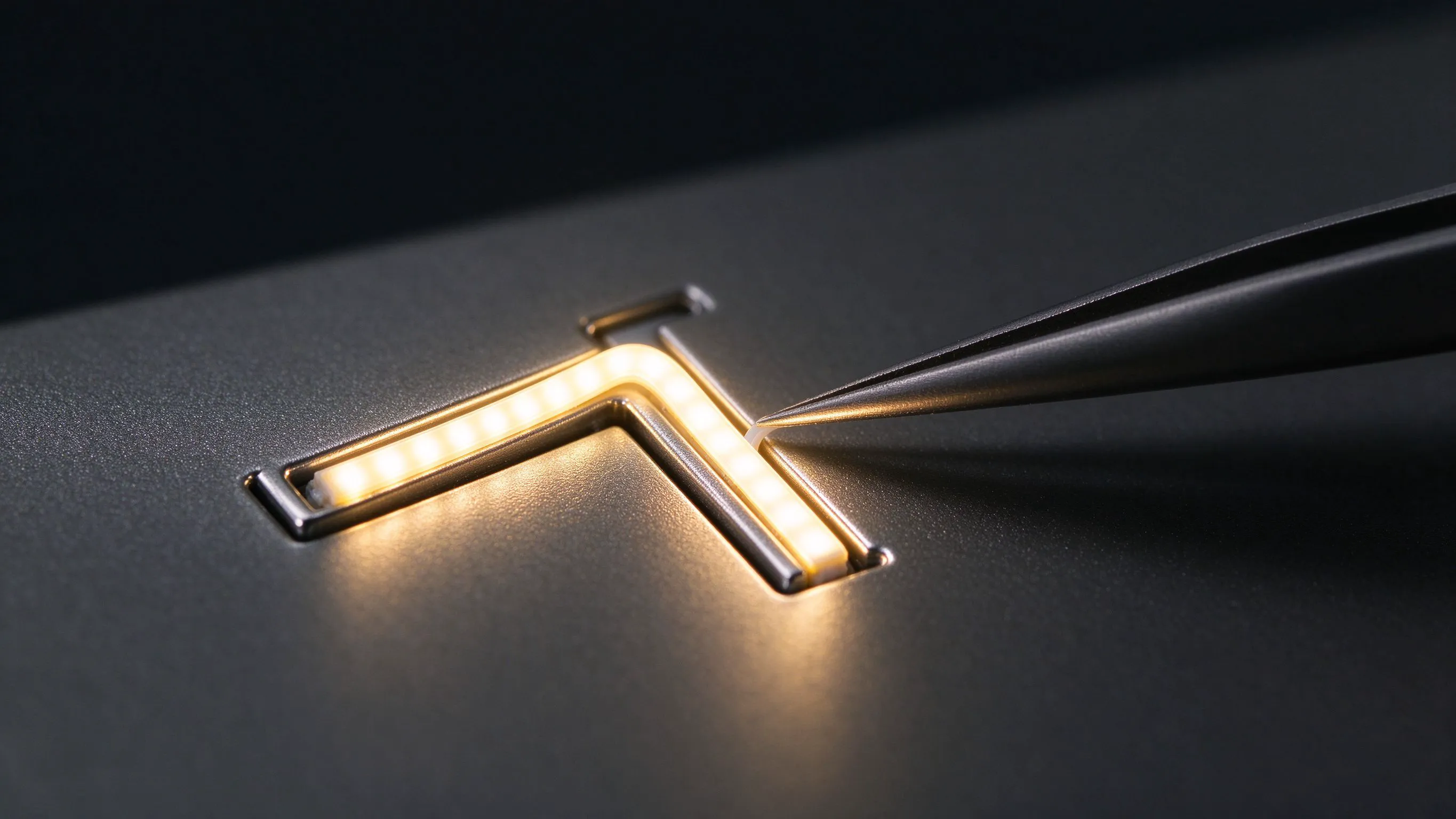

0305 Mini Neon Flex for the Smallest Channel Letters

The Job That Created the Mini Category

Small, premium logos are everywhere now: boutique reception signs, desktop brand marks, beauty and jewellery counter signage, compact door logos. They are viewed from a metre or two and their value is in refinement. Fitting a standard 1212 neon into those thin strokes is like threading a rope through a needle; the tube either kinks on the curves or fills the letter so completely that the counters close up with light.

The 0305 mini neon was developed for exactly this scale. At roughly 3 x 5 mm it is small enough to follow delicate strokes that defeat every larger profile.

What the 0305 Actually Is

• Very small cross-section (around 3 x 5 mm), among the smallest bendable neon profiles made.
• Horizontal (top) bending version that follows the flat curves of a letter face.
• Fine-pitch light source matched to the tiny body so the small face still looks continuous up close.
• Low-profile mounting suited to shallow, small letters and compact housings.

The horizontal-bending AR-NS0305 is the one I reach for when a small face-mounted logo needs smooth curves across the letter surface. Because it is so small, the craftsmanship in laying it matters as much as the product itself.

Where Mini Neon Shines

Mini neon is a close-viewing, detail-first product.

Where It Is the Wrong Tool

I talk clients out of 0305 for anything that needs distance or brightness. The tiny body simply cannot carry the LED density or thermal mass of a larger tube, so it is not suitable for outdoor storefronts read across a street, rooftop work, or any sign that has to compete with bright ambient light. Using mini neon on a big sign is the mirror image of using big neon on a tiny logo; both fail for the same reason of mismatched scale.

• Not for long-range or roadside identification.
• Not for high-brightness or daylight-visible requirements.
• Not ideal where rough handling or harsh weather is expected.

Working With the Bend Limits

The advantage

The 0305's small size gives it a very tight bend radius, so it tracks scripts and serifs that larger neon cannot. This is the single reason to specify it.

The care required

A profile this fine is also easy to over-bend, pinch or twist during fitting. I work it slowly around curves, avoid pulling hard at the tightest points, and use fine tools and tweezers rather than fingers where the stroke is cramped. A kinked mini section is usually replaced rather than repaired because the body is too small to hide a flat spot.

Brightness, Power and Heat at This Scale

Mini neon runs at modest power, which is helpful for small signs powered from compact drivers, but it means the line is meant to be seen in controlled lighting rather than in direct competition with the sun. I keep run lengths within the voltage guidance for such a tiny conductor and inject power as needed, because a thin copper path shows voltage drop sooner than a wide strip. For reception and counter work the brightness is ample; for anything brighter I move up a profile size rather than overdrive the mini.

Design Tips for Buildable Mini Logos

• Keep strokes above the absolute minimum the 0305 can follow; even mini neon has a bend radius.
• Avoid needle-thin enclosed counters that the tube cannot turn inside.
• Plan a discreet wire exit on small signs where every millimetre shows.
• Provide a darker or contrasting backing so the fine line reads clearly at low brightness.
• Approve a lit sample at the real viewing distance before committing the artwork.

Sampling and Specifying

Because mini neon lives or dies by craftsmanship, I always request a sample and test it on the actual logo geometry before ordering the production quantity. Send the minimum stroke width, the tightest curve radius and the intended viewing distance. We supply the AR-NS0305 and can advise honestly when a logo is better served by the next size up, because a sign that builds reliably and looks right matters more than forcing the smallest possible profile.

0305 vs the Next Size Up: A Honest Comparison

Clients sometimes ask for the smallest neon available purely because 'smaller feels more premium', which is not always true once the sign is lit and viewed. I compare the 0305 against the next profile up on three practical measures before committing.

Choose the smallest profile that still meets brightness and distance, not the smallest that physically fits.

My rule is to use the smallest profile that still clears the brightness and distance requirements, rather than the smallest profile that physically fits. If a logo will sit behind a reception desk two metres from viewers in soft lighting, the 0305's delicacy is an advantage. If the same logo moves to a bright window frontage or a corridor where people pass at ten metres, stepping up one size keeps the line visible and is more forgiving for the installer. A quick lit comparison of the two candidates on the real backing answers it faster than any datasheet, and I would rather present that choice than silently under-size a sign for the sake of using the most miniature product.

Recommended Products

Horizontal Bending Neon Flex AR-NS0305

This 0305 mini neon flex is one of the smallest bendable profiles, made for tight logos and compact channel letters where larger neon cannot go.

Frequently Asked Questions

What is the smallest neon flex for channel letters?

The 0305 mini neon, at roughly 3 x 5 mm, is one of the smallest bendable profiles and is designed for tiny logos and thin strokes viewed up close. It follows curves that larger profiles cannot, but it is not intended for long-range or high-brightness signs.

Can I use 0305 mini neon for an outdoor storefront?

Generally no for street-facing identification. The tiny body cannot carry the brightness or thermal mass needed to be seen across a road or compete with daylight. Use a larger profile for outdoor storefronts and reserve 0305 for close-viewing interior and counter signs.

How tight a curve can 0305 mini neon bend?

Its small cross-section gives it a very tight bend radius compared with larger neon, so it follows delicate scripts and serifs well. There is still a minimum radius, and the fine body must be worked slowly to avoid pinching or kinking; a kinked section is usually replaced.

Is mini neon bright enough for a reception sign?

Yes, in controlled interior lighting. A reception or counter logo viewed from a metre or two has ample brightness from a 0305, especially against a contrasting backing. It will look weak in direct sunlight or at long distance, which is outside its intended use.

How should I handle such tiny neon during installation?

Work slowly around curves, use fine tools or tweezers in cramped strokes, and avoid pulling hard at the tightest bends. Plan wire exits discreetly and approve a lit sample on the real logo first, because the small profile is easy to pinch and a flat spot cannot be hidden.
