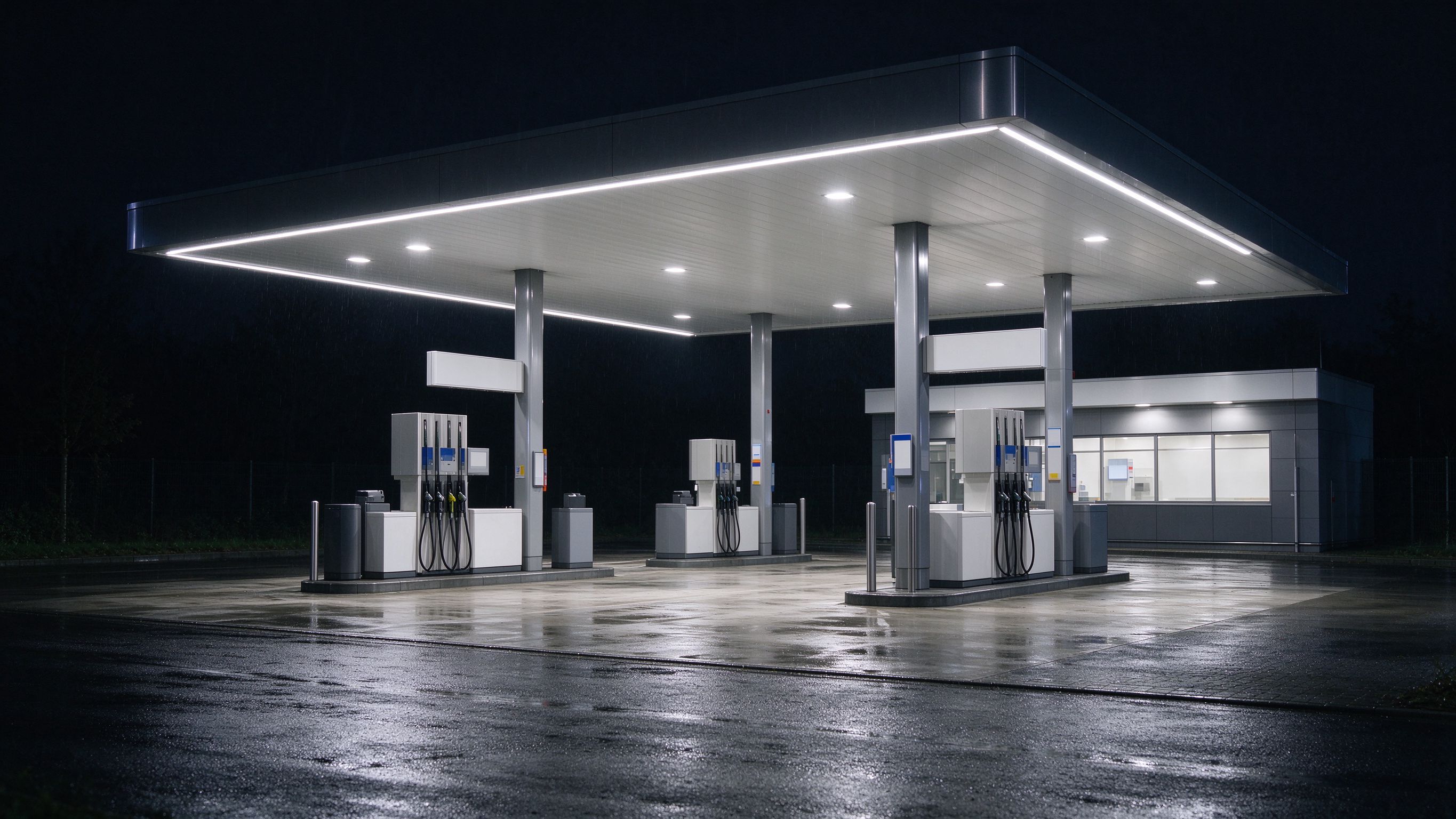

LED Strip Lighting for Gas Station Canopies: Bright, Wet-Location Layout
- 2026-10-15 14:34
- /
- Arraystar LED
A gas station forecourt sells on trust after dark - bright, even canopy light makes drivers pull in, while a dim patch under the pumps feels unsafe and pushes them past. The hard part is that canopy lighting lives outdoors, exposed to rain, dust and long wiring runs. I spec sealed high-voltage strips and wall-washer runs that light the whole forecourt evenly, because the pumps and the payment point need to read clearly from the road.
What Forecourt Lighting Has to Do
Gas stations are open 24/7 and the lighting is doing two jobs: safety for people handling fuel and payments, and marketing visibility from the road. Drivers judge a forecourt in a couple of seconds, and dark spots between canopies or over the pump islands read as unwelcoming or unsafe.
That means the goal is uniform coverage across the whole paved area, not a bright sign and a dark forecourt. Linear strips mounted along the canopy fascia and edges give a continuous wash that spaced floodlights struggle to match without leaving pools and shadows.
High-Voltage Strips for Long Canopy Runs
Canopies are wide, so wiring lots of low-voltage runs means many drivers and voltage-drop calcs. High-voltage AC strips and wall-washer strips are a clean fit here because they run long distances from a single feed without repeated power injection.
Keep these spec points in mind:
- Use sealed, outdoor-rated strips along the canopy fascia and pump-island edges.
- Choose high-voltage product for long continuous runs to cut down on drivers.
- Make sure every outdoor connection is IP-rated and sealed against rain and dust.
- Keep control gear in weatherproof enclosures above the flood line.
Lighting the Pumps, Payment Point and Shop Front
The pump faces and the payment terminal are where customers actually look, so they need glare-free light that makes screens and keypads readable. I angle strips down across the pump islands rather than shining horizontally into drivers' eyes.
The convenience-shop front and entrance should be the brightest, most welcoming zone, tying the forecourt into the store. A horizontal-bending neon or wall-washer run along the canopy edge can both light the ground and give the station a clean lit outline that's visible from the road.
IP Ratings and Weather Sealing
Forecourt gear gets rain, pressure-wash splash, road dust and temperature swings, so sealing is the reliability risk. Use fully sealed strips and waterproof connectors at every join, and never leave a driver or junction exposed under the canopy where blown rain reaches.
You don't need the maximum rating everywhere - the underside of a deep canopy can use a lower outdoor rating than the exposed fascia and pump islands - but every connection point should be sealed regardless, since that's where water actually enters.
Maintenance, Safety and Running Cost
Canopy fixtures are high and over active traffic, so anything that needs frequent relamping is expensive to service. Long-life sealed strips reduce that, and keeping drivers and junctions in accessible weatherproof boxes means maintenance doesn't require closing a pump lane.
Because the lights run all night, efficacy matters on the bill - efficient strips on a daylight/occupancy strategy for less busy hours keep the forecourt safe while trimming energy. Get the uniformity and sealing right at install and a forecourt will look bright and trustworthy for years with very little attention.
Recommended Products
Frequently Asked Questions
What kind of lights are used under gas station canopies?
Sealed, outdoor-rated linear strips and wall-washers mounted along the canopy fascia and pump-island edges give even glare-free coverage. High-voltage strips are common because they run the long canopy distances from a single feed without repeated power injection.
How bright should a gas station forecourt be?
Bright enough for uniform coverage over the whole paved area, with the shop entrance and payment point the clearest zones. Uniformity matters more than one bright spot, because dark patches between canopies feel unsafe and are visible from the road.
Are high-voltage LED strips safe on a forecourt?
Yes, when they're fully sealed, outdoor-rated and wired to code with weatherproof enclosures and IP-rated connectors. High-voltage product is chosen for long runs, and the safety comes from proper sealing and professional installation rather than the voltage itself.
How do you stop glare at the payment terminal?
Angle the strips down across the pump islands rather than horizontally into drivers' eyes, and use diffused light over the keypad and screen so they stay readable without reflections. Bare bright points aimed at the customer create the worst glare.
Where do gas station light drivers go?
In accessible weatherproof enclosures, kept above the flood line and out of blown rain, rather than buried or exposed under the canopy. Accessible junction boxes mean maintenance doesn't require closing a pump lane or working over active traffic.
