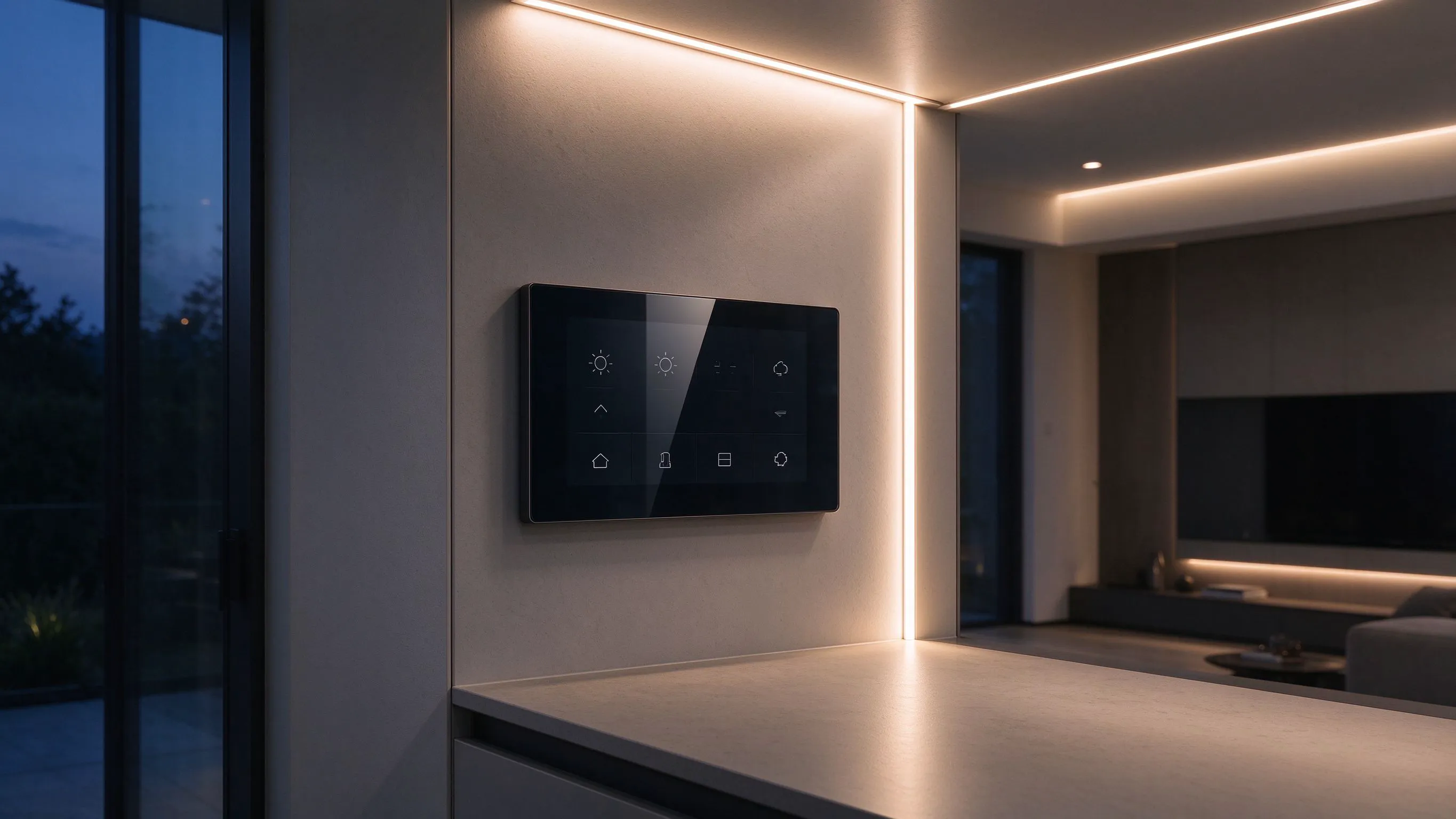

Integrating LED Strips With KNX, Loxone & Wired Smart-Home Systems

Wired Automation Speaks a Different Language

KNX and Loxone are professional wired automation systems - the kind that control lighting, shading, HVAC and scenes in high-end homes, hotels and commercial fit-outs over a dedicated bus. They don't drive LED strip directly; they output control signals (DALI, 0-10V, KNX-DALI gateways, or the platform's own PWM/relay outputs) that downstream dimming modules translate into strip control.

The integration game is therefore about the interface between the automation bus and the 12/24V tape. Choose the wrong dimming module and you get flicker, limited dimming range and lights that don't respond smoothly to scenes. Choose the right one and the strips dim and tune color as cleanly as any professional fixture on the system.

PWM/CCT Controllers as the Bus-to-Strip Interface

Modern IoT PWM controllers can sit between the automation system and the tape, accepting the platform's control (or being driven via DALI/0-10V/switch inputs and exposed to the smart system) and outputting smooth PWM to the strip. For tunable-white installations - the majority in high-end residential - a 2-channel CCT controller is the core component.

The SP532E 2-channel PWM CCT IoT controller handles tunable-white strip with smooth dimming and color-temperature control, suitable for bringing warm-dim/circadian white tape into an automated room. For zones mixing CCT with RGB/RGBW or addressable accents, the SP630E combines SPI with 5 PWM channels in one module, so one interface covers plain and pixel strip in a room.

Matching the bus-to-strip interface to the room load.

Flicker-Free Deep Dimming Is the Quality Benchmark

High-end clients notice one thing above all: how the lights behave at low levels. Cheap dimming modules produce visible flicker, buzzing and a 'pop on' at minimum brightness that ruins evening scenes and fails hospitality standards. Professional integration demands smooth, deep, flicker-free dimming down to a fraction of a percent.

Specify PWM controllers and drivers with high dimming resolution and a configurable low-end curve, and pair them with dimmable power supplies designed for the load. A 400W dimmable power supply provides clean, stable power for larger zones and long tape runs while supporting the deep dimming the automation scenes require - verify the supply and controller are compatible in dimming method (PWM frequency, 0-10V/DALI control).

Warm-Dim and Circadian Scenes

The reason integrators love tunable-white strip is scenes: cool bright white for morning and concentration, neutral for daytime, warm dim for evening and night - automated on schedules, sensors and buttons. The 2-channel CCT controller is what executes those scenes by balancing the warm and cool LED strings.

• Map scenes to CCT and level: morning cool/bright, evening warm/dim.
• Tune the minimum dimming level per room to eliminate pop-on and flicker.
• Use consistent PWM frequency across drivers to avoid beat-flicker on camera.
• Keep drivers accessible above ceilings for service; label every circuit.
• Coordinate with the integrator on control protocol before first fix.

Coordination, Wiring and Commissioning

LED integration into KNX/Loxone is decided at first fix, not at decoration. The automation integrator, electrician and lighting supplier must agree on control protocol (DALI vs 0-10V vs PWM module), channel counts, driver locations and strip voltage before walls close, because the bus wiring and low-voltage feeds are both structural.

Commissioning checklist: confirm every dimming channel maps to the correct bus address/group, set dimming curves and minimum levels room by room, test scenes for smooth transitions and no flicker at any level (including phone-camera check for high-frequency flicker), and verify multi-zone synchronization. Done at commissioning, this is where a smart home's lighting either feels premium or feels cheap.

Recommended Products

SP532E 2CH PWM CCT IoT LED Controller

SP532E 2-channel PWM CCT IoT controller is the module wired gateways drive.

SP630E SPI+5CH PWM All In One LED Controller

SP630E SPI+5CH PWM all-in-one handles RGBW plus white from one channel.

400W LED Dimmable Power Supply

400W dimmable supply gives whole-room and whole-home installs clean, stable power.

Frequently Asked Questions

How do I integrate LED strip with KNX or Loxone?

KNX/Loxone don't drive strip directly - they output control (via DALI gateways, 0-10V or PWM modules) to bus-to-strip interfaces. Use a 2-channel PWM CCT controller (SP532E) for tunable-white rooms or an SPI+5CH PWM module (SP630E) for rooms mixing CCT with RGB/pixel, paired with compatible flicker-free dimmable supplies, and coordinate the protocol at first fix.

What controller do I need for tunable-white strip in a smart home?

A 2-channel PWM CCT controller such as the SP532E, which balances the warm and cool LED strings for smooth dimming and color-temperature scenes (cool/bright mornings to warm/dim evenings). Expose it to the KNX/Loxone system through the platform's supported control input or gateway, and pair it with a flicker-free dimmable driver.

Why do my smart-home LED strips flicker when dimmed?

Usually a low-resolution dimming module or non-dimmable/mismatched power supply, producing visible flicker, buzzing or pop-on at low levels. Use high-resolution PWM controllers with configurable low-end curves and compatible dimmable supplies (such as a 400W dimmable unit for big zones), match dimming method and PWM frequency, and tune minimum levels during commissioning.

DALI or 0-10V/PWM for LED strip in a KNX/Loxone project?

DALI (via a KNX/Loxone DALI gateway) is preferred for larger commercial/hospitality projects needing individual addressing, feedback and centralized control; 0-10V or PWM modules suit simpler single-zone residential dimming. Decide with the integrator at first fix based on zone count, need for per-fixture addressability, and budget.

When should LED control be planned in a smart-home build?

At first fix, before walls close - the automation bus wiring, low-voltage feeds, driver locations and control protocol (DALI/0-10V/PWM) are all structural. Bring the integrator, electrician and lighting supplier together early, then commission channel mapping, dimming curves, minimum levels and scenes room by room, checking for flicker (including a phone-camera test) at every level.
