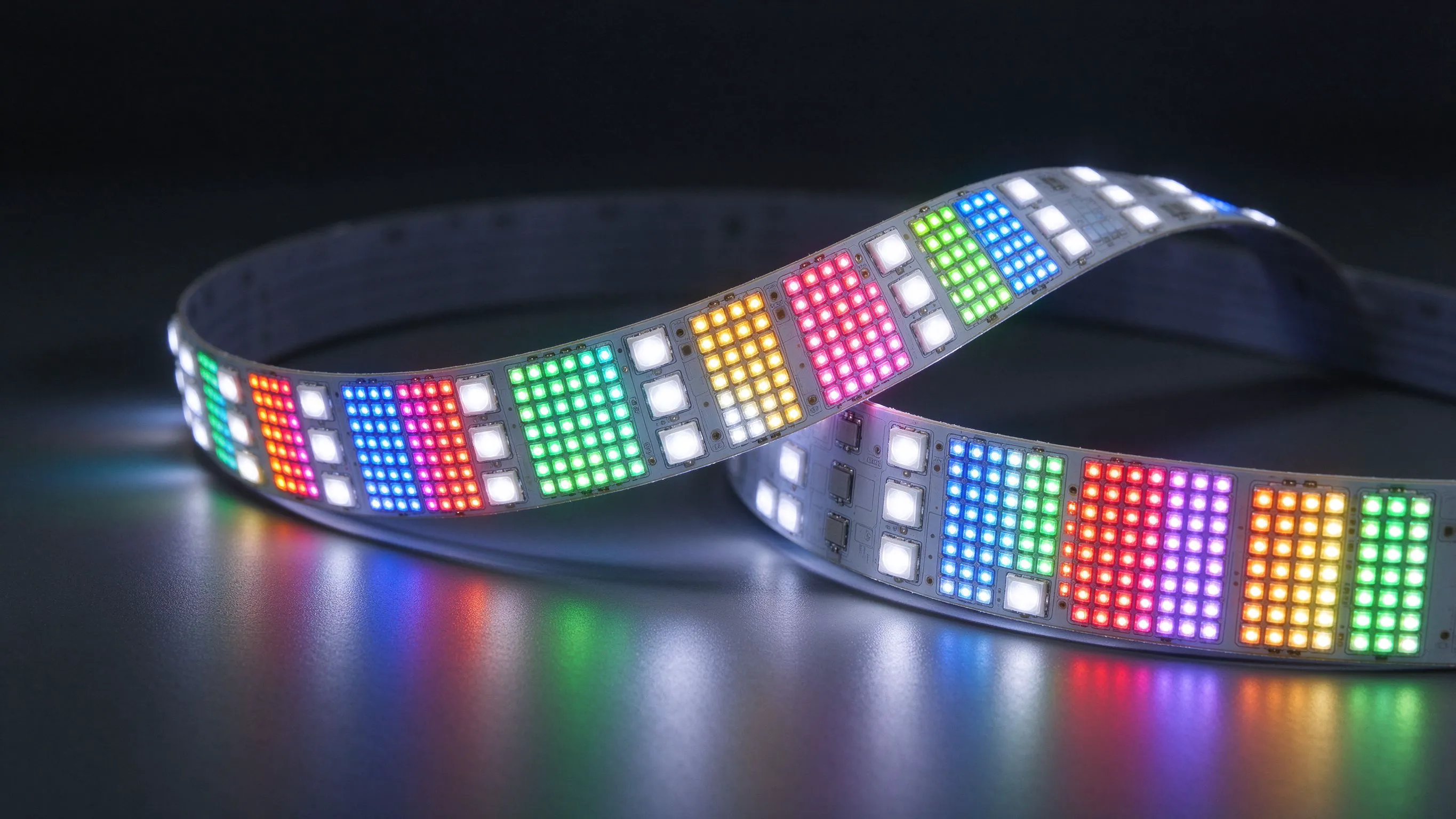

UCS2904B RGBW Addressable Strips for True White Pixels

The White Gap in RGB Pixel Systems

Addressable RGB strip is brilliant at saturated colour, chases and video-style effects, but ask it for white and the familiar problem returns: red, green and blue mixed together make a tinted, inconsistent neutral, and on a per-pixel basis the white can vary noticeably from one pixel to the next as the three channels balance imperfectly.

That rules out plain RGB pixels for venues that want dynamic colour on a Friday night but clean, professional white for the rest of the week, which describes most hospitality and commercial spaces.

What the UCS2904B RGBW Pixel Adds

• Four channels per pixel: red, green, blue and dedicated white.
• True neutral white from a white chip, not an RGB mix.
• Soft pastel and tinted-white effects that RGB pixels cannot reach.
• Independent white scenes alongside full colour animation.
• SPI control in the familiar addressable workflow.

When a pixel installation needs both animation and genuine white, I use the UCS2904B RGBW strip. The fourth channel fixes the weakest colour in any addressable system.

RGB vs RGBW Addressable Pixels

RGBW pixels add clean white without losing addressability.

Where RGBW Pixels Are Specified

• Bars and lounges running colour scenes plus a clean white service mode.
• Hotels and event spaces that switch between party and function lighting.
• Retail feature walls needing animation and neutral product light.
• Architectural media features that display white content and text.
• Any venue unwilling to run separate white and colour strip.

Controller and Protocol Compatibility

The fourth channel only works if the controller actually drives RGBW pixels, so I confirm the controller or software supports the UCS2904B's four-channel protocol rather than assuming any addressable controller will do. An RGB-only controller on RGBW strip leaves the white pixels dark and silently removes the benefit. I test on a powered sample that selecting white engages the dedicated white chip per pixel, and that effects authored for four channels render as intended rather than being remapped incorrectly.

• Confirm the controller lists UCS2904B / RGBW pixel support.
• Use the correct channel order and pixel count settings.
• Verify white scenes light the dedicated white chip.
• Author effects in RGBW if pastel and white content matters.

Power and Data for Four Channels

RGBW pixels can draw on four channels, so full white with colour is a heavier load than RGB and power must be sized for the realistic peak, not an average scene. I calculate supply for the brightest combined state, inject power at regular intervals on long runs, and keep data wiring clean. The good news is that dedicated white is more efficient for white scenes than driving all three RGB channels, so installations that spend a lot of time in white can actually run cooler in that mode despite the extra chip.

Choosing Between RGBW Pixel Types

Several RGBW pixel protocols exist, and the choice comes down to the features a project needs: the UCS2904B is a strong RGBW addressable option for true white and colour together, while other ICs add features such as signal break-point continuation or particular voltage options. I select based on whether the priority is white quality, run reliability, voltage or controller compatibility, and I keep the whole system, strip IC, controller and software, from a proven compatible set rather than mixing on assumption.

Specifying an RGBW Pixel System

Send the desired colour and white scenes, run lengths, viewing distance, preferred control (app, software or console) and the proportion of time the space will use white versus colour. I will confirm the UCS2904B RGBW strip, a compatible four-channel controller, power layout and whether a reliability-focused IC is also needed. We supply the UCS2904B strip and recommend comparing its white against an RGB pixel sample on the actual wall, since the difference between mixed and dedicated white is immediately visible.

Programming a Venue That Lives Mostly in White

The mistake I see when integrators first install RGBW pixel strip is programming it like an RGB product, leading with saturated colour and treating white as an afterthought mixed from the channels. Most hospitality and function venues spend the majority of their operating hours in white, with colour reserved for specific evenings, so I build the show file the other way around: the default and most carefully tuned scenes are the white states, and colour is layered on as an optional mode.

• Set a clean neutral white as the default power-on state for daytime and functions.
• Program a warm-white evening scene using the dedicated white channel, not an RGB mix.
• Reserve saturated colour scenes for specific nights rather than the idle state.
• Build pastel scenes from white plus a small amount of colour for an upscale look.
• Lock the service scenes so casual staff cannot leave the venue in a demo colour.

In a hotel ballroom we commissioned, the RGBW strip ran a calibrated neutral white for conferences and weddings, a warm white for banquet evenings, and a set of restrained pastel and colour scenes only for private celebrations and brand events. Because the white came from dedicated chips it matched the venue's fixed white downlights, which an earlier RGB-only pixel installation had conspicuously failed to do, leaving the cove looking tinted beside the room lighting. The programming effort shifted almost entirely to getting the various white scenes to match the rest of the space at different dim levels, while the colour scenes were quick to add. I also made sure the controller powered on into the neutral white state automatically after any outage, so a morning function never opened to a room left in magenta from the night before. This white-first discipline is the real key to making RGBW pixels look professional rather than novelty-grade in a working venue: the technology's value is invisible, correct white ninety percent of the time, with colour available as a controlled option rather than the default.

Recommended Products

UCS2904B IC Built-in SPI LED Strip ART-5050IC2904B-60-RGBW-12/24

This UCS2904B RGBW strip drives a dedicated white channel per pixel for addressable colour plus clean neutral white.

Frequently Asked Questions

What is a UCS2904B RGBW addressable strip?

It is an SPI addressable pixel strip whose IC drives four channels per pixel, red, green, blue and a dedicated white, so it can run full colour animation and also produce a clean neutral white and soft pastels that ordinary RGB pixels only approximate by mixing three colours.

Why is white poor on normal RGB pixel strip?

Because white is made by balancing red, green and blue, and per-pixel differences make that mix tinted and inconsistent, often greenish or purplish and dimmer than a dedicated source. A separate white chip in each UCS2904B pixel produces a genuine, uniform neutral directly.

Do I need a special controller for UCS2904B RGBW strip?

Yes, an addressable controller and software that explicitly support the UCS2904B four-channel RGBW protocol. An RGB-only controller leaves the white channel unused and removes the benefit. Verify on a powered sample that white scenes light the dedicated white chip and that four-channel effects render correctly.

Does RGBW pixel strip use more power than RGB?

The peak load can be higher because there are four channels, so size supplies for the brightest combined state and inject power on long runs. However, dedicated white is more efficient than driving all three RGB channels, so scenes that are mostly white can run cooler and more efficiently on RGBW than on RGB.

When should I choose UCS2904B over other RGBW pixel ICs?

Choose it when the main requirement is true white and pastel quality alongside addressable colour in a standard SPI workflow. If the priorities are instead signal break-point reliability, a specific voltage or particular console compatibility, compare the other RGBW ICs and keep the strip, controller and software as one proven compatible set.
