220V High-Voltage SCOB LED Strip for Signs: Long-Run No-Drive Guide
- 2026-09-21 11:03
- /
- Arraystar LED
A 220V high-voltage SCOB LED strip runs directly from mains power with no driver and holds even brightness for 50–100 meters, fully sealed. It is the lowest-cost, simplest solution for long sign faces, channel letters and building outlines — installed by a licensed electrician with RCD protection.
Why a 220V SCOB Strip for Signs?

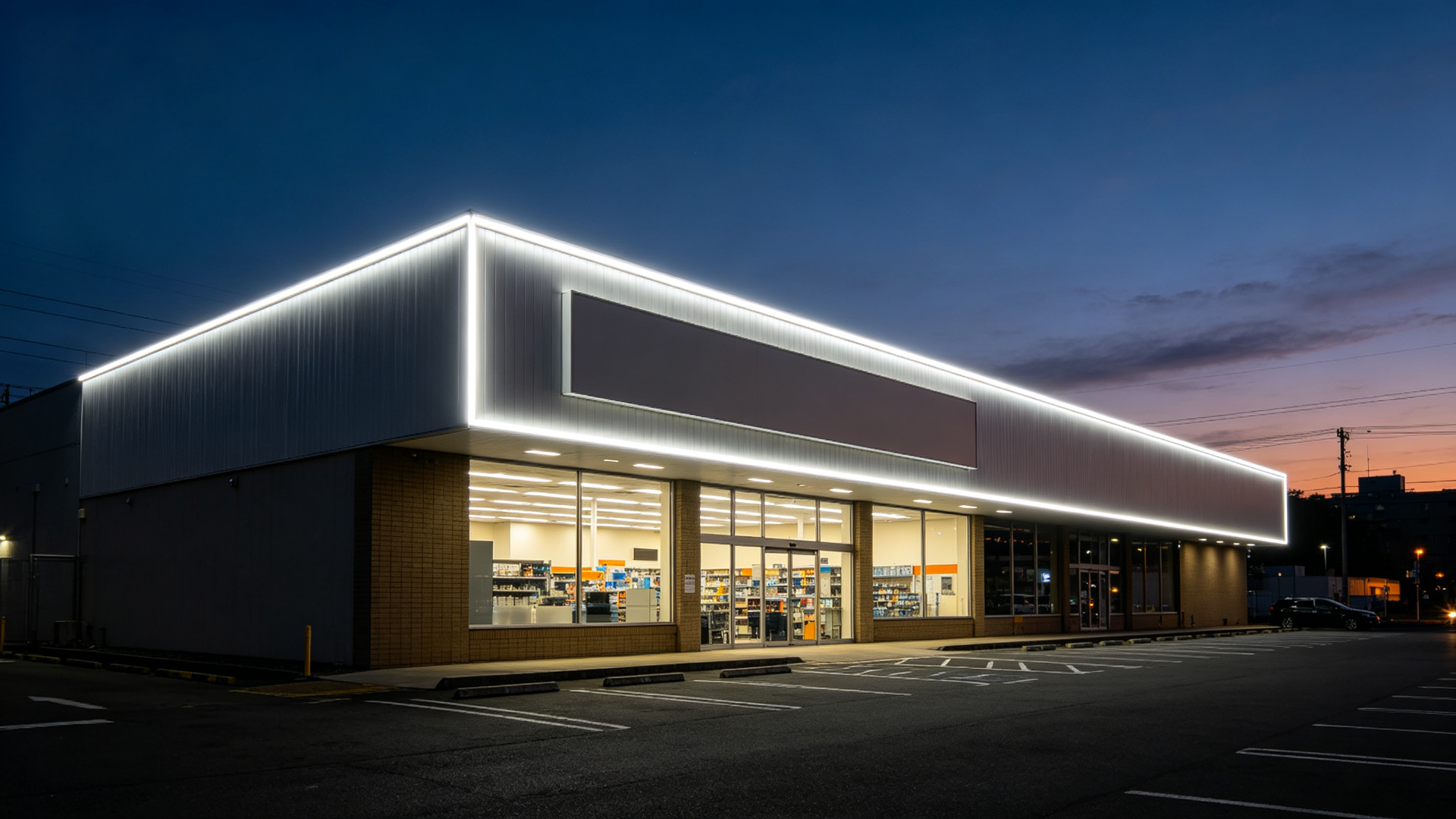

A sign face or building outline that runs 30–100 m is painful to light with 24 V: drivers, power injection and voltage drop multiply at every meter. A 220 V high-voltage SCOB strip removes most of that complexity. It connects to mains AC through a factory lead with an integrated rectifier, runs a single reel for 50 m (up to 100 m qualified) with almost no voltage loss, and arrives fully sealed to IP65/IP67 in the milky silicone SCOB body.
Compared with a 220 V SMD or flat COB high-voltage strip, SCOB adds built-in diffusion: the sign face lights up evenly with no visible LED points, which is exactly what channel letters and light boxes need.
Typical Specifications
220V high-voltage SCOB typical values
| Parameter | 220V High-Voltage SCOB |
|---|---|
| Operating voltage | 200–240 V AC, 50–60 Hz |
| Power | ~10 W/m |
| Max run per feed | 50 m standard; up to 100 m (qualified) |
| CCT | 2700K / 3000K / 4000K / 6000K |
| CRI | Ra 80+ |
| Housing / width | Milky silicone extrusion, ~8 mm; arc/hollow options |
| IP rating | IP65 / IP67 (fully encapsulated) |
| External driver | None — rectifier in power lead |
| Warranty | 3 years |
Wiring and Safety Rules
Because the strip carries mains voltage, treat it as fixed wiring:
- Install by a licensed electrician, protected by an RCD / GFCI breaker.
- Do not exceed the rated reel length; use several independent feeds for longer facades.
- Seal every cut end, corner and lead with the manufacturer’s IP67 end caps and connectors — a single gap is both a shock path and a corrosion failure.
- Choose no-flicker / constant-current models for signage viewed up close or on camera.
- For dimmable or tunable scenes, 24 V SCOB/COB with a PWM driver remains more flexible; high-voltage AC dimming is limited to TRIAC/0-10V.
Recommended Products
Frequently Asked Questions
How long can a 220V SCOB strip run from one feed?
Most 220 V SCOB reels are rated for 50 m per power lead; qualified high-density models can run up to 100 m continuously. Beyond that, use separate feeds from a weatherproof junction box — never chain reels beyond the rated length.
Does 220V SCOB need a transformer?
No. It uses a factory power lead with a built-in rectifier that converts AC to the DC the chips need, connecting directly to mains. A qualified electrician still must make the connection with RCD/GFCI protection and sealed outdoor connectors.
Is it flicker-free?
Standard cheap high-voltage strips can show 100/120 Hz flicker. Specify the no-flicker / constant-current version for signage viewed up close, video or camera projects — like ART-SCOB08-280-220.
Can I cut it to length?
Only at the factory-marked cut points, using the matching IP-rated end caps and connectors. Do not cut arbitrarily; cut length and joining must follow the datasheet to keep the IP rating and the distributed current design working.
