LED Strip for Under-Bed Ambient Lighting

Quick Answer

An under-bed glow makes the bed appear to float and lights the path at night.

Why Under-Bed Lighting Works So Well

Getting out of bed in the dark is a small daily hazard: the floor is unknown, the bedside lamp dazzles you awake, and stubbing a toe is the price of a glass of water. A soft strip tucked under the bed base solves all three. It casts a low, warm halo on the floor that guides your feet, adds a luxurious “floating bed” effect to the room, — and, with a motion sensor, turns on automatically as soon as you swing your legs over the edge. It is the single most useful ambient light in a bedroom.

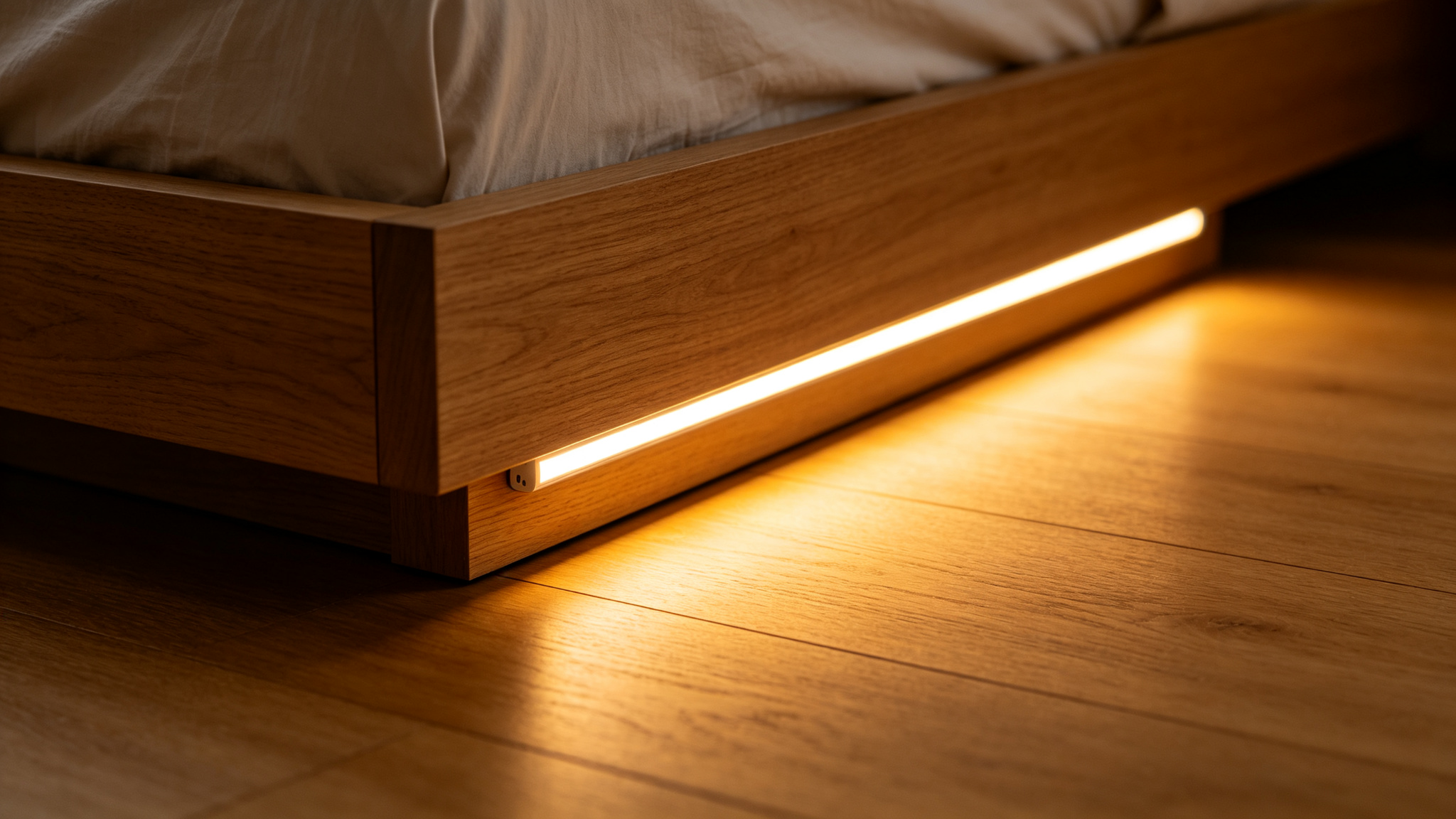

The strip lives on the bottom plinth, hidden from view but spilling onto the floor.

Spec Comparison: Under-Bed Gear

The defining choice for under-bed lighting is automation. A manual switch strip is fine, but a PIR motion sensor that lights only after dark (and switches off after a minute) is what turns a nice effect into a genuinely useful night light.

Mounting and the Floating Effect

• Run the strip on the bottom plinth / base frame, facing down and outward, not up into the mattress.
• Use a diffused profile or milky-coated strip so the floor glow is smooth, not dotted.
• On a low platform bed, keep the strip 5–10 cm above the floor so the halo spreads wide.
• Hide the driver in the headboard or a nearby drawer; route wires along the frame.

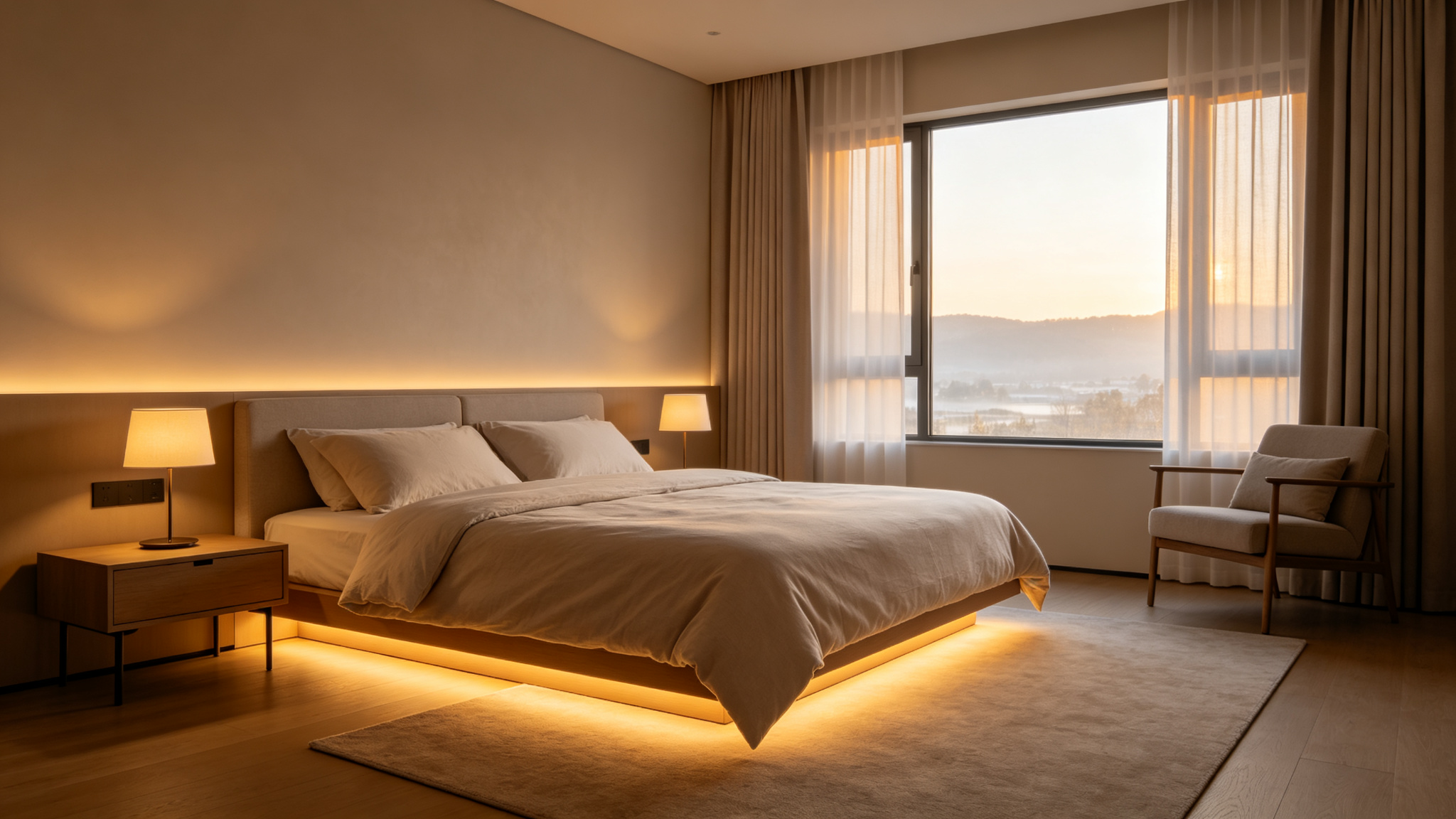

A low warm glow is calming at night and gentle on sleepy eyes.

Automation: Motion, LUX and Timing

A good under-bed setup uses a PIR sensor with a light-level (LUX) threshold: it ignores you all day, then at dusk it watches for movement. When you stand up, the strip fades on; when you return, it stays lit, then fades off after you settle. Some sensors also dim gradually so you are never shocked by bright light at 3 a.m. Pair it with a reliable low-voltage driver and IP20 strip.

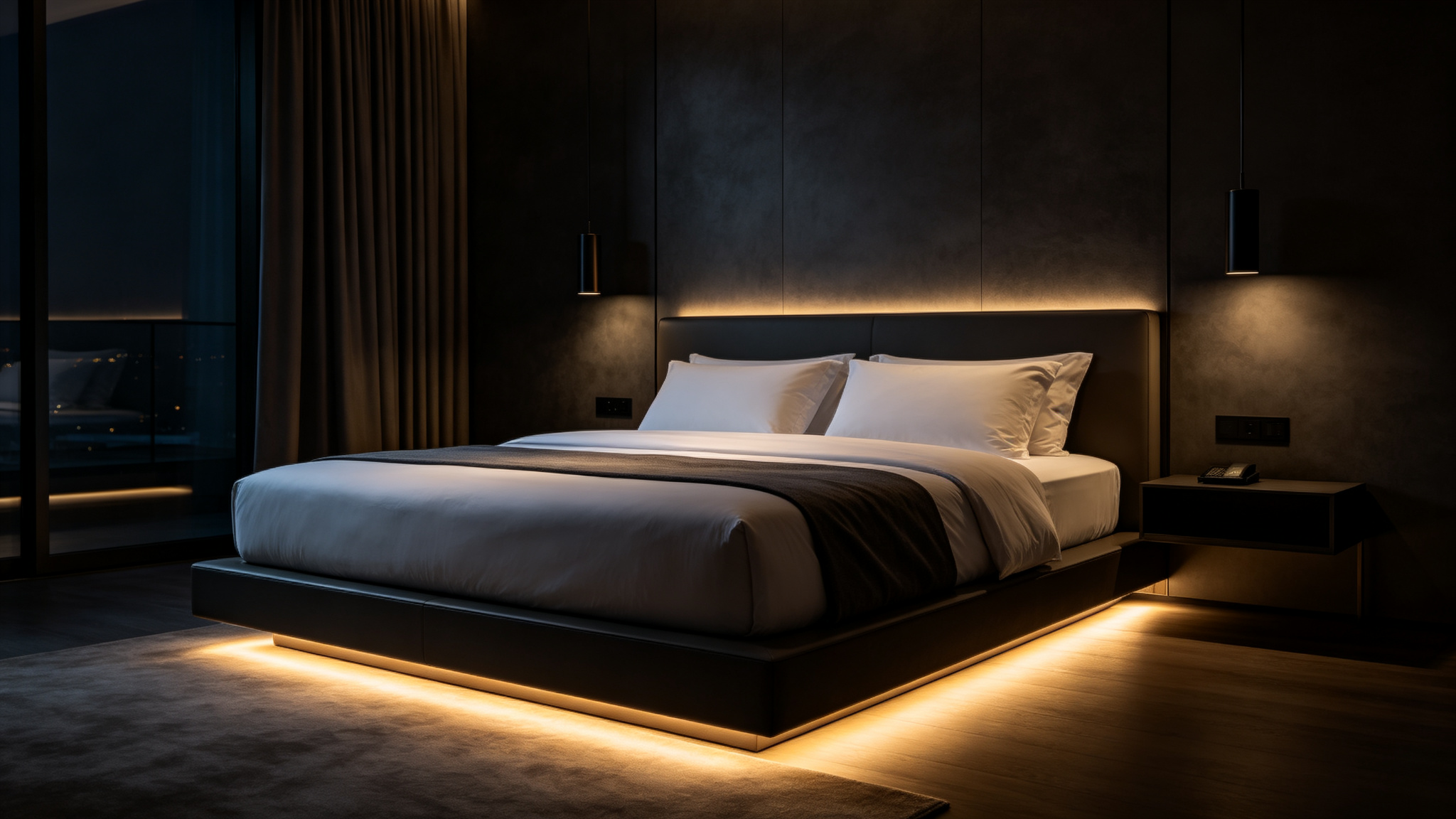

The floating-bed look hotels charge extra for is a cheap strip and a sensor.

Safety, Power and Bed Types

Under-bed strips run on 12V/24V SELV low voltage — touch-safe and ideal for a bedroom. Use an LED-rated driver sized 20–30% over wattage (a few meters of strip needs only a small 20–30W supply). This is a dry indoor application, so IP20 strip is fine. It works on platforms, divans and metal frames; on a solid ottoman, mount the strip on a slim external batten under the base.

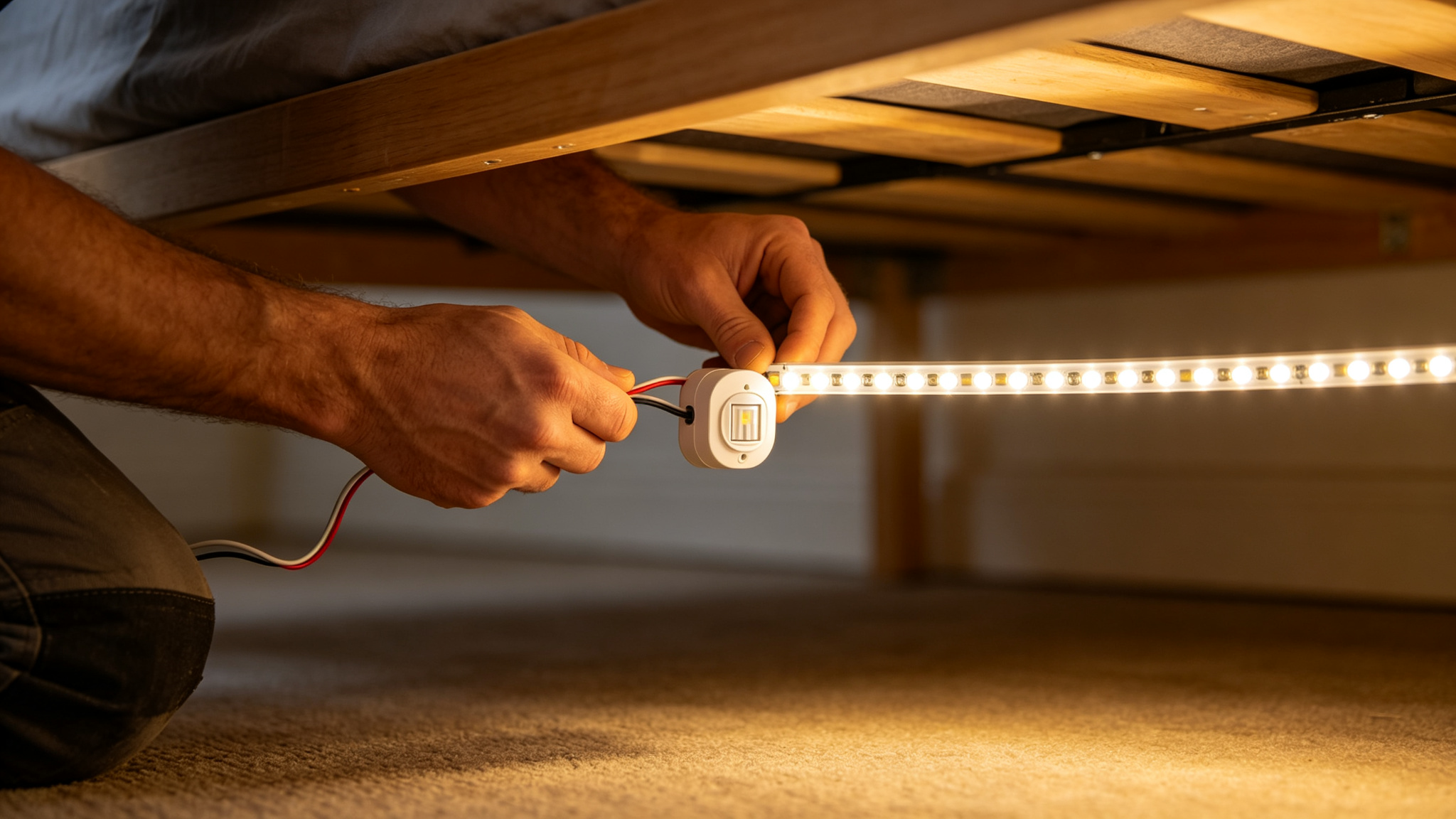

Most under-bed installs are a self-adhesive strip, a small sensor and a plug-in driver.

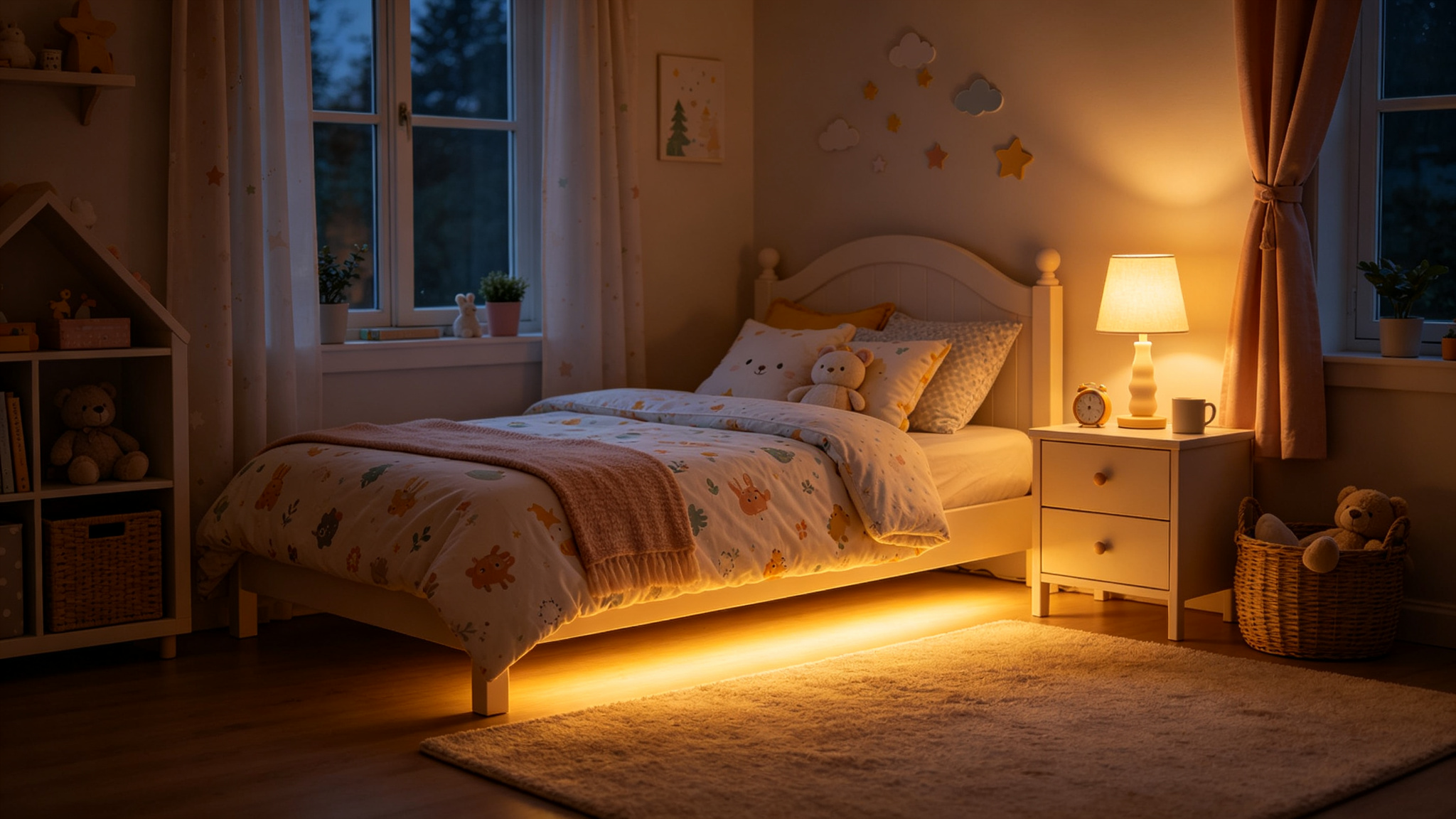

A gentle floor halo is safer than a bright overhead night light for children.

Recommended Products

Wireless PIR Motion Sensor (2.4G)

Battery wireless PIR trigger: the under-bed strip fades on when you get up, no wiring to the bed frame.

PIR Motion Sensor Switch (Wired)

Hardwired motion sensor for a permanent under-bed night light with hold-time and LUX control.

COB LED Strip 400 LEDs/m, 8mm

Smooth dot-free warm strip that gives a seamless floor glow under the bed base.

20W LED Waterproof Power Supply

Compact 20W driver ideal for a short under-bed run, with headroom for the sensor and controls.

Frequently Asked Questions

What voltage is safe for LED strip under a bed?

Always use 12V or 24V low-voltage (SELV) strip with an external driver — it is touch-safe and the right choice for a bedroom. Never run mains-voltage strip anywhere within reach. A few meters of warm strip needs only a small 20–30W driver.

How do I make the under-bed light turn on automatically?

Add a PIR motion sensor with a light-level (LUX) setting. It ignores you in daylight and switches the strip on when it senses movement after dark, then fades off automatically after 30–60 seconds. Wireless battery sensors mean no wiring along the frame.

How bright should under-bed lighting be?

Keep it very dim — just enough to see where your feet land, roughly 20–50 lux on the floor at warm 2700K. The goal is a calm night-light, not room illumination; bright light wakes you and defeats the purpose.

Does under-bed LED lighting work on any bed frame?

Yes. Mount the strip on a diffused batten along the bottom plinth for platform, divan and metal-frame beds. On solid ottoman bases, attach the strip to a slim external strip under the overhang so it faces the floor.
