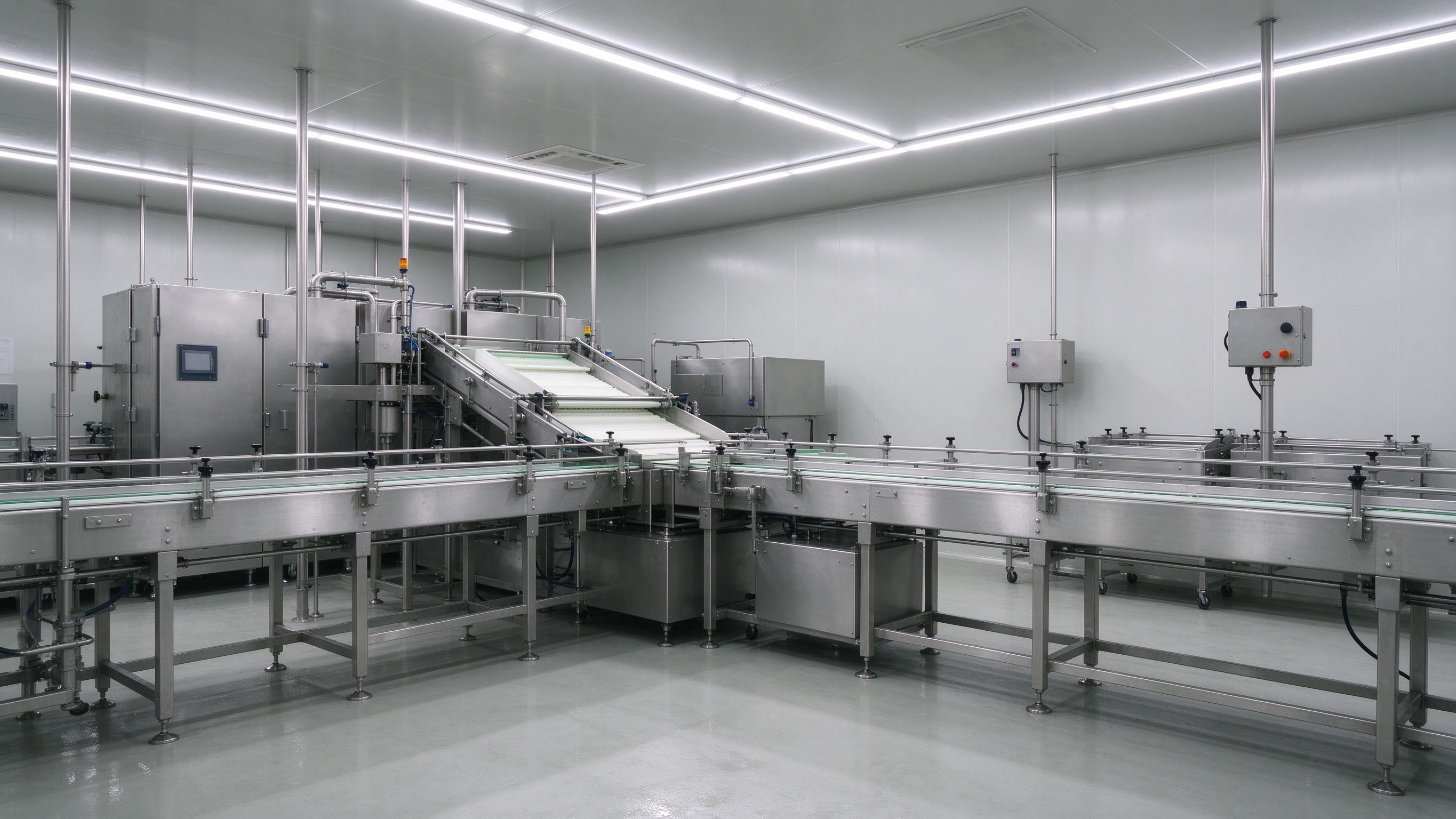

LED Strip Lighting for Food Processing Plants: Washdown-Safe Setup

Lighting Tied to Hygiene and Washdown

Production and packing areas are hosed and sanitised on a schedule, so every fixture needs a sealed smooth surface that sheds water and cleaner with no ledges or open channels that trap food residue.

The light also supports hygiene work, bright even neutral light helps staff inspect product and spot contamination, and accurate colour helps judge food quality. Reliability matters because failed fixtures over a line mean downtime.

Sealed IP-Rated Strips for Washdown Zones

I use fully sealed strips and fittings rated for the washdown area, with waterproof connections and no exposed joins, mounted flush or sealed against the ceiling or canopy so water runs off rather than pooling.

Hold these washdown points:

• Fully sealed IP-rated strips suited to pressure washing.
• Smooth fittings with no crevices that trap residue.
• Waterproof connections at every join in wet zones.
• Flush mounting so water and cleaner run off the fixture.

Production Lines, Packing and Inspection Points

Over the production line I provide even light along the full run, with brighter high-CRI light at the packing and inspection stations where product quality and detail are checked.

Cold and chilled processing areas need sealed fittings that handle the cold and condensation, similar to cold storage, while dry packing zones can use a slightly lower rating but still sealed, easy-clean fixtures.

Color Temperature, Flicker and Safety

A neutral white around 4000-5000K keeps the work area alert and shows food colours accurately, with flicker-free drivers so staff doing repetitive close inspection don't fatigue.

Emergency and safety lighting, wet-area protection and properly rated gear support a space where floors are wet and machinery runs, and sealed fittings protect both the strips and the washdown process.

Drivers, Maintenance and Keeping the Line Running

Keep drivers in protected accessible enclosures away from direct washdown, run production, packing and chilled zones on separate circuits, and use long-life sealed strips to cut maintenance that would stop a line.

Get the sealing right for the cleaning regime and the light bright and accurate for inspection, and the plant lighting supports hygiene and keeps production running with minimal downtime.

Recommended Products

Waterproof Silicon Extrusion LED Strip ART-5050SE-60-X-12/24

A strong primary match for this setup, chosen for the specific demands of the topic above.

IP67 Silicone Extrusion COB LED Strip 480 LED 8mm

A complementary option that covers the secondary needs discussed in this guide.

IP68 TPU Extrusion LED Strip ART-TP1010-IP68

A reliable supporting product to round out the project and keep the install consistent.

Frequently Asked Questions

What lighting is used in food processing plants?

Fully sealed IP-rated strips in smooth wipeable fittings that survive pressure washing with no crevices trapping residue, giving bright even neutral light for hygiene inspection. The lighting is treated as part of the hygiene system.

What IP rating do washdown area lights need?

A high sealed rating suited to pressure washing and sanitising, with waterproof connections and flush mounting so water runs off. The exact rating depends on how directly and heavily the zone is hosed.

How do you light food inspection and packing stations?

With brighter high-CRI neutral light at the points where product quality and detail are checked, while the general line gets even coverage. Accurate colour helps staff judge food and spot contamination.

Can LED strips handle chilled food areas?

Yes, with sealed fittings rated for cold and condensation, like cold storage lighting. LEDs also start instantly and like the cold, while the sealing protects against the damp chilled environment.

Where do food plant light drivers go?

In protected accessible enclosures away from direct washdown, rather than exposed over the line. Keeping them protected and accessible supports maintenance without stopping production.
