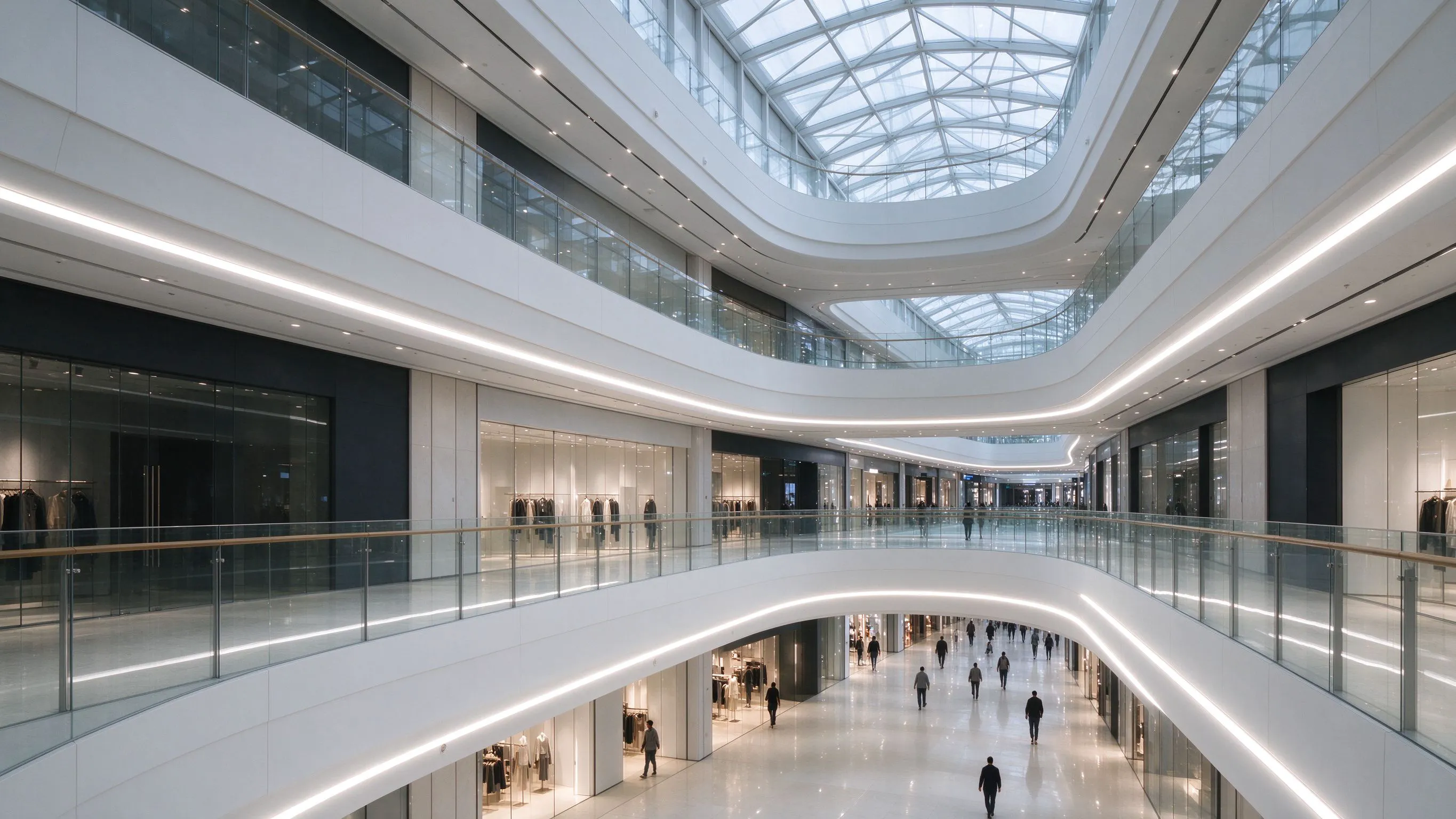

Mall Kiosk & Atrium LED Strip Lighting: Long, Bright Runs on 48V With No Dark Patches
- 2026-09-30 17:37
- /
- Arraystar LED
Mall kiosks and atrium fascias run long, bright and usually off a single limited outlet - a combination that exposes the two classic failures of long LED runs: voltage drop dimming the far end, and a pile of bulky power supplies the mall won't let you hide. Design it as a 48V long-run system from the start: ultra-long 48V strip for continuous fascia brightness, one or two large waterproof drivers in a permitted location, and slim curved profiles that follow rounded kiosk edges. Get the architecture right and a 20-meter run looks as bright at the end as the start.
The Kiosk Lighting Problem Is Distance and Power Access
A freestanding mall kiosk or an atrium-edge retail fascia is a tough lighting brief. The lit run can wrap 10-25 meters around a cart or along a balustrade, the whole unit often has just one or two power outlets, and mall management restricts where you can place drivers and how visible cabling can be.
On conventional 12V/24V strip, that length means obvious voltage drop - bright near the driver, fading to dim at the far corner - plus repeated power injection and multiple plug packs that clutter the kiosk. The clean solution most retail fit-out companies now use is a higher-voltage long-run architecture.
Why 48V Long-Run Strip Solves the Fascia
Power is voltage times current. At 48V instead of 24V, the same wattage draws half the current, which means dramatically less voltage drop over a given wire length and far longer runs before you need to re-inject power. For a kiosk that wraps its perimeter, that's the difference between one clean run and a patchwork of feeds.
48V ultra-long 2835 strip in the 10mm width is purpose-built for these continuous retail runs - many meters of even brightness from minimal feed points, in a slim footprint that tucks into fascia channels. It stays SELV (safety extra-low voltage, under 60V DC), so it's safe for public-facing retail while giving you the run length you need.
Why higher voltage simplifies long retail runs.
| Run length (typical) | 12/24V approach | 48V long-run approach |
|---|---|---|
| Up to 5m | Single feed fine | Single feed fine |
| 5-10m | Feed both ends / inject | Single feed usually enough |
| 10-20m | Multiple injection points | One to two feeds, even output |
| 20m+ wrap | Many drivers, visible cabling | Minimal feeds, clean fascia |
Powering the Whole Kiosk From One Hidden Point
Malls don't want a row of adapters strapped to your kiosk. Consolidate onto one or two high-quality drivers located in a permitted, ventilated service cavity (often the kiosk's base or a locked utility panel), sized with headroom for the full run.
A 500W waterproof driver can feed an entire kiosk fascia and its internal shelf lighting from a single hidden, code-safe location, which keeps the visible install clean and gives you one reliable connection to the mall outlet. Waterproofing also protects against the cleaning crews who pressure-wipe kiosks overnight. Confirm the driver's dimensions fit your service cavity before you commit to the kiosk build.
Curved Edges and the Right Slim Profile
Most modern kiosks and atrium carts are curved or faceted, not straight boxes, so a rigid deep channel won't follow the fascia. You need a slim, bend-tolerant profile with a curved or rounded diffuser that hugs rounded corners and angled facets without visible joints.
The R1706 slim profile with a curved diffuser is made for these rounded retail edges - narrow enough to disappear into the fascia lip, flexible enough to follow curves, and its rounded lens throws a smooth even glow around corners rather than a flat beam that drops off at each angle. Pair it with bendable or free-cut strip where the fascia turns tightly.
Brightness, Mall Rules and Reliability
- Check the mall's brightness and color-temperature guidelines before specifying - many cap fascia luminance.
- Keep the kiosk brand color consistent; use white for visibility and reserve color for logo accents.
- Specify flicker-free drivers - kiosks are filmed constantly for social and mall promotions.
- Use accessible connectors so maintenance can swap a section without dismantling the fascia.
- Plan the run so the driver sits at the midpoint, feeding both directions to minimize drop.
Recommended Products
Frequently Asked Questions
How do I stop LED strip dimming at the far end of a long kiosk run?
Use a 48V long-run strip instead of 12/24V - at 48V the current (and therefore voltage drop) is roughly halved, so runs of 10-20 meters stay even with minimal power injection. Also size the driver with headroom, place it near the run midpoint feeding both directions, and use adequately sized connecting wire.
What is the longest LED strip run without voltage drop?
It depends on voltage, LED density and wire, but 12/24V strips typically need re-feeding every 5-10 meters, whereas 48V ultra-long strip can run 10-20+ meters evenly from one or two feeds. For a wrapping kiosk fascia, 48V is the practical choice and still stays within safe SELV voltage limits.
How do I hide LED drivers on a mall kiosk?
Consolidate onto one or two larger drivers (such as a 500W waterproof unit) mounted in a permitted, ventilated service cavity in the kiosk base or a locked utility panel, rather than strapping adapters around the fascia. Confirm dimensions with the kiosk builder and keep the single mall outlet connection accessible.
How do I put LED strips around a curved or rounded kiosk edge?
Use bendable or free-cut strip inside a slim flexible profile with a curved diffuser, like the R1706, which hugs rounded corners and angled facets without visible joints and throws an even glow around the curves. Rigid deep channels can't follow rounded kiosk geometry and leave dark points at each turn.
Are 48V LED strips safe in a public retail kiosk?
Yes. 48V DC is within SELV (safety extra-low voltage, under 60V DC) limits, so it's safe for public-facing installations while still giving long-run benefits. Use properly rated waterproof drivers and connectors, follow the mall's electrical guidelines, and keep mains wiring confined to the licensed service connection.
