Understanding LED Strip Voltage Drop: Causes, Effects, and Solutions
- 2026-09-09 15:42
- /
- Arraystar
Quick Answer
Voltage drop in LED strips is caused by electrical resistance in copper PCB traces, resulting in lower voltage and brightness at the far end of long runs. Solutions: use higher voltage strips (24V/48V), thicker copper PCB (2oz/3oz), limit run length, and use power injection at both ends or intermediate points.
What Causes Voltage Drop?
Voltage drop is caused by electrical resistance in any conductor. In LED strips, copper traces carry current from the power supply to each LED. As current flows, resistance causes voltage drop—by the far end, voltage may be significantly lower. Governed by Ohm's Law: V = I x R. Factors: strip length, current draw, copper thickness, number of parallel paths.
Effects of Voltage Drop
1) Dimmer light at the far end. 2) Color shift (warmer/yellow at the end). 3) Uneven illumination. 4) Reduced lifespan from uneven current distribution. 5) Flicker in severe cases combined with poor drivers.
How to Calculate Voltage Drop
Step 1: Determine wattage per meter. Step 2: Calculate total current: I = (W/m x length) / voltage. Step 3: Estimate resistance (1oz copper ~0.05 ohms/m). Step 4: V_drop = I x R_total. Step 5: If V_drop > 5% of rated voltage, need power injection. Example: 5m 14.4W/m 12V: I=6A, V_drop=0.75V=6.25% (borderline).
Solution 1: Use Higher Voltage
Most effective solution. 24V carries half the current of 12V for same wattage, ~75% less voltage drop. 48V carries 1/4 current, ~94% less drop. For runs over 5m: use 24V. For runs over 10m: use 48V or high-voltage strips.
Solution 2: Power Injection
Power injection connects power at multiple points along the strip. Methods: 1) Both-end injection (halves max distance, ~75% less drop). 2) Intermediate injection (every 5-10m for very long runs). 3) T-connection (central feed, current flows both directions). Ensure power supply handles total wattage.
Voltage Drop Prevention Checklist
| Factor | Option A | Option B |
|---|---|---|
| Brightness | Medium-High | High |
| Efficiency | Good | Excellent |
| Cost | Lower | Higher |
| Best For | General applications | Premium installations |
Recommended Products
Black Housing Top Bend LED Neon Strip ART-NS1212-B
Black Housing Top Bend Neon Strip CCT/Color Voltage Power(W/M) LED Type LED Qty/m Cut Size Pixels/M IP Rating CRI Lumen(lm/M) ART-NS1212-B 1800K, 2700K, 3000K, 4000K, 6000K 12V DC 12W/M 2835

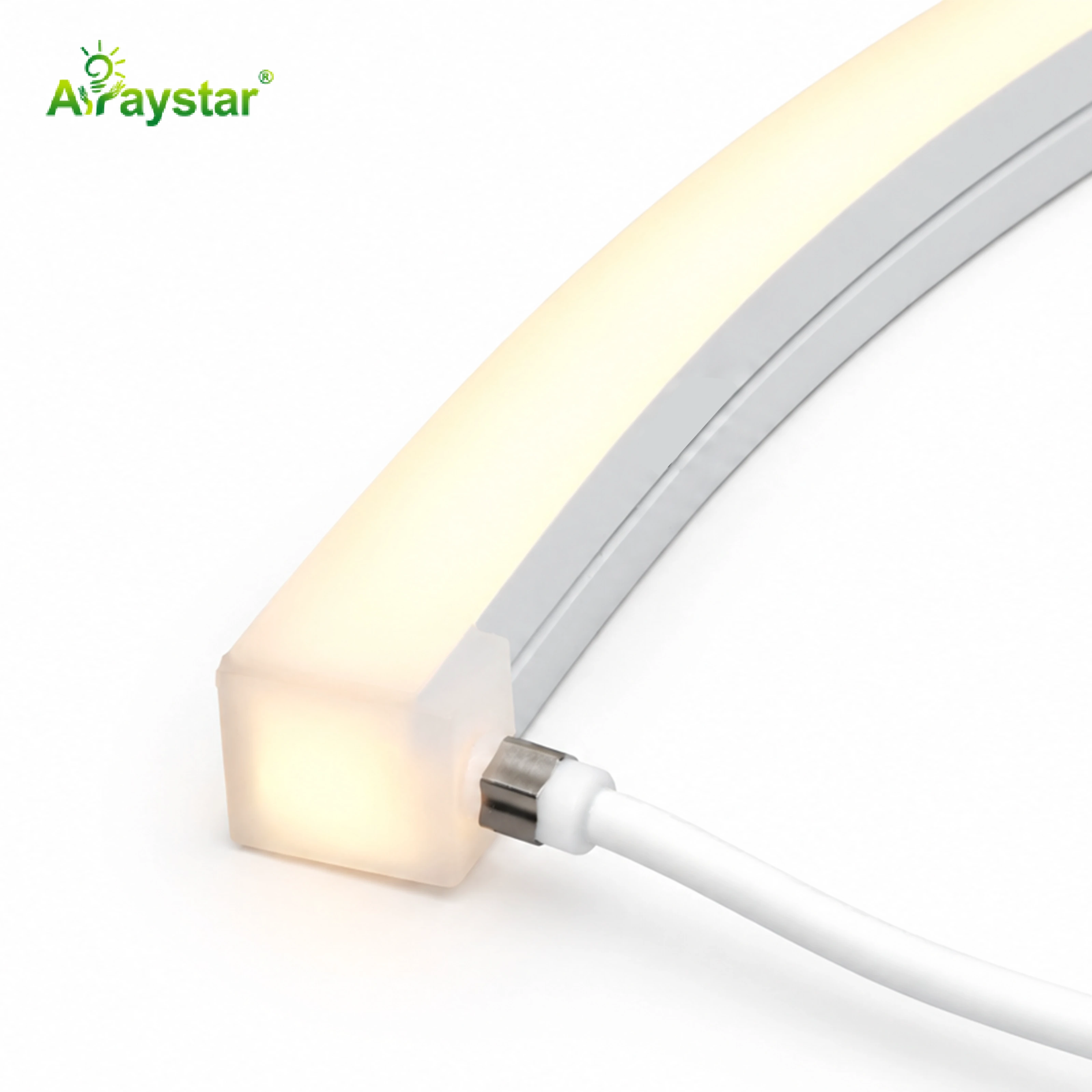

Horizontal Bending Neon Flex ART-NS1616
