LED Strip Lighting for Art Galleries: High-CRI Wall Washing Setup

What Gallery Lighting Has to Protect

Gallery light has to do two careful things at once: reveal work accurately and not damage it. LEDs are a good fit because they emit almost no UV and very little heat compared with halogen, which matters for fragile paint, textiles and works on paper that fade or dry out under hot lamps.

That still leaves color accuracy and glare to solve. The light itself should stay discreet and unobtrusive, letting visitors focus on the pieces rather than the fixtures, and the system should be flexible enough to re-light a new exhibition without a full refit.

High CRI and Accurate Color on the Walls

Color is everything in a gallery, so I use CRI 95 or higher strips on the wall-washing runs, because at CRI 80 a painting simply isn't shown in its true colors. Neutral light around 3000-4000K keeps white walls clean without a cold cast.

Keep these color points in mind:

• CRI 95 or higher for work where color fidelity matters.
• Neutral 3000-4000K that flatters both warm and cool pieces.
• Consistent light across a wall so works don't read differently.
• Test the strips against actual work before committing to a run.

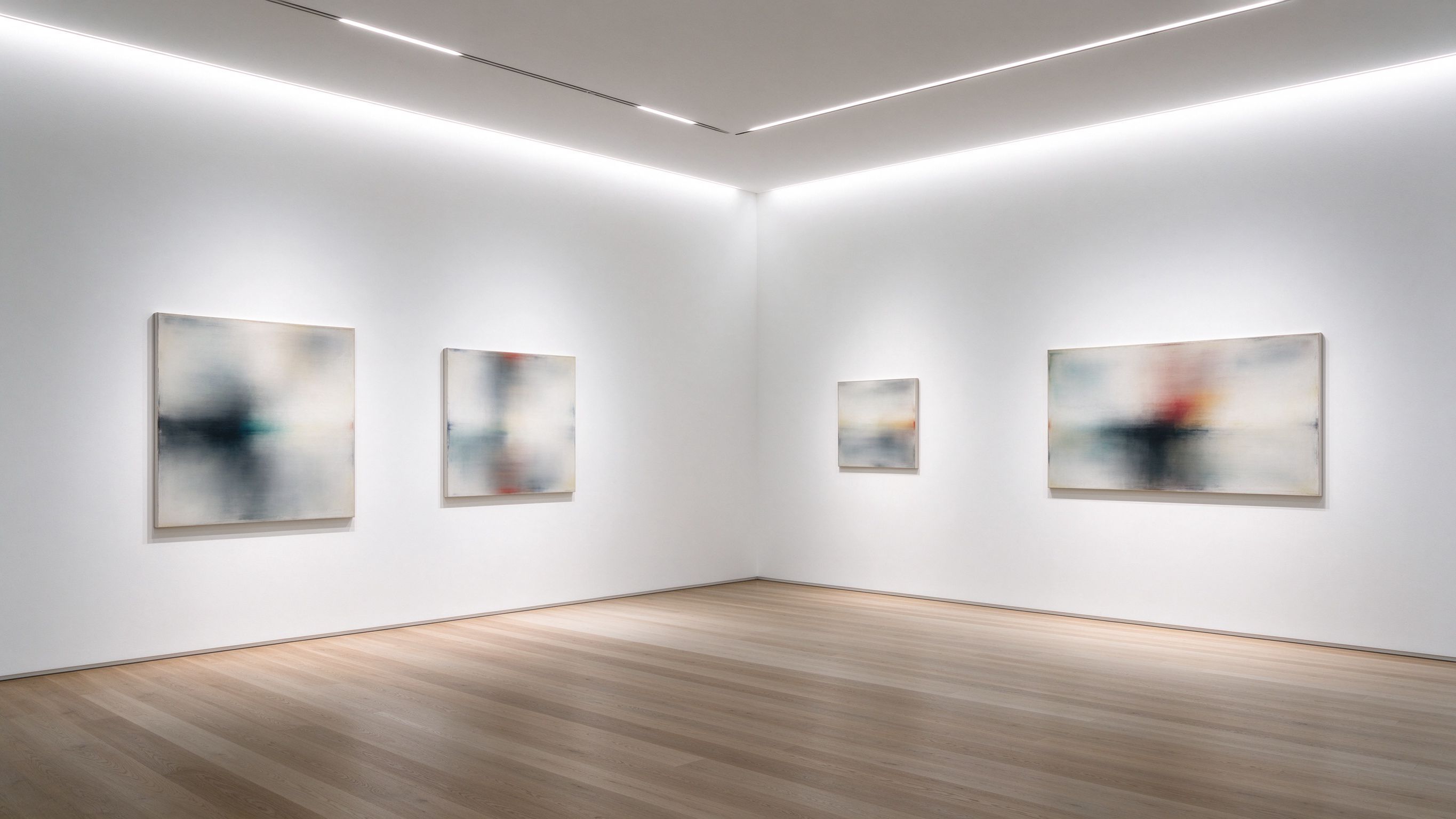

Wall Washing, Accent Light and Avoiding Glare

I wall-wash the hanging walls with continuous strips to give smooth even coverage, then add adjustable accent light for individual standout pieces. The aim is a controlled gradient that lights the work without spilling glare onto glossy varnish or the glass over framed pieces.

Glare is the most common gallery complaint, and it's solved by angling the light and using shielding so the source isn't reflected in glass from a visitor's normal viewing position. Walk each wall at standing height to check there's no angle where a piece disappears behind a reflection.

Sculpture, Vitrines and Flexible Exhibition Layouts

Sculpture and 3D work want light from more than one angle to model form rather than flatten it, while vitrines need small sealed strips inside the case that add no heat and don't reflect off the glass.

Because galleries rehang often, I keep accent tracks and strip runs flexible with accessible connections rather than fixed to one layout, so a new show can be relit quickly. Plinth and freestanding work can take low-level strips that define the piece without lighting the whole room.

Drivers, Dimming and Conservation-Friendly Control

Keep drivers low-ripple and dimmable, because conservation often wants lower light levels on sensitive material and quiet scenes for different rooms. Flicker-free light also matters for documenting and filming work.

Run different rooms and walls on controllable zones so light levels can match the sensitivity of what's hanging, and keep gear accessible and away from the art itself. Get the color accurate, the glare controlled and the heat and UV out, and the lighting protects the collection while showing it exactly as the artist intended.

Recommended Products

Top Bend Flex Wall Washer Strip ART-WL1207-48-X-24

A strong primary match for this setup, chosen for the specific demands of the topic above.

IP65 IP67 Anti-glare LED Strip 20*10mm

A complementary option that covers the secondary needs discussed in this guide.

High Efficiency & Brightness COB LED Strip Light 616 LED/s 12mm

A reliable supporting product to round out the project and keep the install consistent.

Frequently Asked Questions

What CRI do art gallery lights need?

CRI 95 or higher on the wall-washing runs, because lower CRI shifts a painting's colors and doesn't show the work accurately. CRI 90 is a minimum, but pieces where exact color matters benefit from 95 and above.

Are LED strips safe for artwork?

Yes, LEDs emit almost no UV and very little heat, which is why they've replaced halogen for protecting paint, textiles and works on paper that fade or dry out under hot lamps. The drivers and strips should still be kept away from direct contact with sensitive pieces.

How do you stop glare on framed art under glass?

Angle and shield the light so the source isn't reflected in the glass from a normal viewing position, and walk each wall at standing height to check. Glare off glass and glossy varnish is the most common gallery complaint and is controlled by fixture angle.

What color temperature is best for an art gallery?

Neutral light around 3000-4000K keeps white walls clean without a cold cast and flatters both warm and cool work. The exact setting should be tested against the actual pieces, and sensitive material can run at lower levels.

How do you light sculpture and gallery vitrines?

Light sculpture from more than one angle to model its form, and use small sealed strips inside vitrines that add no heat and don't reflect off the glass. Flexible tracks and accessible connections let the gallery re-light new exhibitions quickly.
