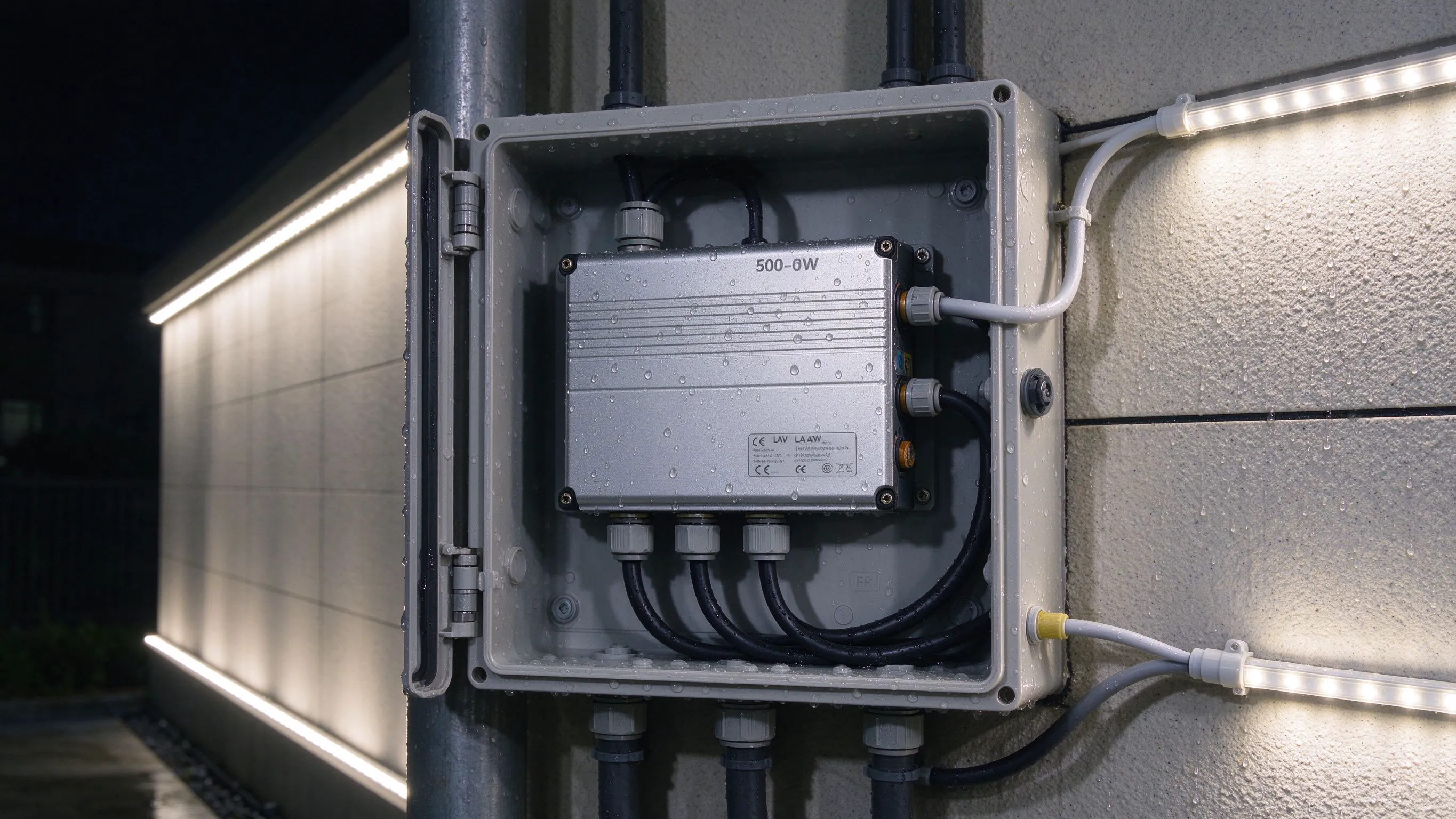

500W Waterproof LED Drivers for Large Outdoor Projects

Powering Long Outdoor Runs Is Different

An indoor feature may use several small drivers tucked into ceiling voids, but exterior projects, facade outlines, landscape neon, architectural coves and signage, run many metres of strip in weather-exposed locations where dozens of small indoor supplies are impractical, unprotected and create too many points of failure.

These jobs call for a few large, genuinely waterproof drivers that can each feed a long run from a protected location, with a high wattage such as 500W and an IP rating suited to outdoor mounting.

What a 500W Waterproof Driver Provides

• High 500W output to consolidate long exterior runs.
• IP-rated waterproof enclosure for outdoor mounting.
• Fewer outdoor power points and fewer failure points.
• Constant-voltage supply for long strip and neon runs.
• Built-in protection against overvoltage, overload and heat.

For large exterior installations I use the 500W waterproof driver, sized with derating headroom so it is not running flat out in summer heat.

Small Indoor Drivers vs One Large Outdoor Supply

Consolidate exterior runs onto rated high-wattage supplies.

Where 500W Waterproof Supplies Are Specified

• Building facade outlines and architectural cove lighting.
• Landscape and garden neon, paths and perimeter runs.
• Large exterior signage and channel-letter systems.
• Car parks, bridges and public-realm linear lighting.
• Hospitality terraces and outdoor hospitality structures.

Derating: Never Run a Driver at Its Limit Outdoors

The rule I apply without exception is to derate outdoor drivers, loading a 500W supply to roughly 75-80 percent of its rating rather than its maximum. Heat is the enemy of electronics, and a sealed waterproof driver in a hot enclosure running at full wattage runs hot and fails early. Derating extends life, accommodates voltage sag on long lines and leaves margin for the occasional hotter-than-designed day. I calculate strip wattage per metre, total the run, and select the driver with headroom rather than matching wattage exactly.

• Total strip wattage, then select the driver above it with headroom.
• Load to roughly 75-80 percent of rating for outdoor duty.
• Account for heat inside sealed enclosures and summer peaks.
• Allow margin for voltage drop on long feed lines.

Voltage Drop, Injection and Long-Run Layout

Even a 500W driver cannot push power unlimited distance along a thin strip; voltage drop still dims the far end of very long runs. I favour 24V over 12V for long exterior lines, use adequately sized feed cables, split long runs into parallel feeds from the driver rather than one endless daisy chain, and inject power at intervals. The driver's high wattage makes consolidation possible, but the physical layout still has to respect voltage drop, which I calculate rather than eyeballing.

IP Rating, Enclosure and Connection Protection

A waterproof driver is only as protected as its connections. I mount it in a ventilated, sheltered location or rated enclosure, use waterproof glands and connectors rated for the environment, maintain drainage so the supply is not sitting in pooled water, and provide surge protection on exposed exterior circuits. An IP67 driver with an unsealed cable entry is not actually waterproof in practice, so I treat connection integrity as part of the specification rather than trusting the enclosure rating alone.

Specifying a Large Outdoor Power Layout

Send the total exterior run length, strip wattage and voltage per metre, run geometry, mounting locations and environmental exposure. I will calculate total load with derating, confirm the number of 500W waterproof drivers, feed splitting and injection points, and advise on enclosures and surge protection. We supply the 500W waterproof driver and recommend a load and thermal review before installation so no supply is run at its limit in the field.

Planning Power Distribution for a Building Facade Outline

A commercial building was to be outlined in warm-white neon and strip along all four roof edges and down two corner columns, a continuous run that on paper totalled well over a kilowatt of LED. The architect's first concept showed a single large supply in the roof plant room feeding the whole outline, which would have simplified the equipment list but created two serious problems: extremely long feed cables with severe voltage drop, and a single point of failure that could black out the entire facade.

We redesigned the distribution around a small number of 500W waterproof drivers, each loaded to roughly seventy-five percent and placed locally to the section it fed. The roof edges were split into four zones, one per side, and the two columns each took a parallel feed, so the longest low-voltage cable run stayed short enough that calculated voltage drop remained within tolerance and the far end of each section matched the near end in brightness. Using 24V product throughout reduced the current and cable size compared with 12V. Each driver went into a ventilated weatherproof cabinet with waterproof glands, drainage and a surge protector, because the building was exposed on an elevated site. The derating proved its value in the first summer, when thermal measurements showed the cabinets running warm but the drivers comfortably within limits; supplies run at full wattage in those same cabinets would have been stressed. The distributed layout also delivered fault isolation the single-supply design lacked, when a damaged section on one column later took only that column offline while the rest of the outline continued. The project illustrates the discipline I apply to every large exterior job: consolidate enough to keep the equipment count sensible, but distribute and derate so voltage drop, heat and single-point failure never compromise the whole facade, treating power layout as an engineering design rather than a matter of buying the biggest supply available.

Recommended Products

500W LED Waterproof Power Supply

This 500W waterproof power supply consolidates long outdoor runs into one IP-rated driver with room for thermal derating.

Frequently Asked Questions

What is a 500W waterproof LED driver used for?

It is a high-wattage, IP-rated constant-voltage power supply for feeding long exterior runs of LED strip or neon from a few centralised, weather-protected points, such as facades, landscape lighting, signage and public-realm runs. It replaces many small indoor drivers that are unsuitable and unprotected outdoors.

Should I run a 500W outdoor driver at full wattage?

No. Derate it by loading to roughly 75-80 percent of rating for outdoor duty, because a sealed driver in a hot enclosure running at maximum wattage overheats and fails early. Derating extends life, handles summer heat peaks and leaves margin for voltage sag; calculate total strip wattage and select the supply above it rather than matching exactly.

Will a 500W driver fix dimming at the far end of a long run?

Not by itself; high wattage does not eliminate voltage drop along the strip. Prefer 24V over 12V for long exterior lines, use adequately sized feed cables, split long runs into parallel feeds instead of one daisy chain and inject power at intervals. Calculate the voltage drop rather than assuming a bigger driver solves it.

Does an IP67 driver need any additional protection?

Yes. The enclosure rating only holds if cable entries are sealed with waterproof glands and connectors, the supply is mounted in a sheltered or rated ventilated enclosure with drainage so it never sits in pooled water, and exposed exterior circuits have surge protection. An IP67 driver with unsealed connections is not truly waterproof in practice.

How many 500W drivers does a large outdoor project need?

Total the strip wattage per metre across all runs, add derating headroom so each supply runs at roughly 75-80 percent, then divide the load across drivers while splitting long runs into parallel feeds with injection. Send your run lengths, wattage per metre, voltage, geometry and exposure, and the number and layout of drivers can be calculated rather than guessed.
