Flexible Stainless-Steel Channels for Curved Neon Signs

The Problem With Fixing Neon to Curves

LED neon flex is sold for curves, but the reality of mounting it is harder than the product suggests. Clips placed one by one along a sweeping logo or facade line are slow, leave the neon floating unevenly between fixings, and produce the wavy, amateur look that distinguishes a hand-fixed sign from a professional one.

A continuous flexible channel solves the mounting problem: a bendable track that follows the curve once and holds the neon securely along its entire length in a clean, uniform line.

What the Flexible Stainless-Steel Channel Does

• Bends by hand to follow curved logos, letters and facades.
• Continuous track retains neon evenly, no wavy clip gaps.
• Stainless steel resists corrosion indoors and outdoors.
• Creates a neat, professional, repeatable line.
• Supplied in bulk lengths for large sign runs.

For curved neon signs I use the flexible stainless-steel channel (ART-6025/6030). It turns free-form curves into a track I can fix once and seat the neon into cleanly.

Individual Clips vs Continuous Flexible Channel

Curved neon needs a continuous flexible track, not discrete clips.

Where Flexible Stainless Channels Are Used

• Curved and script-style neon logos and lettering.
• Sweeping facade and architectural outline lighting.
• Circular, arched and free-form sign shapes.
• Restaurant, bar and retail feature signage.
• Outdoor curved neon where corrosion resistance matters.

Bending and Fixing the Channel to a Curve

I form the channel to a printed or marked template of the curve rather than bending freehand against the wall, because a template keeps radii consistent and the line true. Stainless flexes by hand but holds its shape, so I work the curve gradually, avoid forcing a radius tighter than the neon's own bend limit, and fix the track at close enough intervals to hold it flat before seating the neon. Trying to bend neon and channel together on the wall is the common shortcut that produces distortion.

• Make a full-size template of the curve or letterform.
• Form the channel to the template, working gradually.
• Respect the neon's minimum bend radius.
• Fix the track securely and flat before seating neon.

Matching Channel Size to the Neon

The channel must match the neon cross-section, which is why the 6025 and 6030 profiles correspond to specific neon dimensions. A channel that is too tight will not seat the neon or pinches it, while one that is too loose lets it shift and ruins the clean line. I confirm neon size against the channel specification and test a short sample before committing a whole sign, especially where the neon also carries a diffuser or sleeve.

Outdoor Durability and Stainless Steel

Stainless steel is specified for curved exterior neon because it does not rust where plated steel clips would stain a facade over time, and it tolerates the thermal movement of neon heating and cooling outdoors. I still use exterior-rated neon and sealed connections, and I fix the channel with compatible fasteners to avoid galvanic corrosion against dissimilar metals; the channel provides the mechanical and corrosion-resistant backbone, while the neon's own IP rating provides the weather sealing.

Specifying Curved Neon Mounting

Send the neon model and cross-section, the curve radii and total length, indoor or outdoor use, and the substrate. I will confirm the 6025 or 6030 channel fit, bulk length required, bend limits and fixing approach. We supply the flexible stainless channel in bulk and recommend forming and test-seating a sample curve before fabricating the full sign, so fit and radius are proven before installation.

Fabricating a Script-Style Restaurant Logo in Curved Neon

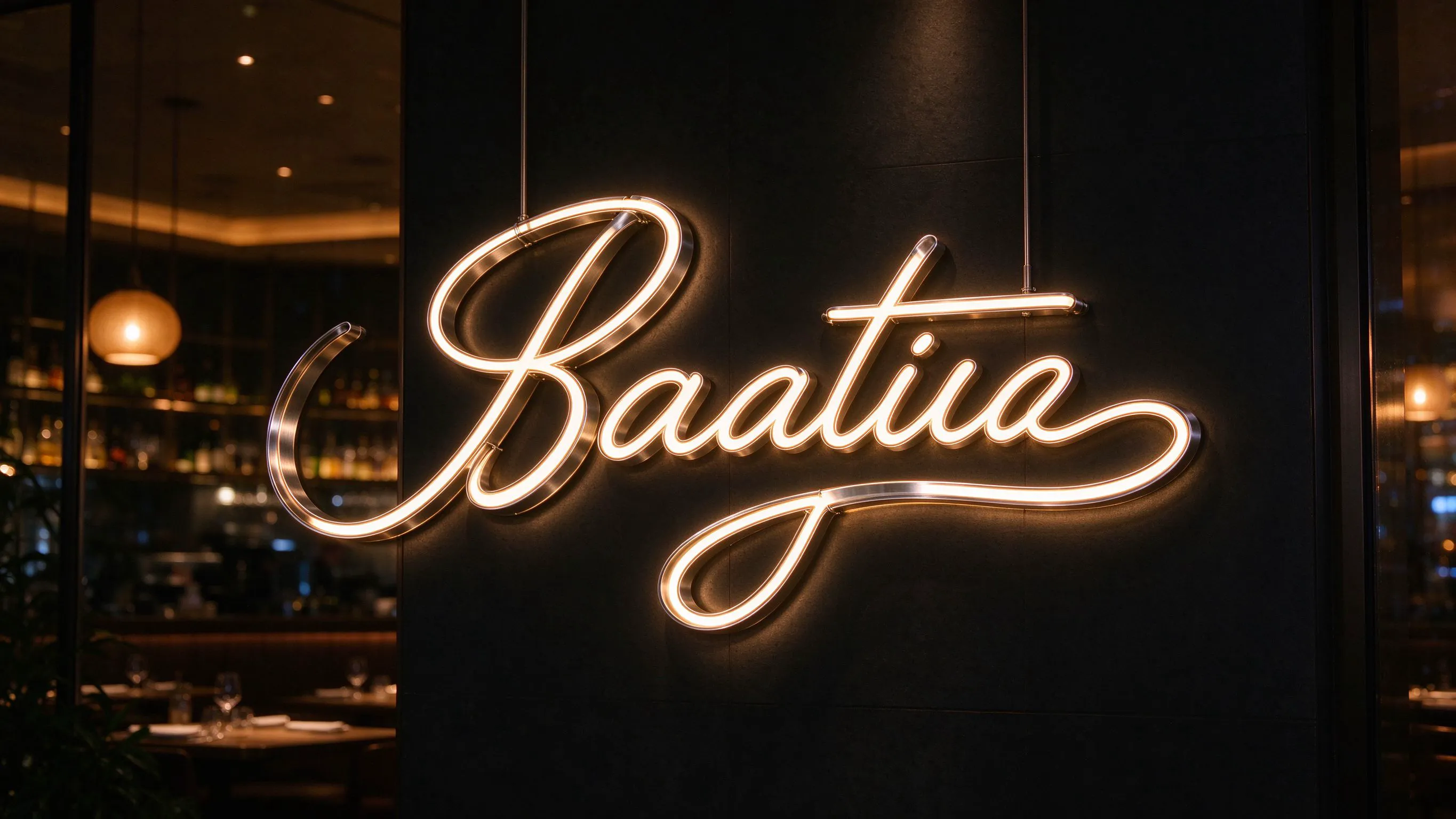

A restaurant wanted its flowing script logo reproduced in warm neon across a dark feature wall, with sweeping ascenders and a continuous underline curve. The sign maker's first instinct was to fix the neon with individual clips every few hundred millimetres, the method used for straight runs, but a dry layout on the bench showed the clips left the thin letterforms wavering between fixings, and on flowing script even a two-millimetre deviation read as a shaky, hand-drawn wobble under the tight inspection a logo receives.

We switched the whole sign to the flexible stainless-steel channel, formed on a full-size printed plot of the logo. The fabricator bent the channel to the template section by section, working the tightest ascenders carefully and rejecting one piece where a curve had been forced inside the neon's minimum radius and begun to kink. Once the stainless track matched the plotted line, it was fixed to the back panel at close intervals so it sat perfectly flat, and the neon was then seated into a continuous groove that held it true along every stroke. The difference against the clipped mock-up was immediate: the underline swept as one flawless curve and the thin script held its designed geometry with no floating or wavy sections. Because the wall was near the entrance and exposed to occasional moisture when the door opened, the stainless channel's corrosion resistance mattered where ordinary plated clips would eventually spot. The bulk 50-metre pack also meant the entire multi-stroke sign used consistent track with no joins in the middle of visible curves. The job became the sign maker's standard for script work: template-form the flexible channel, respect the bend radius, fix it flat, then seat the neon, rather than trying to force a continuous elegant line out of discrete clips that were never designed to control a curve.

Recommended Products

ART-6025 / ART-6030 Stainless Steel Flexible Mounting Clips / Profile Channel for LED Strips, 50m/Carton Bulk Pack

This flexible stainless-steel channel bends by hand to follow curved logos and facades while securely retaining neon.

Frequently Asked Questions

What is a flexible stainless-steel neon channel?

It is a bendable stainless-steel track that curves by hand to follow a logo, letter or facade line and continuously retains LED neon flex along its length, giving a smooth, even, professional curve instead of the wavy gaps produced by fixing individual clips. Stainless steel also resists corrosion for outdoor use.

Why use a channel instead of individual neon clips?

Discrete clips leave the neon floating unevenly between fixings, which looks wavy on curves, and they are slow to install one by one. A continuous flexible channel is bent to the curve once and holds the neon uniformly along the whole line, producing a repeatable professional result much faster on sweeping logos and facades.

How tight a curve can I bend the channel and neon?

Never exceed the neon flex's own minimum bend radius, regardless of how easily the channel bends, because the neon itself can be damaged or show hotspots on too tight a curve. Form the channel gradually to a full-size template, keep radii consistent and test a sample curve rather than forcing tight bends freehand on the wall.

How do I choose between the 6025 and 6030 channel?

Match the channel to the neon cross-section; the two profiles fit specific neon dimensions. A channel that is too tight pinches or will not seat the neon, and one that is too loose lets it shift and spoil the line. Confirm the neon model against the channel specification and test-seat a short sample, especially if the neon has a diffuser or sleeve.

Is stainless channel suitable for outdoor curved neon?

Yes, stainless steel is chosen specifically because it resists rust and staining where plated clips would corrode on a facade, and it tolerates the neon's thermal movement. Still use exterior-rated neon with sealed connections and compatible fasteners to avoid galvanic corrosion; the channel provides the mechanical and corrosion-resistant backbone while the neon's IP rating provides weather sealing.
