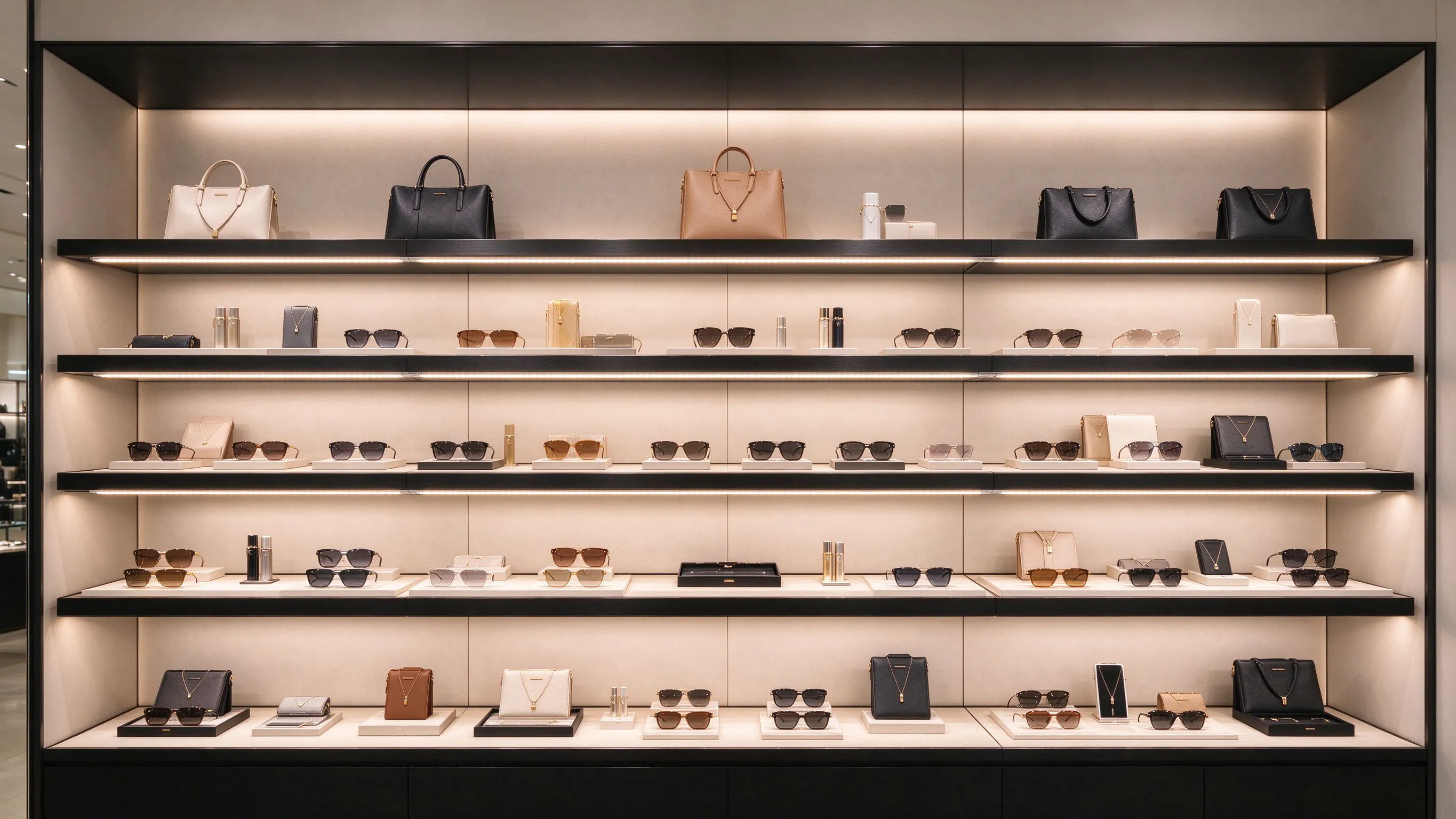

960mm Rigid LED Bars for Long Display Shelves and Cases

Why Flexible Strip Struggles on Long Shelves

Flexible strip is versatile, but stuck along a long shelf it relies entirely on the surface beneath it for straightness. Any slight unevenness in the shelf, a minor bow in the backing or imperfect hand alignment translates into a visibly wavy line, and joining many short flexible pieces end to end produces inconsistent joints and brightness steps across a display run.

Rigid bars solve the geometry. A hard aluminium or PCB bar holds the LEDs in a dead-straight line at fixed spacing and is engineered to link end to end, so a long shelf becomes a row of consistent, repeatable fixtures rather than a hand-applied strip.

What the 960mm Constant-Voltage Rigid Bar Offers

• 960mm hard bar stays pin-straight across shelves and cases.
• 24V constant-voltage design for stable long runs.
• End-to-end linking into continuous linear runs.
• Fixed LED spacing for even, repeatable brightness.
• Serviceable fixture that can be replaced section by section.

For long display shelving I use the 960mm rigid bar (ART-FL960-CV-24). Its rigid backbone and end-to-end joining keep the line straight and even over the full run.

Flexible Strip vs Rigid Bar for Shelving

Long straight displays favour rigid bars over flexible strip.

Where 960mm Rigid Bars Are Specified

• Long retail shelving and gondola display lighting.
• Glass display cases, museum and jewellery cabinets.
• Under-cabinet and pantry runs demanding a straight line.
• Bar and bottle-display shelving and feature racking.
• Any metre-plus linear run where wavy strip would show.

Linking Bars End to End Without Dark Gaps

The key to a continuous look is the end-to-end joint. I use the bar's intended connectors so adjacent bars meet with minimal gap, and I plan run lengths around the 960mm module so joints fall consistently rather than being scattered by random cuts. Where a run ends mid-shelf, I cut or fill to a tidy termination rather than leaving a short offcut that creates a noticeable dark section, and I confirm the joining polarity and power feed before fixing a long row.

• Plan shelf runs around the 960mm module length.
• Use purpose end connectors for tight, dark-gap-free joints.
• Terminate run ends tidily rather than leaving short offcuts.
• Confirm polarity and feed direction before fixing.

Voltage Drop and Powering Long Rows

Constant-voltage 24V bars can be chained, but voltage drop still limits how many bars run from a single feed before the far end dims. I calculate the current of the chained run, inject or re-feed at the recommended intervals and favour 24V over 12V for long shelves precisely because it extends the distance between feeds. A display row that dims toward the end is the classic symptom of under-fed rigid bars, and it is solved by power layout rather than more fixtures.

Mounting, Diffusers and Service Access

I mount bars with their clips or channels so a single bar can be unclipped and replaced without disturbing the whole shelf, which matters in retail where a failed section should be a one-minute swap. Where the bars are visible or need softened light, I use a diffused cover or channel, and I keep drivers and connectors accessible above or behind the shelving rather than burying them where servicing requires dismantling the display.

Specifying Rigid Display Lighting

Send the shelf or case lengths, number of levels, desired brightness and colour temperature, and whether diffusers are needed. I will confirm the number of 960mm bars, end connectors, feed and injection points, and driver sizing for an even straight run. We supply the rigid bars and recommend mocking one full shelf level including joints and feeds before fitting out the whole display.

Lighting a Multi-Level Retail Display Wall

A skincare retailer refitting a flagship wanted every shelf of a six-metre, five-level display wall evenly lit so the packaging read crisply and the wall drew customers from across the floor. The initial fit used flexible strip applied directly under each shelf, and within a week the problems were obvious: a few shelves showed gently wavy lines where the strip had followed slightly bowed boards, the brightness stepped where short strip pieces met, and one damaged section meant peeling an entire shelf's strip to repair.

We replaced the approach with 960mm constant-voltage rigid bars, one level at a time, and the difference came from treating each shelf as a planned run of modules rather than a surface to cover with tape. We laid out the six-metre shelves around the 960mm length so joints fell at the same positions on every level, which made the rows visually line up vertically as well as horizontally, and used the purpose end connectors so adjacent bars met with no dark gaps. Because the wall was long, we fed the 24V bars from multiple points rather than chaining an entire level from one end, eliminating the subtle dim toward the far side that the original flexible installation had shown under the shop's bright ambient light. We added low-profile diffused covers because the shelves were at eye level and bare LEDs would have created glare on the glossy packaging, and we mounted the bars with clips so a failed bar on any level could be swapped from below in a minute without emptying the shelf, a serviceability point the store manager specifically requested after the strip rework. The finished wall presented five perfectly straight, evenly bright lines that made the products pop, and the client reported customers approaching the wall more readily. The project is a clean example of why rigid bars are not just a convenience on long shelving: they convert a hand-applied, wavy, hard-to-service strip installation into a modular, repeatable, maintainable lighting system, and the planning effort of laying runs around the module length and feeding them correctly is repaid in both appearance and the speed of any future repair.

Recommended Products

24V Constant Voltage Rigid LED Module Strip – 960×17mm (ART-FL960-CV-24)

This 960mm constant-voltage rigid bar stays pin-straight across long shelves and cases, linking cleanly end to end.

Frequently Asked Questions

What is a 960mm constant-voltage rigid LED bar?

It is a hard, straight linear LED fixture 960mm long running on 24V constant voltage, with fixed LED spacing and end-to-end connectors that link bars into continuous runs. Unlike flexible strip it stays pin-straight independently of the mounting surface and can be replaced section by section, suiting long display shelves and cases.

Why use rigid bars instead of flexible strip on shelves?

Flexible strip follows the surface and can look wavy on a long shelf, with many hand-made joints and inconsistent brightness. A rigid bar is dead straight, repeats fixed spacing and links cleanly end to end, giving an even, professional line over metres and allowing a single failed section to be replaced without reworking the whole run.

How do I join rigid bars without dark gaps?

Use the bar's purpose end connectors so adjacent 960mm bars meet with minimal gap, plan run lengths around the module so joints fall consistently, and terminate run ends tidily instead of leaving short offcuts that read as dark sections. Confirm connector polarity and the power feed direction before fixing a long row.

Why do rigid bars dim toward the end of a long run?

Voltage drop. Even constant-voltage 24V bars have a limit on how many can chain from one feed before the far end dims. Calculate the chained current, re-feed or inject power at the recommended intervals, and prefer 24V over 12V for long shelves because it extends the distance between feeds.

How should rigid display bars be mounted and serviced?

Use clips or a channel so an individual bar unclips and replaces in minutes without disturbing the shelf, add a diffused cover or channel where the fixture is visible or softer light is wanted, and keep drivers and connectors accessible above or behind the shelving rather than buried where servicing means dismantling the display.
