Halo-Lit (Backlit) 3D Letters: LED Modules and Strips for Reverse-Lit Signage

Halo Lighting Sells Through Contrast and Shadow

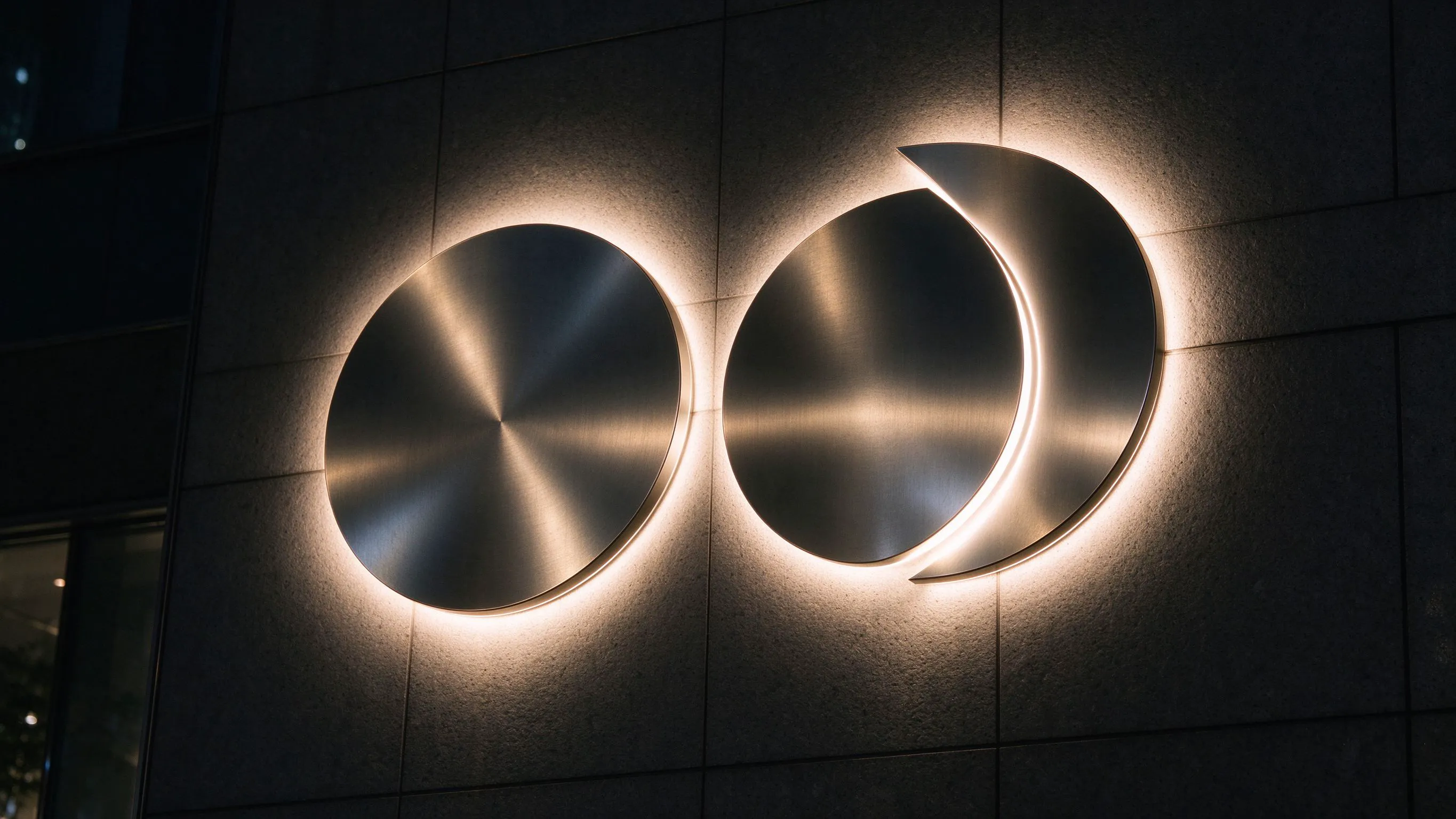

A halo-lit or reverse-lit sign mounts dimensional letters slightly off the wall and lights them from behind, so the light spills around the letter edges onto the wall as a soft halo. The letters often stay dark or metallic while the wall behind glows - an understated, premium effect used by hotels, corporate lobbies and high-end retail precisely because it reads as expensive without being flashy.

The effect isn't produced by a single fancy fixture. It's assembled from small LED modules mounted on the back of each letter, stand-off mounts that create the glow gap, and a central power supply. The craftsmanship variables - stand-off distance, module spacing, wall color and finish - do more for the final look than the brand of module.

LED Modules Are the Engine of Reverse-Lit Letters

Individual compact LED modules are the standard light source for halo letters: small, self-adhesive, low-profile units wired in strings and stuck to the back of each letter or logo, aimed at the wall. A DC12V LED module (2-LED type) is the classic building block - small enough to distribute evenly even inside compact characters.

Space modules uniformly across the back of each letter, with extra attention to wide faces and the center of large characters where the halo would otherwise be thin. The goal is even wall illumination around the entire perimeter of every letter - gapped or uneven module placement is what separates a professional halo from a patchy amateur one.

• Space modules evenly; reinforce the center of large/wide letters.
• Aim light at the wall, not sideways, for a clean halo around edges.
• Wire modules in the recommended series/parallel strings for the voltage.
• Keep wiring hidden through studs or behind the mounting pattern.
• Use warm or neutral white consistently across the whole sign.

Stand-Off, Wall Finish and the Glow Gap

The halo only exists because the letters are held off the wall, and that gap is the main design lever. Too close and the glow is a thin tight outline; too far and light spreads so much it loses definition and spills brightly. Typical stand-off is in the 15-30mm range, tuned to letter size and the desired halo width.

The wall itself is part of the fixture: a matte, light, neutral surface reflects a clean even halo, while glossy, dark or textured walls behave unpredictably (glossy causes reflections and glare; very dark walls absorb the glow and need more light). Confirm the mounting surface early - it's common to add a subtle backer panel when the building wall won't render the halo well.

Waterproof COB for Exterior and Wet-Location Signs

For outdoor halo signs and letters exposed to rain - building fascia, exterior logos - the electronics behind the letters must be sealed. Individual modules come in weather-rated versions, and a slim waterproof COB can supplement or replace them where a continuous sealed glow line is easier than many module connections.

The 4x8mm IP67 480-LEDs/m COB strip is fully sealed and very dense, giving a smooth continuous reverse glow behind exterior letters and logo shapes where you want seamless light rather than discrete module points, with the IP67 rating handling rain and wash-down. Its slim body fits tight letter backs and its high density means even glow at a small stand-off gap.

Powering the Sign Cleanly

All the letters feed from a central low-voltage supply, usually located behind the sign or in a nearby ceiling/void, with mains wiring kept to that single point. Calculate the total module/COB wattage across all letters and size the supply with headroom; a 100W waterproof power supply covers a typical exterior halo sign, or an indoor driver for lobby work.

Halo-lit signage checklist.

Recommended Products

DC12V LED Module 2B

2-LED DC12V module spaces evenly behind small letters for a clean halo glow.

4*8mm IP67 480LEDs/m COB LED Strip

4x8 IP67 COB works behind large halo-lit logos exposed to the weather.

100W LED Waterproof Power Supply

100W waterproof driver powers outdoor reverse-lit sign sets from the letter base.

Frequently Asked Questions

How does halo-lit (reverse-lit) lettering work?

Dimensional letters are mounted on stand-off studs a short distance off the wall, with small LED modules (or sealed COB outdoors) fixed to their backs aimed at the wall. Light spills around the letter edges to create a soft halo, while the letter faces stay dark or metallic. The glow depends on stand-off gap, even module spacing and the wall finish.

What LED modules go inside reverse-lit letters?

Compact self-adhesive low-voltage modules such as DC12V 2-LED units, wired in strings and spaced evenly across the back of each letter - with extra modules at the center of large characters - aimed at the wall. Even spacing is what produces a uniform halo rather than a patchy outline.

How far off the wall should halo-lit letters be?

Typically around 15-30mm, tuned to letter size and the desired halo width - too close gives a thin tight outline, too far loses definition and over-spills. The wall finish matters too: matte light neutral surfaces render a clean halo, while glossy or very dark walls reflect poorly and may need a backer panel.

Can halo-lit signs be used outdoors in the rain?

Yes, with sealed components: weather-rated LED modules or a slim IP67 high-density COB (such as the 4x8mm 480/m) behind the letters for a continuous waterproof glow, plus a waterproof power supply (around 100W for a typical sign) in a protected location. Indoor modules and drivers must not be used on exterior signs.

Why is my halo sign glowing unevenly?

Usually one of three causes: modules spaced unevenly or missing from the center of large letters, the wrong stand-off gap (too tight or inconsistent), or a wall finish that reflects poorly (glossy, dark or textured). Even out module placement, set a consistent gap, and add a matte light backer panel if the building wall won't reflect cleanly.
