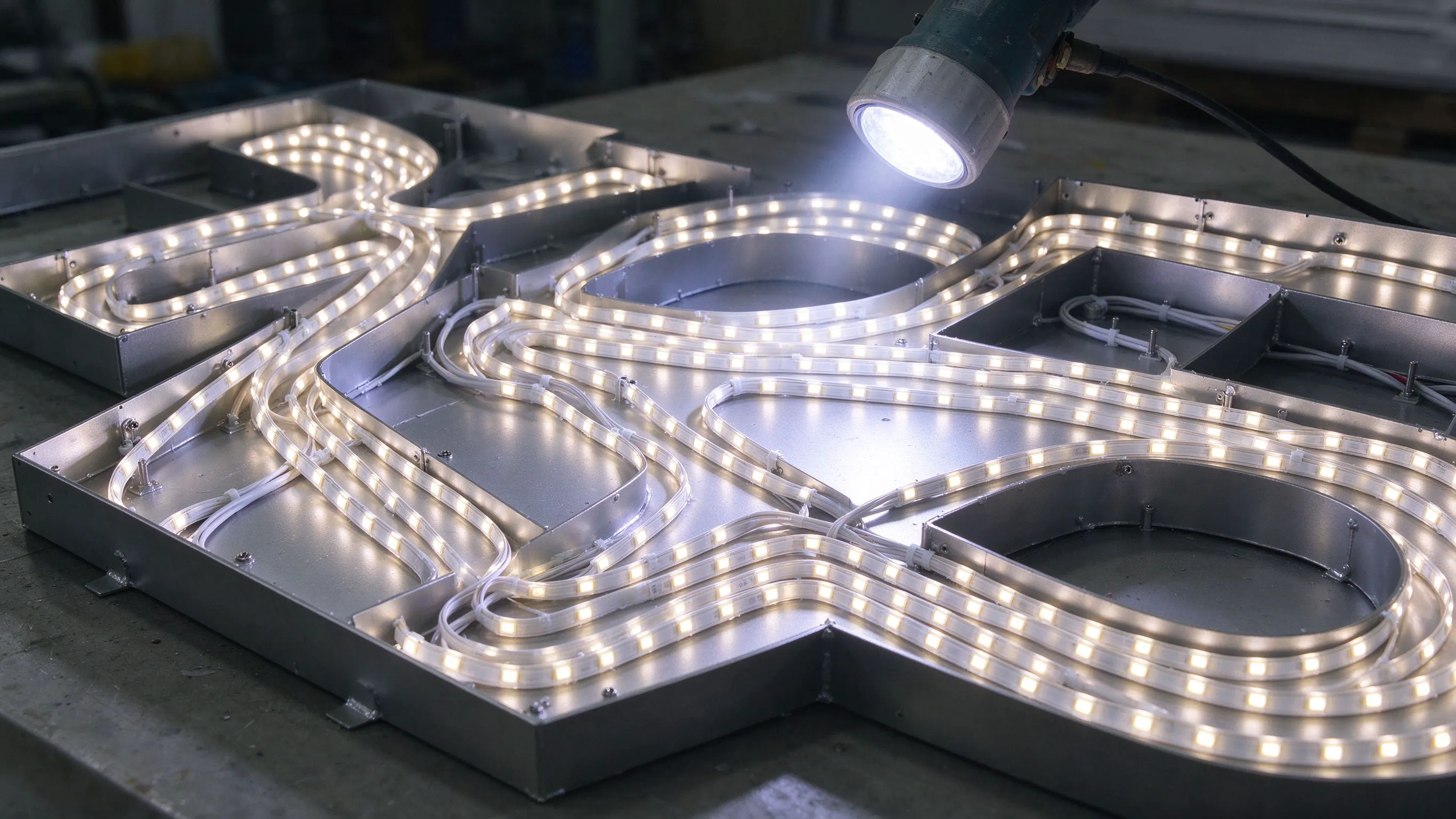

Zigzag & Foldable LED Strips for Channel Letters and 3D Sign Cabinets

Shallow Letters Need Light That Folds, Not Runs Straight

Channel letters and shallow sign cabinets are awkward to light: the interior is small, irregularly shaped and often only a few centimeters deep, and a straight strip laid along one axis leaves bright lines and dark zones, especially across the wide face of an 'O', 'A' or rounded logo. Sign makers historically hand-placed many individual LED modules to cover the area - slow and inconsistent.

Zigzag (also called foldable, serpentine or 'S-shape') strip solves the geometry directly. It's manufactured to expand like an accordion into a wider band and fold in two axes, so one continuous strip can be stretched and conformed to cover the full face of a letter or light box, distributing LEDs evenly in a way straight tape physically cannot.

Zigzag Strip Expands to Cover the Letter Face

A 6mm zigzag LED strip is a narrow foldable tape that opens into a serpentine mesh, letting you widen the lit band to fill the interior width of channel letters and then fold it around corners and curves. Because it's one continuous circuit, it installs faster than arrays of separate modules and gives more uniform coverage.

Use the 6mm zigzag inside small and medium channel letters - stretch the band to match the letter's internal width, fold it into the serifs and bowls, and the LEDs spread across the face rather than lining one path. It's particularly valuable in rounded letters and wide strokes where straight strip creates obvious dark centers.

• Stretch the serpentine band to the letter's internal width for even coverage.
• Fold into bowls (O, B, R) and serifs where straight strip leaves dark centers.
• One continuous circuit means faster, more consistent install than loose modules.
• Keep the strip off the face acrylic slightly to diffuse and avoid hot spots.
• Use the narrow 6mm type for small letters with tight interior space.

Higher-Power Zigzag for Larger Letters and Light Boxes

Big channel letters and deeper light boxes need more light and a foldable strip that covers more area per run. A zigzag 5050 strip (the S5050-60-RGB-2 type for color-capable versions, and white equivalents for standard backlighting) uses larger 5050 LEDs on the foldable substrate for higher output across large letter faces and cabinet signs.

Use the 5050 zigzag in large exterior channel letters and illuminated light boxes where the face is far enough from the LEDs that you need the extra punch, and where RGB/color-changing backlighting is wanted for branded or dynamic signs. The foldable structure still does the geometric work - conforming to the letter - while the bigger chips deliver the brightness a large face demands.

Free-Cut SMD for Returns, Borders and Tight Edges

Zigzag handles the broad face, but the letter returns (the sides), thin strokes and precise borders still need a linear light source that follows edges cleanly. This is where free-cut SMD strip complements the foldable band.

A 2835 free-cut SMD strip runs along the letter returns and thin strokes where you need a tidy linear glow that terminates exactly at corners with no dark tail, while the zigzag fills the wide faces. Combining the two - foldable zigzag across the face, free-cut linear along edges and returns - gives complete, uniform coverage of even complex letter sets without hand-placing dozens of separate modules.

Dividing a channel letter between foldable and linear strip.

Spacing, Diffusion and Avoiding Hot Spots

Even the right strip produces hot spots if it sits too close to the face acrylic or is spaced unevenly. The art of channel-letter lighting is matching LED spacing to the interior depth - shallower letters need denser, more diffused coverage, which is exactly why foldable strip exists - and keeping a consistent gap from the face.

• Match LED density to letter depth; shallow = denser zigzag coverage.
• Maintain an even gap from the face acrylic for smooth diffusion.
• Use white interior paint/reflective backing to bounce light into edges.
• Wire letters in parallel strings with correct current per the module spec.
• For RGB zigzag, ensure the controller and power support total LED load.

Recommended Products

6mm ZigZag LED Strip Light

6mm zigzag strip expands to fill narrow letter returns and curved sign cans.

Zigzag 5050 LED Strip ART-S5050-60-RGB-24

Zigzag 5050 RGB brings multi-color effects to foldable channel-letter lighting.

2835 Free Cut SMD LED Strip

Free-cut 2835 SMD lets you trim exact runs for each letter without wasting stock.

Frequently Asked Questions

What is zigzag or foldable LED strip used for in signage?

Lighting channel letters and shallow light boxes. Its accordion/serpentine structure expands into a wider band and folds around corners and curves, so one continuous strip covers the whole irregular letter face evenly - including bowls and serifs - instead of laying straight bright lines with dark gaps or hand-placing many separate modules.

How do you put LED lights inside channel letters?

Stretch and fold zigzag strip across the wide faces and bowls (6mm for small letters, 5050 for large), run free-cut 2835 SMD along the returns, thin strokes and borders, keep an even gap from the face acrylic, and use a white reflective interior. This gives uniform backlighting faster and more consistently than arrays of loose modules.

What size zigzag strip do I need for channel letters?

Use narrow 6mm zigzag for small and medium letters with limited interior depth and tight curves; step up to 5050 zigzag for large exterior letters and deep light boxes needing higher output (available in white or RGB for color-changing signs). Match the band's light density to the letter depth.

How do I avoid LED hot spots in illuminated letters?

Keep the foldable strip a consistent distance from the face acrylic (not pressed against it), match LED density to the shallow interior depth, spread the zigzag evenly across the face, and use a white reflective interior so light bounces into the edges. Shallow letters specifically need denser, well-diffused coverage.

Can zigzag strip do color-changing channel letters?

Yes - RGB foldable versions (such as the zigzag 5050 RGB) fill large letters and light boxes with color-changing light, while you run compatible RGB along the returns. Just confirm the controller protocol and total LED/pixel load and provide adequate power, since RGB backlighting across big faces draws considerably more than white.
