Quick Answer
LED strip colour can drift between reels and between production batches, even when both say “3000K”. The fix is to order the whole project from one colour bin and one batch, ask for the bin code, keep 5–10% spare from the same batch, and lay sample lengths side by side before install. This avoids the visible warm-cool seam that appears when reels from different batches meet on a long run.
📑 Table of Contents
A grand multi-reel run must look like one continuous tone — the goal of batch-matched ordering.
Why Reels Look Different Even With the Same CCT
Two reels labelled “3000K” can still differ subtly. LEDs are sorted (binned) by exact colour, brightness and voltage after manufacture; phosphor lots also vary. A reel from production week one and a reel from production week three may both be “3000K” but sit on opposite edges of the acceptable colour range. On a continuous cove that seam is immediately obvious. This is related to the SDCM grading explained in our MacAdam & SDCM guide.

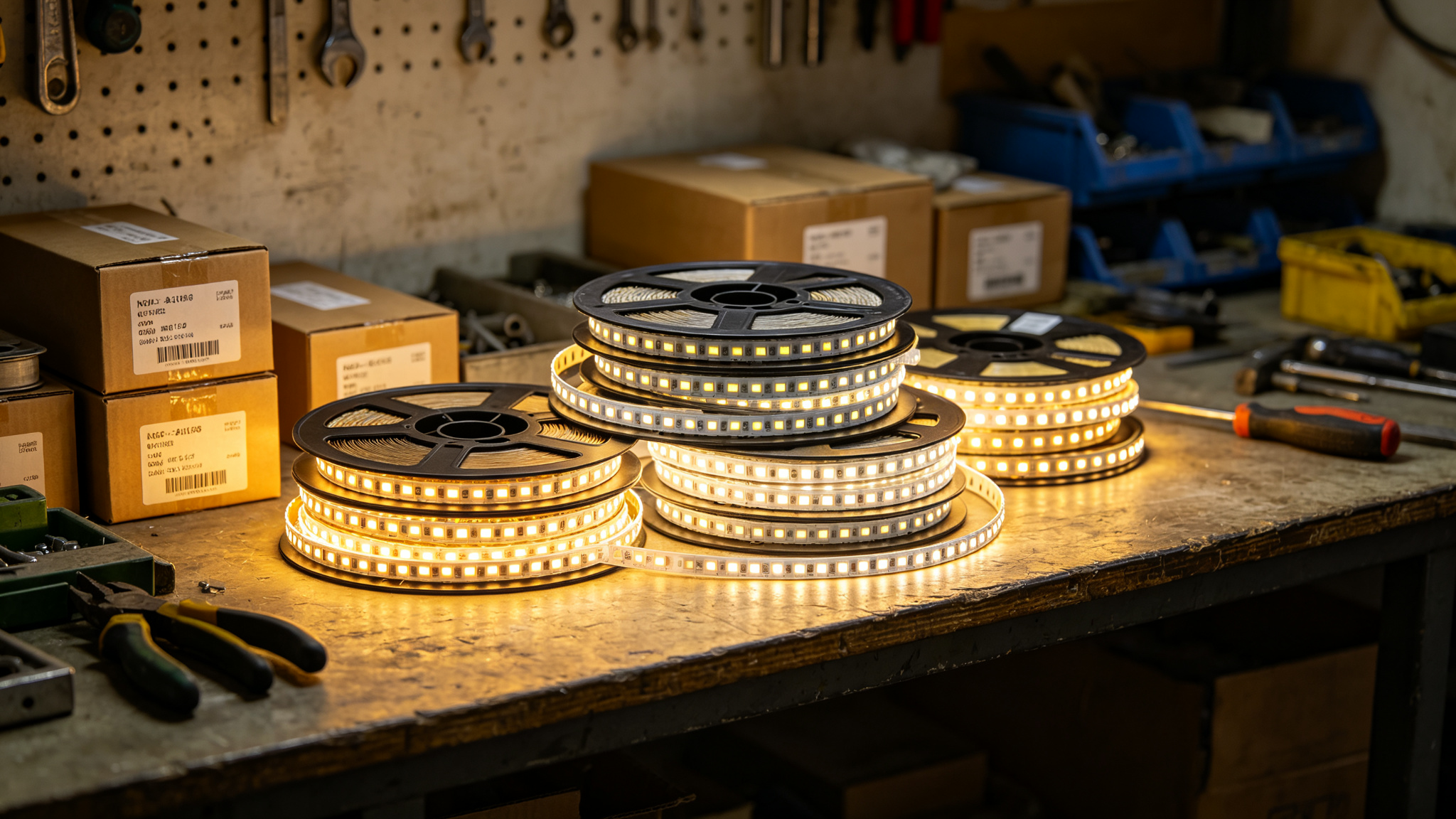

Same-bin reels blend invisibly — no warm/cool boundary where one reel ends and the next begins.
Colour Bins and Batches
- Colour bin: the narrow colour group a reel is sorted into (e.g. “3000K, 3-step”). Within a bin, differences are near invisible.
- Production batch/lot: chips and phosphors vary between runs. Even the same bin from different batches can shift slightly.
- The professional rule: one CCT, one bin, one batch for the entire job, including spares.

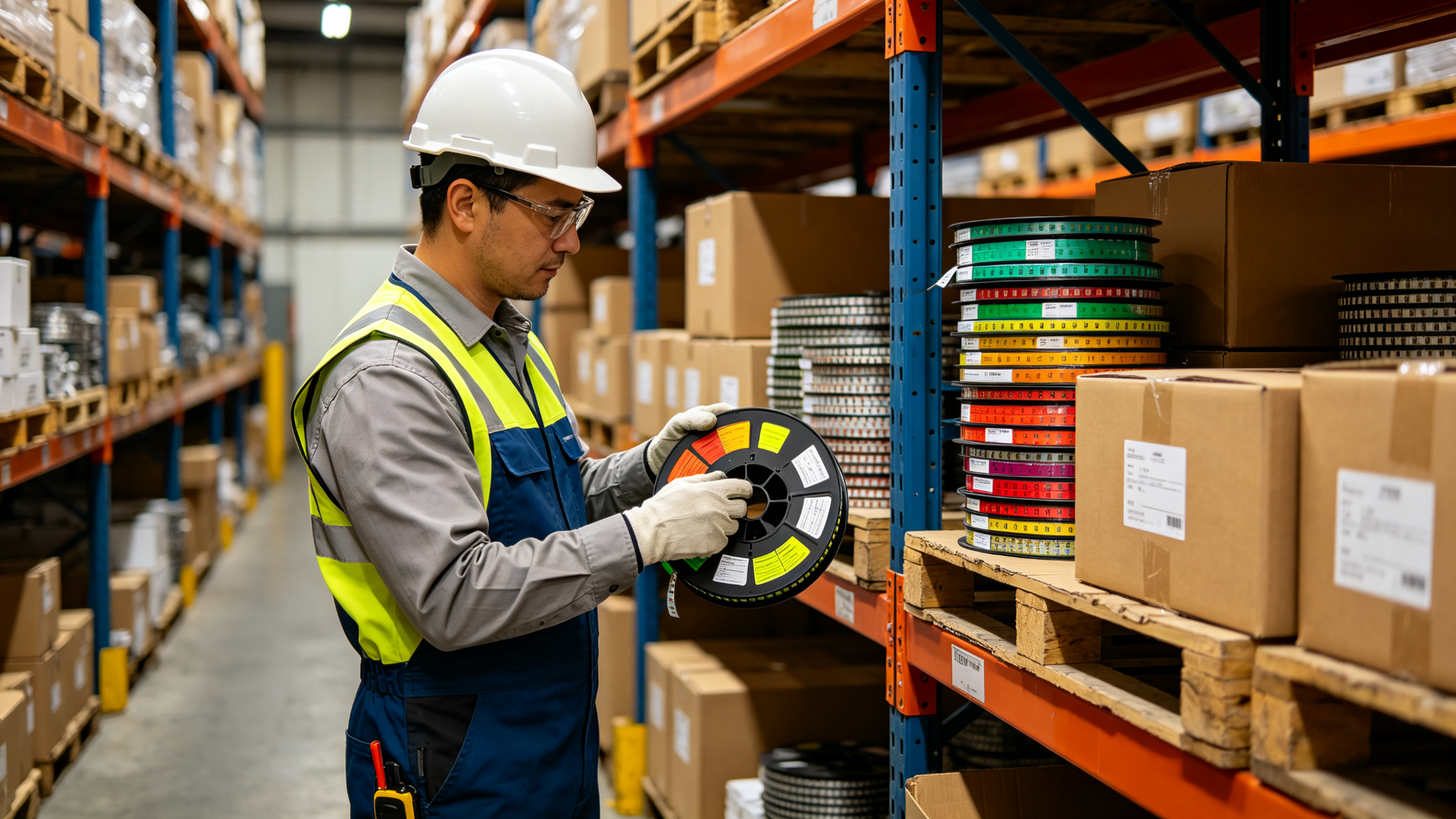

Checking batch labels before packing ensures every reel ships from the same colour lot.
Same-Bin vs Mixed-Batch: Table
| Approach | Colour Match | Visible Seam? | Risk |
|---|---|---|---|
| One CCT, one bin, one batch | Excellent | No | Lowest — recommended |
| Same CCT, same bin, different batch | Good | Rarely, if same bin | Low |
| Same CCT, different bins | Noticeable on long runs | Likely | Medium |
| No bin control / random reels | Mismatched | Yes, obvious | High |

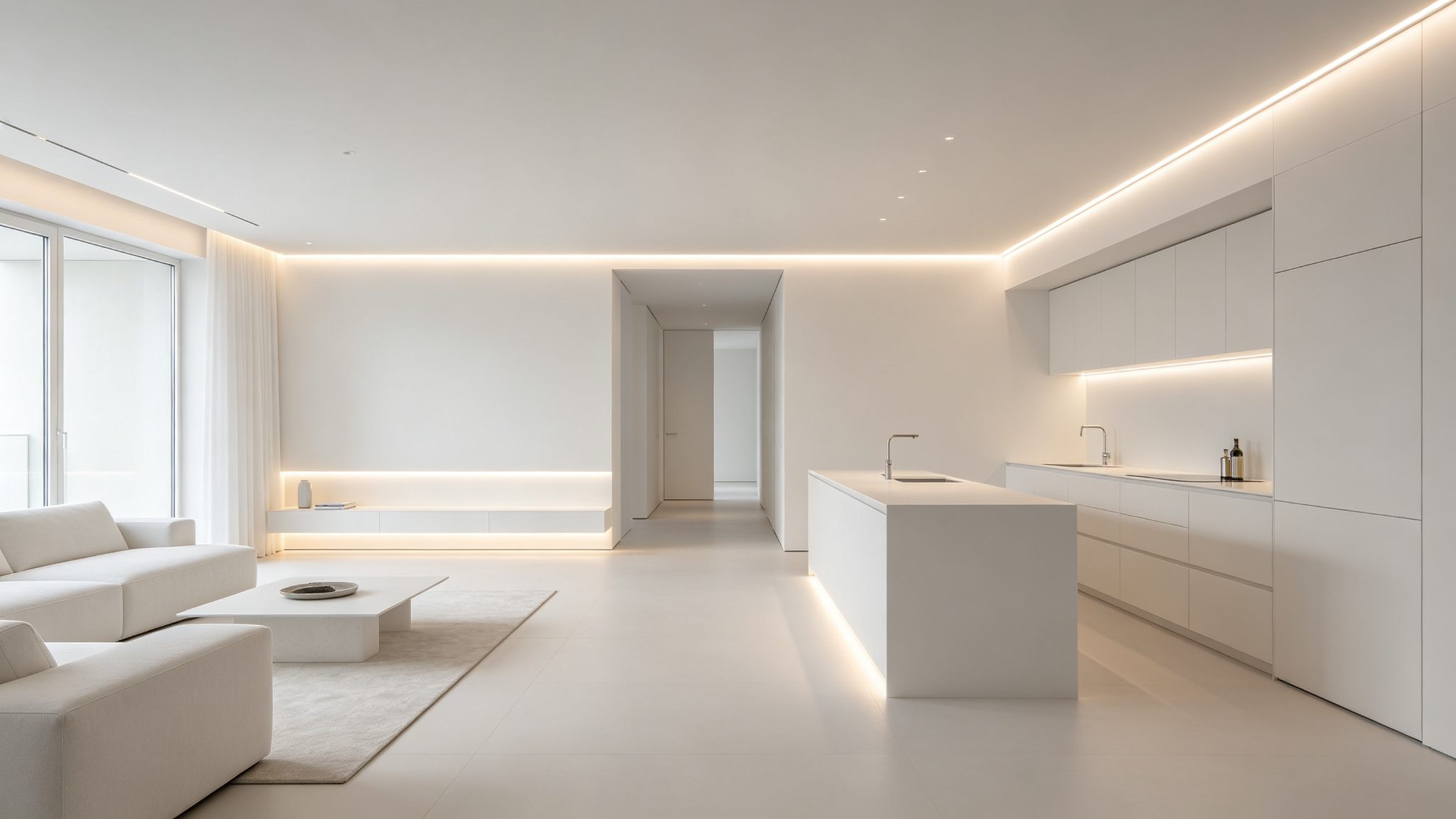

Multi-room projects must match across reels — batch control keeps every room the same tone.
How to Order a Matched Colour Run
- Calculate the total metreage first (run length × number of runs) and add 5–10% spare.
- Order it all at once and ask for “same colour bin, same production batch” in writing.
- Request the bin code / lot number on the packing list and invoice.
- Ask the factory to send sample lengths from the batch; lay them side by side to confirm.
- For extra-long runs, also address brightness falloff with power injection — see the voltage drop guide.
Two reels, one batch — the wall corner shows no colour jump.
Installation and Spare Tips
Rule of thumb: store spare reels in their sealed anti-static bags away from heat and sunlight. Phosphor can drift with age, so “old spares” bought months later may not match a fresh reel — always buy your spare from the original batch. See the LED strip lifespan guide for ageing effects.

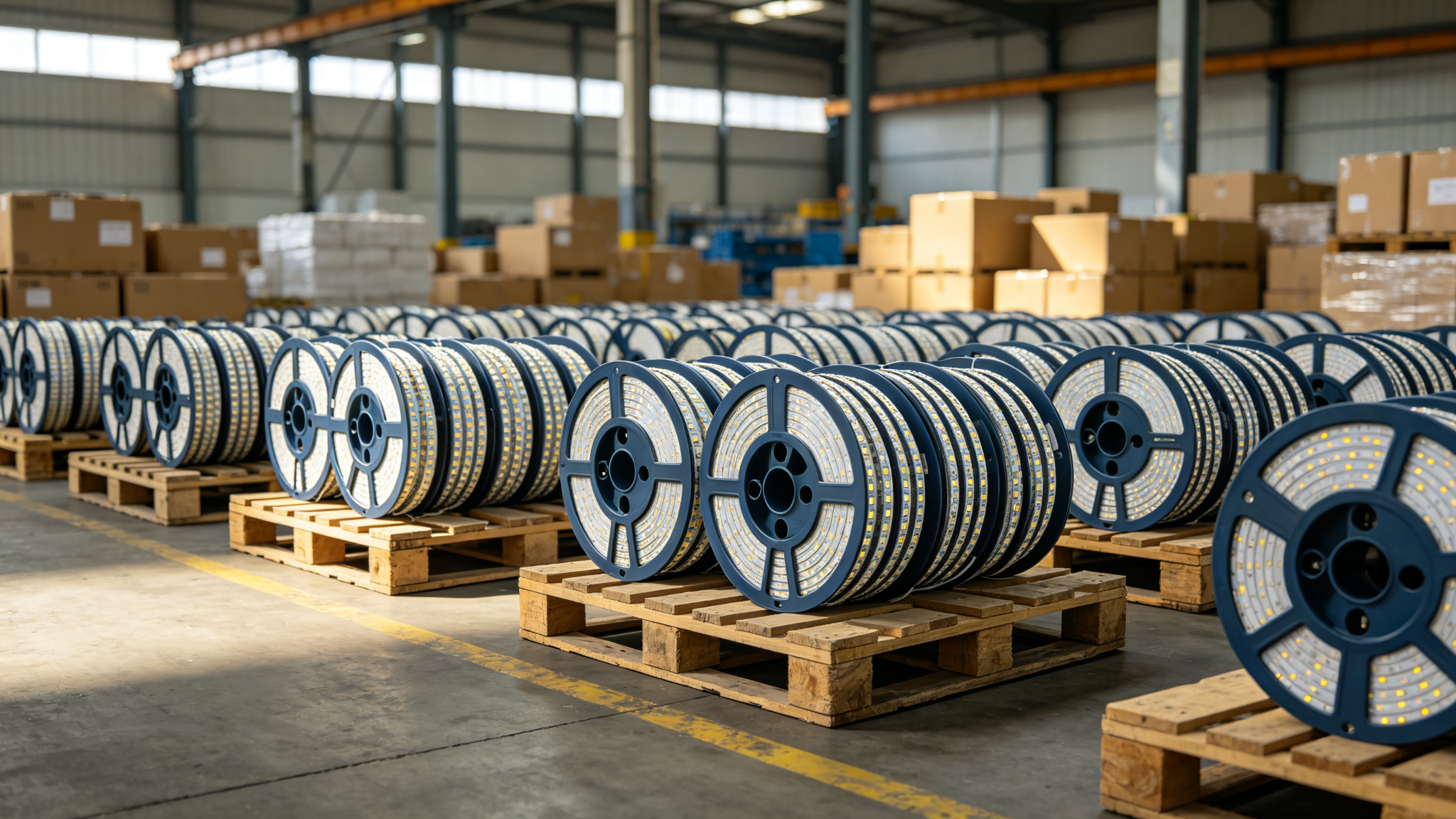

Buying the whole job from one pallet means one batch, one colour — the safest order.
The 30-second decision
One room or hidden run → any same-CCT reel. Long, visible, or multi-room project → one bin, one batch, 5-10% spare, samples first. Never top up later from a random stock reel.
Recommended Products
COB LED Strip Light 480 LEDs/m, 8 mm
Consistent-bin COB suitable for long visible runs — order the full metreage from one batch for seamless colour.
5×10 mm SOB LED Strip 240 LEDs/m, IP67
Fully sealed SOB supplied in matched batches for outdoor hospitality runs where colour must stay uniform.
8 mm PCB SOB LED Strip 240 LEDs/m, IP20
Indoor SOB line with tight colour-bin control for coves and retail where batch matching matters.
Reel-to-Reel COB LED Strip, 480 LEDs/m
Reel-to-reel production with consistent colour sorting — ideal for multi-reel projects needing one tone.
Frequently Asked Questions
Why does my new LED strip reel look a different colour?
Usually because it came from a different colour bin or production batch. Even reels labelled the same Kelvin can sit on opposite edges of the acceptable colour range. The cure is to order the whole project from one bin and one batch, and buy spares from that same batch.
How much spare LED strip should I order?
Order the calculated total length plus 5-10% spare, and take the spare from the same batch. This covers cuts, mistakes and future repairs without introducing a colour mismatch months later.
Can I mix reels from different manufacturers?
No. Different factories use different phosphors and binning, so even identical Kelvin and CRI numbers will not match. Use one supplier, one CCT, one bin and one batch for any continuous visible run.
How do I check the colour matches before installing?
Ask the supplier to send sample lengths from the production batch, unroll a short section of each planned reel side by side, and view them under the same brightness and distance you will use on site. A visible warm-cool difference confirms a batch mismatch.
